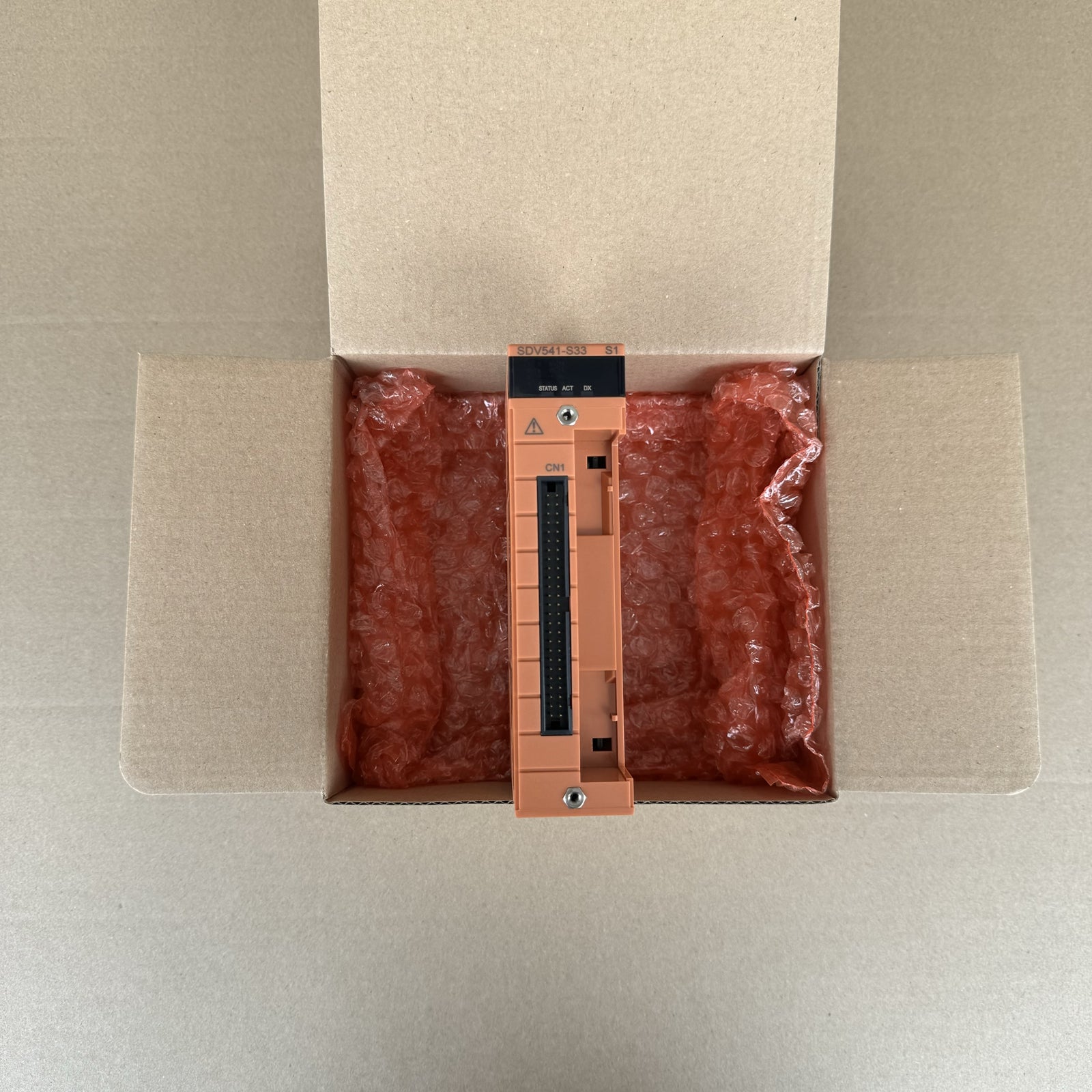

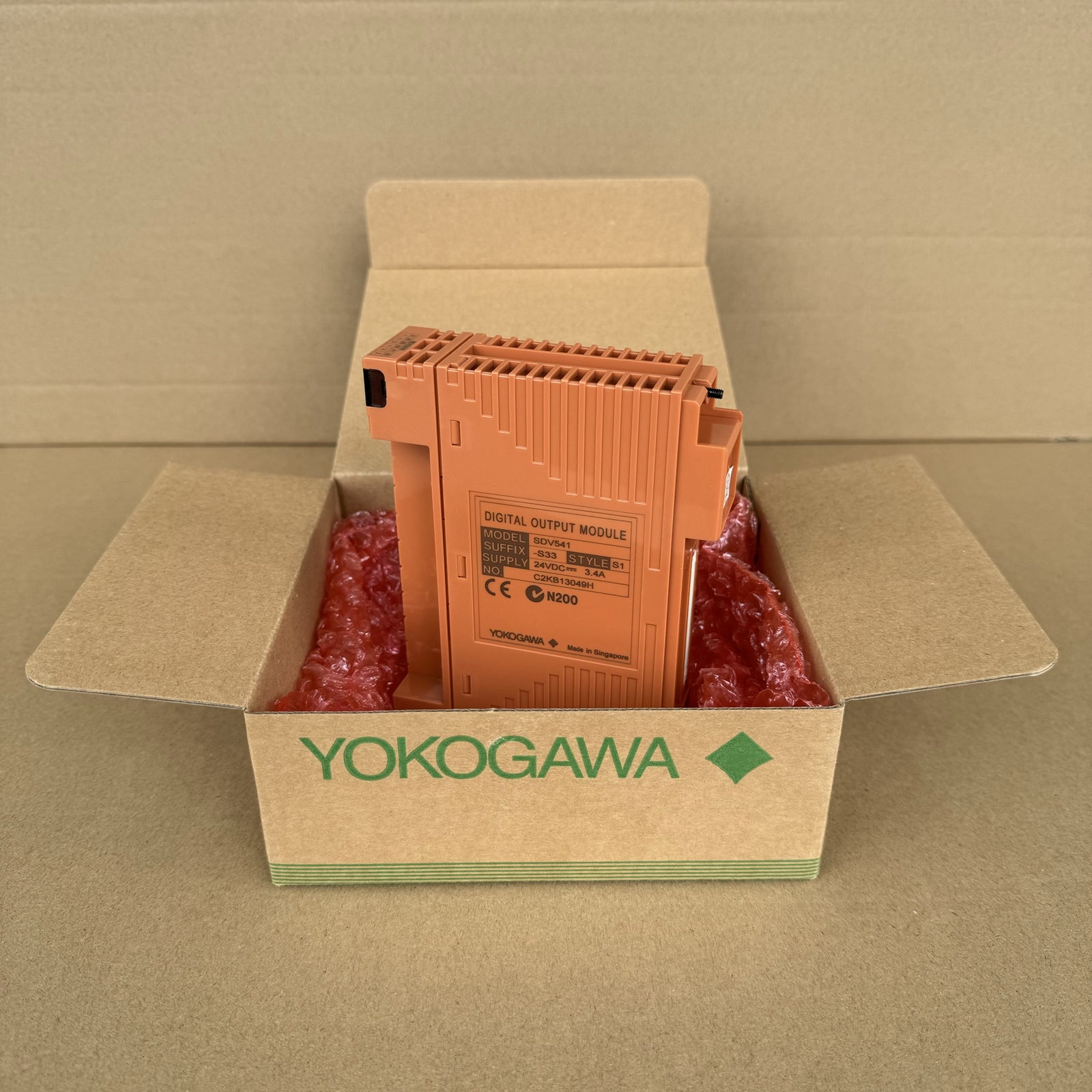

Product Overview

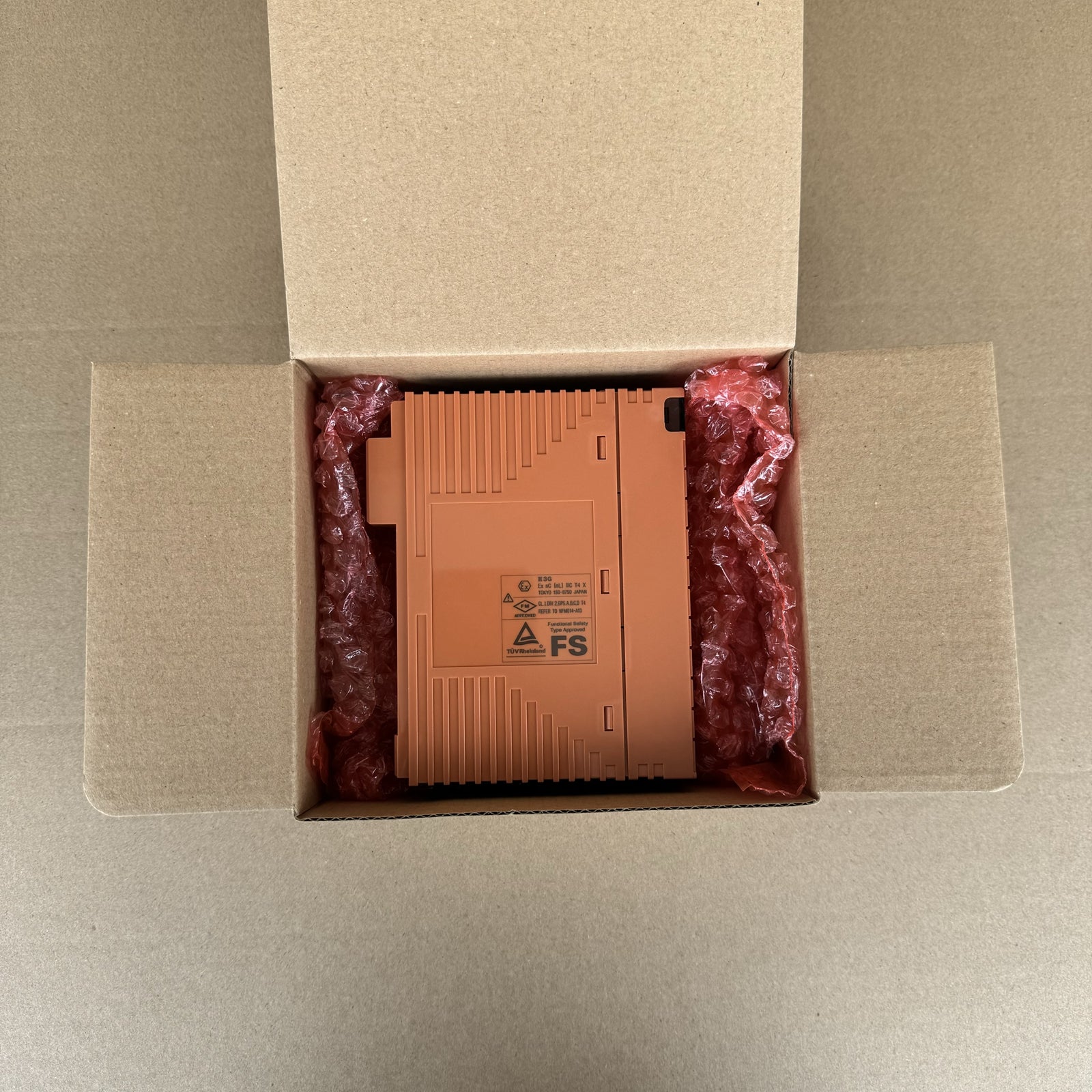

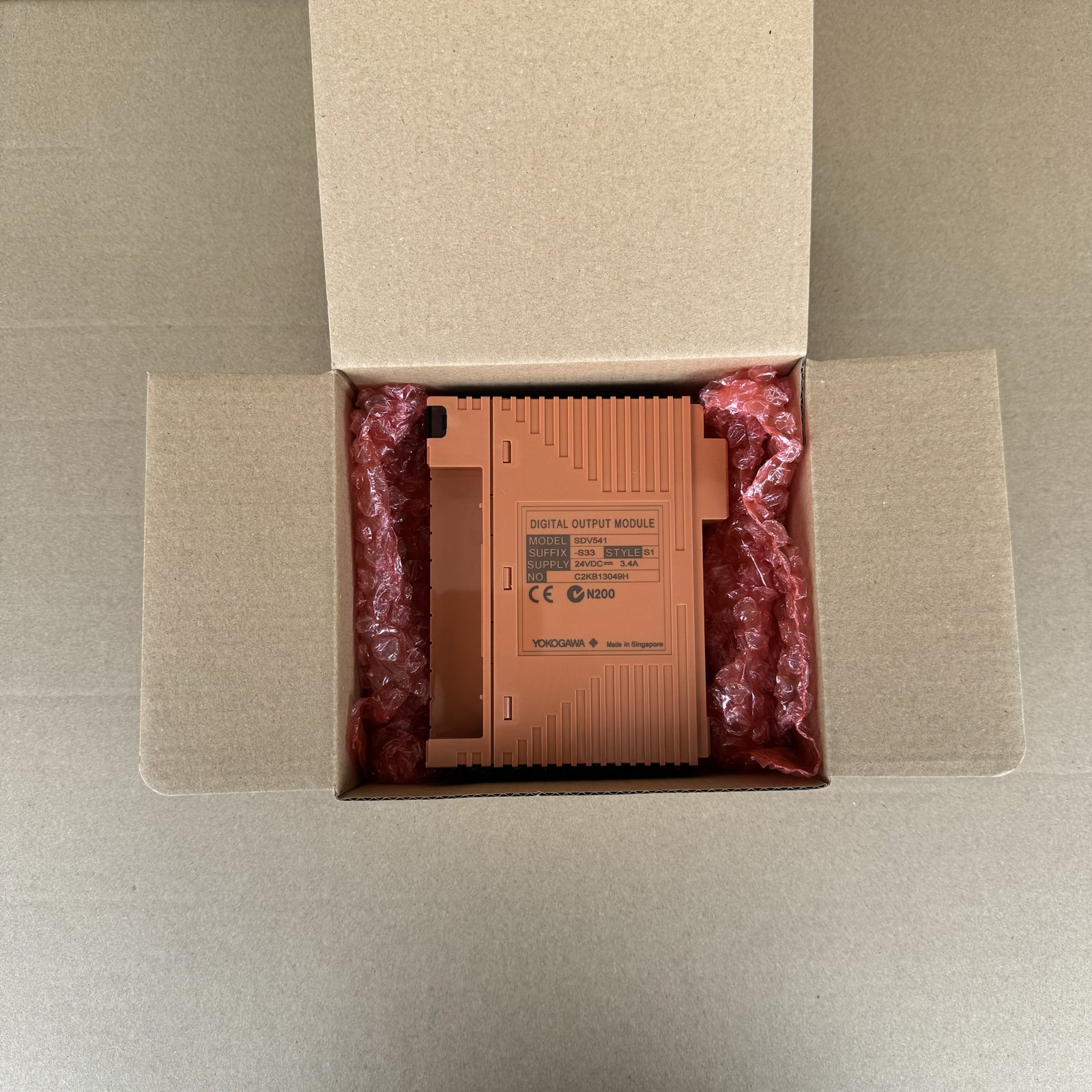

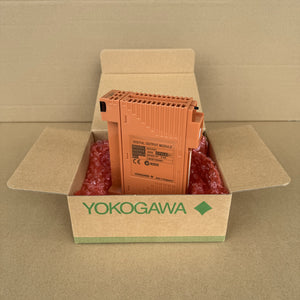

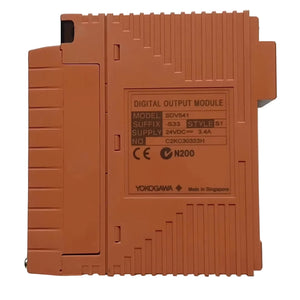

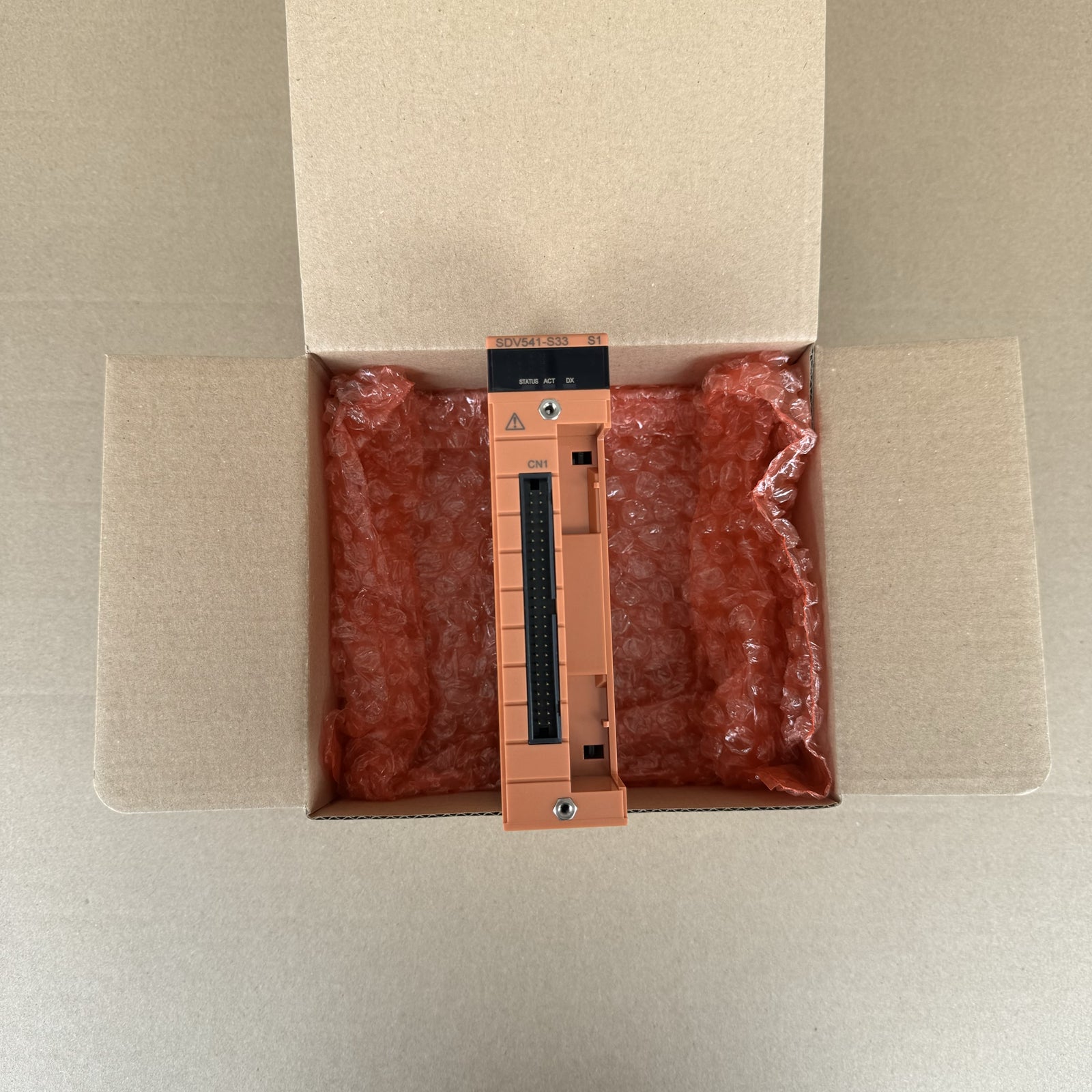

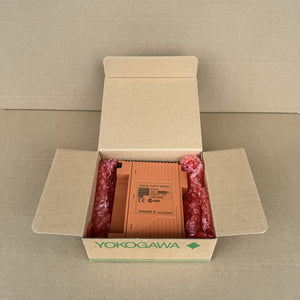

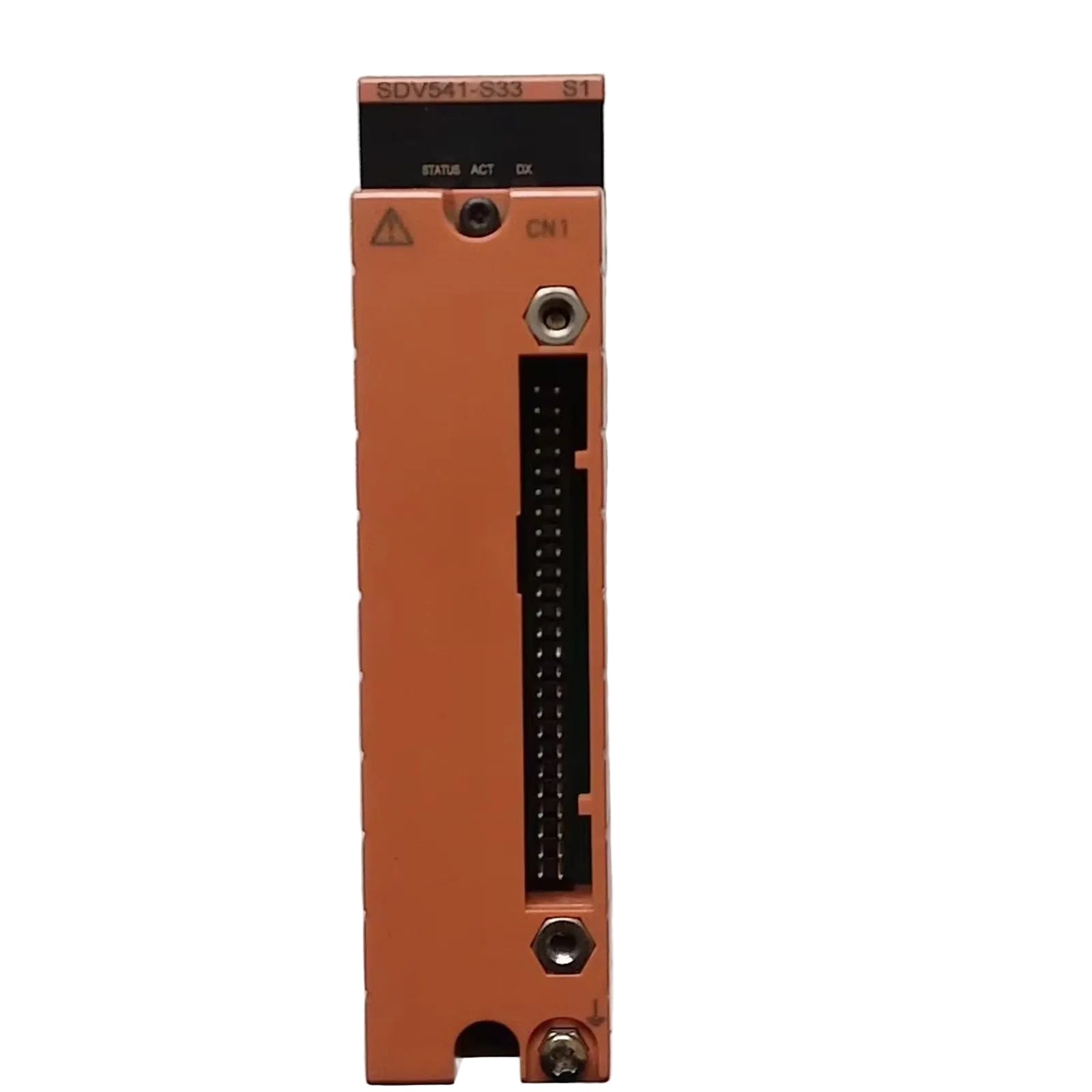

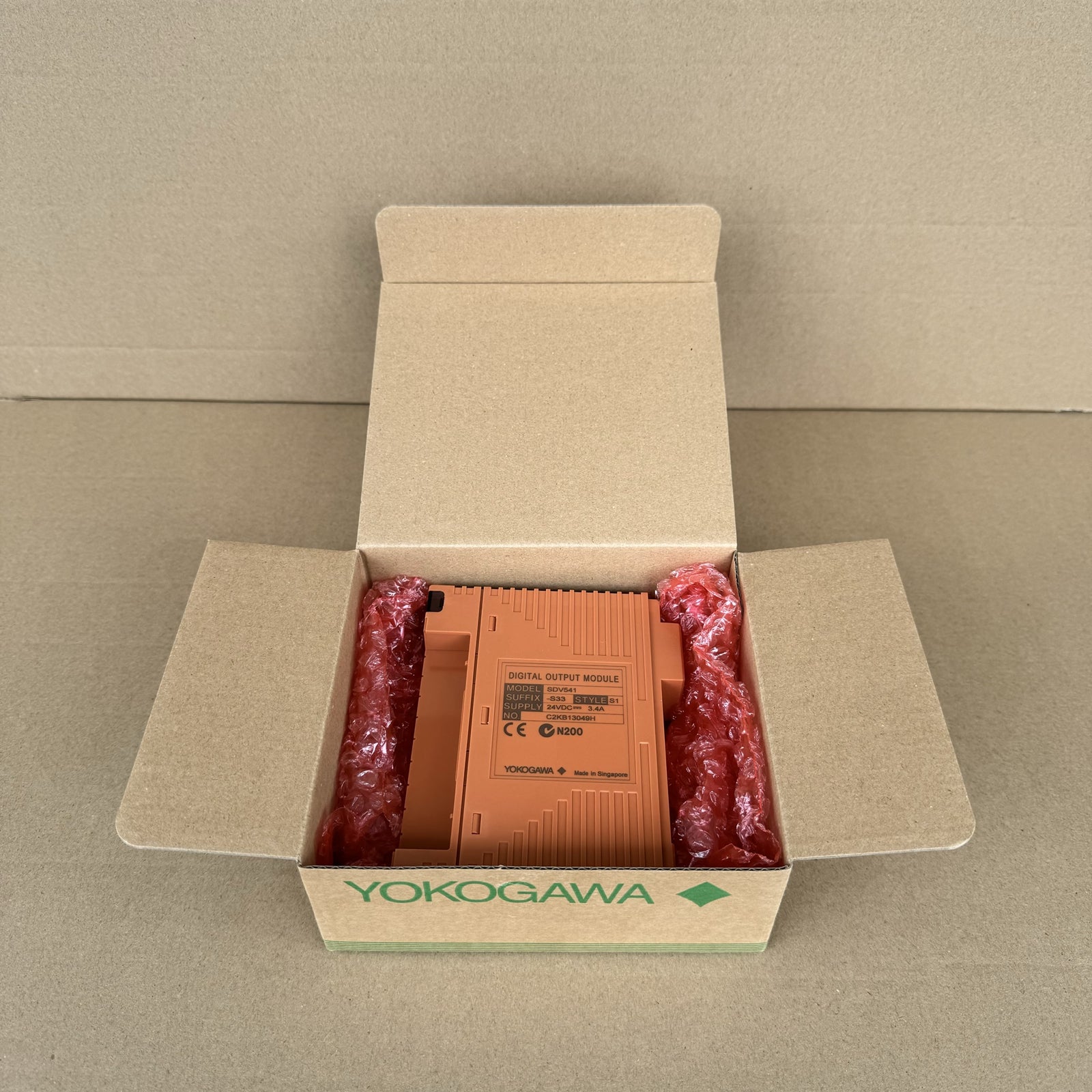

The Yokogawa SDV541-S33 serves as a high-integrity digital output module designed exclusively for the ProSafe-RS Safety Instrumented System (SIS). This 16-channel module executes critical safety commands, driving field devices such as solenoid valves, emergency shutdown (ESD) actuators, and fire-and-gas indicators. In high-risk environments like oil refineries and chemical processing plants, the SDV541-S33 ensures that safety logic transitions into physical action without delay. The module incorporates sophisticated self-diagnostic features that detect open circuits and short circuits in real-time, maintaining the strict functional safety requirements of SIL3 applications. By providing galvanic isolation and robust electrical protection, this module prevents field-side faults from impacting the safety processor, guaranteeing maximum uptime and protection for your industrial assets.

Technical Configuration

The SDV541-S33 follows a specific suffix logic that determines its functional capabilities and environmental hardware specifications:

S - Standard Type

The "S" prefix denotes the standard configuration, optimized for typical industrial control environments within a controlled cabinet setting. It supports the full suite of ProSafe-RS safety features and diagnostic protocols.

3 - With Signal Cable Interface Adapter

The first "3" indicates the module includes a dedicated signal cable interface adapter. This allows for rapid, secure wiring to external terminal boards using pre-fabricated Yokogawa signal cables, reducing human error during installation.

3 - Conformal Coating

The final "3" signifies that the internal circuit boards feature a high-grade conformal coating. This protective layer shields the electronics from humidity, dust, and corrosive gases (such as H2S), significantly extending the module's service life in harsh industrial atmospheres.

Technical Specifications

Engineering Advantages

The SDV541-S33 excels in high-demand safety loops due to its integrated "Line Monitoring" technology. Unlike standard PLC outputs, this module performs active pulse tests to verify the electrical health of the connected field device even when the output is in the "OFF" state. Its hardware-based isolation circuitry eliminates the need for external interposing relays in many 24V DC applications, streamlining the cabinet design and reducing potential points of failure. The conformal coating (as indicated by the -S33 suffix) makes it ideal for offshore platforms and wastewater treatment facilities where salt spray and corrosive chemicals would otherwise degrade standard electronic components.

Installation Guide

When installing the SDV541-S33, ensure the module is fully seated into the I/O base plate to establish proper communication with the safety bus. Maintain the vertical orientation of the module to allow for natural convection cooling, as heat management is critical for high-current output modules.

Engineers must calculate the total current draw of all 16 channels to ensure it does not exceed the cabinet's power supply capacity. Use the integrated interface adapter to connect the module to the field terminal block via Yokogawa KS1 or similar signal cables. During commissioning, utilize the ProSafe-RS engineering software to configure the "Output Status Readback" function, which allows the module to confirm that the physical output state matches the intended safety logic. If operating in areas with high vibration, ensure the locking levers on the module faceplate are securely engaged to prevent intermittent connection issues.

Technical FAQs

Q1: Does the SDV541-S33 support redundant configurations?

A1: Yes, the SDV541-S33 supports dual-redundant pairing when installed on a compatible redundant base plate. This allows for module replacement while the safety system remains active.

Q2: What is the benefit of the "-33" suffix regarding corrosion?

A2: The "-33" suffix indicates a conformal coating that meets G3 environmental standards. This provides superior protection against corrosive gases like sulfur dioxide and hydrogen sulfide.

Q3: Can this module detect a broken wire in the field?

A3: Absolutely. The SDV541-S33 features built-in open-circuit detection. It will trigger a diagnostic alarm in the ProSafe-RS system if it detects a loss of continuity to the field device.

Q4: What is the maximum current capacity per channel?

A4: Each channel supports up to 0.6 A at 24 V DC. However, always refer to the total module power dissipation limits when all 16 channels are active simultaneously.
