SDCS-BAB-F02 3ADT316400R0502 ABB DCS Excitation Modules

SKU: 3ADT316400R0502
Categories : ABB
In Stock
  • Dimensions: 24 x 19 x 5.3cm
  • Country of origin: Sweden
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Product Overview

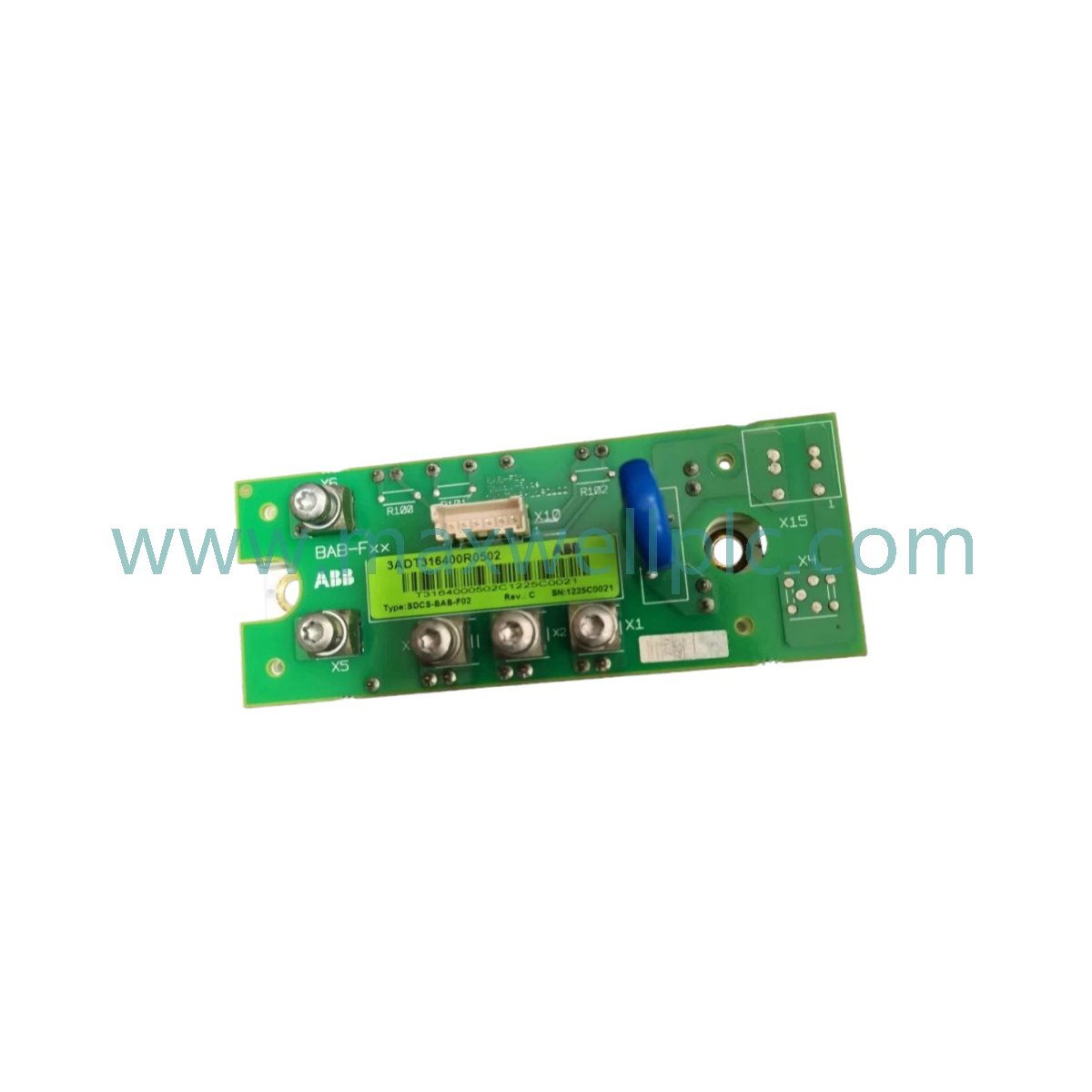

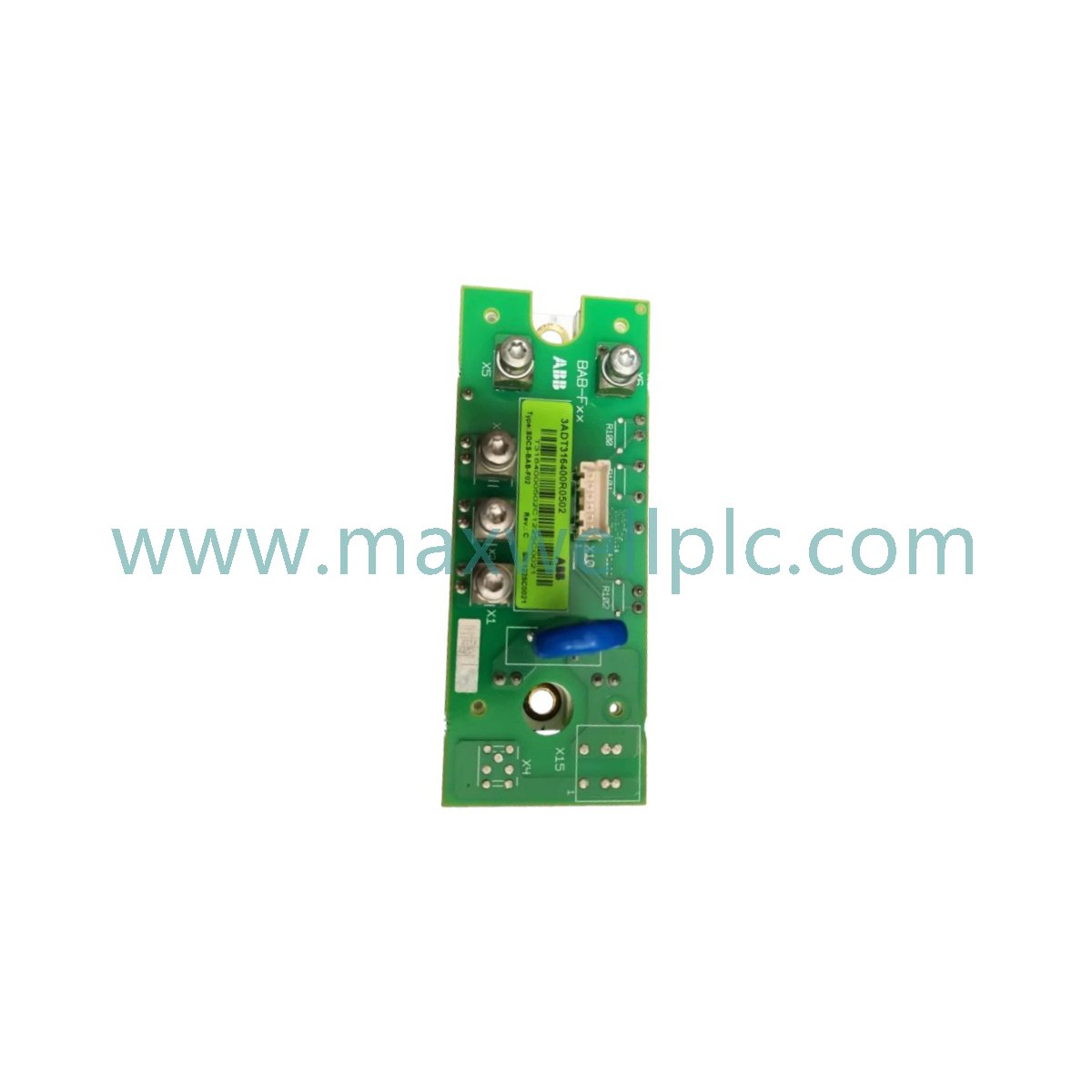

The SDCS-BAB-F02 (3ADT316400R0502) Excitation Module serves as the primary SDCS-BAB-F02 Excitation Module used to execute control or monitoring functions across automation platforms. This unit functions as a high-performance bridge adapter engineered specifically for ABB DCS550 and DCS880 DC drive systems. It facilitates the interface between the drive control board and the main power module, providing three-phase semi-controlled excitation. The module ensures precise current regulation for motor excitation, maintaining synchronous operation and torque stability within large-scale industrial drive configurations.

Technical Specifications

Parameter Specification
Model SDCS-BAB-F02 (3ADT316400R0502)
Brand ABB
Origin Sweden
Weight 1.22 kg
Dimensions 24 x 19 x 5.3 cm
Operating Temperature Industrial Standard
Power Consumption Drive Backplane Powered
Supported Thyristors F3/F4 sizes
Current Rating 315–1000 A

Brand-Specific Technical Block

The SDCS-BAB-F02 is architected to interface seamlessly with the ABB DCS drive backplane communication bus. It manages the thyristor firing angles through internal pulse-width control, ensuring harmonic suppression and optimal torque response during transient loads. The module utilizes the proprietary DCSLink protocol for high-speed data synchronization with the main control processor, ensuring minimal latency in excitation adjustments. Thermal dissipation is managed through the module’s physical mounting geometry, designed for integration with F3 and F4 drive chassis to maintain operational stability during continuous heavy-duty cycles.

Ordering Information

  • Included items: Excitation Module, interface connector set, mounting hardware.

  • Standard package: Industrial anti-static moisture-resistant packaging.

  • Optional accessories: Spare pulse-transformer cables, thyristor gate-lead terminal sets.

Installation Guidelines

  • Verify that the drive power is isolated and locked out before installation.

  • Secure the module to the designated drive chassis slot using the provided mechanical fastners to ensure grounding contact.

  • Route pulse-gate leads and feedback signals through dedicated EMC-shielded cable channels to prevent crosstalk.

  • Ensure all terminal connections match the drive system wiring diagrams to prevent reverse-polarity damage to thyristor gates.

  • Observe physical clearance requirements to maintain required air gap for electrical isolation between high-voltage stages.

  • Confirm that the module is correctly seated on the backplane communication connector before applying control voltage.

Frequently Asked Questions

Q: Does the SDCS-BAB-F02 support hot-swap behavior?

A: This module is intended for permanent installation within the drive chassis; hot-swapping is not permitted under operating conditions.

Q: How does the unit influence backplane load?

A: The module is optimized for the specific backplane current limits of the DCS550/DCS880 series and acts as a standard bus node.

Q: Is there a redundancy switching delay?

A: The excitation module follows the main drive control signals; redundancy switching is managed by the system controller logic, not the module itself.

Q: Is firmware compatibility required for this adapter?

A: Yes, the module must be compatible with the drive firmware version to ensure proper parsing of control pulse commands.

Q: Does the unit provide signal isolation?

A: Yes, internal galvanic isolation is provided between the control signal path and the power-stage pulse circuits.

Q: Are there specific field wiring constraints for thyristor gates?

A: Gate-lead wiring should be kept as short as possible and must be twisted to minimize inductive interference from the power stage.

Q: What happens if the DCSLink connection is lost?

A: Loss of communication triggers a drive safety fault, defaulting the excitation to a safe-state shutdown to protect the motor.

Q: Can this unit support drives outside the DCS550/DCS880 range?

A: The SDCS-BAB-F02 is validated only for the DCS550 and DCS880 series; integration with other systems is not supported.
