Product Overview

The SDCS-AMC-DC-2, part number 3ADT312700R0001, is a high-precision asynchronous motor control and communication board primarily utilized within the ABB DCS 600 drive system. This specialized control board functions as the central intelligence for drive regulation, managing complex algorithms that ensure stable torque and speed performance. By integrating advanced digital signal processing capabilities, the SDCS-AMC-DC-2 facilitates high-speed data exchange between the drive's power section and higher-level automation networks. Its architectural design prioritizes low-latency response times, making it a critical component for systems requiring synchronized multi-drive coordination and precise motion control.

Hardware Architecture and Physical Specs

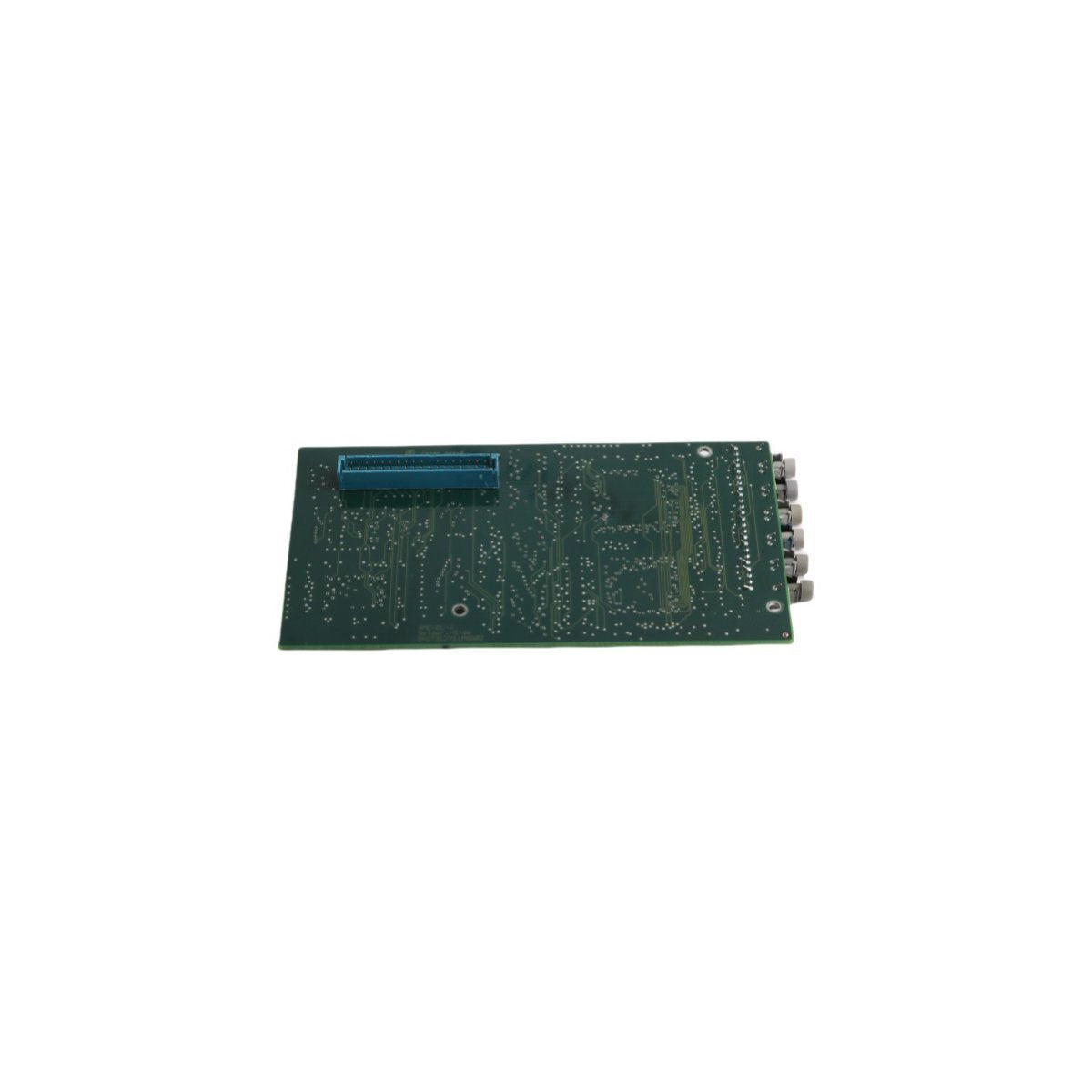

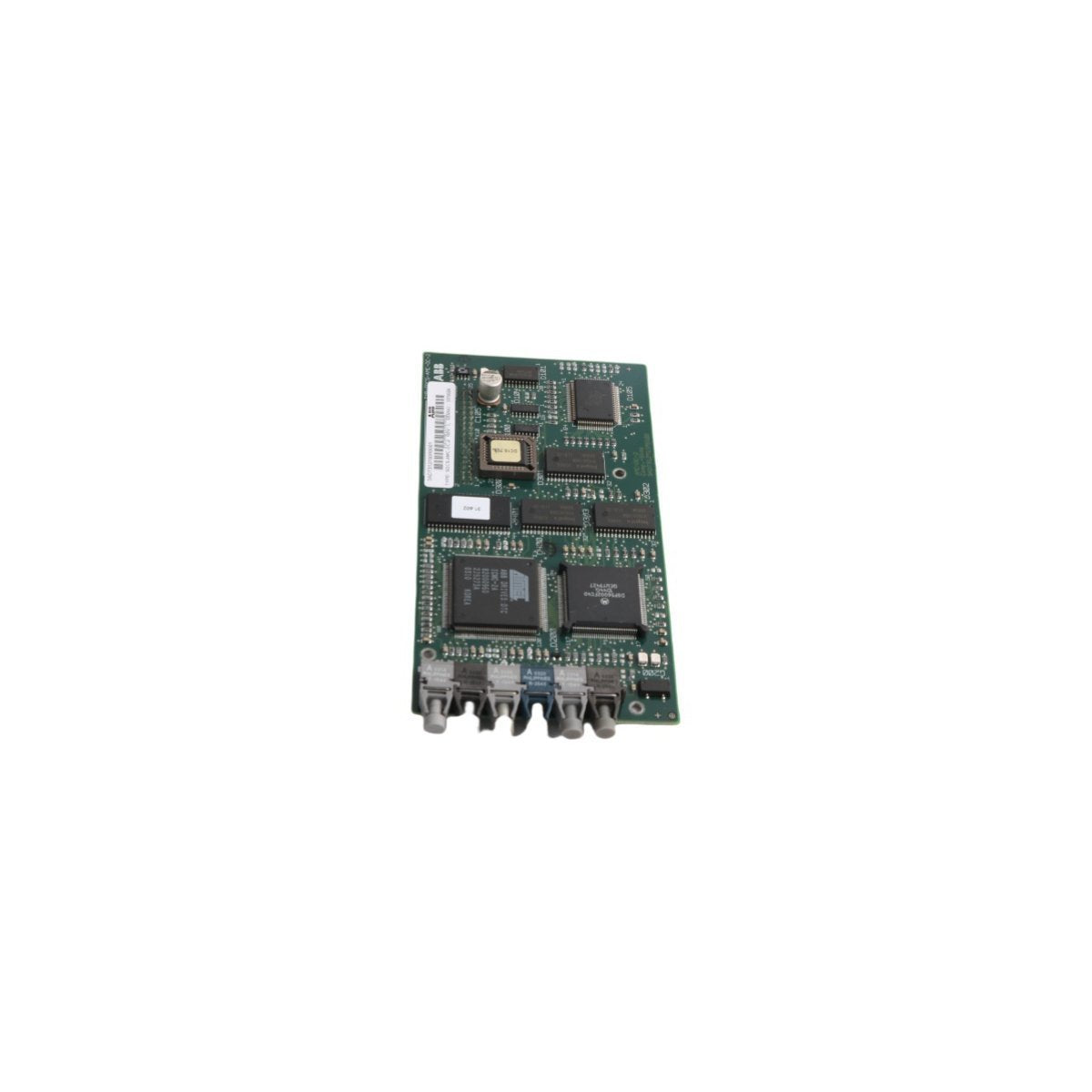

• Component Identification: SDCS-AMC-DC-2

• Engineering Code: 3ADT312700R0001

• Product Family: DCS 600 Series

• Board Classification: AMC (Application and Motor Control) Board

• Mass: 0.08 kg

• Physical Profile: 16.3cm x 8.3cm x 2cm

• Communication Interface: Fiber optic link capability for DDCS (Distributed Drive Communication System)

• Manufacturing Location: Sweden

• Tariff Code: 8537101190

• Environmental Suitability: Designed for cabinet-integrated industrial environments

Industrial Deployment Context

The SDCS-AMC-DC-2 board is specifically engineered for heavy-duty power electronics applications. Its primary deployments include:

• Metals and Mining: Controlling large DC drives in rolling mills and mine hoists where rapid torque response is mandatory.

• Paper and Pulp: Managing sectional drive systems that require precise synchronization across multiple motor stages.

• Material Handling: Coordinating large-scale crane and hoist movements in maritime or construction environments.

• Oil and Gas: Regulating pumping stations and drilling equipment where high reliability and system uptime are non-negotiable.

FAQ

Q: What is the primary function of the SDCS-AMC-DC-2 board within a DCS 600 drive?

A: This board acts as the main processing unit for application control and motor regulation. It handles the software execution for the drive’s logic and manages communication with external PLCs or other drive modules via fiber optics.

Q: Is the 3ADT312700R0001 interchangeable with other AMC boards?

A: While it belongs to the AMC family, it is specifically designed for the DCS 600 architecture. Always verify the firmware version and hardware revision requirements of your specific drive system before replacement.

Q: Does this board support fiber optic communication?

A: Yes, the SDCS-AMC-DC-2 typically features fiber optic terminals used for the DDCS (Distributed Drive Communication System) protocol, allowing for interference-free, high-speed data transmission.

Q: What are the storage requirements for this control board?

A: As a sensitive electronic component, it should be stored in an anti-static environment within its original packaging. Avoid exposure to high humidity or corrosive atmospheres to prevent degradation of the circuit traces.

Q: How does the lightweight 0.08kg design impact its durability?

A: The low mass reflects modern surface-mount technology (SMT) efficiency. Despite its weight, the board is engineered with industrial-grade substrates to withstand the vibration and thermal cycling common in drive cabinets.
