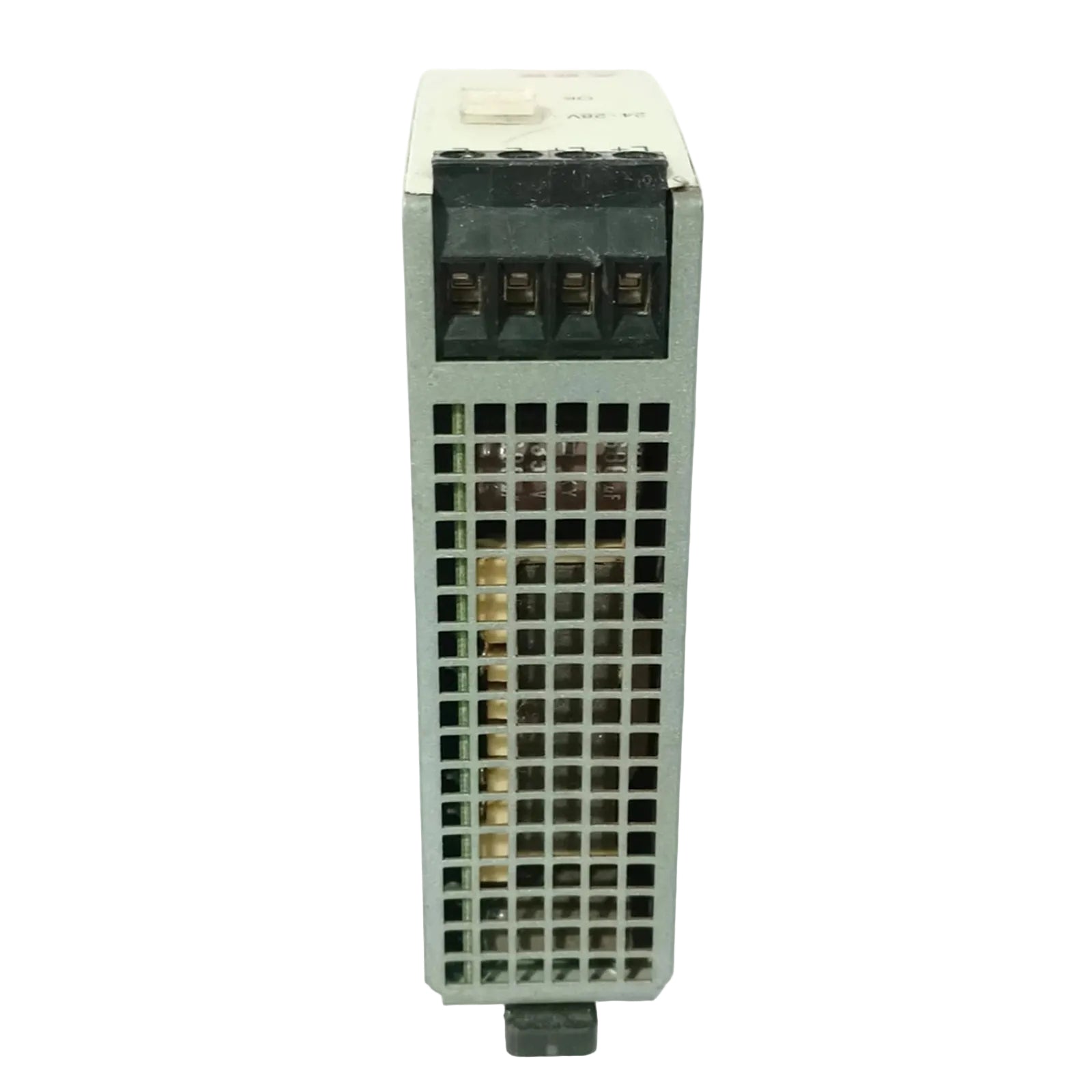

Configured for industrial 24 VDC power regulation in S800 I/O distributed control network platforms, the ABB SD832 (3BSC610065R1 Power Supply Module) provides direct physical electrical execution for converting wide-range AC inputs into a stabilized 120 W DC output.

Identification and Nomenclature

• Base Model: SD832
• Part Number: 3BSC610065R1
• Function: AC/DC Power Supply
• Series: S800 I/O

Hardware Specifications

Deterministic Network and Control Integration

The SD832 integrates into the S800 I/O backplane architecture, facilitating I/O density scaling by providing high-amperage, regulated power to distributed control nodes. Its design supports deterministic network behavior by maintaining tight voltage tolerance during transients, which prevents disruption to Profinet or EtherNet/IP deterministic networks. The module includes internal firmware flash compatibility, allowing integration with the system controller for monitoring of diagnostic status and supply health parameters.

Ordering Info

• 1 unit: SD832 Power Supply Module
• 1 set: Integrated terminal interface block
• 1 unit: Compliance and safety documentation

Field Installation Protocols

• Mounting Guidelines:
  • Secure the module to a 35 mm DIN rail within an industrial cabinet.
  • Ensure adequate airflow around the unit to prevent thermal derating.
• Electrical Connection:
  • Utilize the auto-select AC input feature for standard 100-120 VAC or 200-240 VAC grids.
  • Ensure proper chassis grounding to the DIN rail to meet electromagnetic interference (EMI) immunity requirements.
  • Use shielded conductors for the 24 VDC output to minimize noise coupling to sensitive control signals.

Frequently Asked Questions

• Q: Is the SD832 compatible with universal AC input voltages?

  A: Yes, the unit utilizes an auto-select function to operate within the 100-120 VAC or 200-240 VAC nominal ranges.

• Q: Can this module be hot-swapped while the system is under load?

  A: Hot-swapping is not supported; verify the input power is de-energized before performing maintenance or module replacement.

• Q: What is the primary function of the auto-select feature?

  A: This enables the power supply to adapt to varying international grid voltages without manual jumper configuration, reducing installation complexity.

• Q: Does the module provide protection against overload?

  A: Yes, the internal circuitry includes current-limiting features to protect the module and connected I/O components from short-circuit or overload conditions.

• Q: Is the output voltage adjustable?

  A: The output is factory-set to a nominal 24 VDC and is optimized for the S800 I/O backplane requirements.

• Q: How does the SD832 impact backplane bus communication?

  A: By providing stable power, it ensures the backplane bus communication velocity remains constant and avoids signal corruption due to voltage ripples.

• Q: What is the operational lifespan of the unit?

  A: Lifespan is highly dependent on ambient temperature and load; maintaining the unit within its thermal specifications is required for long-term operational consistency.

• Q: Can I connect multiple SD832 units in parallel?

  A: Parallel operation is subject to strict configuration guidelines; refer to the specific system manual to prevent back-feeding or impedance mismatches.
