Product Overview

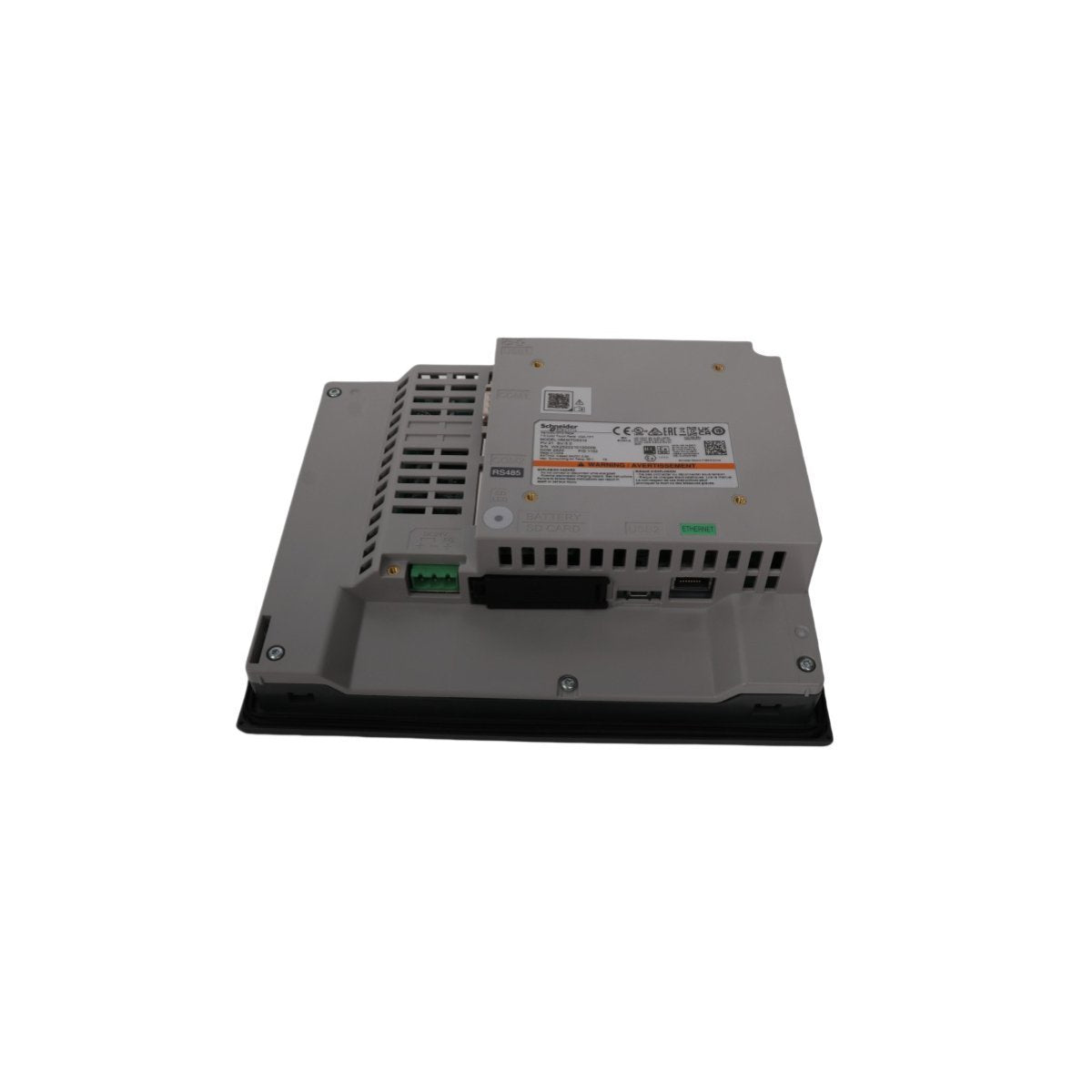

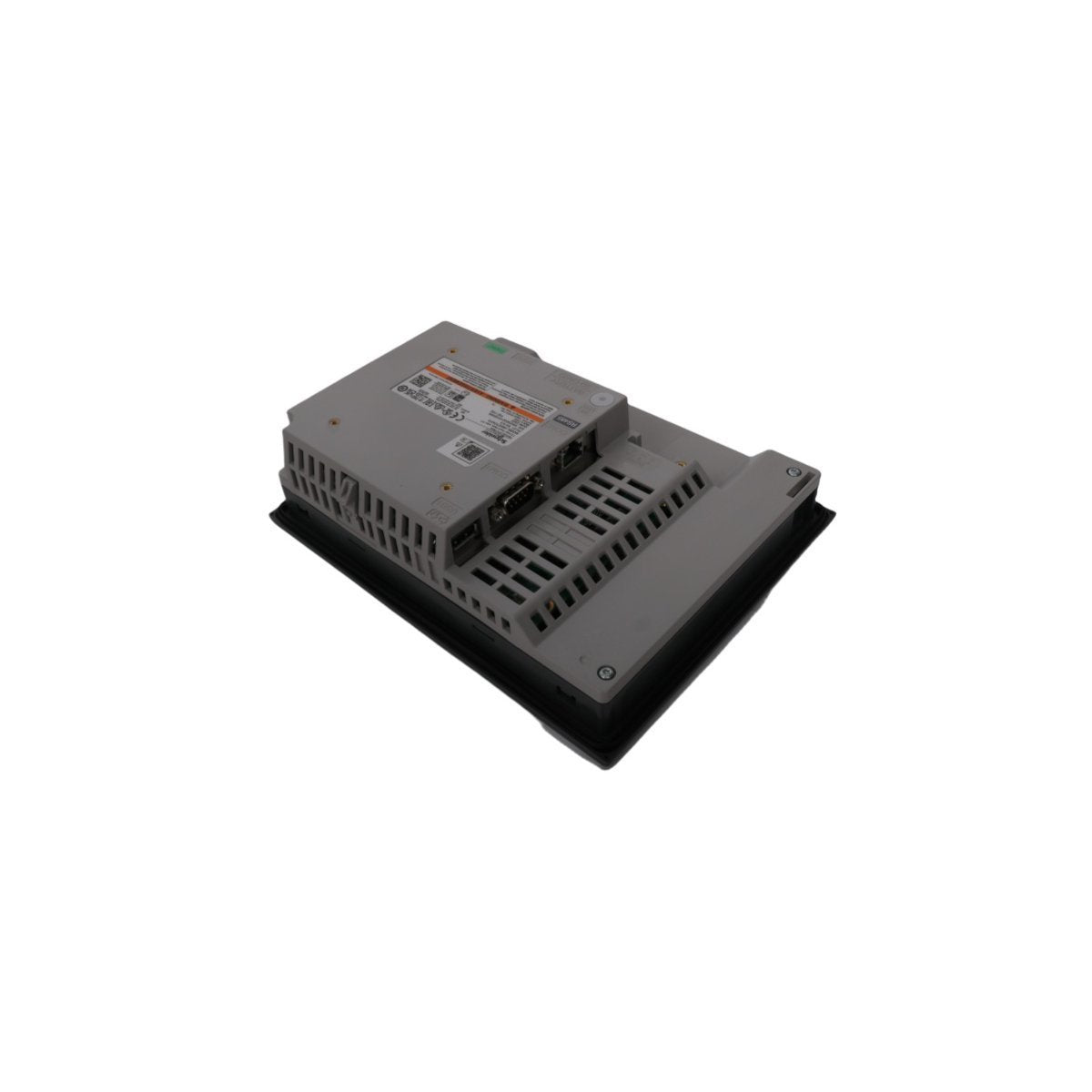

The HMIGTO4310 is a high-performance Human Machine Interface (HMI) from the Schneider Electric Harmony GTO series, specifically designed to bridge the gap between complex industrial logic and operator control. This 7.5-inch color touchscreen provides a centralized hub for real-time process monitoring and machine-level data visualization. Engineered for seamless compatibility within the Magelis ecosystem, it offers a high-resolution TFT display that brings clarity to industrial graphics and alarm management. Its robust build and compact architecture allow it to function as a dependable communication gateway, supporting a vast array of industrial protocols and facilitating efficient interaction with Programmable Logic Controllers (PLCs).

Mechanical Specifications and Technical Attributes

The HMIGTO4310 is built to withstand rigorous industrial environments while maintaining high-fidelity touch responsiveness and low power consumption.

• Display Type: 7.5-inch Backlit Color TFT LCD

• Resolution: 640 x 480 pixels (VGA)

• Color Depth: 65,536 colors

• Touch Sensitivity: Resistive film (Single-touch)

• Internal Memory: 96 MB Flash (Supports Vijeo Designer configuration)

• Input Voltage: 24 V DC (Permissible range: 19.2 to 28.8 V DC)

• Connectivity: Ethernet TCP/IP, USB 2.0 Type A/Mini-B, and Serial Links (RS-232C/RS-485)

• Storage Expansion: SD Card and SDHC Card support

• External Dimensions: 16.8 x 13.6 x 6.0 cm

• Unit Weight: 0.7 kg (Net) / Shipping weight approx. 1.2 kg

• Environmental Protection: IP65 (Front panel) and NEMA 4X compliance

• Manufacturing Origin: France

Industrial Applications and Strategic Use Cases

The Harmony HMIGTO4310 serves as a versatile interface for diverse automation sectors where space-saving designs and high-reliability data visualization are required.

• Manufacturing Automation: Monitoring state-of-the-art production lines where operators need immediate access to cycle times, part counts, and diagnostic warnings.

• Food and Beverage Processing: Utilizing the IP65-rated front panel for clean-room environments to manage mixing, heating, and bottling sequences.

• Material Handling: Acting as the localized control terminal for automated sorting systems and palletizers, providing real-time feedback on motor health and conveyor status.

• Water Treatment and Utilities: Integration into pumping stations to visualize flow rates, pressure levels, and pump staging without the need for large, bulky enclosures.

• OEM Machinery: Serving as a standard HMI for specialized equipment builders who require a compact, multi-protocol interface that supports global industrial standards.
