Product Overview

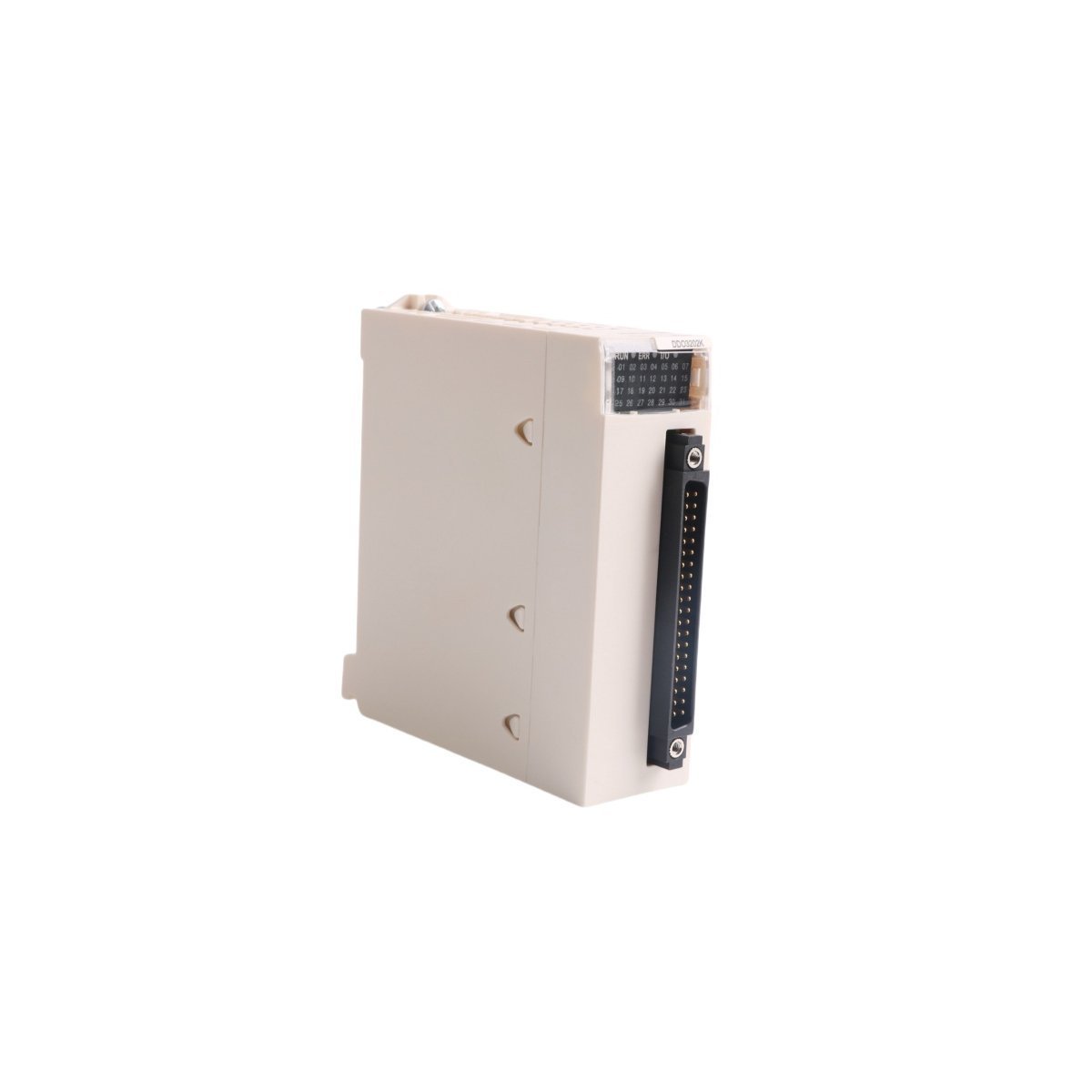

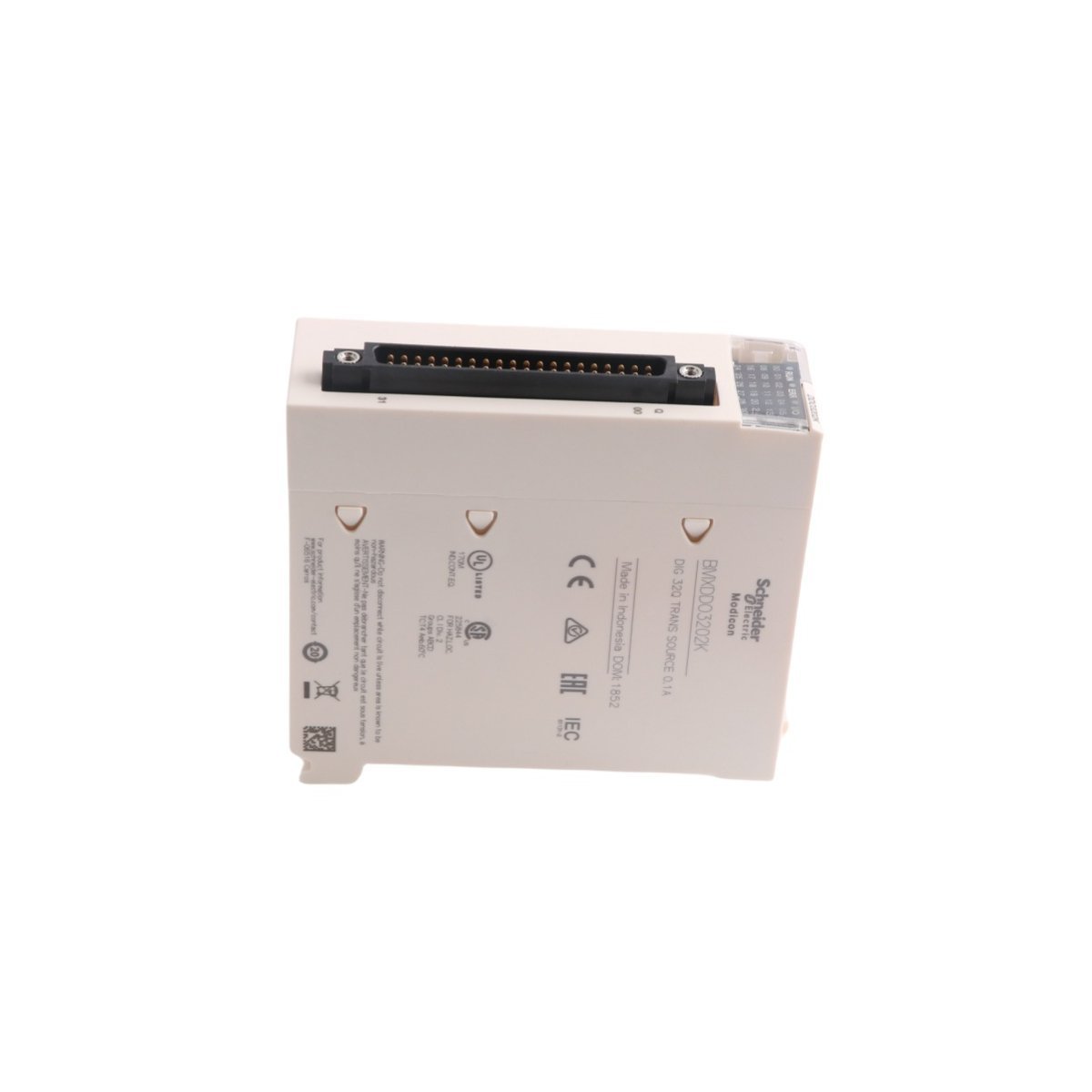

The Schneider Electric BMXDDO3202K is a high-density discrete output module purpose-built for the Modicon X80 automation platform, supporting both M340 and M580 PAC systems. This module provides 32 solid-state channels utilizing positive logic (source) to command a variety of 24V DC industrial actuators. Designed to optimize rail space, it occupies a single slot while offering extensive I/O capacity. The solid-state design ensures rapid switching speeds and long-term mechanical durability compared to traditional relay outputs. As a core component of the X80 universal I/O family, it facilitates seamless data exchange across industrial Ethernet backplanes, making it a staple for modern, high-speed automated architectures.

Hardware Configuration and Technical Attributes

This module is engineered for high-density control environments where electrical isolation and thermal efficiency are paramount.

• Efficient Performance: Features a voltage drop of less than 1.5V in the "on" state to ensure maximum power delivery to connected loads.

• Environmental Tolerance: Operational temperature range of 0°C to 60°C allows for deployment in diverse cabinet climates.

• Standards Compliance: Fully compliant with EN/IEC 61131-2 industrial standards for programmable controllers.

• Protection Rating: IP20-rated casing prevents accidental contact with internal circuitry.




Primary Industrial Deployments

The BMXDDO3202K is optimized for applications requiring a high volume of control points within a compact footprint. It is frequently implemented in manufacturing automation for the operation of solenoid valves, pilot lights, and small DC contactors. In the material handling sector, it provides the necessary logic to drive sorters, diverters, and small motor starters. Additionally, its high reliability makes it a preferred choice for process control systems in water treatment and food processing, where precise, repeatable discrete signals are necessary for valve sequencing and interlocking. Its compatibility with the Modicon M340 and M580 series allows it to be integrated into complex distributed I/O networks via Ethernet/IP or Modbus TCP architectures.
