Product Overview

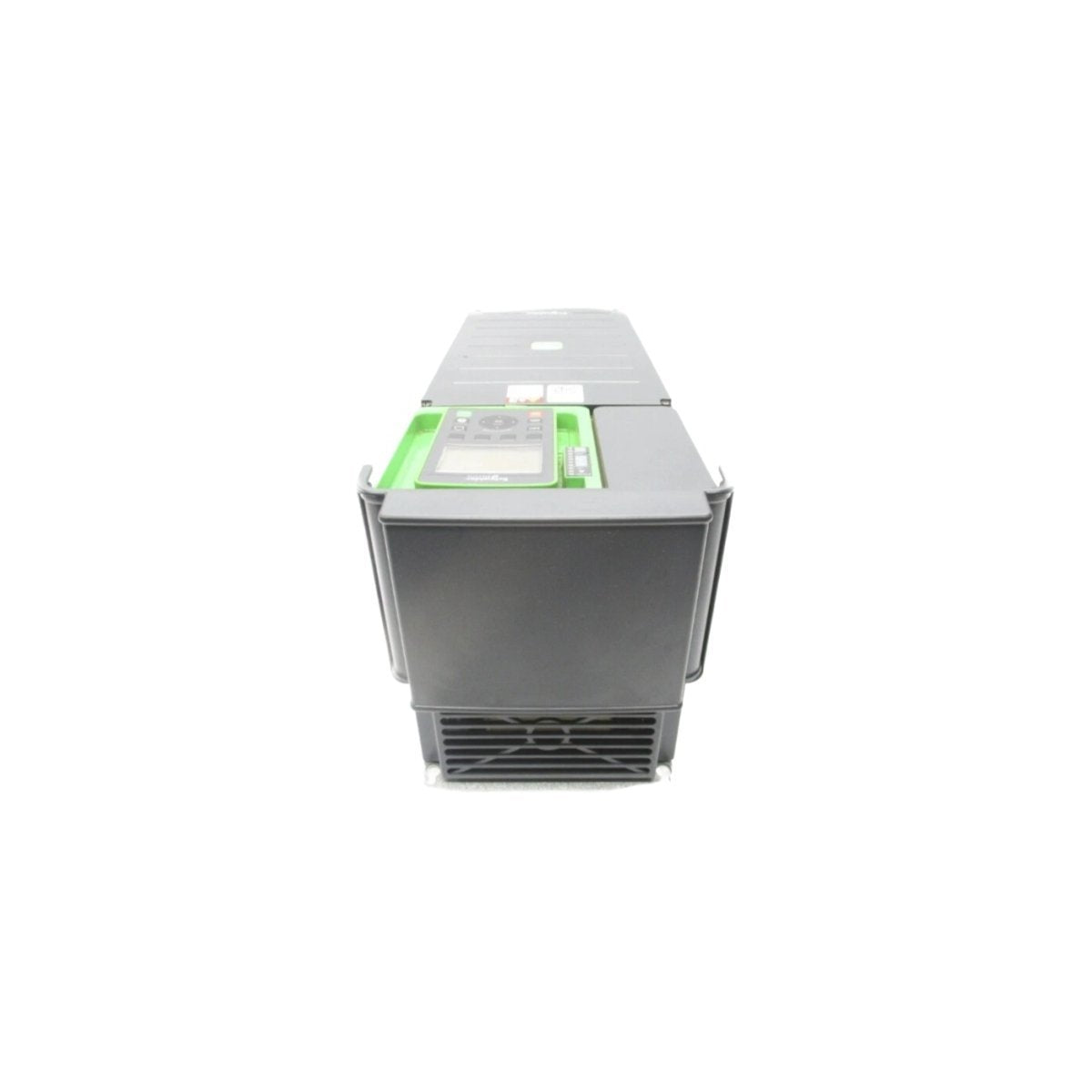

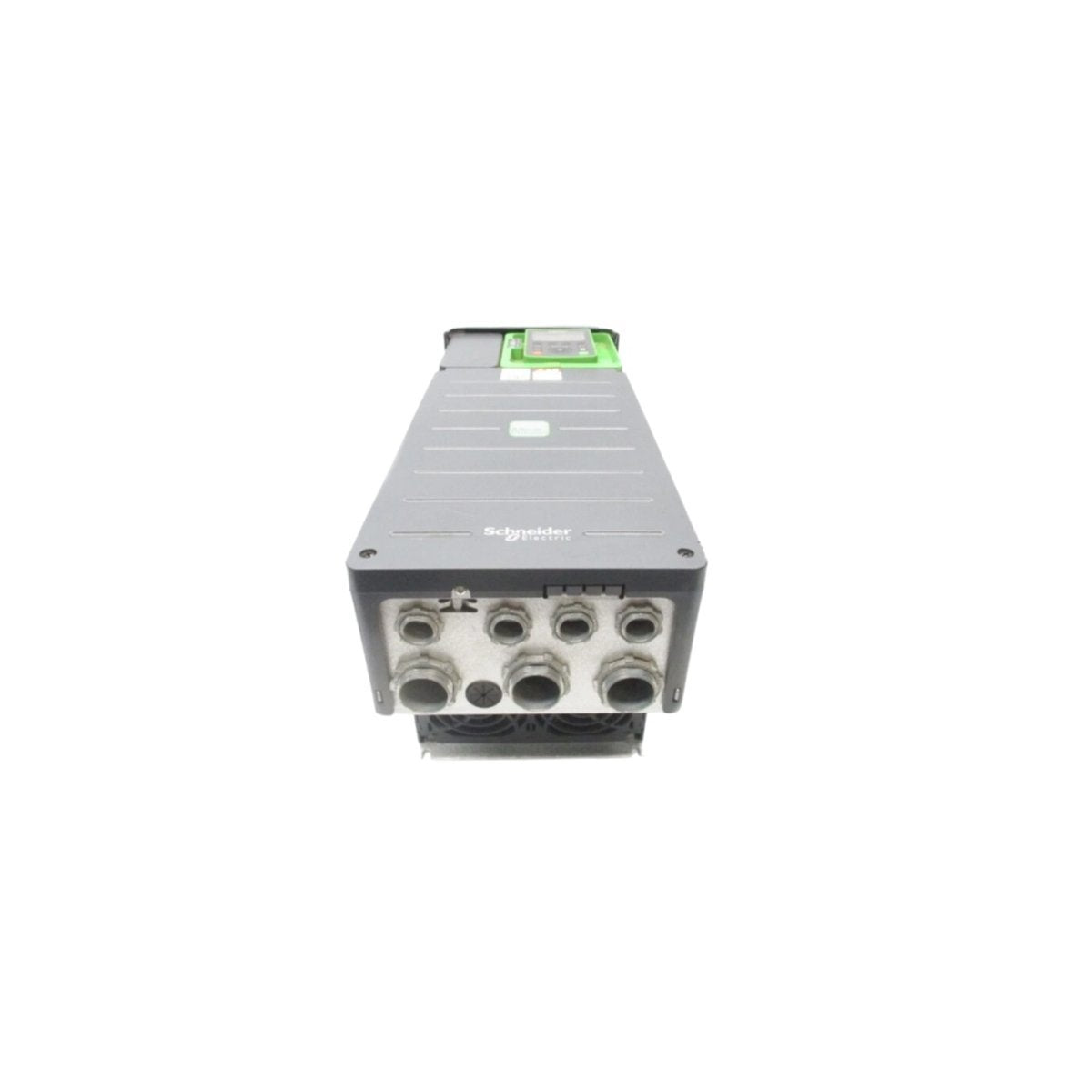

The ATV930D15N4 is an advanced 15kW frequency inverter from the Schneider Electric Altivar Process ATV900 series, specifically engineered to optimize industrial process performance. Designed for high-performance motor control of both 3-phase synchronous and asynchronous systems, this drive operates within a 400V to 480V AC range. It serves as a comprehensive "process-oriented" solution, featuring an integrated braking unit and sophisticated energy management tools. By combining robust power electronics with intelligent software services, the ATV930D15N4 delivers precise speed and torque regulation while providing operators with deep analytical insights into their mechanical assets.

Hardware Infrastructure and Power Capabilities

The ATV930D15N4 is built with a ruggedized architecture to ensure high availability in demanding electrical environments:

• Dual Duty Ratings: Optimized for 15kW (20 HP) motors in normal duty (120% overload) and 11kW (15 HP) in heavy-duty applications (150% overload).

• Network Integration: Features dual-port Ethernet/IP and Modbus TCP as standard, allowing for seamless communication with PLC and SCADA architectures.

• Integrated Braking: Includes a built-in braking transistor for high-inertia loads and dynamic deceleration tasks.

• Environmental Integrity: IP21 rated enclosure protects internal components from vertical water droplets and ingress of solid foreign objects.

• Embedded Intelligence: Includes a built-in web server for remote monitoring and comprehensive data logging for predictive maintenance.

• Coupling Logic: Supports advanced master/slave configurations, ensuring synchronized torque and velocity across multiple drive axes.

• Mechanical Footprint: Compact design measuring 27.9 x 21.6 x 6.3 cm with a lightweight 1.9 kg chassis (typical base weight), allowing for efficient panel installation.

Process Optimization and Industrial Utility

The Altivar Process series excels in sectors where downtime prevention and energy efficiency are critical:
