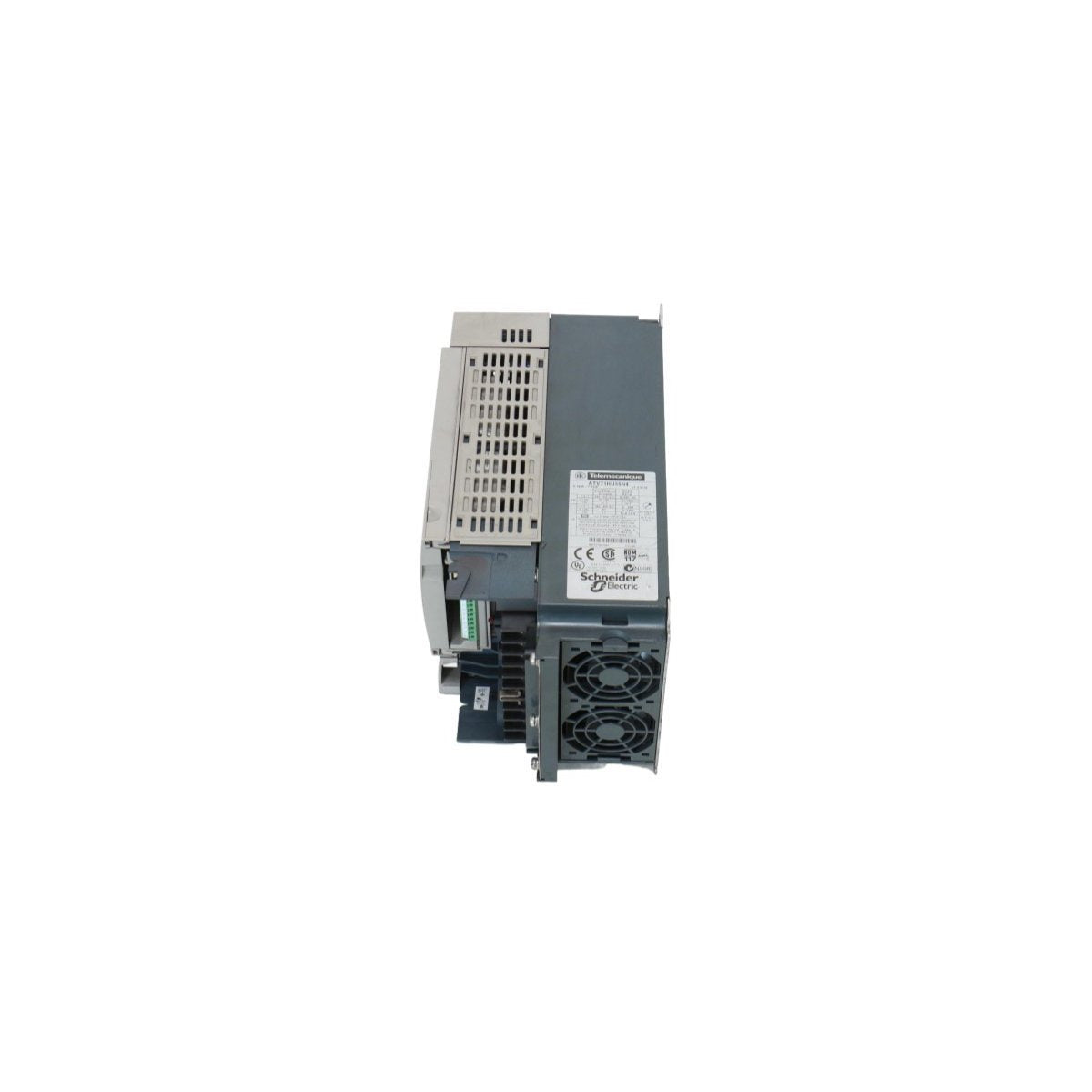

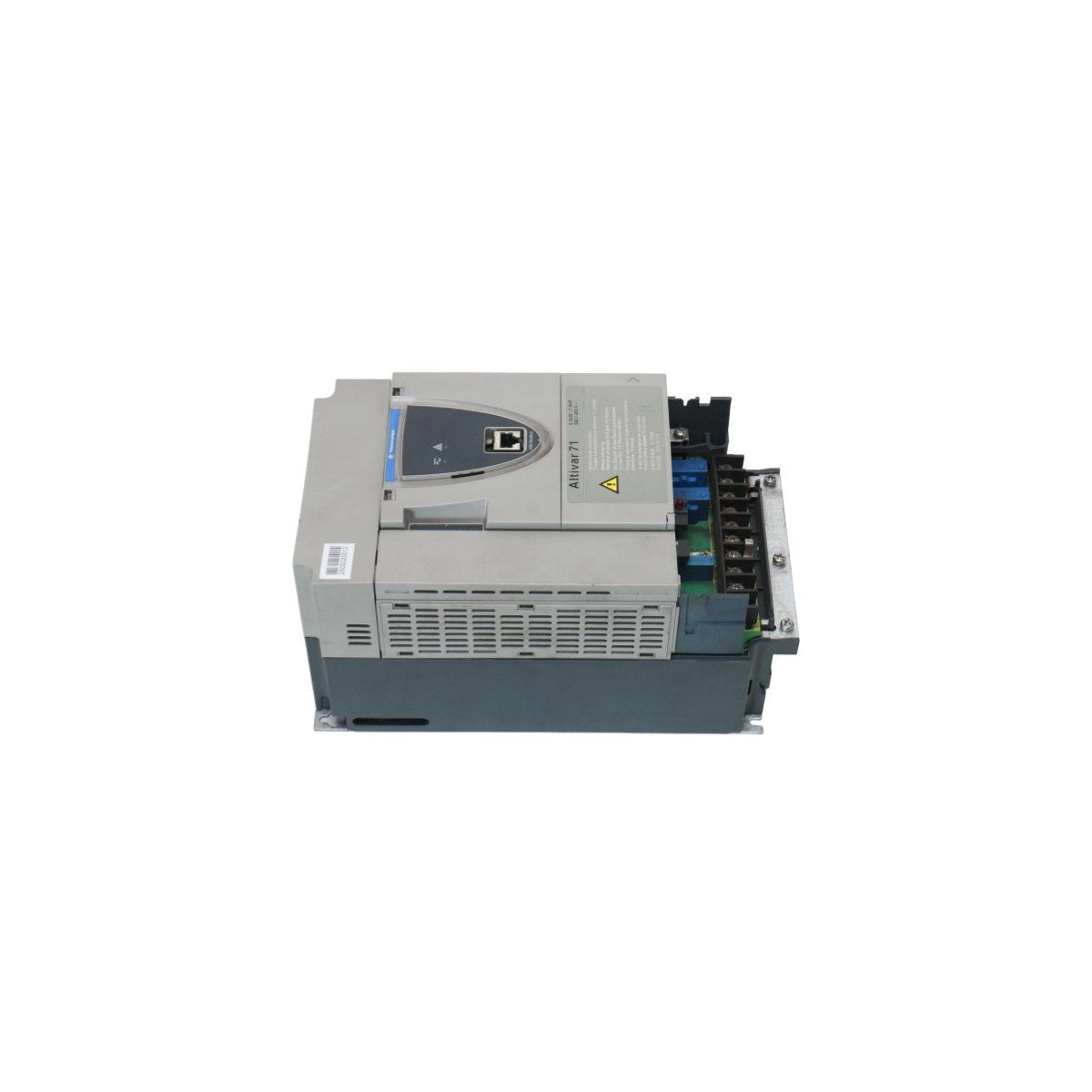

Schneider Electric ATV71HU55N4 Altivar 71 Variable Speed Drive 5.5kW
-
Dimensions: 27.9 x 21.6 x 6.3 cm
-
Country of origin: France
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The Schneider Electric ATV71HU55N4 is a high-performance 5.5kW (7.5 HP) variable frequency drive (VFD) from the esteemed Altivar 71 series, specifically engineered for complex, heavy-duty industrial machinery. This drive is designed to provide exceptional control for three-phase asynchronous and synchronous motors, delivering high torque even at low speeds. With a voltage range of 380V to 480V, the ATV71HU55N4 excels in applications requiring high dynamic performance and precise velocity regulation. Its sophisticated power electronics are housed in a compact frame, offering a robust solution for engineers looking to optimize motor efficiency while providing comprehensive equipment protection in demanding PLC-controlled environments.
Technical Hardware Specifications and Performance Metrics
The ATV71HU55N4 is architected for maximum electrical resilience and advanced motor governance:
-
Power Capacity: Rated for 5.5kW (7.5 HP) motor output with enhanced overload torque capabilities (up to 220% of nominal motor torque).
-
Supply Voltage: Optimized for 3-phase 380V to 480V AC systems, operating at 50/60 Hz.
-
Control Algorithms: Features advanced Flux Vector Control (FVC) with or without sensor feedback to maintain precise speed under varying loads.
-
Thermal Management: Equipped with high-efficiency heatsinks and intelligent fan cooling to ensure stable operation during continuous high-load cycles.
-
Network Interfacing: Includes integrated Modbus and CANopen ports as standard, with expansive support for optional communication cards like Profibus and DeviceNet.
-
Protective Logic: Built-in safeguards against motor short-circuits, phase loss, over-voltages, and excessive thermal stress on the power bridge.
-
Physical Profile: A streamlined chassis measuring 27.9 x 21.6 x 6.3 cm and weighing 1.9 kg, facilitating high-density panel integration.
Strategic Process Applications and Utility
The Altivar 71 series is the preferred choice for industrial sectors requiring high precision and heavy-load startup:
| Industrial Sector | Functional Application |
| Material Handling | Precise control for hoisting, conveyors, and palletizers requiring smooth acceleration and brake management. |
| Processing Machinery | Regulating speed for mixers, grinders, and kneaders where constant torque is vital for product consistency. |
| Packaging & Textile | High-speed synchronization for winding, cutting, and wrapping equipment to minimize material waste. |
| Woodworking | Providing stable velocity and high-torque performance for saws, planers, and large-scale industrial routers. |
| Lifts and Elevators | Management of high-inertia vertical movement with advanced safety and comfort profiles for lifting mechanisms. |
