Product Overview

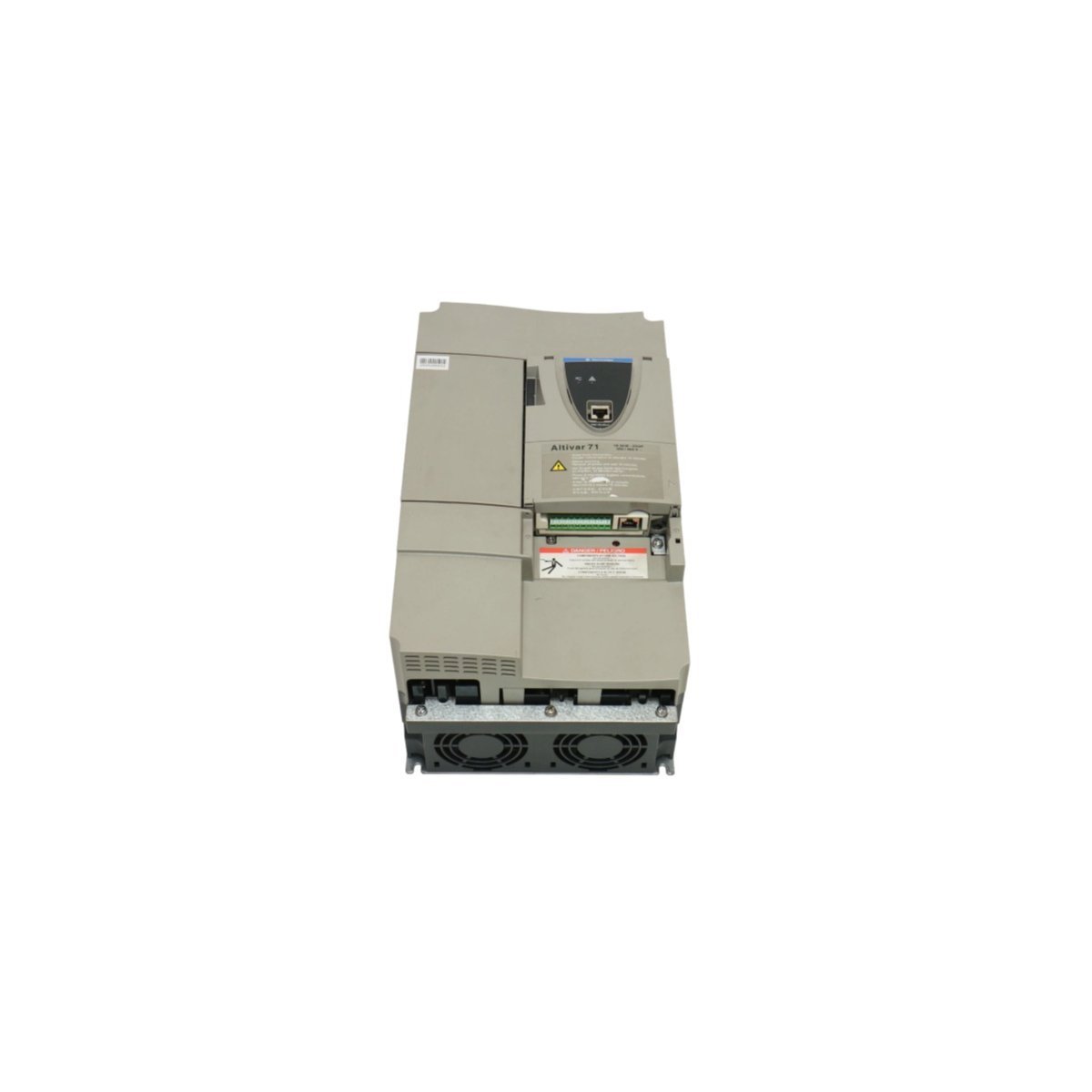

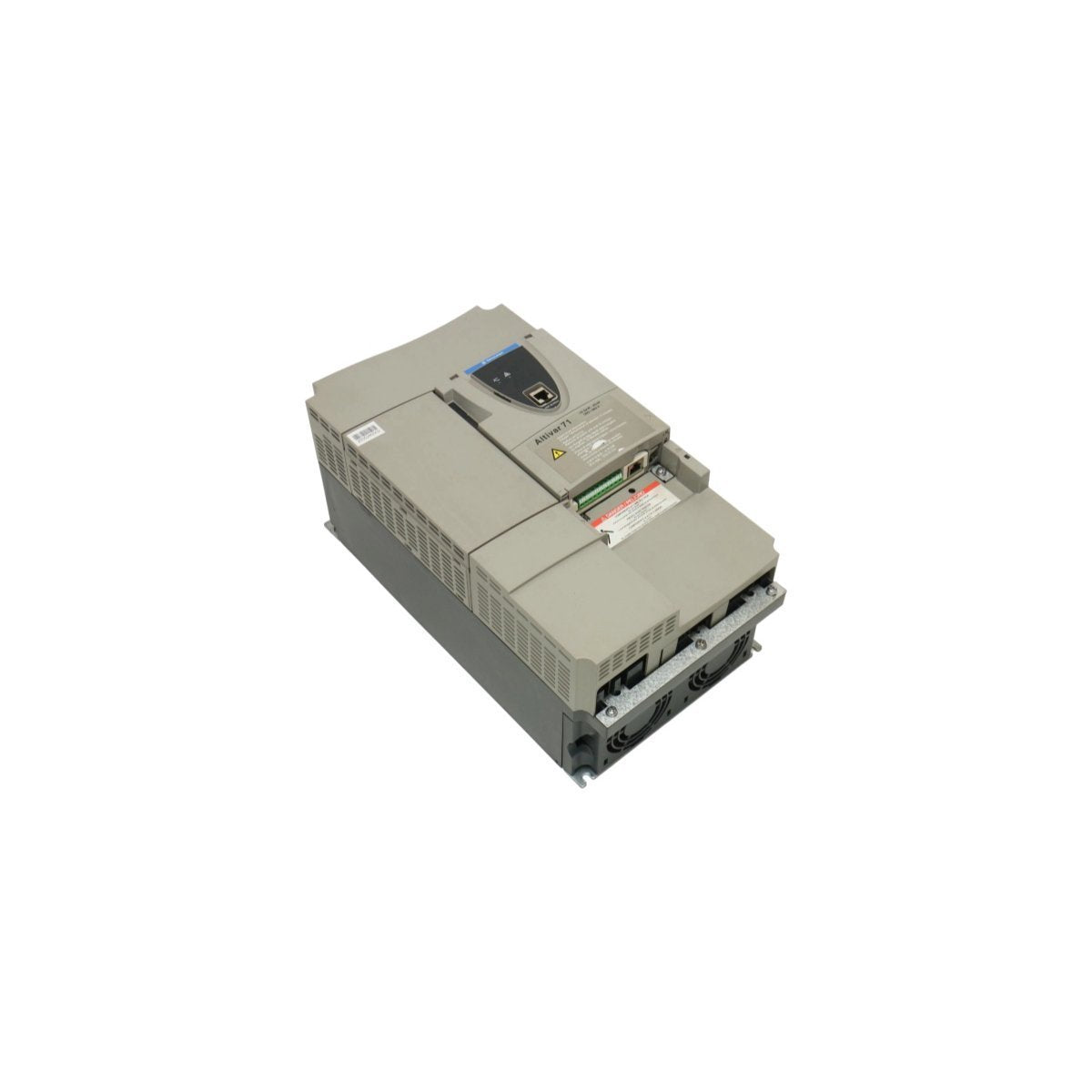

The ATV71HD18N4 is a premium-tier frequency inverter from the Schneider Electric Altivar 71 family, specifically engineered to manage heavy-duty motor applications requiring high torque and precise speed regulation. Rated at 18.5kW (25 HP), this drive is optimized for three-phase asynchronous motor control within complex automated frameworks. It bridges the gap between raw power and intelligent control, utilizing advanced sensorless flux vector technology to provide maximum torque even at zero speed. Designed for durability in rigorous industrial environments, the ATV71HD18N4 ensures continuous process uptime while significantly enhancing motor protection through integrated thermal and electrical monitoring.

Core Hardware Parameters and Engineering Logic

The Altivar 71 architecture is distinguished by its adaptable interface and high-fidelity power electronics.

• Power Output: 18.5 kW / 25 HP for constant torque applications.

• Voltage Range: Engineered for 380V to 480V three-phase electrical grids.

• EMI Suppression: Features a factory-installed Class A EMC filter to maintain signal integrity in noisy environments.

• Interfacing System: Dual-display logic including a graphic terminal for descriptive text and an embedded 4-digit LED for rapid hex-code diagnostics.

• Control Versatility: Supports specialized macros for hoisting, material handling, and process-specific braking sequences.

• Network Readiness: Native integration for Modbus and CANopen, with expansion slots available for high-speed industrial Ethernet.

Industrial Sector Utility and Functional Deployment

This drive is a cornerstone for heavy-process industries where deterministic motor response is a safety and production requirement.

Hoisting and Lifting MechanicsThe ATV71HD18N4 provides the high-performance torque required for cranes and lift systems. Its integrated brake management logic ensures smooth load handling and prevents "rollback" during startup or stopping phases.

Advanced Material ConveyanceIn logistics and mining facilities, this unit manages high-inertia conveyors. It compensates for load fluctuations in real-time, maintaining a constant flow and reducing mechanical stress on gearboxes and drive chains.

High-Pressure Pumping and MixingFor industrial mixers and pump stations, the drive utilizes customized V/Hz curves to match the specific fluid dynamics of the application, preventing cavitation and optimizing energy consumption based on demand.

Machine Tool and Extrusion ControlIn plastic and metal processing, the ATV71HD18N4 delivers the speed accuracy needed for high-quality extrusion and cutting. The ability to toggle between open-loop and closed-loop control allows it to adapt to varying degrees of process complexity.
