Product Overview

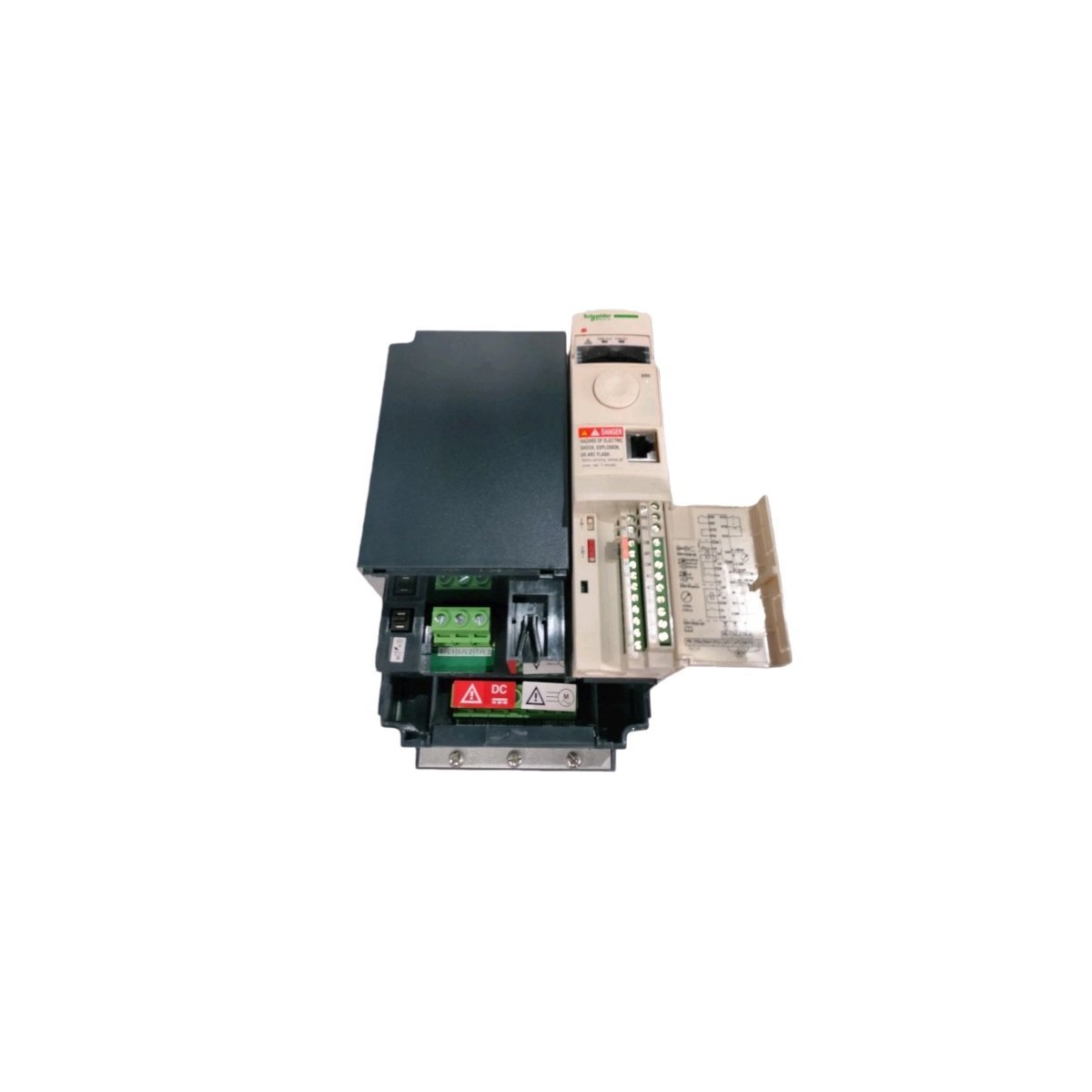

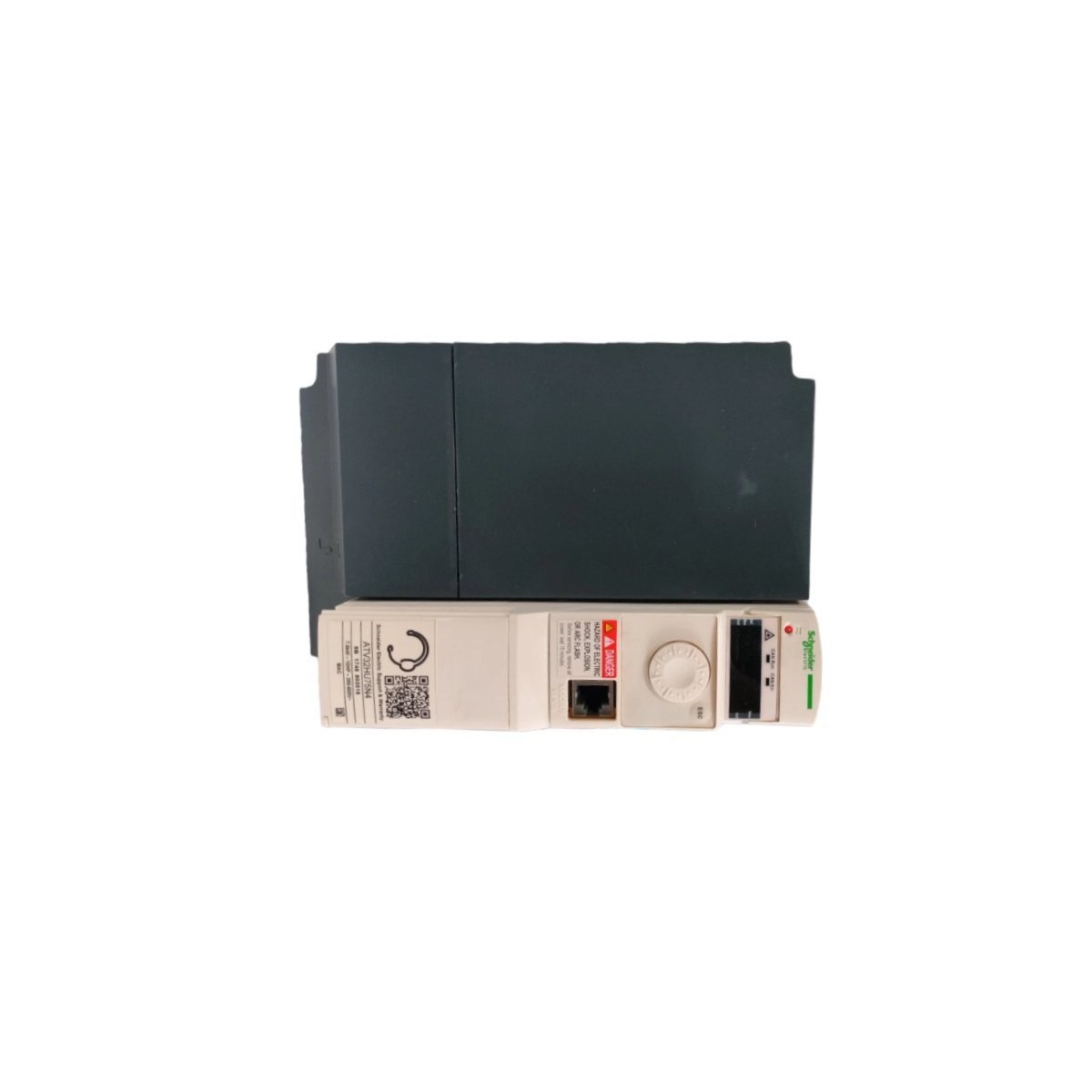

The ATV32HU75N4 is a specialized 7.5 kW (10 HP) frequency inverter from the Schneider Electric Altivar 32 series, engineered for high-performance motor control in 3-phase industrial environments. This drive is distinguished by its "book" form factor, allowing for high-density side-by-side mounting to conserve cabinet space. It is designed to regulate both asynchronous and synchronous motors, including Permanent Magnet (PM) and high-efficiency IE2/IE3 motors. Operating within a 380V to 500V AC range, the ATV32HU75N4 provides an intelligent solution for complex machinery that requires a combination of safety, performance, and compact integration.

Hardware Architecture and Performance Metrics

The engineering design of the ATV32HU75N4 focuses on electrical resilience and precision motor governance:

• Power Capacity: Supports 7.5 kW (10 HP) output with a transient current capability of 25.5 A for 60 seconds.

• Switching Dynamics: Features an adjustable switching frequency from 2 to 16 kHz to balance acoustic noise reduction with thermal efficiency.

• Integrated Suppression: Equipped with a factory-installed Class C2 EMC filter for electromagnetic compatibility.

• Electrical Robustness: Capable of managing prospective short-circuit currents up to 22 kA, ensuring stability in heavy industrial grids.

• Energy Management: Incorporates advanced motor control laws that can reduce energy overhead by up to 30% in variable torque applications.

• Chassis Build: Lightweight 1.9 kg frame with physical dimensions of 27.9 x 21.6 x 6.3 cm, optimized for vertical installation.

• Functional Safety: Includes embedded safety functions (such as STO - Safe Torque Off) to meet international machine safety standards.

Strategic Process Deployment and Utility

The Altivar 32 series provides a versatile platform for modern automation and fluid management:
