Product Overview

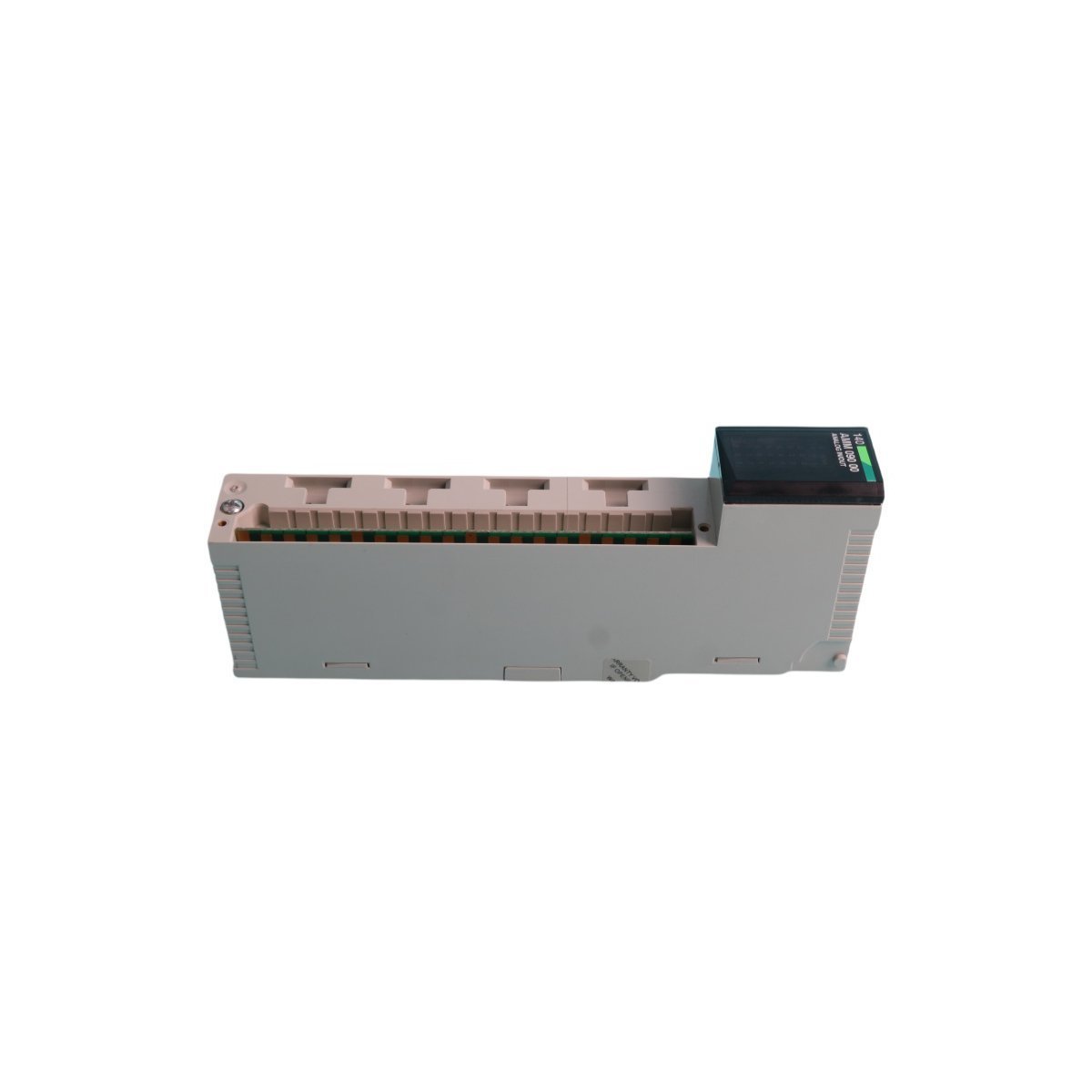

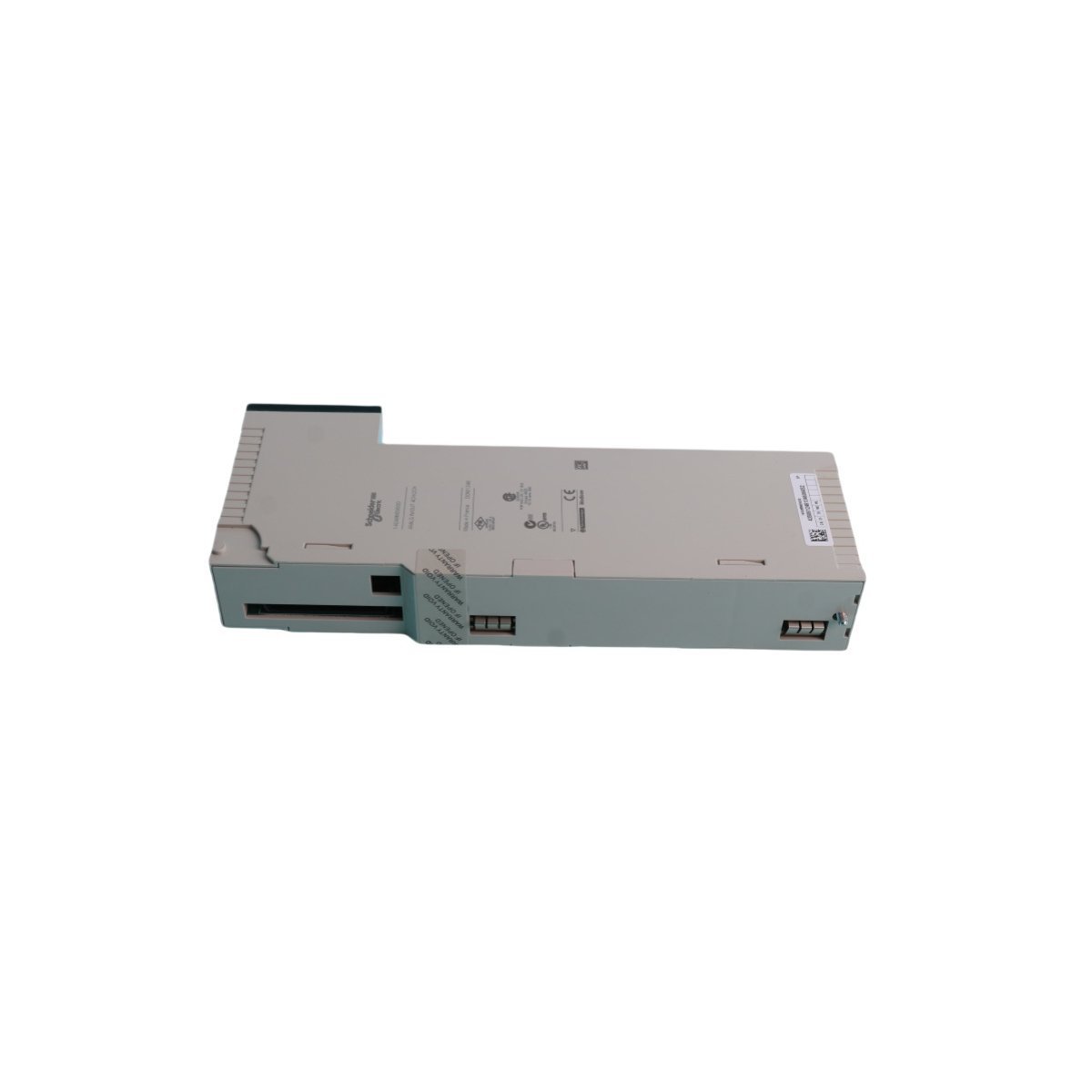

The Schneider Electric ABE7H16R11 is a high-performance passive discrete I/O sub-base engineered to streamline the connection between field devices and programmable logic controllers (PLCs). This interface module serves as a robust wiring solution, simplifying complex point-to-point connections while enhancing system reliability. Designed for 24V DC architectures, it provides 16 dedicated channels with individual terminal points, ensuring a clean and organized control panel layout. Its integrated fuse protection and LED diagnostics make it a critical component for maintaining uptime in professional industrial automation environments.

Technical Specifications and Hardware Parameters

The following data outlines the mechanical and electrical profile of the ABE7H16R11 module. Please note that while the shipping weight may vary based on packaging, the unit itself is designed for high-density DIN rail mounting.

• Input/Output Capacity: 16 Channels (Single terminal per channel)

• Operating Voltage: 19 to 30 V DC (compliant with IEC 61131-2)

• Connection Interface: 1 x 20-pin HE-10 connector

• Wiring Method: Screw-type terminals supporting up to 2.5 mm² wire

• Current Management: 1.8A maximum total current (0.5A per channel)

• Circuit Safety: Built-in 2A internal fuse for short-circuit mitigation

• Visual Diagnostics: Green LED for Power-On; Individual amber/yellow LEDs for channel status

• Insulation Resistance: 2000 V rated insulation voltage

• Mounting Support: 35mm symmetrical DIN rail or plate mounting via fixing kit

• Physical Dimensions: 125mm x 105mm x 12.6mm (Approximate module width 125mm)

• Unit Weight: 0.274 kg (Net) / 1.18 kg (Shipping Weight)

• Product Origin: France

Industrial Implementation and Operational Use Cases

The ABE7H16R11 is utilized globally across various sectors where rapid I/O deployment and simplified maintenance are required. It is particularly effective in:

• Automated Manufacturing: Linking sensors and actuators to central PLC racks in assembly lines, reducing manual wiring errors and commissioning time.

• Building Management Systems (BMS): Coordinating discrete signals for HVAC, lighting control, and access security points.

• Energy and Infrastructure: Managing status signals in power distribution cabinets and water treatment control skids.

• Material Handling: Acting as a localized I/O hub for conveyor systems where real-time channel monitoring is essential for rapid troubleshooting.
