Product Overview

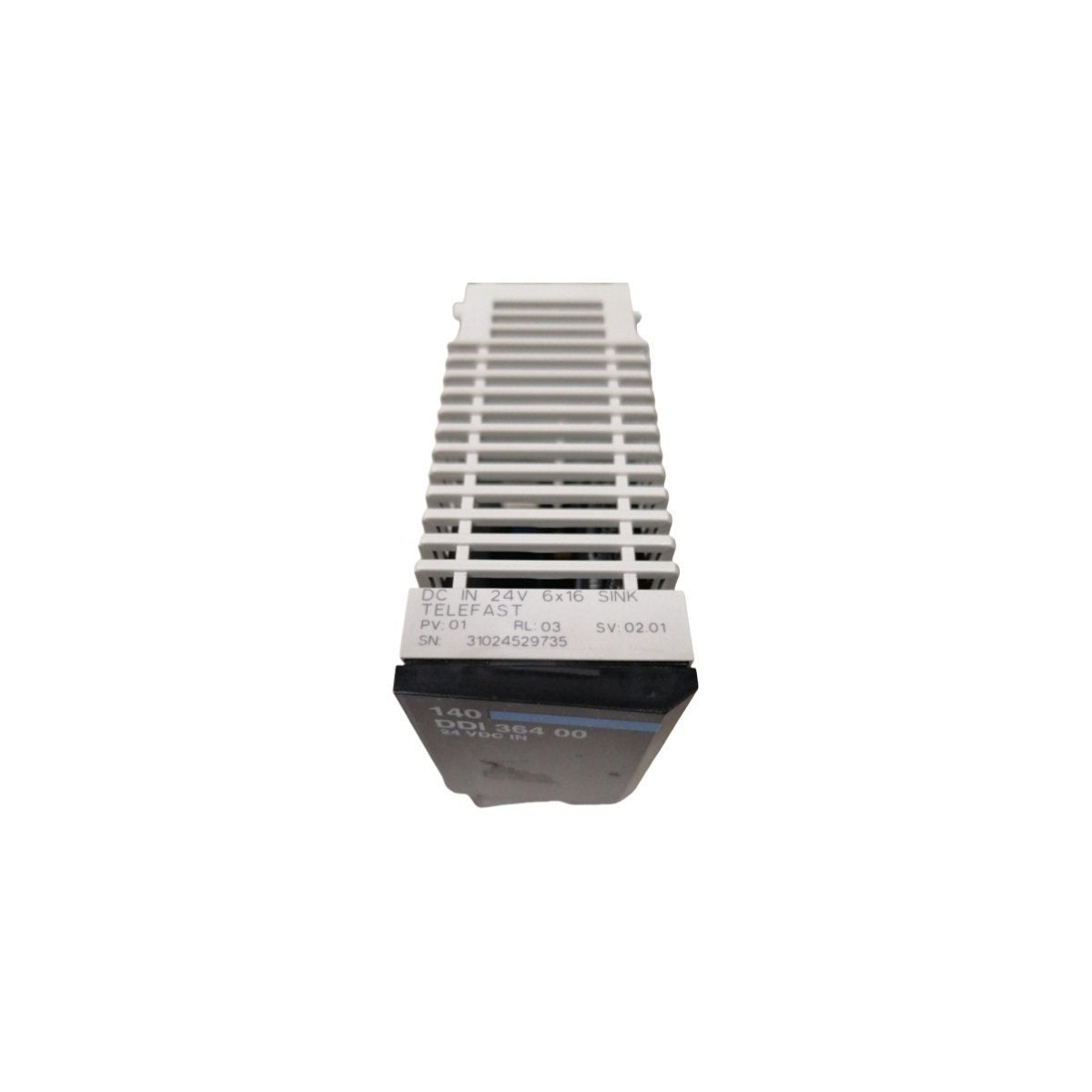

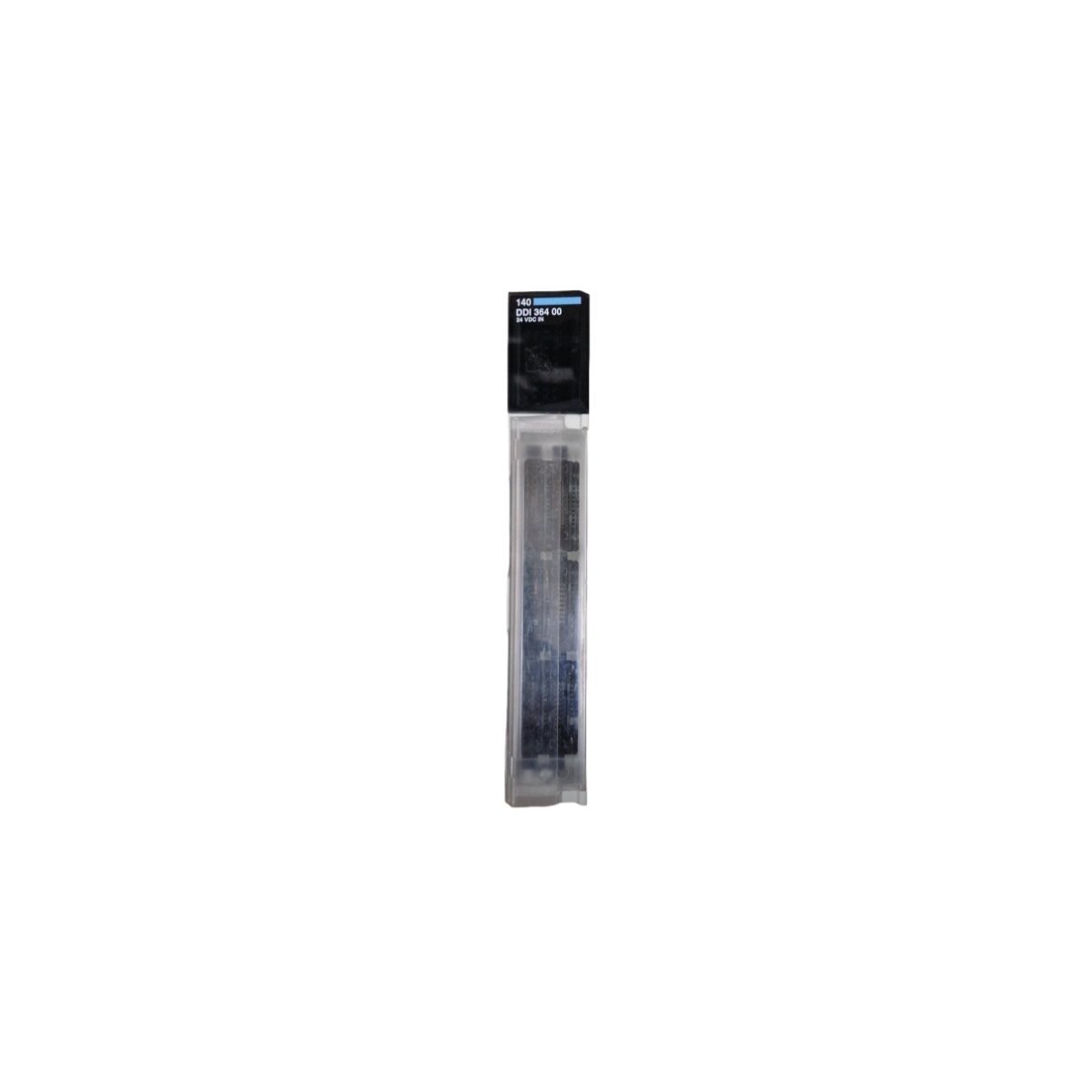

The Schneider Electric 140DDI36400 is a high-density discrete input module engineered for the Modicon Quantum automation platform. Designed to handle large volumes of digital data, this module features 96 independent input channels, making it an ideal choice for high-scale industrial monitoring and control. It operates on a 24V DC logic architecture, utilizing a sinking input configuration (positive logic). This module serves as a critical bridge between field devices—such as proximity sensors, limit switches, and push buttons—and the central PLC processor, ensuring fast and accurate signal acquisition in demanding real-time environments.

Core Hardware Parameters and Engineering Data

The 140DDI36400 is optimized for electrical efficiency and rapid response, featuring advanced diagnostic LEDs for every channel.

• Channel Density: 96 Discrete Input points

• Nominal Input Voltage: 24 V DC

• Input Voltage Range: 19.2 V to 30 V DC

• Input Current Logic: Sinking (Positive Logic)

• Signal Response Time: ≤ 2 ms (Off to On) / ≤ 3 ms (On to Off)

• Isolation Voltage: 500 Vrms between input groups

• Power Consumption: 270 mA maximum from the backplane bus

• Heat Dissipation: 1.35 W base + 0.13 W per energized input

• Visual Diagnostics: 96 Green LEDs (Status), 1 Red LED (External Fault), 1 Green LED (Bus Active)

• Physical Dimensions: 6.5 x 23.5 x 25 cm

• Unit Weight: 0.4 kg (Net) / Shipping weight approximately 0.8 kg

• Country of Origin: France

Industrial Deployment and Operational Environments

With its high-density footprint and robust signal processing capabilities, the 140DDI36400 is widely utilized in sectors requiring extensive digital feedback:

• Automated Assembly Lines: Monitoring hundreds of sensor positions and safety interlocks across a single Quantum rack.

• Energy Management Systems: Tracking the status of circuit breakers, disconnect switches, and relay contacts in power distribution centers.

• Material Handling and Logistics: Coordinating large-scale conveyor networks where high-speed detection of parcel movement is essential for throughput.

• Water and Wastewater Treatment: Managing discrete signals from valve actuators, level switches, and flow meters across sprawling plant architectures.

• Process Control: Providing the input backbone for chemical or pharmaceutical batching systems where precise timing of discrete events is mandatory.
