Product Overview

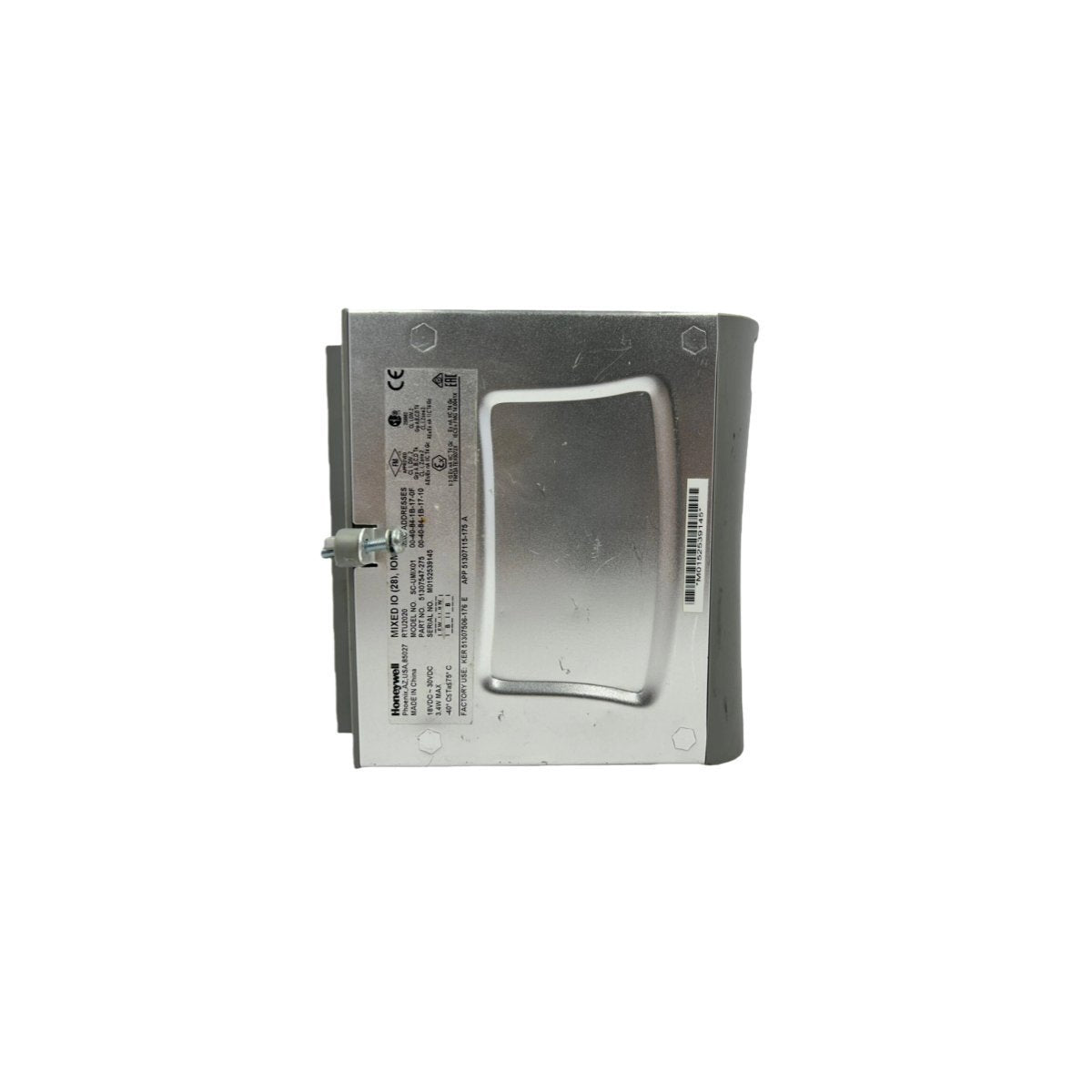

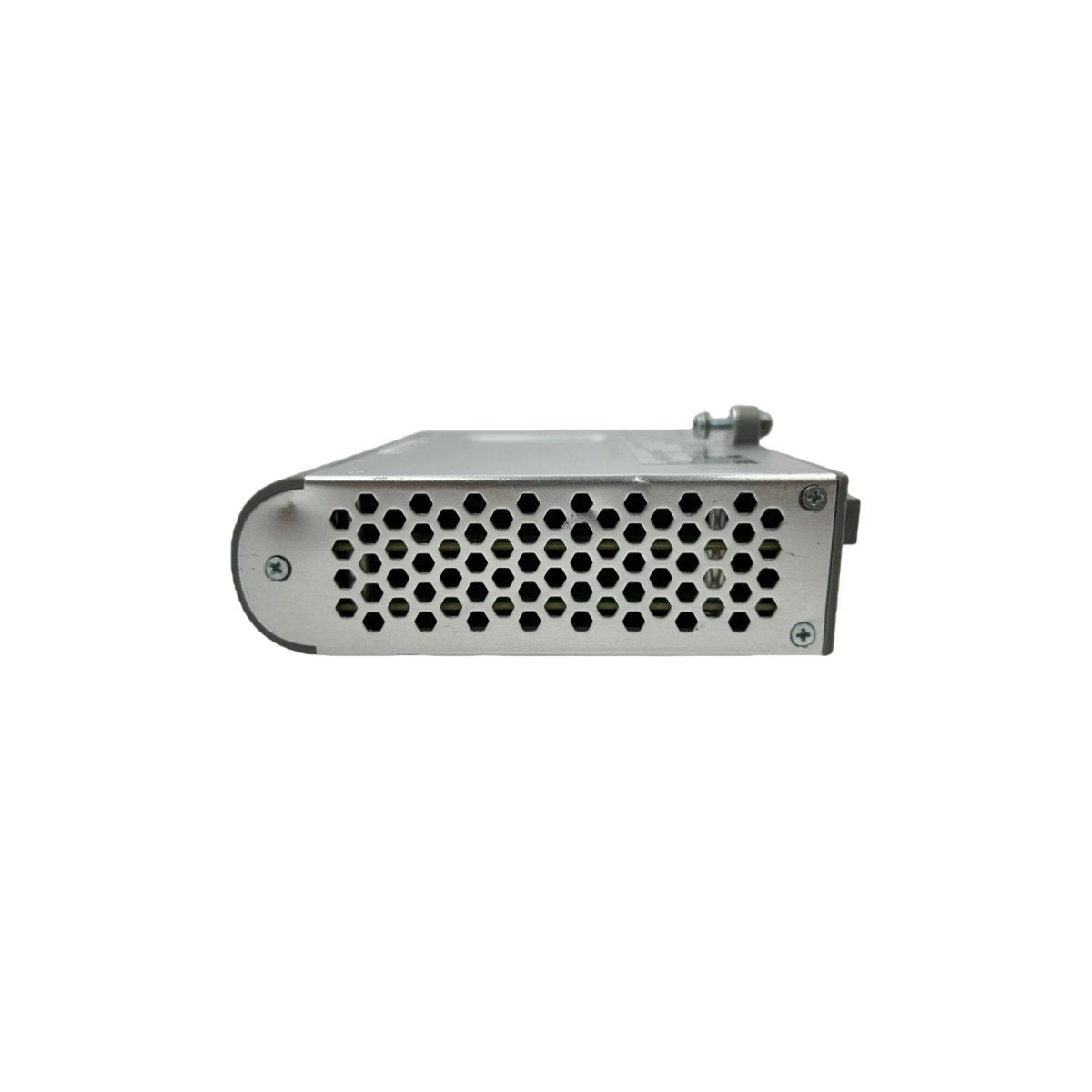

The Honeywell SC-UMIX01 is a high-versatility Universal Mixed Input/Output module engineered for the ControlEdge™ RTU and PLC family. This module is specifically designed to provide system integrators with maximum flexibility, allowing for a diverse range of signal types to be managed through a single hardware interface. By consolidating multiple I/O functions into one unit, the SC-UMIX01 reduces the need for specialized modules, significantly optimizing cabinet space and simplifying spare parts inventory for modern process automation projects.

Integrated within the Honeywell ControlEdge Builder engineering environment, the SC-UMIX01 supports seamless configuration and commissioning. It is an ideal solution for remote terminal units (RTUs) and distributed control scenarios where diverse signal requirements—such as analog and digital points—must be handled with high reliability and precision.

Technical Characteristics and Hardware Parameters

The SC-UMIX01 is built for industrial resilience, offering a combination of high-density interfacing and sophisticated firmware management.

• Module Classification: Mixed Universal Input/Output (UIO)

• System Compatibility: ControlEdge 2020 RTU and ControlEdge PLC Series

• Configuration Software: Programmed via ControlEdge Builder

• Firmware Support: Optimized for version 174.1.21.0 and higher; supports cross-version connectivity for diagnostic purposes

• I/O Versatility: Supports a combination of Analog Input (AI), Analog Output (AO), Digital Input (DI), and Digital Output (DO) signals

• Isolation: Robust channel-to-system isolation to ensure signal integrity in electrically noisy environments

• Installation: Compact form factor designed for high-density DIN rail mounting

• Construction: Ruggedized industrial housing with standard conformal coating for harsh environment protection

• Weight: 0.4 kg (Shipping weight)

• Dimensions: 7 x 14 x 14.5 cm

• Origin: USA

Industrial Applications

The adaptable nature of the SC-UMIX01 makes it a preferred choice for various distributed control and monitoring applications:

• Oil and Gas Wellhead Monitoring: Managing a mix of pressure transmitters (AI), valve position switches (DI), and solenoid controls (DO) at remote well sites.

• Water and Wastewater SCADA: Interfacing with flow meters, level sensors, and pump start/stop contacts within a single RTU cabinet.

• Pipeline Midstream Stations: Providing the necessary I/O density to monitor temperature and pressure while executing local logic for emergency valve closure.

• Building Management Systems (BMS): Controlling HVAC dampers and monitoring environmental sensors in large-scale commercial or industrial facilities.

• Remote Power Microgrids: Integrating telemetry from solar inverters, battery storage systems, and traditional generators into a unified control network.
