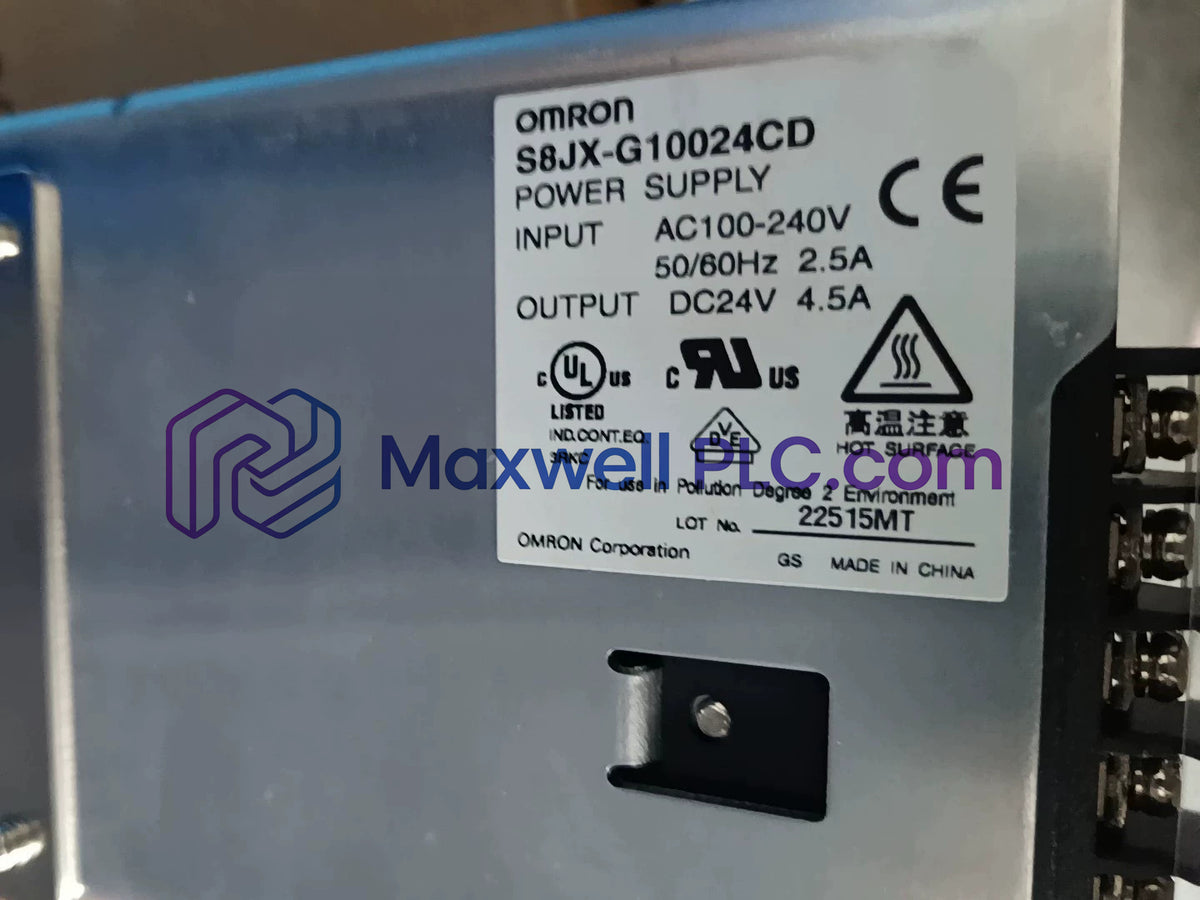

The Omron S8JX-G10024CD, also cataloged as the S8JX-G10024C Switch Mode Power Supply, operates as a dedicated hardware component for AC-to-DC power conversion and regulated 24 VDC voltage distribution within control cabinet backplanes.

Model Suffix Structure & Nomenclature

• S8JX-G: Standard switch mode power supply unit platform
• 100: 100 W rated power output capacity
• 24: 24 VDC regulated output voltage rating
• C: Covered frame physical construction with protective metallic outer shell
• D: Integrated DIN-rail mounting bracket configuration

Technical Hardware Specifications

Controller Interfacing & System Performance

The power supply unit delivers noise-filtered DC power across local rack assemblies and connected I/O density scaling racks. Stable output regulation prevents execution dropouts during transient loading on PLC backplanes. High firmware flash compatibility across downstream system nodes ensures uninterrupted EtherCAT and EtherNet/IP communication loops while preserving backplane bus communication velocity Licences.

Package Component List

• 1 x S8JX-G10024CD Switch Mode Power Supply Assembly
• 1 x Terminal Cover Plate
• 1 x Safety Precaution & Installation Leaflet

Wiring Directives & Physical Mounting

Panel Attachment Protocol

• Snap the integral rear bracket onto a standard 35 mm DIN rail until the locking spring clip engages securely.
• Provide a minimum of 20 mm clearance above and below the metal housing to permit natural convective airflow.

Electrical Wiring Rules

• Wire the AC supply lines to the labeled L and N screw terminals using crimped spade or ring terminals.
• Connect the FG (Frame Ground) terminal directly to the central panel earth ground bar using a heavy gauge conductor.

Frequently Asked Questions

• What is the nominal output voltage and current rating?

  The unit provides a regulated 24 VDC output at a maximum continuous load current of 4.5 A (100 W capacity).

• What input voltage ranges are supported by the power supply?

  It accepts AC input voltages from 100 to 240 VAC (50/60 Hz) or DC input voltages from 80 to 370 VDC.

• Does the unit include built-in mounting hardware for standard rails?

  Yes, the suffix D designation indicates an integrated DIN-rail mounting bracket factory installed on the rear.

• How is the physical housing constructed on this specific model?

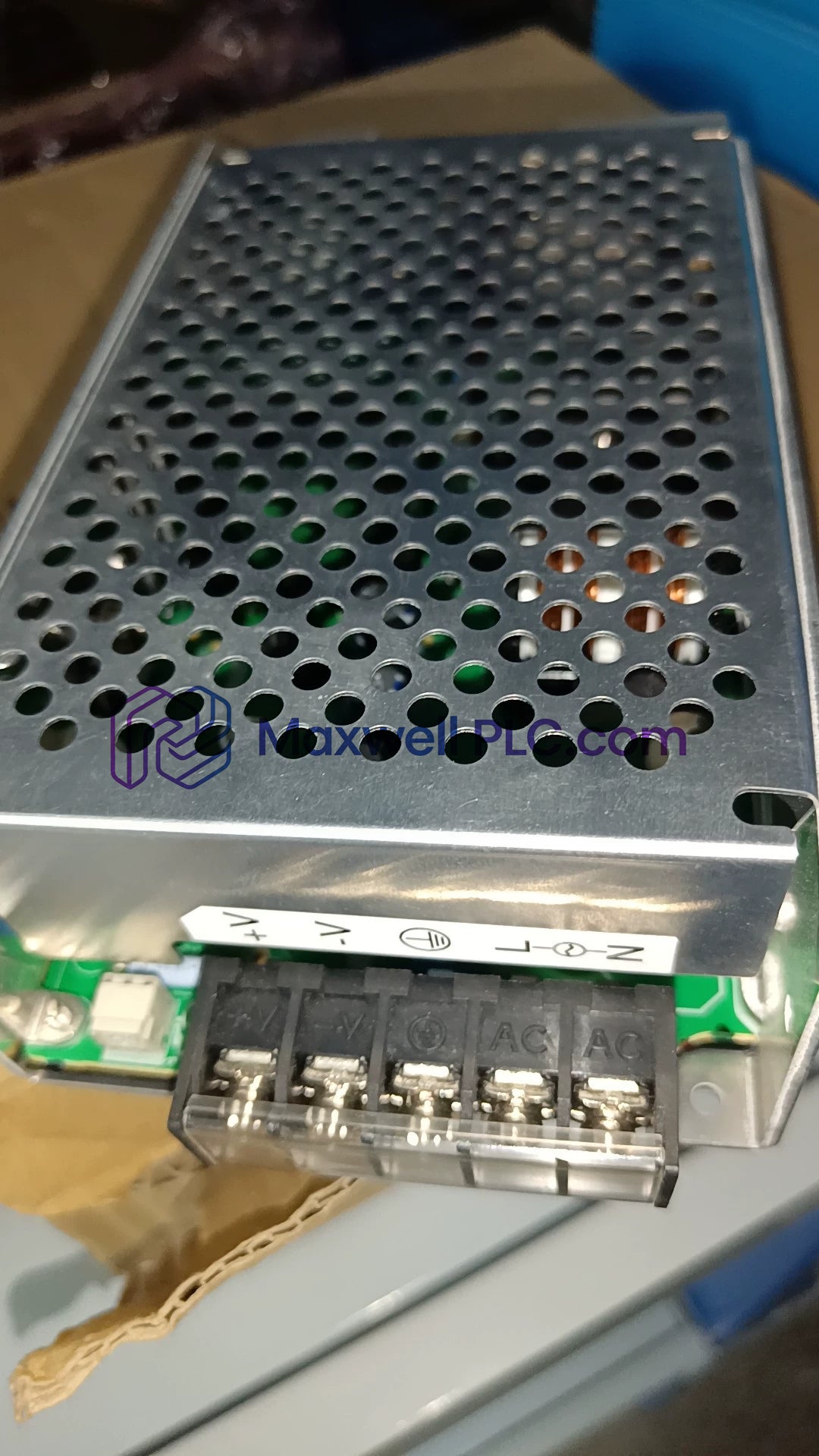

  The suffix C designation denotes a covered structure with a protective perforated metal outer enclosure.

• What terminal type is used for field power connections?

  External wiring connects directly to front-accessible barrier screw terminals rated for panel wiring.

• Is parallel operation supported to increase output current capability?

  Standard S8JX power supply units do not support direct parallel operation for current sharing applications.

• What thermal clearance is required during cabinet installation?

  Maintain at least 20 mm top and bottom air gaps to prevent internal thermal buildup during high-load operations.

• Must power be removed before servicing terminal connections?

  All AC main inputs and DC outputs must be completely de-energized before touching terminal block screws.
