Configured for signal processing and internal logic execution within ACS800 frequency converters, the ABB RMIO-01C (RMIO-01C Main Control Board) provides direct physical execution of motor control algorithms and peripheral interface management.

Hardware Identification

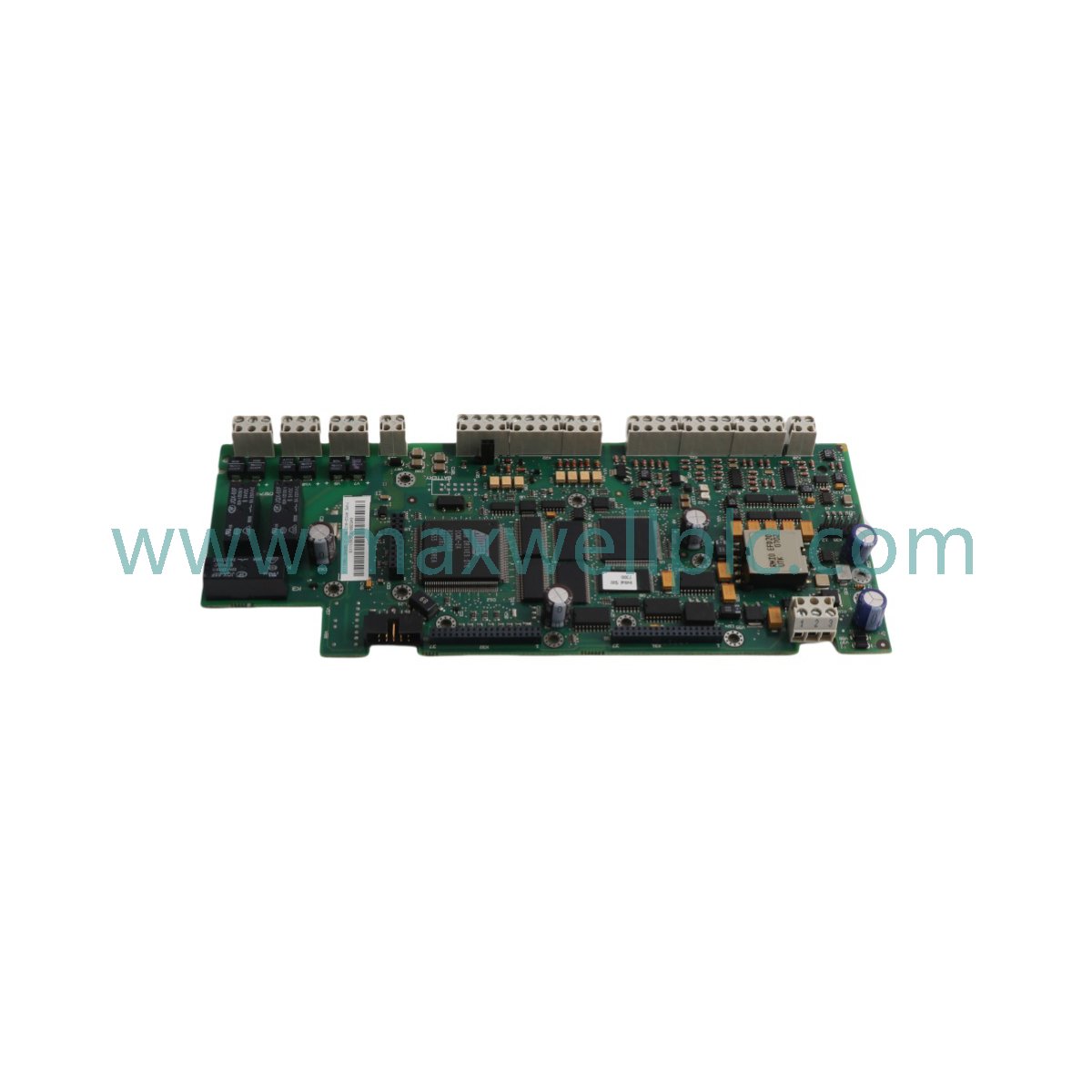

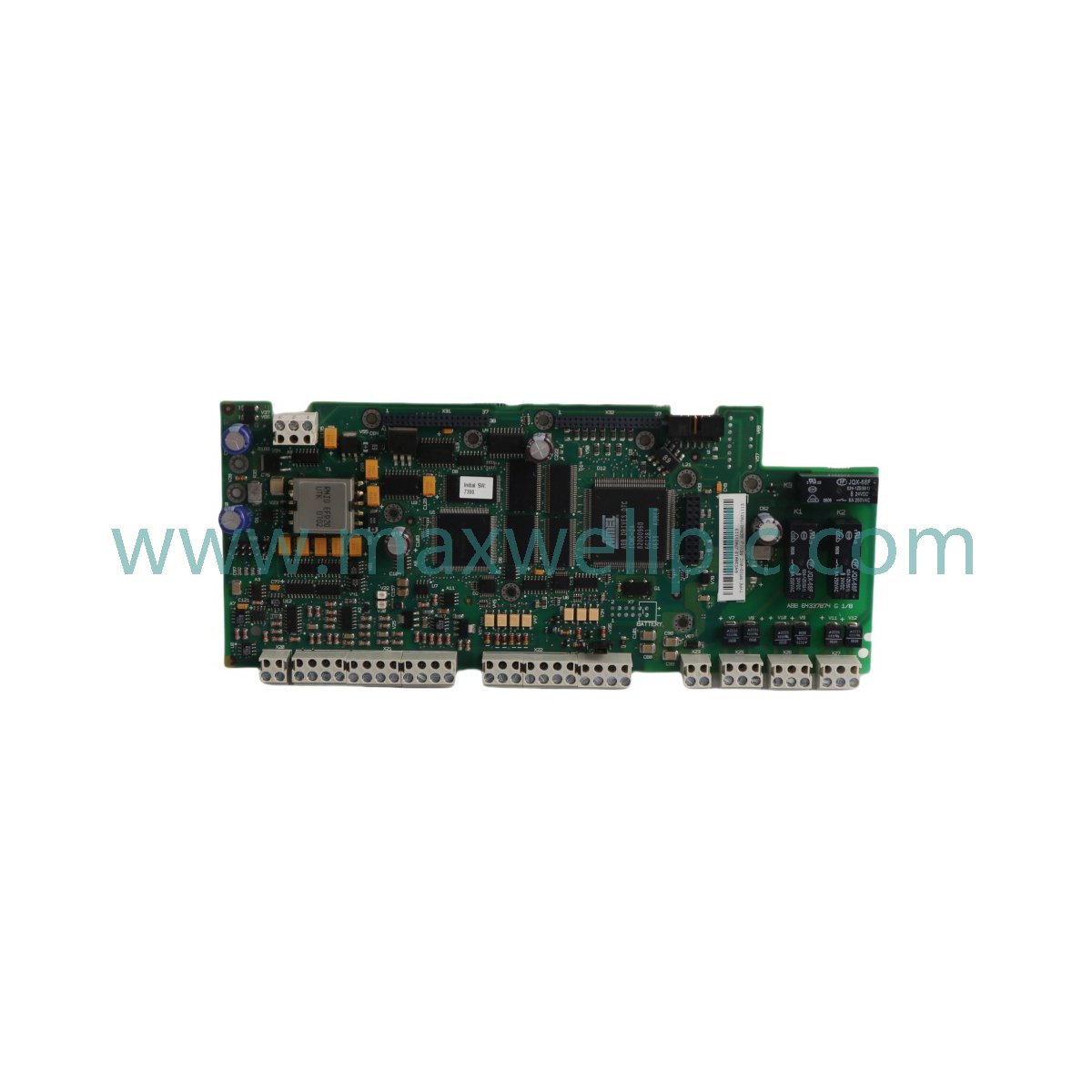

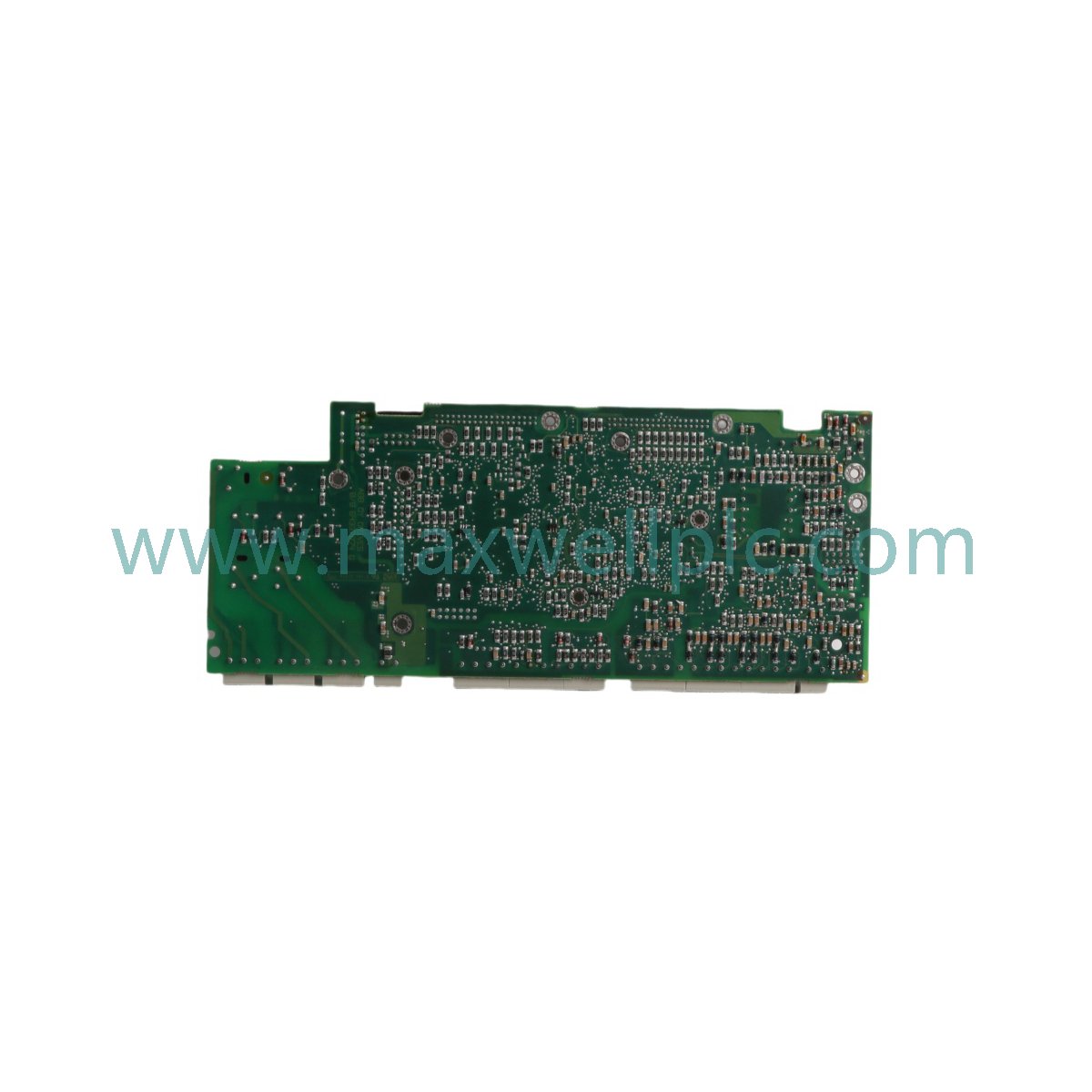

The RMIO-01C (68463815) is a conformal-coated printed circuit board. It acts as the central control intelligence for the ACS800 drive platform, managing analog and digital signal routing between the inverter unit and external automation controllers.

Hardware Specifications

ABB Industrial Control & Drive Communication

The RMIO-01C utilizes deterministic backplane bus communication velocity to manage drive-to-controller data exchange. It features firmware flash compatibility for application-specific logic deployment and supports I/O density scaling via the drive's internal expansion interface. The board architecture is optimized for integration with Profinet or EtherNet/IP deterministic networks, ensuring that motor control registers are updated within defined latency parameters for coordinated drive operations.

## Ordering info

• RMIO-01C 68463815 Main Control Board.

• Conformal coating protection for harsh industrial environments.

• Installation and hardware integration documentation.

Field Installation Guidelines

Mounting

• Install the RMIO-01C within the control section of the ACS800 inverter housing, ensuring all alignment pins are seated correctly.

• Fasten the board using the provided hardware to maintain electrical ground continuity with the drive chassis.

Wiring

• Interface digital and analog I/O cables to the designated terminal blocks, utilizing shielded cabling for signal lines to prevent EMI interference.

• Ensure 24 V DC power supply connections meet polarity requirements as specified on the PCB marking.

Frequently Asked Questions

• Q: Is the board hot-swappable?

  A: No. Drive power must be disconnected and the DC bus capacitors must be fully discharged before attempting any installation or replacement of the RMIO-01C.

• Q: Does the board come with firmware pre-installed?

  A: No. The board is shipped as hardware only; application-specific firmware must be loaded via ABB configuration tools to match the drive's power rating and application type.

• Q: What is the purpose of the "C" suffix?

  A: The "C" indicates a conformal coating applied to the PCB, providing protection against moisture, dust, and chemical contamination in harsh industrial environments.

• Q: Can I use this in older ACS800 revisions?

  A: Yes, it is designed for backward compatibility as a direct replacement for previous RMIO-series revisions.

• Q: How do I configure the drive parameters?

  A: Parameters are configured using standard ABB software tools, such as the Drive Configurator, connected via the drive's communication interface.

• Q: Does the board handle motor control logic?

  A: Yes, it performs complex motor control algorithms and manages real-time logic execution for the ACS800 platform.

• Q: Is the I/O interface programmable?

  A: Yes, the digital and analog I/O channels are software-configurable to suit specific control requirements via the loaded application firmware.

• Q: What should I check if communication errors occur?

  A: Verify the firmware compatibility with the specific drive unit, ensure terminal connections are secure, and check the status registers via the drive's control panel.
