Product Overview

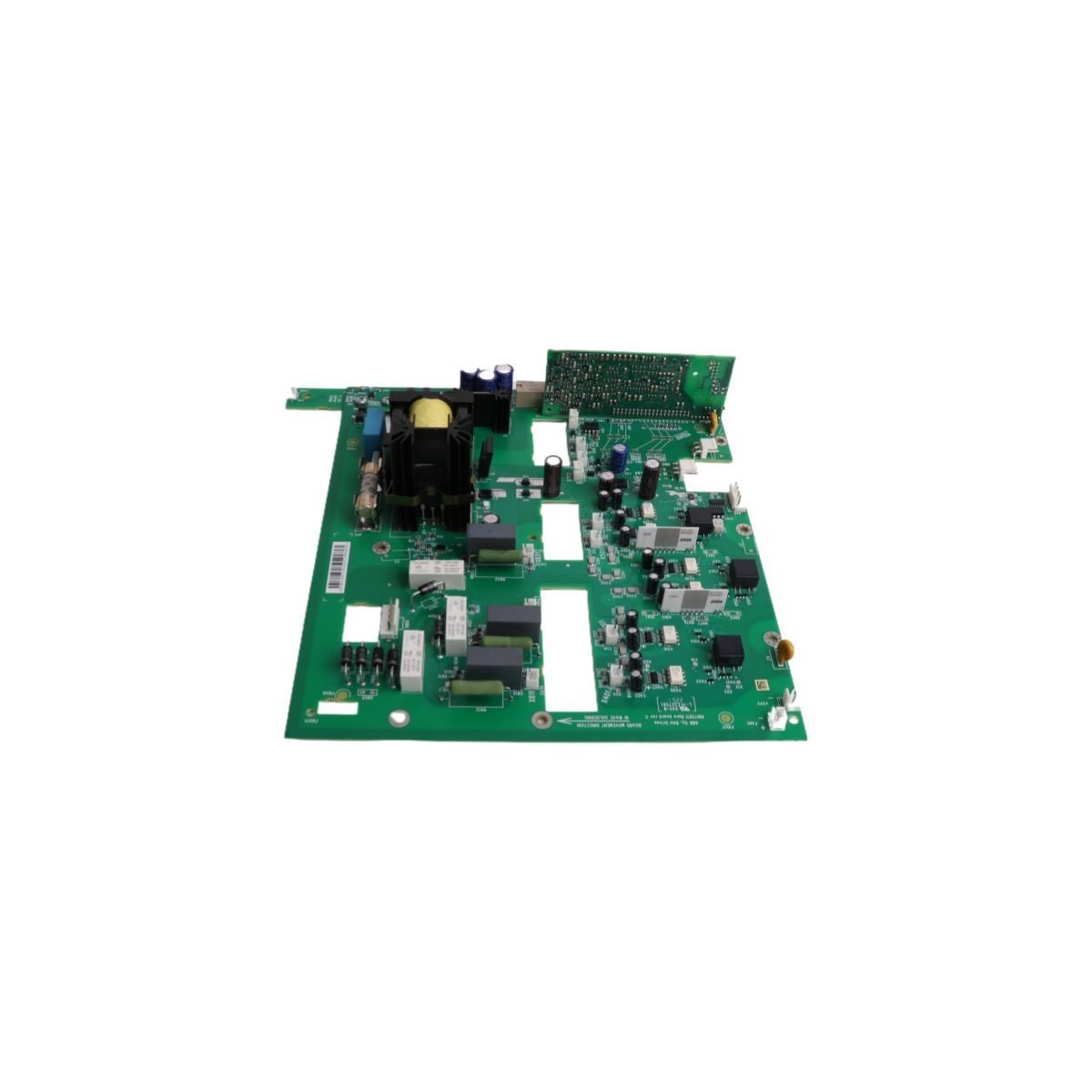

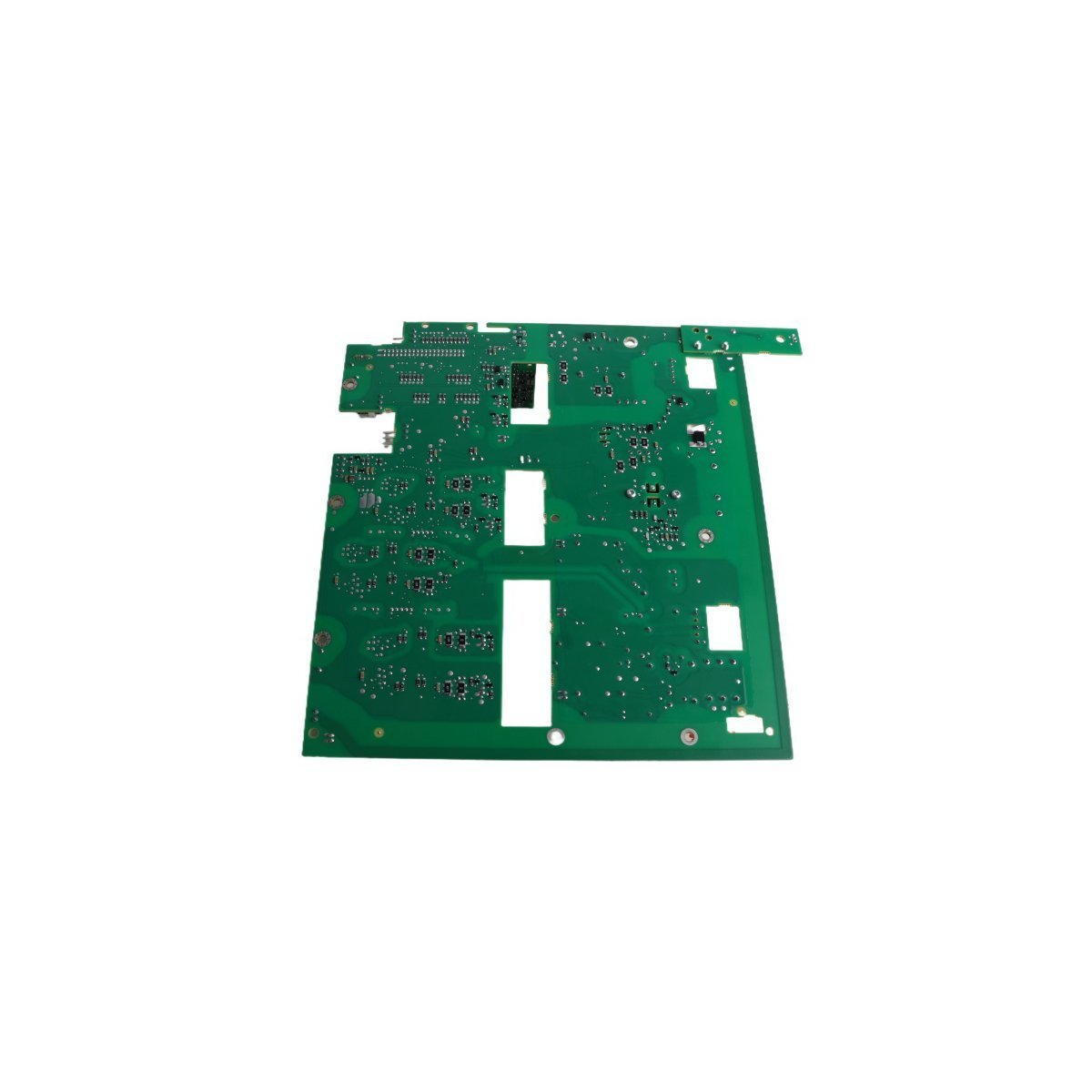

The ABB RINT-6421C is a high-reliability driver module engineered to facilitate precise power stage management within industrial automation and Distributed Control Systems (DCS). Operating as a critical intermediary between low-level control logic and higher-power execution components, this board is designed for a nominal 24V DC input. It is specifically built to manage low-to-medium current distribution while ensuring high-fidelity signal transmission across the automation loop.

A defining characteristic of the RINT-6421C is its sophisticated galvanic isolation. By physically separating the control signaling from the power circuitry, the module effectively eliminates ground loops and mitigates the impact of electromagnetic interference (EMI). This architecture is essential for maintaining the operational uptime of sensitive industrial electronics in environments where electrical transients are common.

Safety Engineering and Environmental Resilience

Safety and durability are prioritized in the design of the RINT-6421C. The board is equipped with an integrated suite of protective hardware, including active safeguards against over-current, over-voltage, and short-circuit conditions. These features act as a frontline defense, protecting both the driver board itself and the expensive downstream machinery from catastrophic failure due to electrical faults.

The module is built for deployment in demanding climates, maintaining a stable performance profile across a broad temperature range of -20°C to +70°C. Furthermore, its protective coating allows it to function reliably in high-humidity conditions (up to 95% non-condensing), making it a preferred choice for heavy manufacturing, process industries, and complex power management infrastructures where environmental consistency cannot be guaranteed.

Technical Specifications

• Model Identification: RINT-6421C

• Module Category: Driver Board / Interface Module

• Operating Voltage: 24V DC (Typical)

• Isolation Type: Integrated Galvanic Isolation

• Protection Features: Short-circuit, Over-current, and Over-voltage protection

• Operating Temperature: -20°C to +70°C

• Humidity Tolerance: 5% to 95% RH (Non-condensing)

• Net Weight: 1.08 kg

• Chassis Dimensions: 18.5 x 8.5 x 30.5 cm

• HS Code: 8537101190

• Manufacturing Origin: Sweden

• System Environment: DCS / Industrial Automation

Key Functional Benefits

• Signal Integrity: Advanced isolation prevents noise cross-talk between control and power stages.

• Rapid Fault Mitigation: Onboard circuitry reacts instantly to isolate electrical faults, reducing system downtime.

• Precision Calibration: Components are tuned for stable signal output, ensuring consistent machinery response.

• Ruggedized Construction: Built with industrial-grade materials to withstand thermal cycling and mechanical stress.
