Product Overview

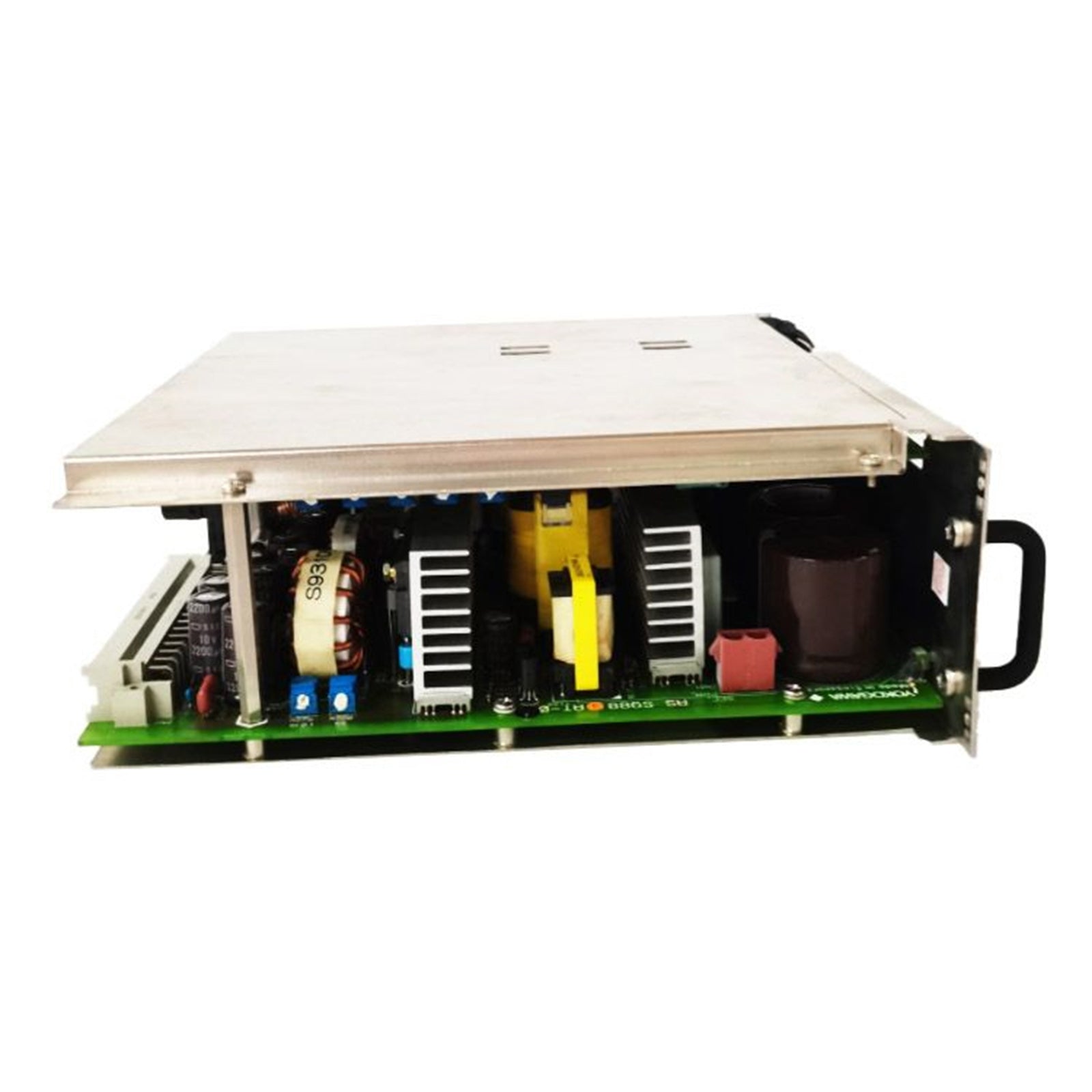

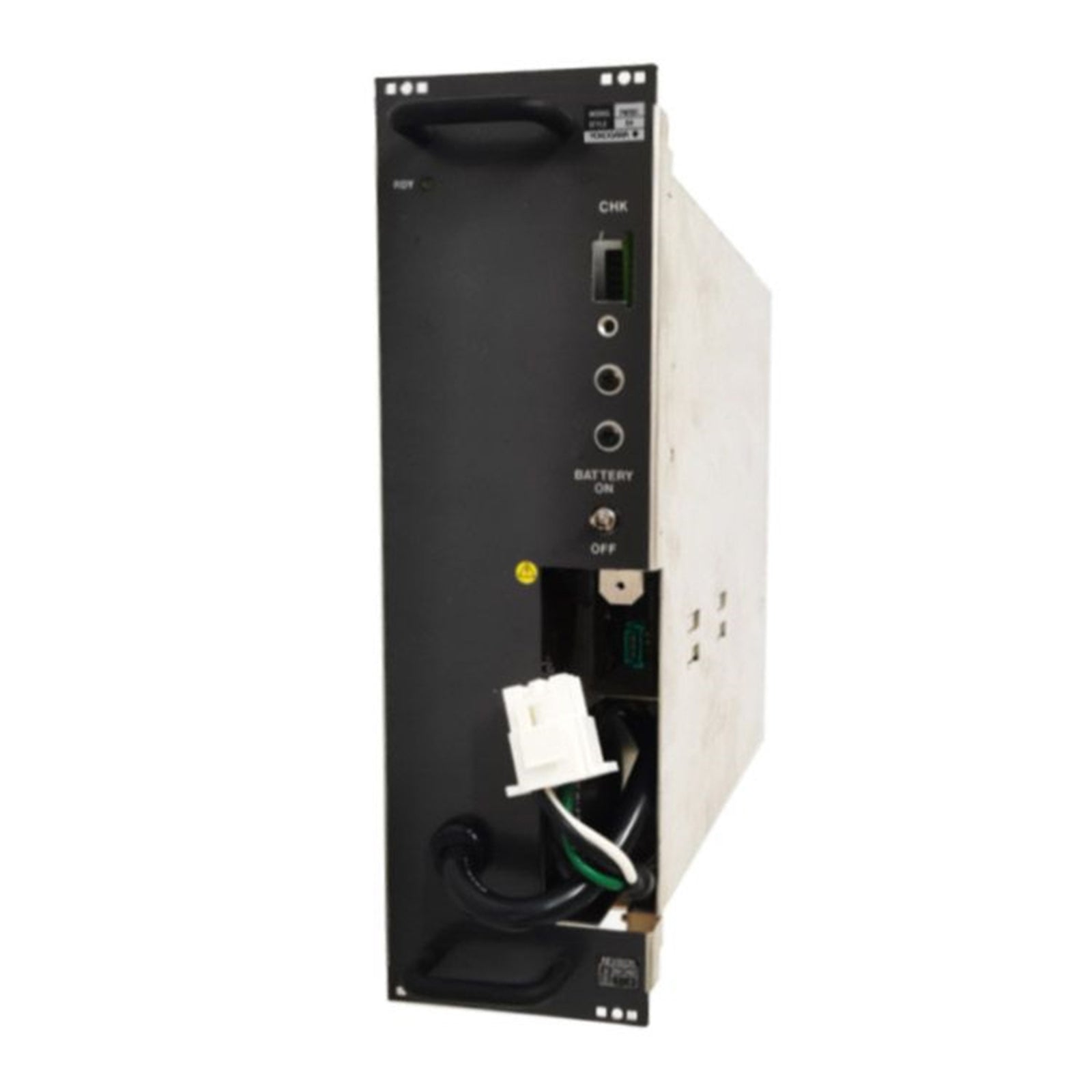

The Yokogawa PW301 is a high-performance, modular power supply unit engineered to serve as the primary energy source for the Centum VP distributed control system (DCS) and associated high-precision process analyzers. This module is designed to convert standard AC line voltage into a stabilized, low-ripple DC output necessary for the sensitive logic circuits of field control units and I/O nests. Built with industrial-grade components, the PW301 emphasizes continuous uptime and thermal efficiency, ensuring that critical control infrastructure remains operational even under fluctuating supply conditions.

Vital Hardware Parameters and Ratings

• Input Voltage Range: 100 to 120 V AC (Standard range for high-reliability AC feeds)

• Maximum Input Current: 6.0 A

• Nominal Output Voltage: 5.1 V DC (Optimized for internal system logic levels)

• Continuous Output Current: 15.0 A

• Operational Design: Modular plug-in architecture for rapid hot-swap replacement

• Energy Efficiency: Advanced switching technology to minimize cabinet heat buildup

• Physical Weight: 3.3 kg (Approximately 7 lbs 3 oz)

• Dimensions: 27.9 cm x 10.2 cm x 27.9 cm (11.0" x 4.0" x 11.0")

• Manufacturing Origin: Japan

Practical Industrial Deployments

The PW301 is a specialized component typically integrated into mission-critical automation environments including:

• Centralized Control Rooms: Providing steady power to the rack-mounted processors and communication modules of a Centum VP system.

• Analytical Instrument Shelters: Powering complex gas chromatographs and liquid analyzers where voltage stability is required for measurement accuracy.

• Redundant Power Configurations: Implementing dual-module setups to provide fault-tolerant power delivery in continuous process industries like petrochemical refining.

• Field Control Stations: Supplying the necessary current for high-density I/O configurations across various industrial manufacturing plants.

FAQ

Q: Can the PW301 be installed while the system is live?

A: Yes, the modular design is specifically engineered for easy integration and maintenance, supporting the high-availability requirements of industrial DCS environments where downtime must be avoided.

Q: What is the significance of the 5.1V DC output versus a standard 5V supply?

A: The 5.1V DC rating is specifically calibrated to account for minor voltage drops across the backplane and connectors, ensuring that the logic cards receive exactly the 5V required at the point of use.

Q: Is this power supply compatible with 220V AC electrical systems?

A: No, this specific model is rated for 100-120V AC input. For 220V applications, a different variant of the Yokogawa power supply series should be utilized to prevent hardware damage.

Q: How does the module indicate its current status to operators?

A: The unit typically features front-panel LED indicators that provide real-time status of the input power presence and the health of the DC output, facilitating quick visual inspections.

Q: What measures are taken to prevent the module from overheating?

A: The PW301 utilizes high-efficiency switching regulators and a ventilated chassis design to dissipate heat effectively, though it should always be installed in cabinets with adequate airflow.
