Product Overview

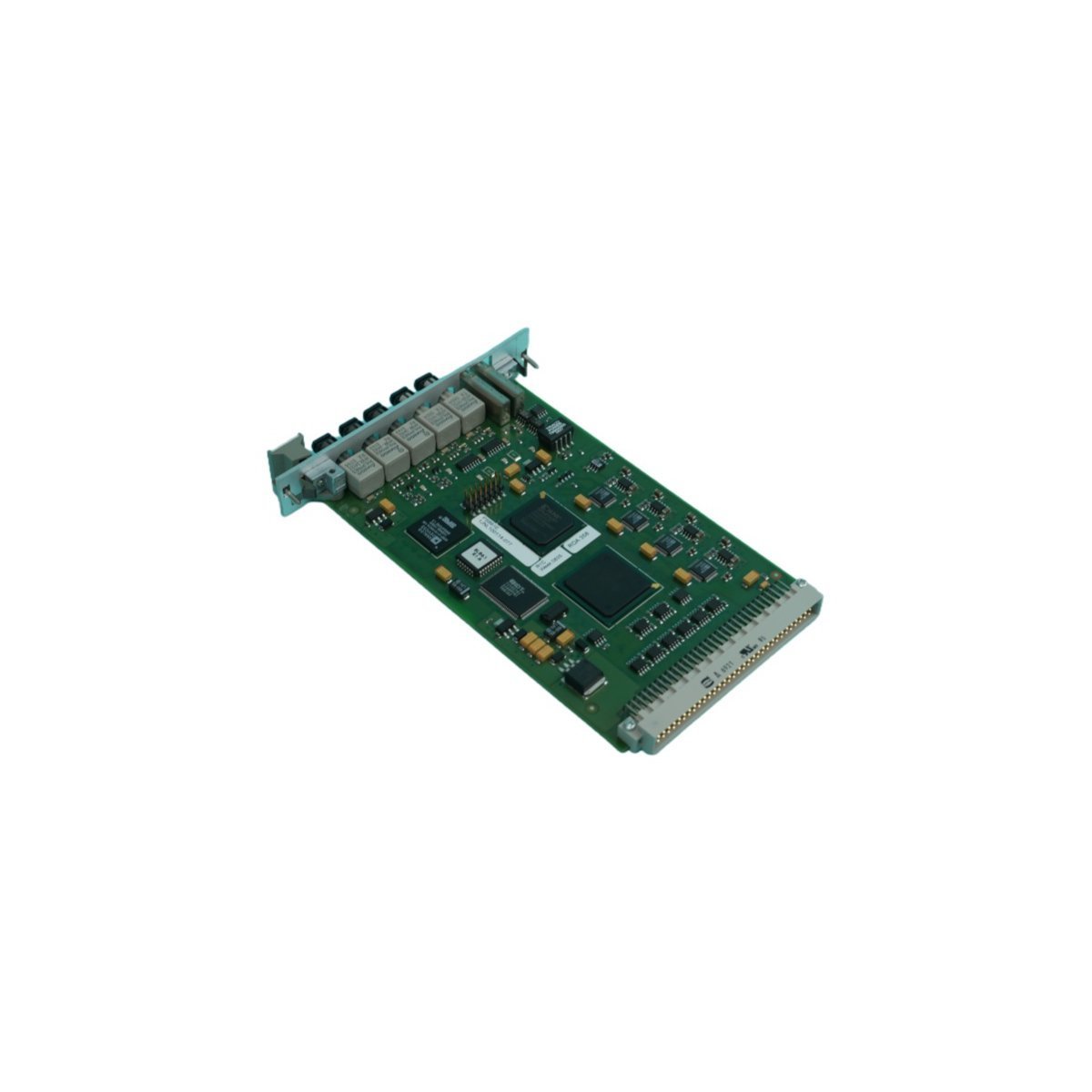

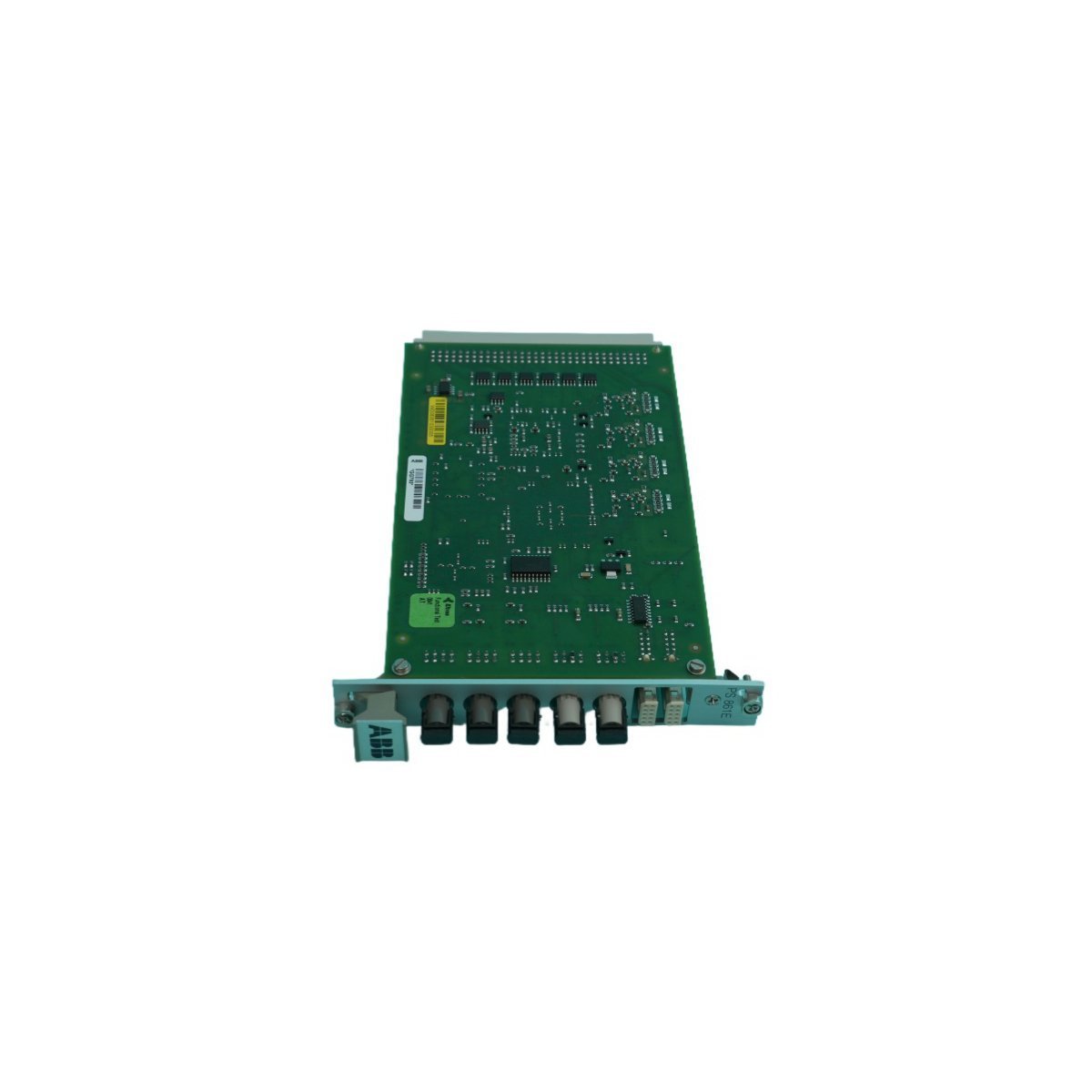

The ABB PS861E is a high-performance Digital Signal Processing (DSP) and Programmable Logic Controller (PLC) module specifically engineered for the AC800M distributed control system (DCS) architecture. Serving as a computational powerhouse within the Advant OCS and 800xA ecosystems, the PS861E is designed to execute complex mathematical algorithms and real-time signal filtering at speeds far exceeding standard logic controllers.

At the core of the PS861E is a 32-bit RISC processor operating at 500MHz, paired with an expansive memory profile of 1GB DDR3 RAM. This hardware configuration allows the module to manage high-speed data acquisition and advanced modulation tasks with deterministic precision. It is particularly effective in environments requiring the processing of high-frequency signals, such as turbine control, vibration analysis, and rapid electrical switching in power utilities.

Network Availability and System Integration

To meet the stringent uptime requirements of mission-critical infrastructure, the PS861E incorporates sophisticated network redundancy protocols. It natively supports Parallel Redundancy Protocol (PRP) and High-Availability Seamless Ring (HSR), ensuring that communication remains uninterrupted even in the event of a single point of failure within the network. This provides a specialized communication availability of 99.999%, which is vital for preventing data loss in chemical processing and metallurgical operations.

The module is fully compatible with ABB’s Control Builder M engineering software, allowing for seamless configuration and integration with the broader S800 I/O family. Despite its significant processing muscle, the unit maintains a compact footprint, facilitating efficient installation in dense control cabinets. Its design emphasizes long-term stability and resistance to the electromagnetic interference commonly found in heavy industrial sectors.

Technical Specifications

• Model Number: PS861E

• Controller Category: Programmable Logic Controller (PLC) / DSP Board

• Processor: 32-bit RISC, 500MHz

• Memory: 1GB DDR3 RAM / 512MB Flash

• Data Throughput: Up to 100,000 points per second

• System Compatibility: Advant OCS / 800xA / AC800M

• Redundancy Protocols: PRP (Parallel Redundancy) and HSR (High-Availability Seamless Ring)

• Software Support: Control Builder M

• Operating Origin: Sweden

• Net Weight: 1.22 kg (Shipping Weight) / 0.12 kg (Net)

• Dimensions: 24 x 19 x 5.3 cm

• HS Code: 8537101190

Primary Industrial Applications

• Power Generation: Managing rapid load shedding and high-speed generator synchronization.

• Chemical Processing: Executing advanced PID loops and real-time data filtering for sensitive reactor variables.

• Metals and Mining: Processing high-frequency feedback from milling and rolling mill instrumentation.

• Substation Automation: Utilizing HSR/PRP protocols for secure and redundant communication in electrical grids.
