Product Overview

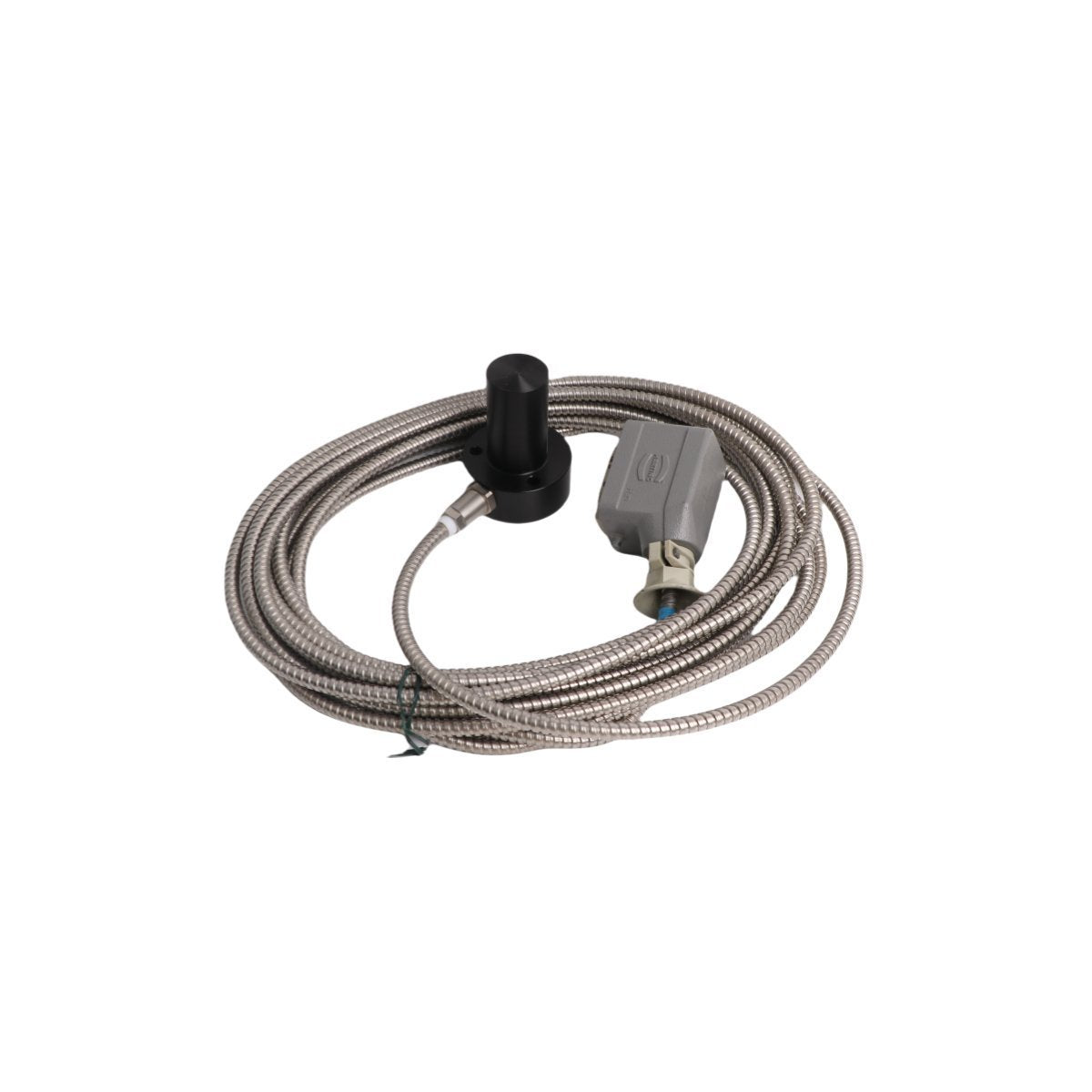

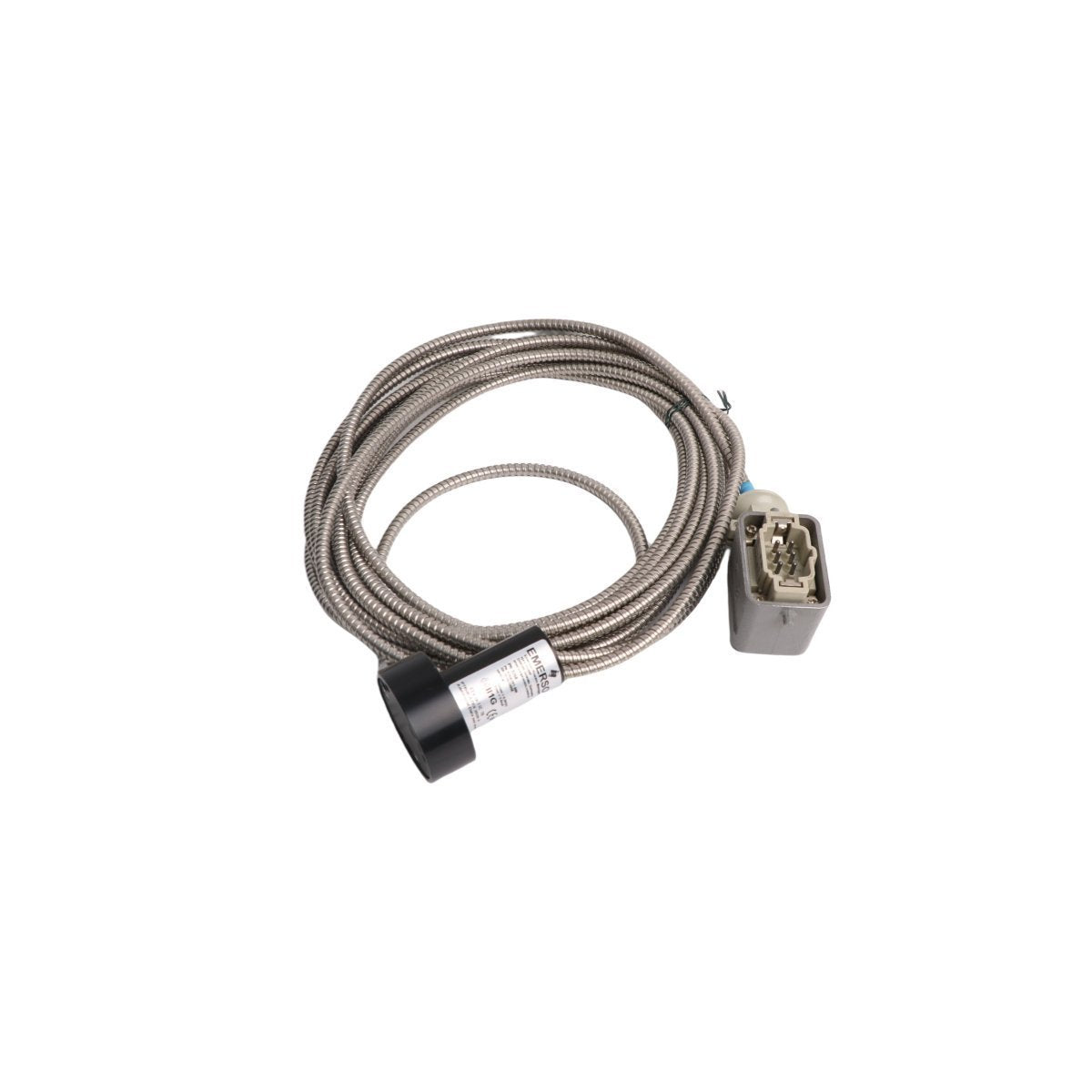

The Emerson PR9268/201-100 is a specialized electrodynamic velocity sensor engineered for the high-precision measurement of absolute machine vibration. As a critical component of the Epro product family, this transducer converts mechanical oscillations into a voltage signal proportional to the vibration velocity. It is primarily utilized on machine housings or bearing pedestals to monitor the structural integrity of heavy-duty rotating equipment. While the series was officially discontinued in late 2018, it remains a gold-standard replacement part for maintaining legacy Emerson Distributed Control Systems (DCS) and dedicated vibration monitoring racks, ensuring that aging industrial assets continue to operate within safety limits.

Electromechanical Properties and Design Architecture

• Sensor Type: Electrodynamic (self-generating) velocity transducer.

• Measurement Variable: Absolute vibration velocity.

• Frequency Range: Optimized for low to medium frequency monitoring of large machinery.

• Housing Construction: Ruggedized, hermetically sealed casing designed to repel industrial lubricants and moisture.

• Signal Output: High-sensitivity voltage output requiring no external power for the primary sensing element.

• Operational Durability: High resistance against mechanical shock and thermal fluctuations.

Operational Environments and Field Deployment

The PR9268/201-100 is specifically designed for environments where reliability and long-term stability are mandatory. Typical industrial applications include:

Power Generation Assets: Absolute vibration monitoring of steam and gas turbine bearing pedestals to prevent catastrophic structural failure.

Petrochemical Processing: Tracking the mechanical health of large-scale centrifugal compressors and high-capacity pump housings in explosive or harsh atmospheres.

Hydropower Systems: Measuring low-frequency oscillations in vertical and horizontal hydro-generators to assess bearing wear.

Heavy Manufacturing: Integration into predictive maintenance programs for large fans, blowers, and motor frames, allowing for early detection of unbalance or misalignment.
