Product Overview

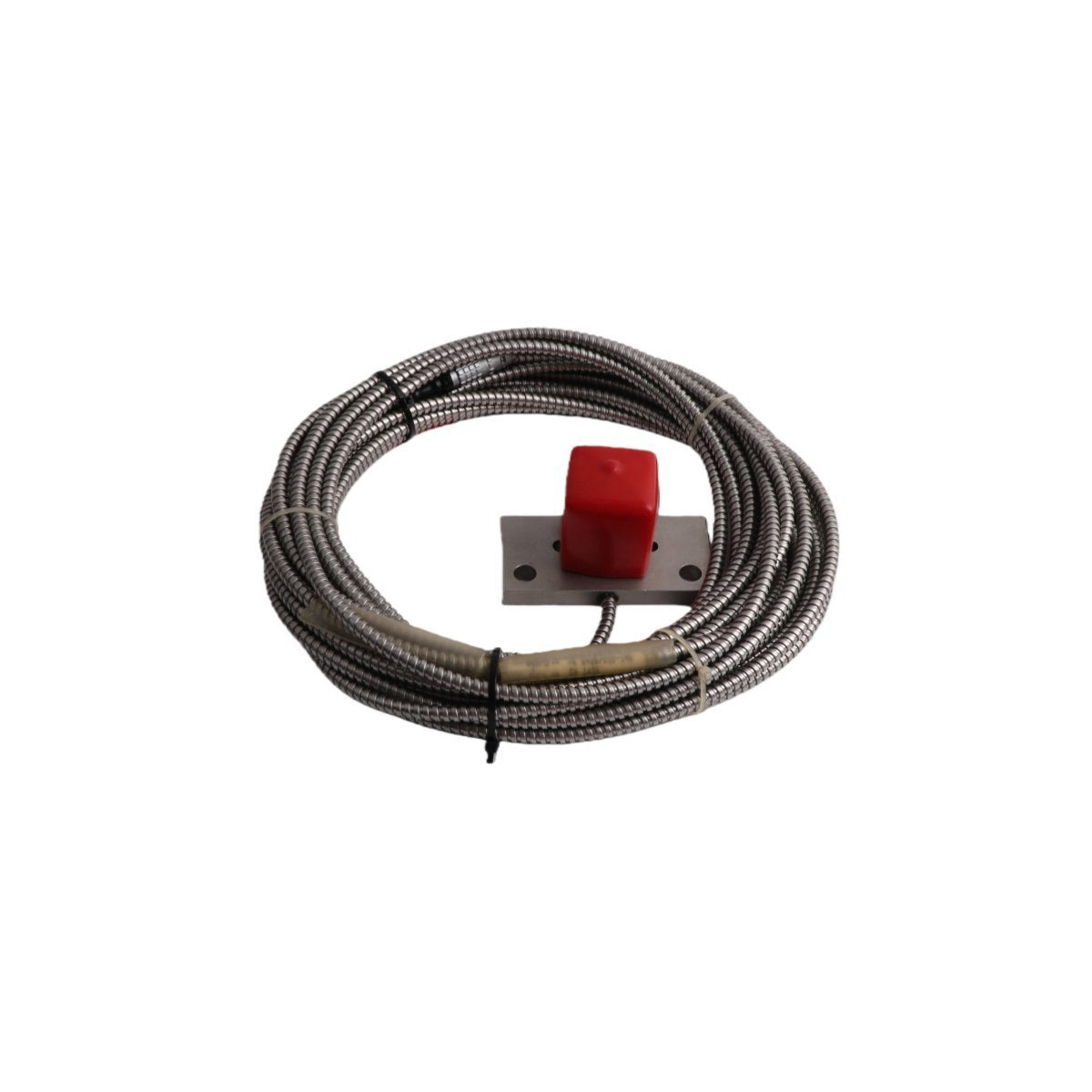

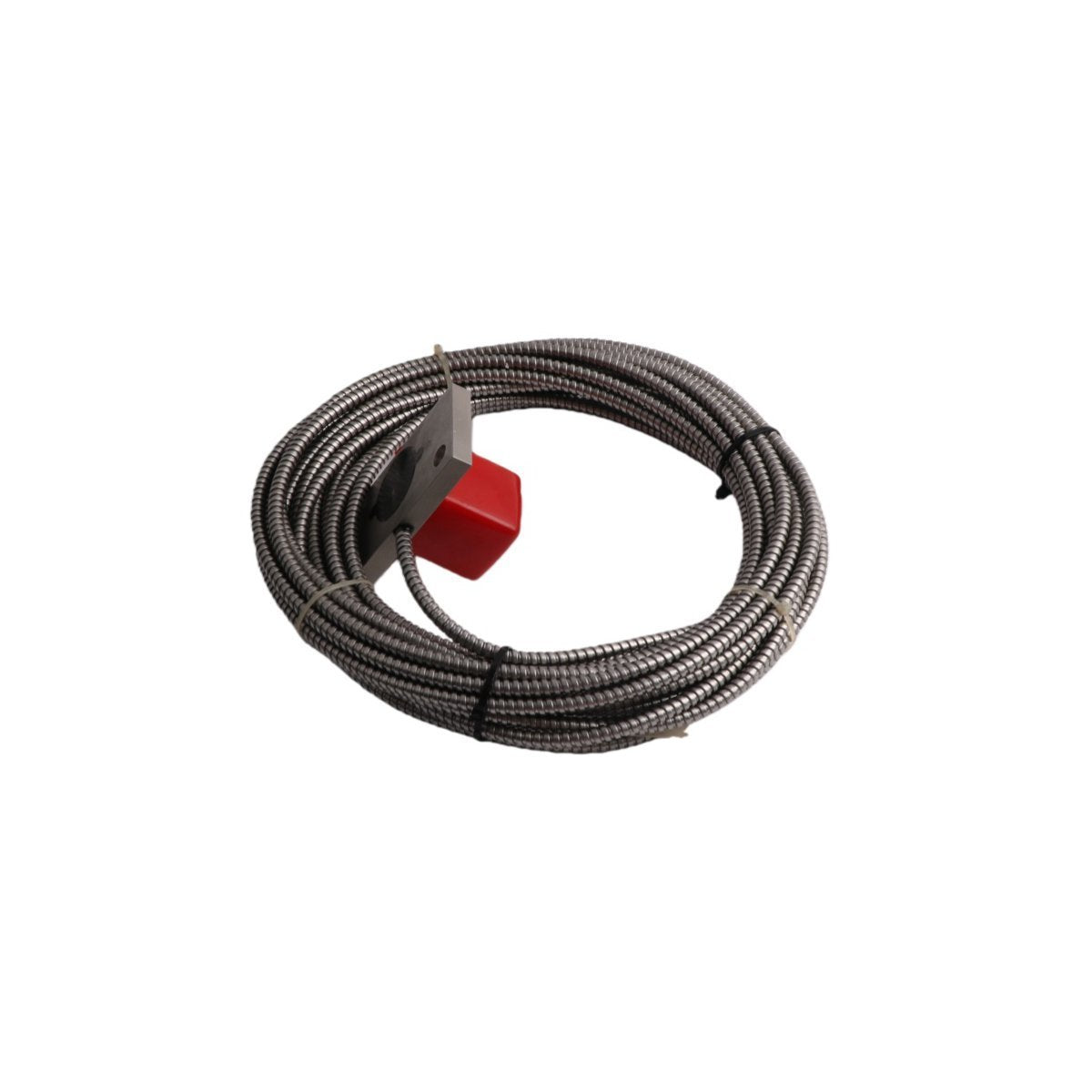

The Emerson PR6426/010-040 is a high-precision eddy current sensor engineered for non-contact measurement of vibration, displacement, and speed in critical rotating machinery. As a vital component of the EPRO product line, this sensor is designed to interface with Distributed Control Systems (DCS) and monitoring racks to provide real-time mechanical health data. By utilizing the eddy current principle, the PR6426/010-040 measures the gap between the sensor tip and a conductive target (such as a turbine shaft) without physical contact, ensuring high-frequency response and long-term durability in oil-rich or high-pressure environments.

Technical Characteristics

The PR6426/010-040 is defined by its robust electromechanical design and compliance with stringent industrial standards:

Precision Non-Contact Measurement This sensor captures microscopic movements in shaft position and vibration with sub-micron resolution. Its ability to provide absolute vibration data makes it indispensable for detecting shaft unbalance, misalignment, and bearing wear before they lead to catastrophic equipment failure.

Environmental Resilience and Build Quality Designed for the harshest industrial conditions, the sensor housing is resistant to the chemical effects of lubricants and coolants. It maintains stable signal output across a wide temperature range, making it suitable for use in steam turbines, gas turbines, and large-scale centrifugal compressors.

Regulatory Compliance and Sustainability The PR6426/010-040 follows strict environmental disclosures. While it contains lead (Pb) components in compliance with specific industrial exemptions (GB/T 26572), it is free from other hazardous substances like mercury and cadmium. The unit features a defined Environmentally Friendly Use Period (EFUP), ensuring safe integration into facilities with high RoHS and environmental oversight.

Seamless System Integration With its standardized physical dimensions and electrical characteristics, the sensor facilitates easy replacement or expansion within existing EPRO or Emerson monitoring architectures. Its high-resolution output ensures compatibility with advanced predictive maintenance software for deep-dive machinery diagnostics.

Technical Specifications

• Brand: Emerson (EPRO Series)

• Model Number: PR6426/010-040

• Sensor Type: Eddy Current / Inductive Proximity

• Application: Vibration, Displacement, and Speed Sensing

• System Integration: DCS / Machinery Protection Systems

• Lead Content Disclosure: Pb compliant via industrial exemption

• Operating State: Non-contact electromagnetic

• Weight: 0.34 kg

• Dimensions: 12.1 x 5.2 x 16.6 cm

• Origin: USA

Application Areas

The PR6426/010-040 is a standard choice for heavy industrial asset protection:

• Power Generation: Monitoring shaft eccentricity in steam and gas turbines.

• Petrochemical: Measuring radial and axial vibration in high-speed compressors.

• Oil and Gas: Speed sensing and overspeed protection for pumping stations.

• Water Treatment: Vibration monitoring for large-scale vertical and horizontal pumps.
