Product Overview

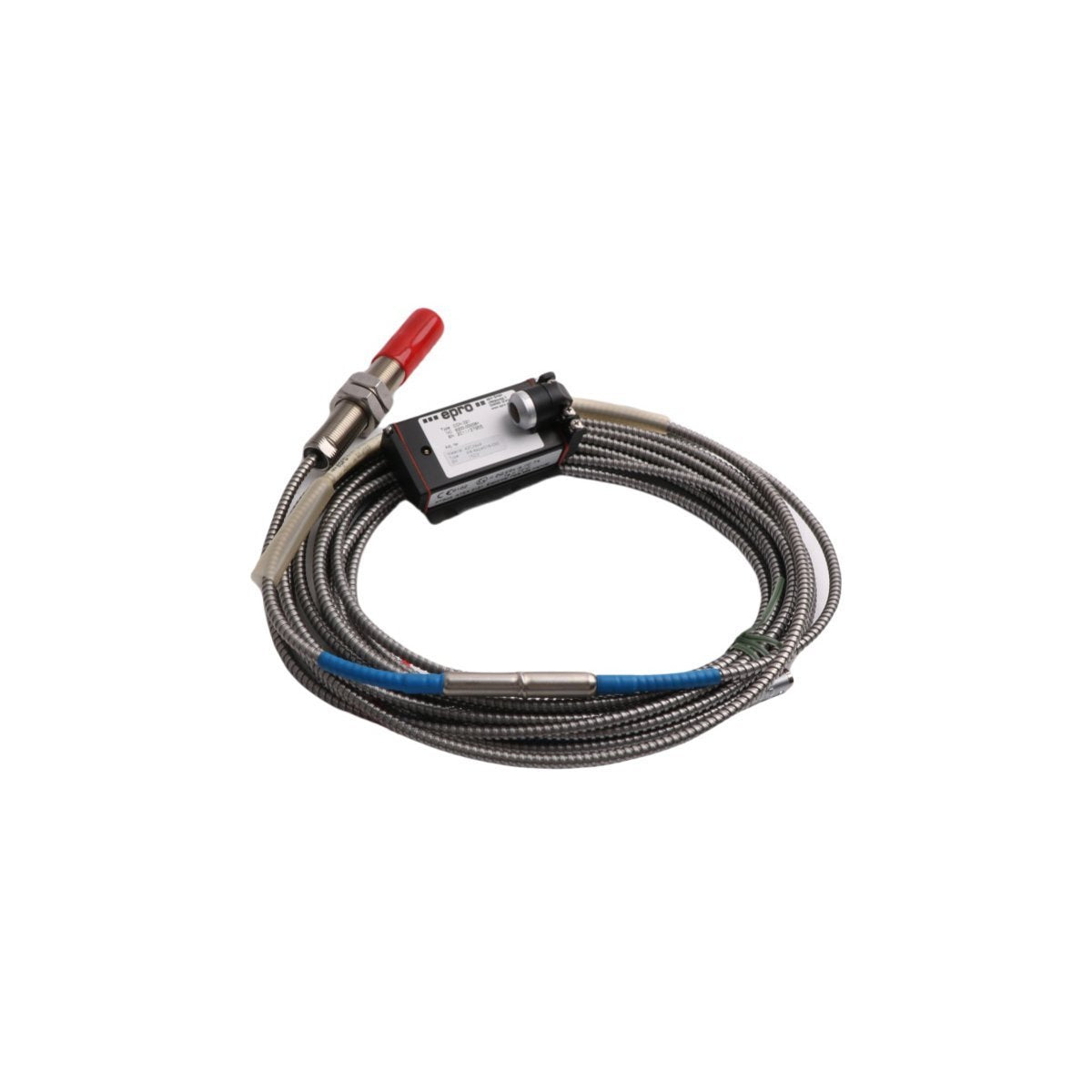

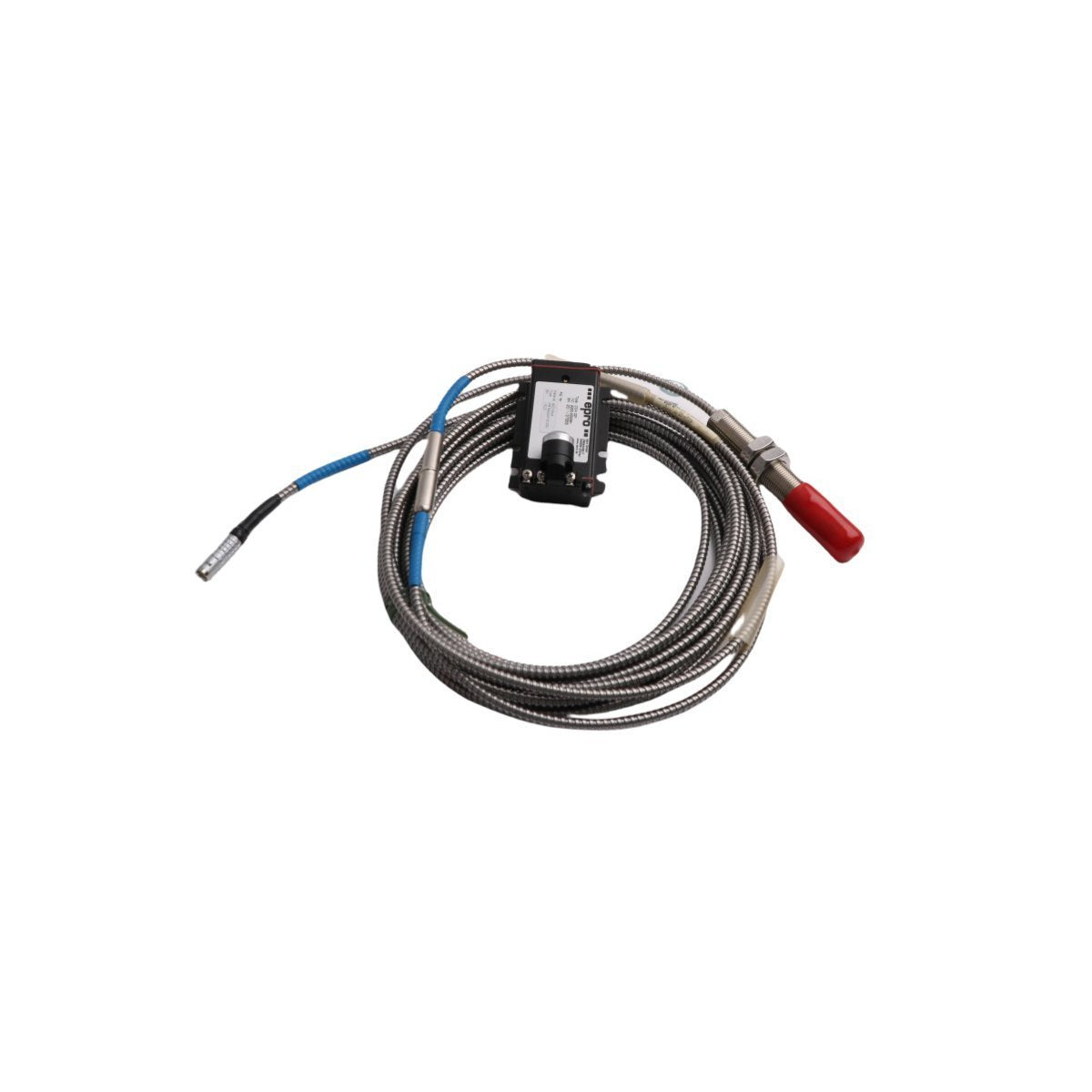

The Emerson Epro PR6424/010-010 CON021 is a high-performance 16mm eddy current displacement sensor designed for the non-contact measurement of critical machine parameters. This industrial-grade probe is a vital component for vibration monitoring and shaft positioning in heavy-duty rotating equipment. By generating an electromagnetic field at the probe tip, it detects micro-movements of the target surface—typically a turbine or compressor shaft—without physical contact, ensuring zero mechanical wear.

This sensor is specifically engineered to interface with the MMS6000 and MMS3000 machinery protection systems. It provides high-fidelity data on radial shaft vibration, axial position, and eccentricity. With its 16mm tip diameter, the PR6424 offers a larger measuring range and greater standoff distance than standard 8mm probes, making it the preferred choice for massive industrial rotors where significant displacement may occur.

Key Hardware Parameters

The PR6424/010-010 CON021 is built to provide laboratory-grade precision in the harsh environments of power plant turbine decks.

• Probe Tip Diameter: 16 mm

• Linear Measuring Range: 2 mm to 8 mm (depending on calibration/driver)

• Frequency Response: 0 Hz to 8 kHz (±3dB)

• Linearity Error: ≤ ±1% of Full Scale Output (FSO)

• Temperature Sensitivity: ≤ ±0.05% per °C (Temperature compensated)

• Power Requirement: -24 VDC (±10%)

• Minimum Target Diameter: 25 mm (0.98")

• Recommended Target Material: 42CrMo4 (AISI 4140) steel

• Connector Type: CON021 specialized industrial connector

• Ingress Protection: Hermetically sealed tip for oil and moisture resistance

• Weight: 0.94 kg

• Origin: USA

Industrial Applications

The Emerson PR6424/010-010 is essential for predictive maintenance and machine protection in the following sectors:

• Thermal Power Generation: Monitoring the axial thrust and radial vibration of main steam and gas turbine shafts to prevent catastrophic blade-to-casing contact.

• Oil & Gas Infrastructure: Real-time displacement tracking for large-scale centrifugal compressors and high-pressure pumps.

• Hydroelectric Plants: Measuring the eccentricity and runout of vertical and horizontal hydro-turbine generator shafts.

• Heavy Manufacturing: Overseeing the health of high-capacity induction motors and gearboxes in steel and paper mills.
