Product Overview

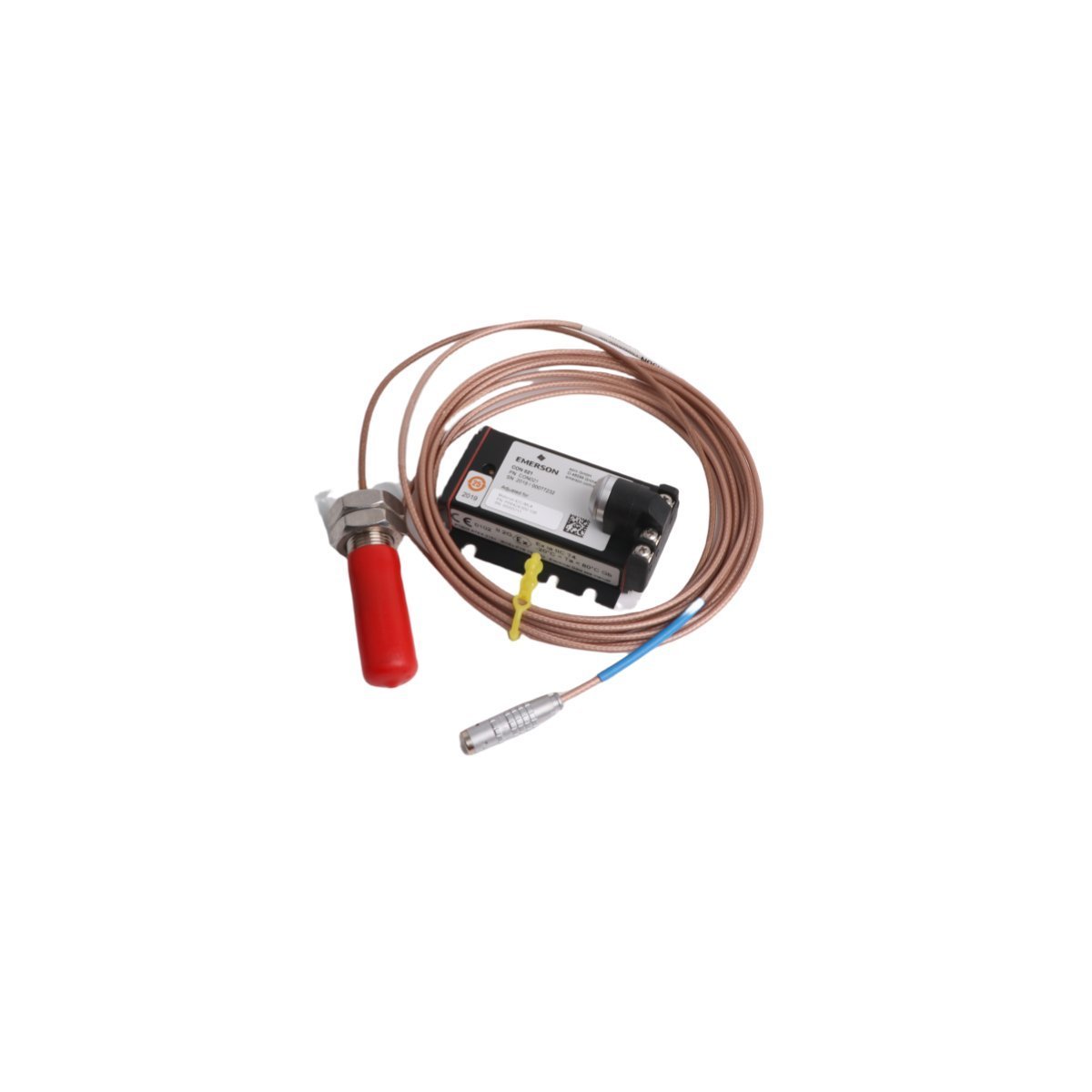

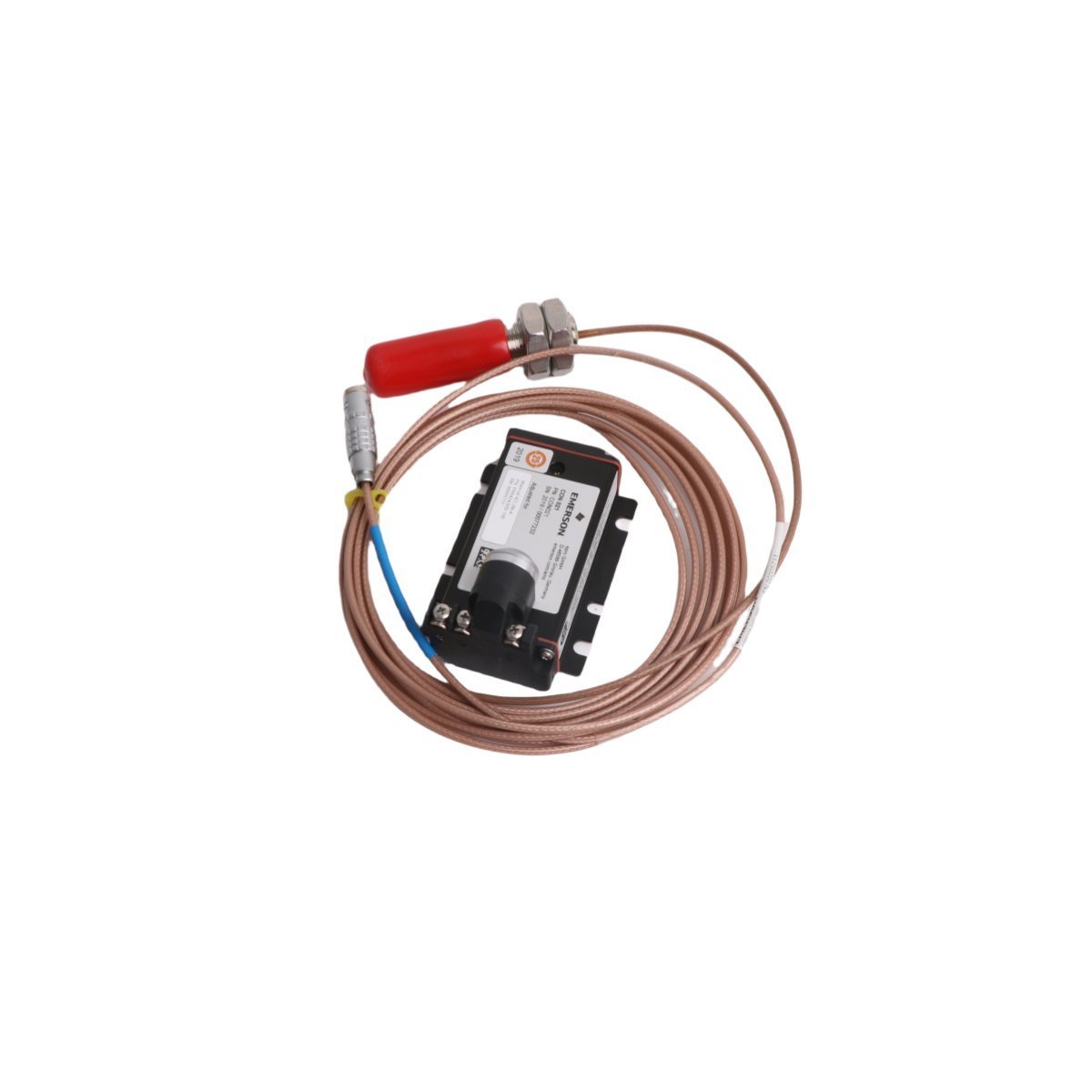

The Emerson PR6424/000-100 CON021 is a specialized industrial transducer engineered for high-accuracy vibration and displacement monitoring. Utilizing non-contacting eddy current technology, this module is specifically designed to measure the relative motion between a machine shaft and its bearing housing. By providing real-time feedback on shaft position and dynamic movement, it plays a critical role in Machine Protection Systems (MPS). Although this EPRO series component was officially phased out by the OEM in December 2018, it remains a vital link for maintaining and repairing existing DCS and turbine supervisory frameworks.

Critical Technical Specifications

• Sensor Principle: Non-contacting inductive eddy current measurement.

• Target Material: Ferromagnetic metals (typically 42CrMo4 or equivalent).

• Measurement Range: Optimized for radial vibration and axial thrust detection.

• Operational Integrity: Resistant to chemical lubricants, high-pressure steam, and significant electromagnetic interference.

• Thermal Tolerance: Designed for high-temperature turbine environments.

• Interfacing: Directly compatible with CON021 signal conditioning converters.

Industrial Sector Applications

This sensor is a cornerstone for reliability engineering in heavy-duty rotating machinery environments. Its primary deployments include:

Power Generation Infrastructure: Monitoring shaft eccentricity and thermal expansion in large-scale steam and gas turbines to prevent catastrophic internal contact.

Oil and Gas Processing: Protecting centrifugal compressors and high-speed pumps by detecting bearing degradation through vibration analysis.

Steel and Paper Mills: Ensuring the stability of large rollers and motor shafts where physical contact measurement would be impossible or unsafe.

Predictive Maintenance Programs: Providing the raw data necessary for spectrum analysis, allowing maintenance teams to identify misalignment or unbalance before equipment failure occurs.
