Product Overview

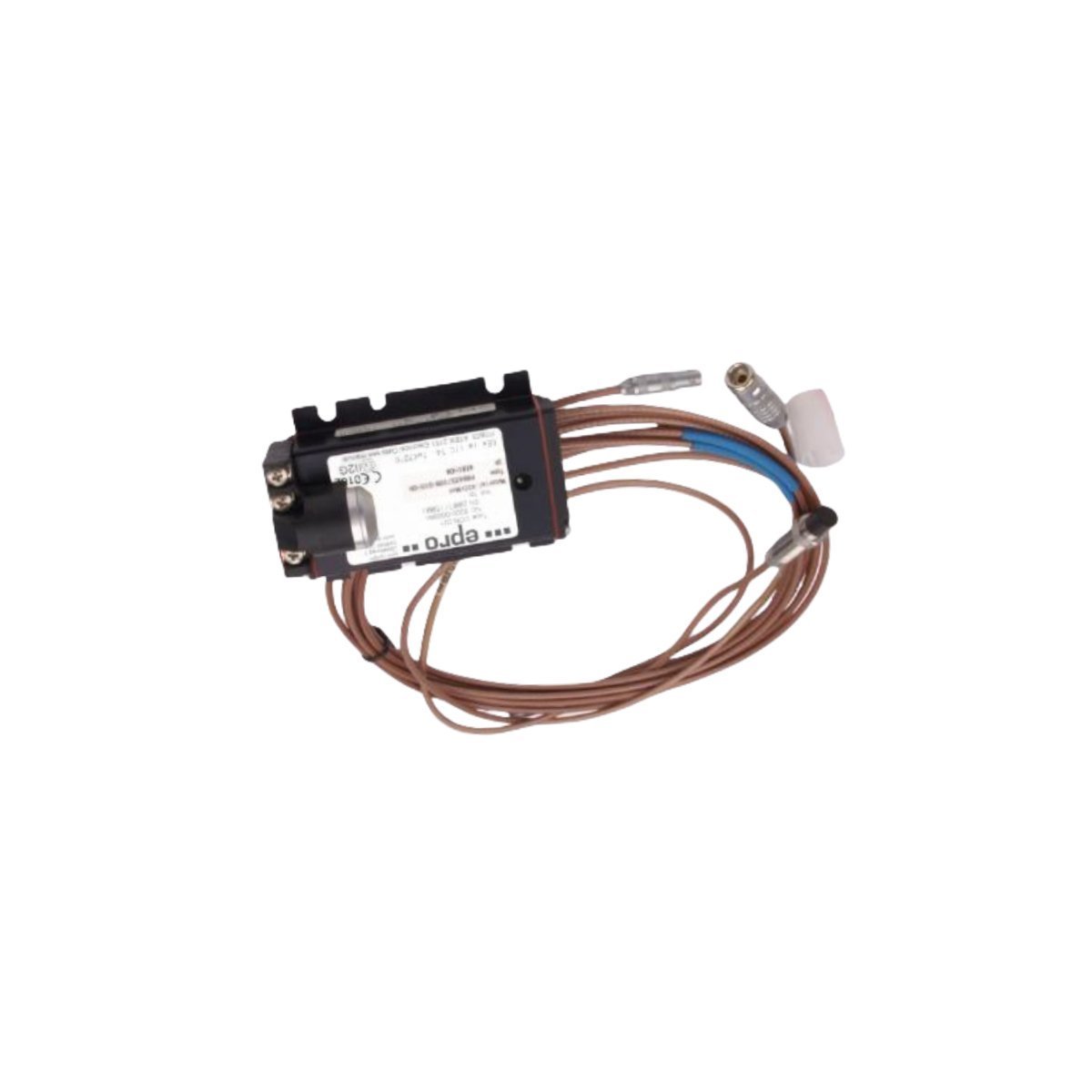

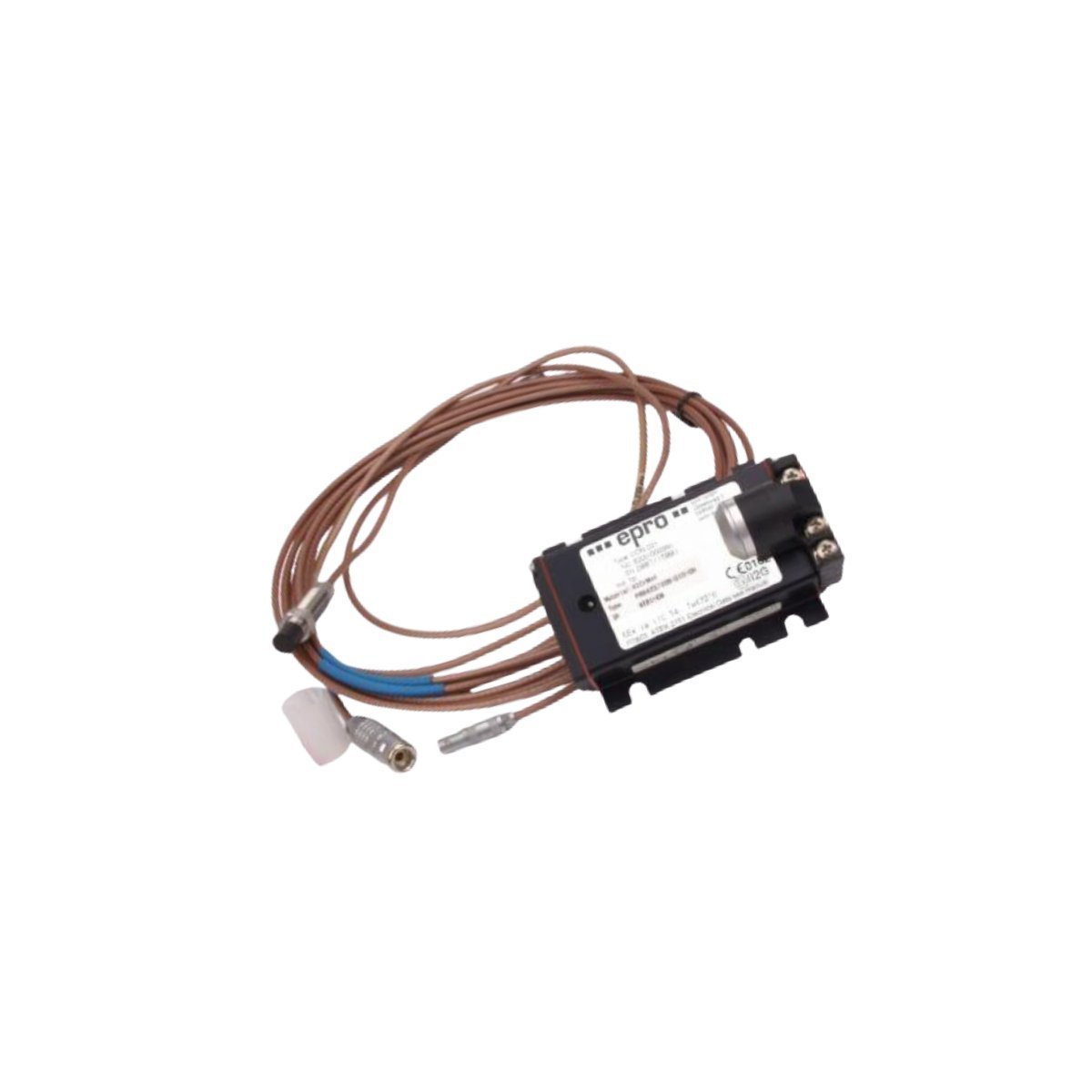

The Emerson PR6423/10R-010 is a high-resolution inductive transducer engineered for the non-contacting supervision of rotating shafts in critical industrial machinery. Utilizing the eddy current principle, this 8mm sensor measures the dynamic distance between the probe tip and the metallic target with sub-micron precision. This capability is fundamental for identifying shaft vibration, radial displacement, and axial thrust in real-time. Designed as a ruggedized field instrument, it serves as the primary data source for machine protection systems, allowing operators to detect mechanical instability or bearing wear before catastrophic failure occurs. Despite being part of a legacy series discontinued in 2018, it remains a global standard for turbine and compressor monitoring.

Engineering Specifications and Mechanical Data

• Sensor Tip Diameter: 8 mm

• Measurement Technology: Inductive Eddy Current (Non-Contact)

• Net Weight: 0.66 kg

• Casing Dimensions: 24 x 17 x 6 cm

• Media Resistance: Full immunity to pressurized lubricants, moisture, and chemical contaminants

• Installation Format: Standard thread mounting with high-thermal stability

• Signal Output: High-frequency response suitable for high-speed rotors

• Customs Tariff Code: 8537101190

• Manufacturing Origin: USA

• System Compatibility: Epro MMS series and standard DCS vibration racks

Machinery Protection and Technical Deployments

This proximity probe is specifically built for the harsh interior environments of high-speed mechanical drives. Key industrial deployments include:

• Radial Shaft Vibration Monitoring: Continuous tracking of shaft movement within hydrodynamic fluid-film bearings to evaluate rotor balance and alignment.

• Axial Position Sensing: Measuring the longitudinal "float" of thrust collars in steam and gas turbines to protect against internal component rubbing.

• Eccentricity Analysis: Detecting shaft bowing or thermal warping during turbine "slow-roll" or startup phases.

• Industrial Condition Monitoring: Providing high-fidelity analog signals to Distributed Control Systems (DCS) for predictive maintenance modeling and FFT vibration analysis.
