Product Overview

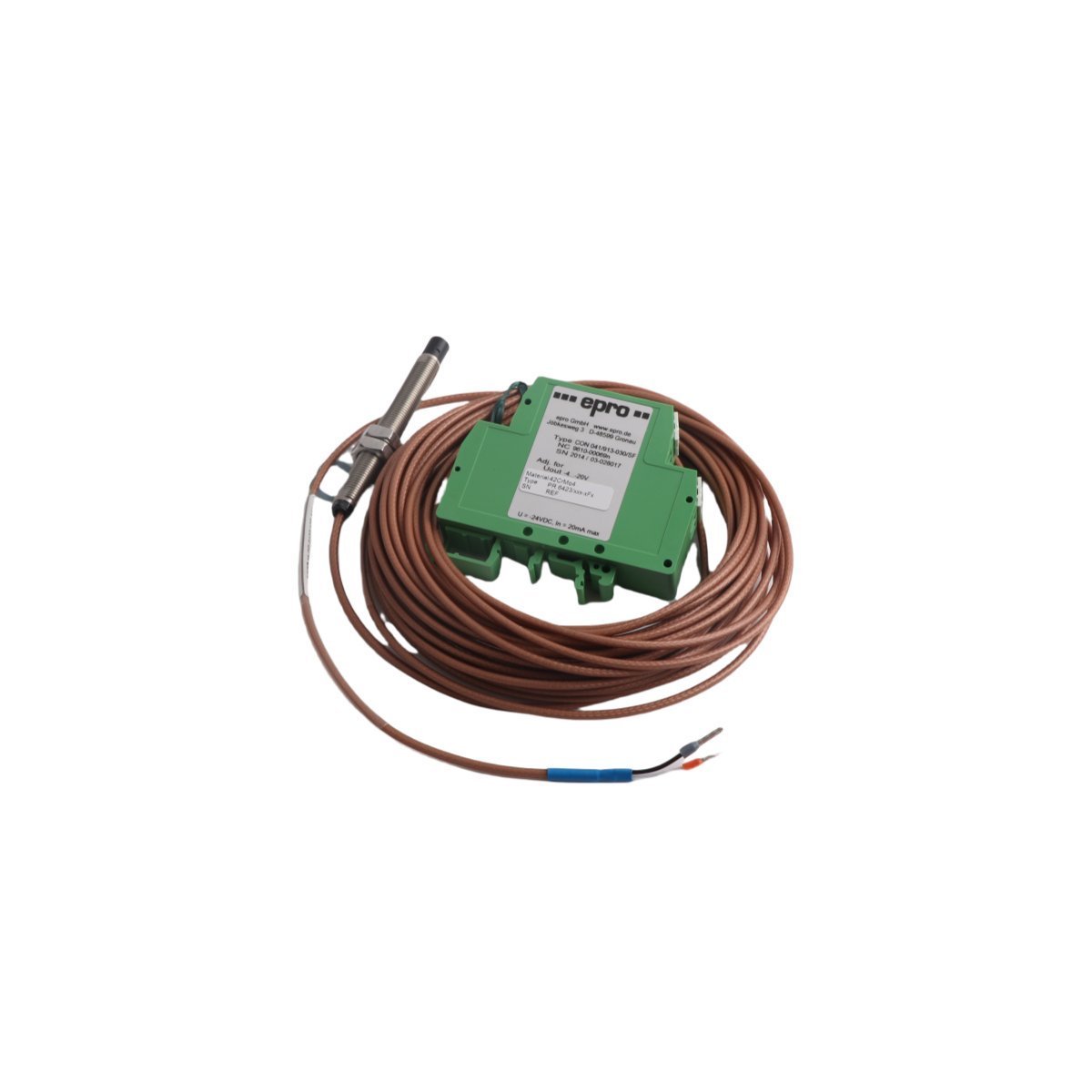

The Emerson PR6423/105-141 is a high-fidelity inductive displacement transducer engineered for the non-contacting supervision of critical rotating assets. Utilizing advanced eddy current technology, this sensor measures the electromagnetic gap between the probe tip and a conductive shaft with sub-micron resolution. As a vital component of the EPRO product family, the PR6423/105-141 delivers real-time data on radial vibration and axial position, providing the foundational metrics required for machinery protection systems. Its contactless measurement principle ensures that neither the sensor nor the target shaft experiences mechanical wear, making it an ideal choice for permanent installation on high-speed industrial rotors.

Hardware Specifications and Measurement Capabilities

This sensor system is built to maintain signal integrity and linear accuracy even when subjected to intense electromagnetic interference and high-pressure lubricants.

• Sensing Mechanism: Non-contacting inductive eddy current principle.

• Tip Architecture: 8mm diameter probe head optimized for standard displacement ranges.

• Connector Type: Specialized CON041 high-integrity industrial termination.

• Environmental Sealing: Hermetically sealed stainless steel body with IP67/IP68 ingress protection.

• Target Compatibility: Calibrated for use with standard ferromagnetic metals and alloy steel shafts.

• Dynamic Response: Wide-frequency bandwidth capable of capturing both slow-roll eccentricity and high-frequency vibration.

• Thermal Mitigation: Integrated temperature compensation to prevent signal drift in high-heat turbine environments.

• Output Fidelity: High-sensitivity analog signal compatible with multiple DCS and PLC interfaces.

Industrial Deployment and Machinery Protection

The PR6423/105-141 CON041 is a cornerstone of condition-based maintenance programs in sectors where equipment uptime is critical, such as power generation, oil and gas, and chemical processing. Its primary role is to act as a 24/7 diagnostic monitor for turbomachinery, where undetected mechanical shifts can lead to catastrophic failure.

In utility-scale power plants, these sensors are typically mounted on steam and gas turbines to track shaft displacement and vibration levels, ensuring the rotor remains within safe structural tolerances. In the petrochemical industry, the transducer is applied to high-velocity centrifugal compressors and massive industrial pumps to identify early-stage bearing degradation or shaft misalignments. Because the eddy current principle is unaffected by non-conductive mediums like lubricating oil, steam, or water, it provides reliable data in the most demanding bearing environments. When linked to an Emerson CSI 6500 rack or a Distributed Control System (DCS), the PR6423/105-141 enables automated emergency trip logic, effectively safeguarding the plant's most valuable infrastructure.
