Product Overview

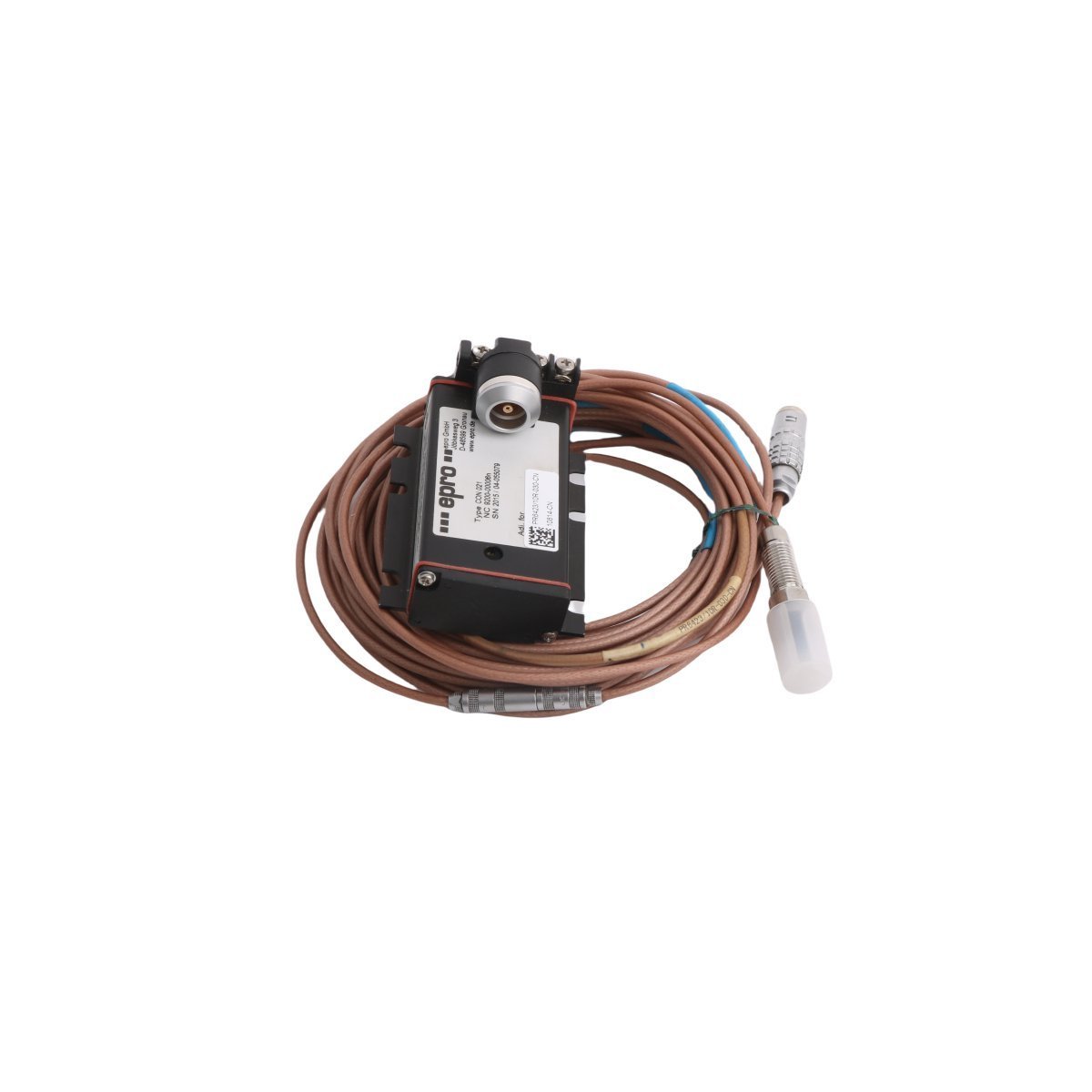

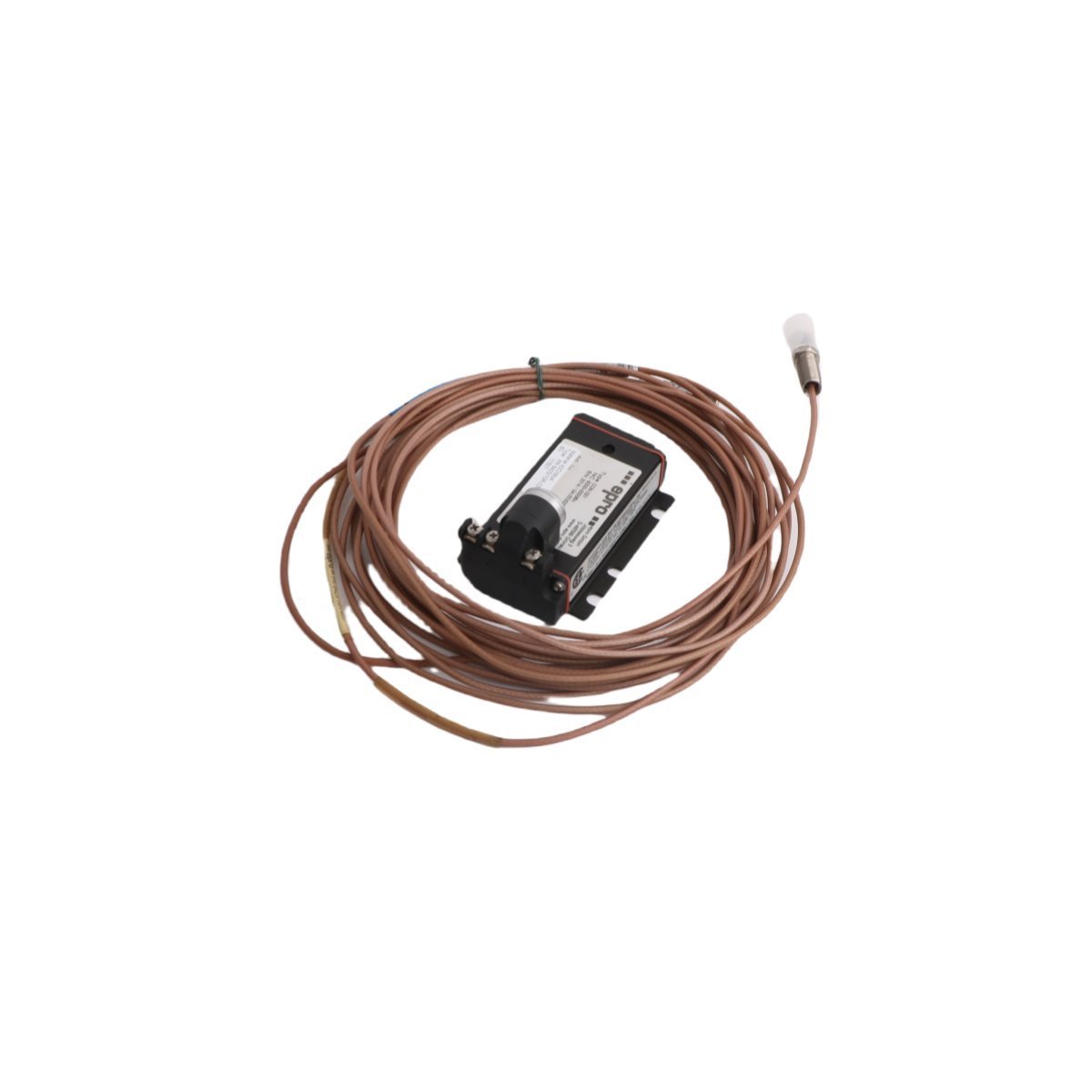

The Emerson PR6423/01R-040 CON021 is a high-reliability inductive displacement sensor specifically engineered for non-contacting vibration and position monitoring in critical rotating machinery. As a specialized component of the EPRO series, this 8mm probe features a "Reverse Mount" configuration, which is essential for internal machinery installations where standard front-access mounting is restricted. By measuring the electromagnetic gap between the sensor face and the conductive target, it provides precise, real-time feedback on mechanical clearances. This transducer is a fundamental asset for machinery protection systems, allowing operators to detect shaft misalignments and bearing wear before they lead to catastrophic failure.

Physical Architecture and Component Specifications

This sensor system is built to provide high-resolution signal stability while operating in the immediate vicinity of high-velocity rotating parts and intense electromagnetic fields.

• Sensing Mechanism: Non-contacting inductive eddy current technology.

• Mounting Style: 8mm Reverse Mount (ideal for confined internal machine housings).

• Signal Connection: Integrated cable with a specialized CON021 connector assembly.

• Environmental Resistance: Hermetically sealed stainless steel body rated for IP67/IP68 ingress protection.

• Linearity & Accuracy: Engineered for high-fidelity signal conversion with minimal noise floor.

• Material Calibration: Optimized for ferromagnetic targets and standard alloy steel shafts.

• Thermal Mitigation: Advanced internal compensation to maintain accuracy across broad temperature gradients.

Performance Scenarios and Industry Utility

The PR6423/01R-040 CON021 is a primary choice for predictive maintenance programs in the power generation, petrochemical, and aerospace manufacturing sectors. Its unique reverse-mount design makes it indispensable for monitoring internal bearing clearances where the sensor must be secured from the rear of the mounting bracket.

In utility-scale power plants, these probes are typically deployed on steam and gas turbines to monitor radial shaft vibration and axial thrust. Within heavy processing facilities, the sensor is applied to high-speed centrifugal compressors and massive industrial pumps to identify shaft eccentricity. Because the eddy current principle is unaffected by non-conductive mediums such as lubricating oil or water, it remains highly reliable in "wet" bearing environments. When integrated into a Distributed Control System (DCS) or an Emerson CSI 6500 rack, it enables automated emergency trip logic and detailed trend analysis, safeguarding expensive hardware and ensuring continuous operational uptime.
