Product Overview

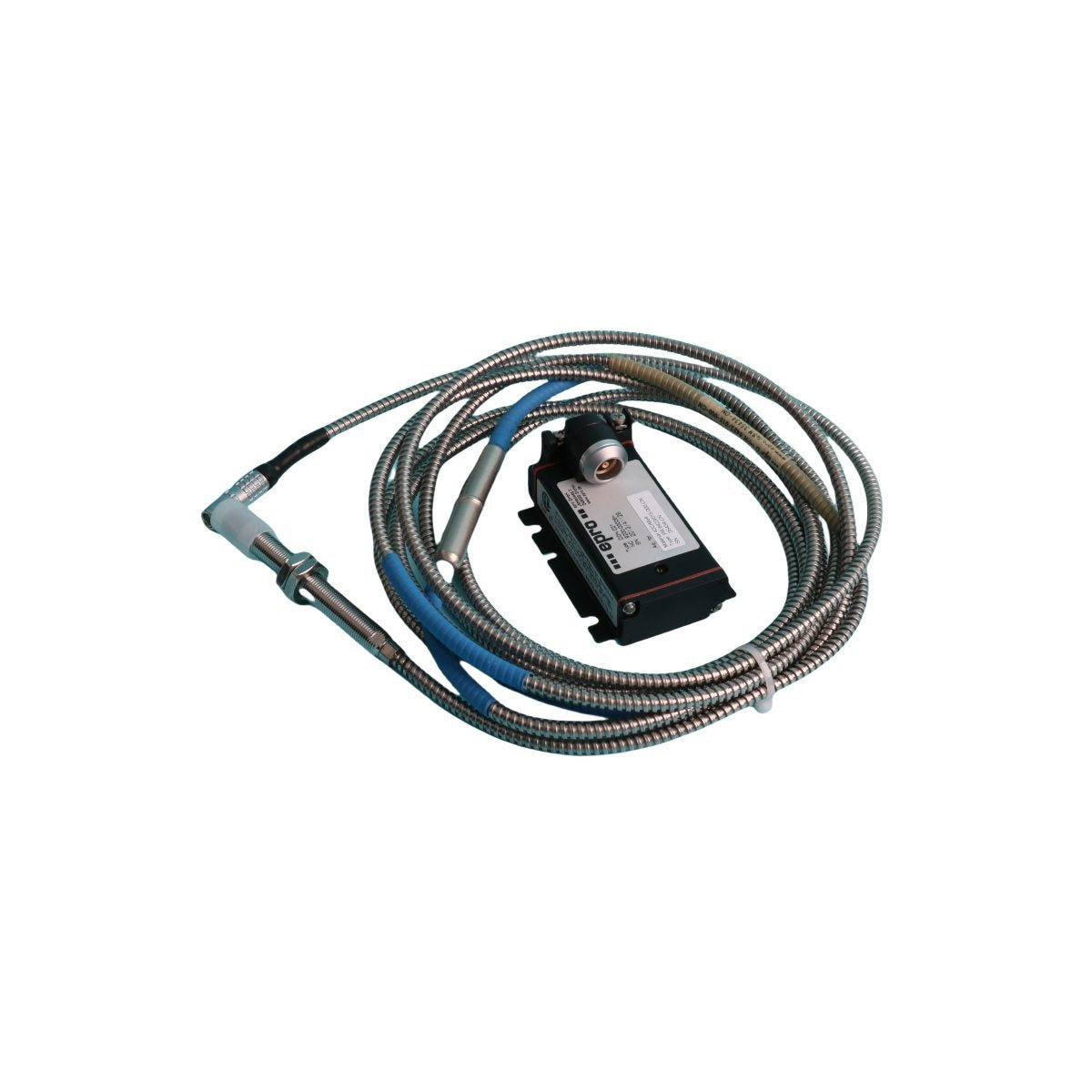

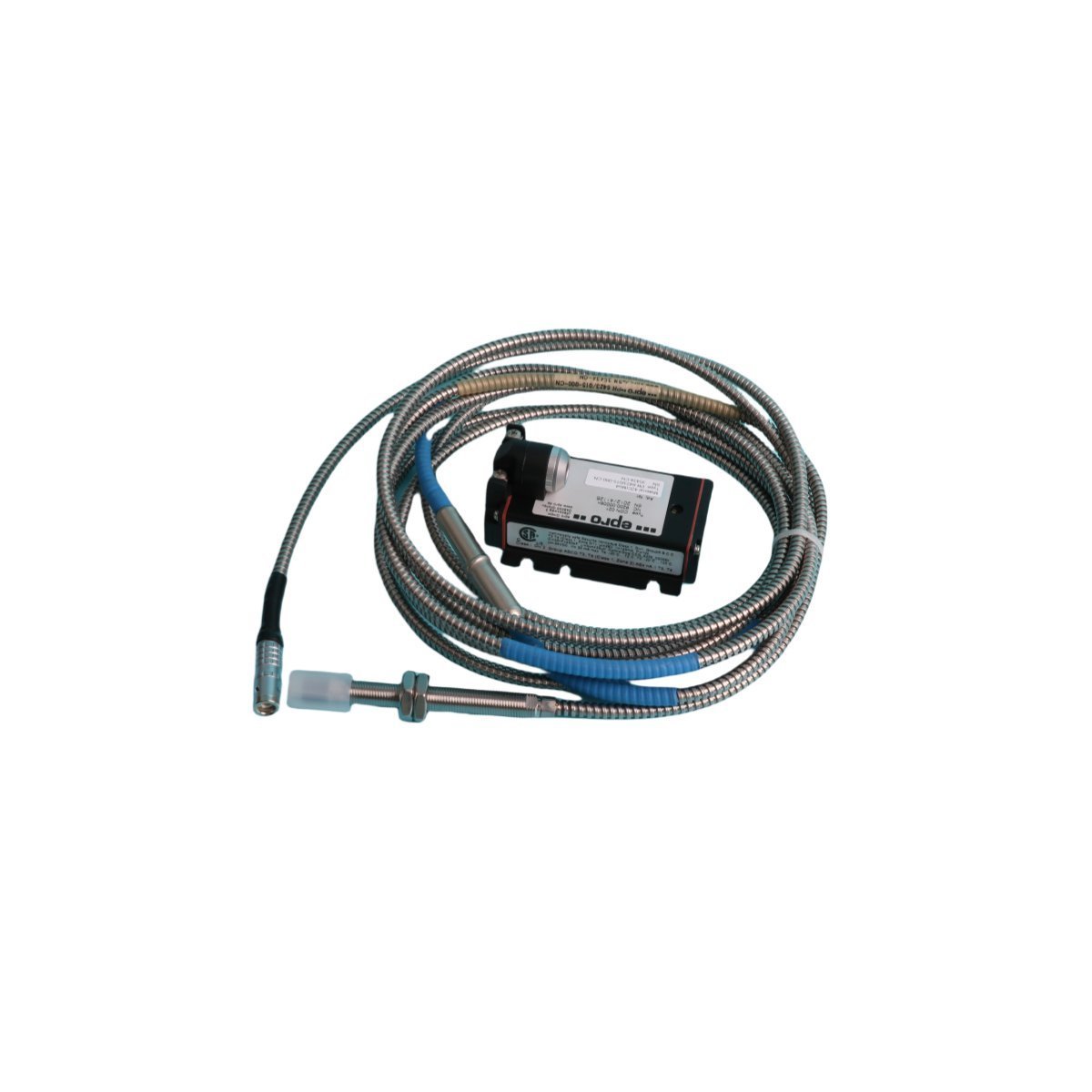

The Emerson PR6423/014-010, paired with the CON021 interface module, is a professional-grade eddy current sensor system engineered for high-accuracy displacement and vibration monitoring. Part of the renowned EPRO product line, this inductive sensor facilitates non-contact measurement of critical rotating machinery components. It specializes in capturing microscopic changes in shaft position, radial vibration, and axial thrust. By delivering real-time data to Distributed Control Systems (DCS), the PR6423/014-010 allows operators to maintain machinery health and implement predictive maintenance schedules in high-stakes industrial environments.

Technical Characteristics

The PR6423/014-010 CON021 system is distinguished by its signal processing sophistication and hardware resilience:

Advanced Signal LinearizationThe CON021 converter utilizes high-speed algorithms to transform raw electromagnetic analog signals from the probe into linearized digital outputs. This ensures that measurements for speed, distance, and position are proportionally accurate across the entire sensing range, facilitating precise mechanical analysis.

Environmental Compensation Logic To maintain accuracy in volatile conditions, the module features integrated compensation for sensor drift and thermal fluctuations. This internal calibration ensures that data remains reliable even as the ambient temperature within the turbine or compressor housing changes during operation.

High-Fidelity Interference Filtering Engineered for the electrically noisy environments of modern power plants, the sensor system is equipped with robust shielding and noise-filtering circuits. This prevents electromagnetic interference (EMI) from distorting vibration data, ensuring a high signal-to-noise ratio for the control system.

Durable Industrial Construction The sensor is designed to survive continuous exposure to pressurized lubricants, high humidity, and mechanical shock. Its non-contact measurement principle eliminates physical wear on the sensor head, contributing to a significantly longer service life and lower total cost of ownership compared to contact-based transducers.

Technical Specifications

• Brand: Emerson (EPRO Series)

• Model Number: PR6423/014-010

• Interface: CON021

• Product Type: Eddy Current Sensor / Signal Converter

• Measurement Type: Non-contact (Inductive)

• Application: Displacement, Vibration, and Position Monitoring

• System Architecture: DCS / PLC Integrated

• Weight: 0.2 kg

• Dimensions: 20 x 18 x 4 cm

• Origin: USA

Application Areas

The PR6423/014-010 CON021 is a critical component for machinery protection in:

• Power Generation: Monitoring shaft eccentricity and vibration in gas and steam turbines.

• Petrochemical: Tracking axial displacement in high-speed centrifugal compressors.

• Manufacturing: Real-time speed and position sensing for industrial rolling mills.

• Marine Engineering: Propulsion shaft vibration monitoring and alignment diagnostics.
