Product Overview

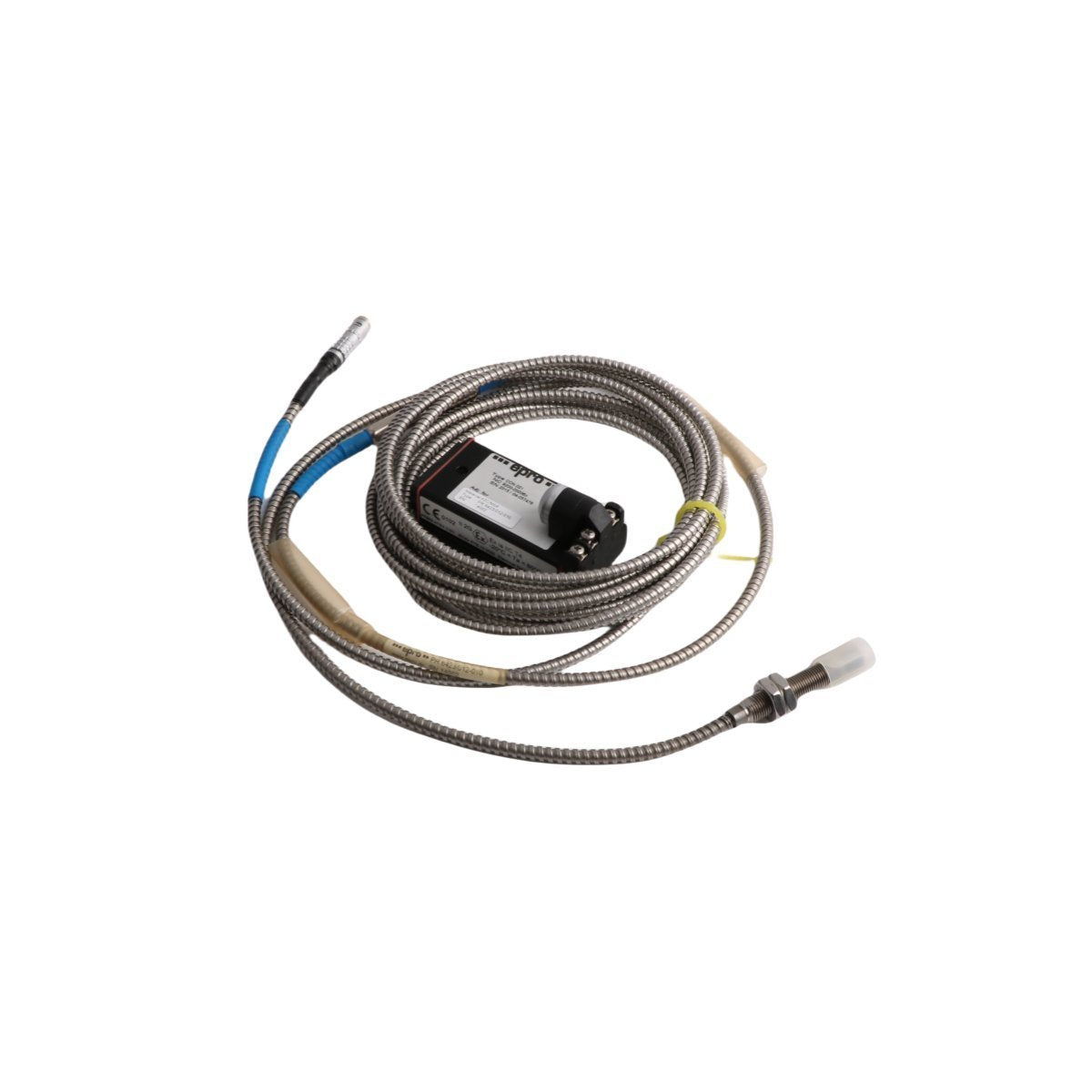

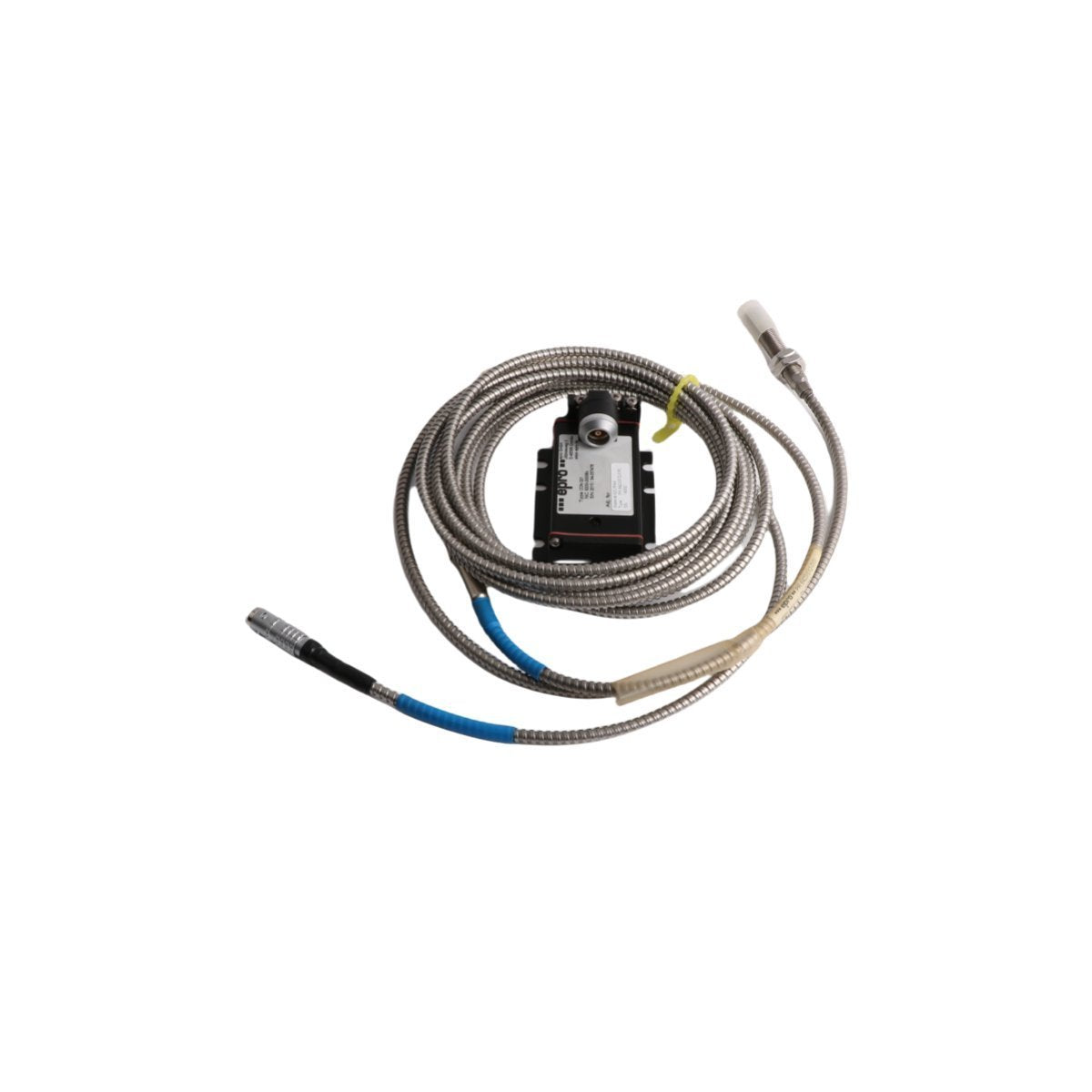

The Emerson PR6423/012-010 (CON021) is a precision-engineered inductive displacement sensor utilizing the eddy current principle for non-contact measurement. This industrial-grade probe is a cornerstone of the EPRO product line, specifically developed for the continuous monitoring of high-speed rotating machinery. It detects minute changes in distance between the sensor tip and the target shaft, enabling the tracking of radial vibration, axial thrust, and rotational velocity.

By translating physical displacement into a high-fidelity electrical signal, the PR6423/012-010 allows for the early identification of mechanical anomalies such as shaft imbalance, bearing wear, or misalignment. This sensor is designed for integration into Distributed Control Systems (DCS) and Machine Monitoring Systems (MMS), where it provides the critical data needed for automated machine protection and predictive maintenance strategies.

Technical Characteristics and Performance

The PR6423/012-010 is optimized for signal integrity and mechanical endurance in volatile industrial atmospheres.

• Non-Contact Sensing Technology: Utilizes an inductive eddy current field to measure displacement without physical interaction, eliminating friction-related wear and ensuring a long operational lifespan.

• High Sensitivity and Linearity: Engineered to provide consistent and accurate measurements across its entire sensing range, which is vital for post-processing and trend analysis in turbomachinery.

• Environmental Compensation: Features advanced internal circuitry to compensate for temperature fluctuations and sensor drift, maintaining measurement stability even in extreme thermal environments.

• Ruggedized Construction: The sensor body is built to withstand high pressures and immersion in industrial lubricants, common in turbine housings and gearboxes.

• CON021 Interconnect: Includes a specialized high-integrity connector designed to minimize signal attenuation and resist electromagnetic interference (EMI) over extended cable runs.

• Wide System Compatibility: Designed to interface seamlessly with various signal converters and drivers, facilitating straightforward integration into existing PLC and DCS architectures.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Number: PR6423/012-010

• Connector Type: CON021

• Sensor Principle: Eddy Current (Inductive)

• Primary Measurements: Radial Vibration, Axial Position, Speed (RPM)

• Housing Material: Stainless Steel with high-grade technical plastic tip

• Operating Dimensions: 21 x 18 x 4 cm

• Unit Weight: 0.4 kg

• Standard Condition: Brand New

• Origin: USA

Industrial Applications

The Emerson PR6423/012-010 is a critical sensor for high-stakes rotating assets in various sectors:

• Power Generation: Continuous monitoring of steam and gas turbine shaft vibration and eccentricity.

• Petrochemical Refining: Protecting centrifugal compressors and large process-critical pumps from mechanical failure.

• Heavy Manufacturing: Tracking the health of large-scale blowers, fans, and industrial gearbox assemblies.

• Water Management: Monitoring shaft stability in high-volume raw water pumping stations.
