Product Overview

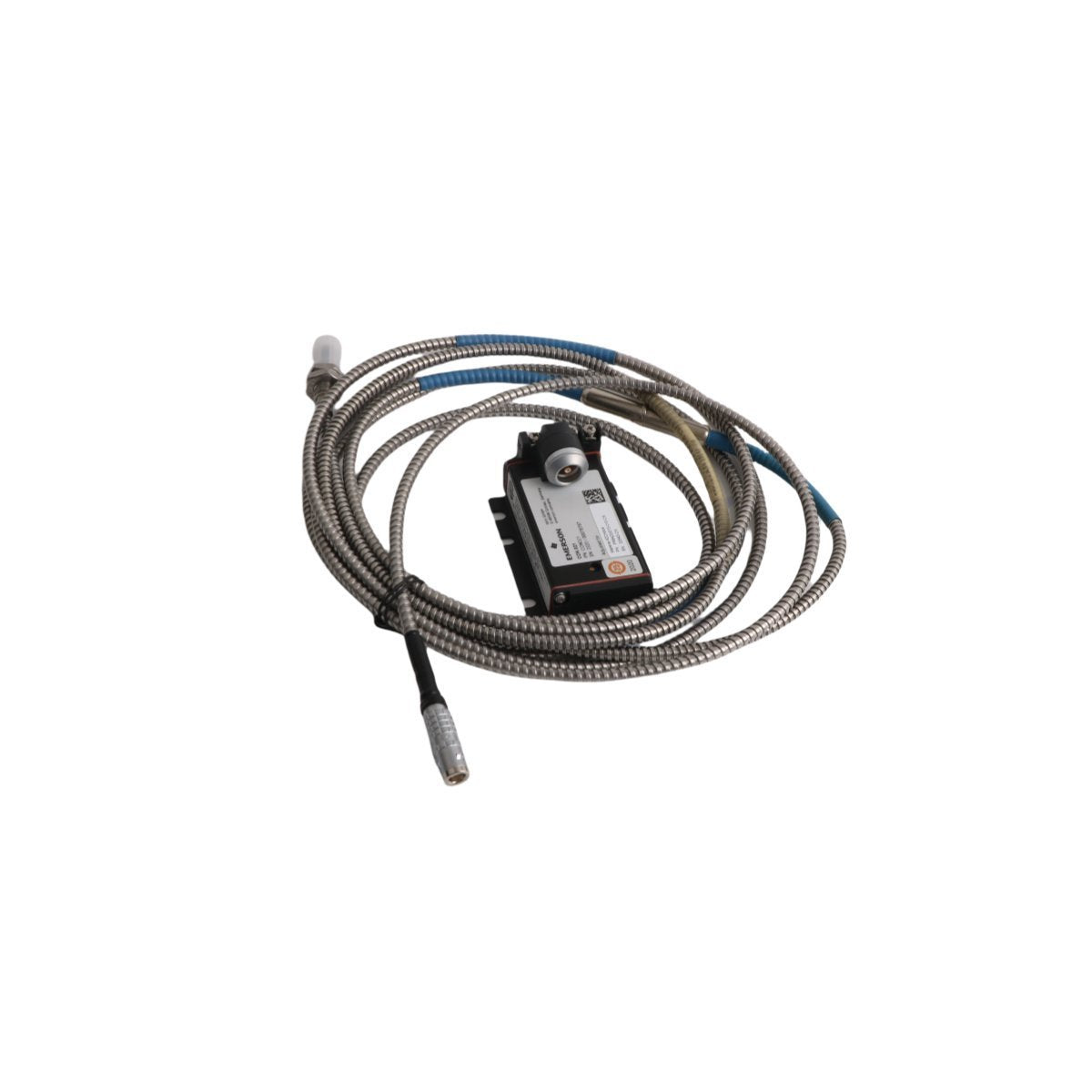

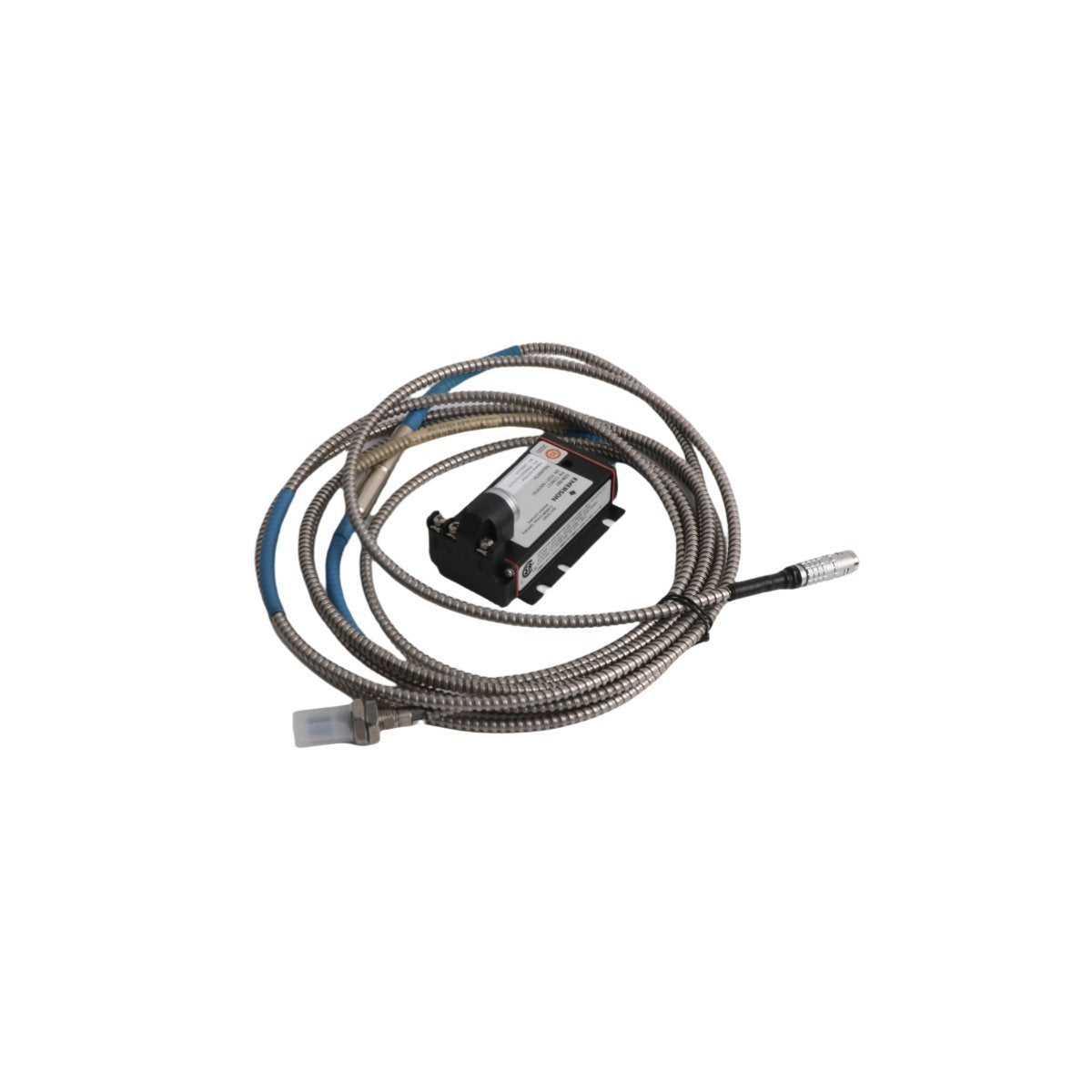

The Emerson PR6423/010-100-CN, featuring the CON021 interface, is a high-precision 8mm eddy current sensor designed for non-contact measurement of vibration and displacement in rotating machinery. As a core component of the EPRO product range, this sensor is engineered to monitor critical parameters such as shaft eccentricity, axial thrust, and radial vibration. By utilizing electromagnetic induction, the PR6423/010-100-CN provides real-time data to Distributed Control Systems (DCS) and PLCs, allowing for the early detection of mechanical wear or imbalance in high-speed turbines, compressors, and pumps.

Technical Characteristics

This proximity system is built to deliver laboratory-grade accuracy within the rigors of heavy industrial environments:

Advanced Signal Transformation The CON021 module functions as a sophisticated converter, taking the raw electromagnetic feedback from the 8mm probe and translating it into a linear digital or analog output. This ensures that the proximity and displacement measurements are proportional to the actual physical gap, providing operators with a clear view of machinery health.

Precision Noise Filtering Equipped with high-level signal conditioning, the PR6423/010-100-CN suppresses electromagnetic interference (EMI) and parasitic noise. This stability is crucial in power plants and manufacturing floors where high-voltage equipment often compromises signal integrity.

Robust Mechanical Design The sensor and associated cabling are designed to withstand extreme industrial conditions, including exposure to lubricants, high pressure, and significant temperature fluctuations. Its 0.36kg build is optimized for long-term stability without signal drift, ensuring consistent performance throughout its service life.

Enhanced Machinery Diagnostics By delivering high-fidelity vibration data, the sensor facilitates predictive maintenance. It allows system integrators to implement sophisticated diagnostic routines that reduce unplanned downtime and extend the lifespan of expensive rotating assets.

Technical Specifications

• Brand: Emerson (EPRO Series)

• Model Number: PR6423/010-100-CN

• Interface Module: CON021

• Sensor Type: 8mm Eddy Current (Non-contact)

• Measurement Type: Radial/Axial Vibration, Displacement, Speed

• System Integration: DCS, PLC, and Machinery Protection Systems

• Housing Protection: Industrial grade for harsh environments

• Weight: 0.36 kg

• Dimensions: 23 x 23 x 4 cm

• Origin: USA

Application Areas

The PR6423/010-100-CN is a critical asset for several high-stakes industries:

• Power Generation: Monitoring shaft movement in steam and gas turbines.

• Oil and Gas: Protecting high-speed centrifugal compressors and expanders.

• Aerospace: Precision testing and monitoring of rotational components.

• Automotive: Diagnostic testing for high-performance engine and drivetrain assemblies.
