Product Overview

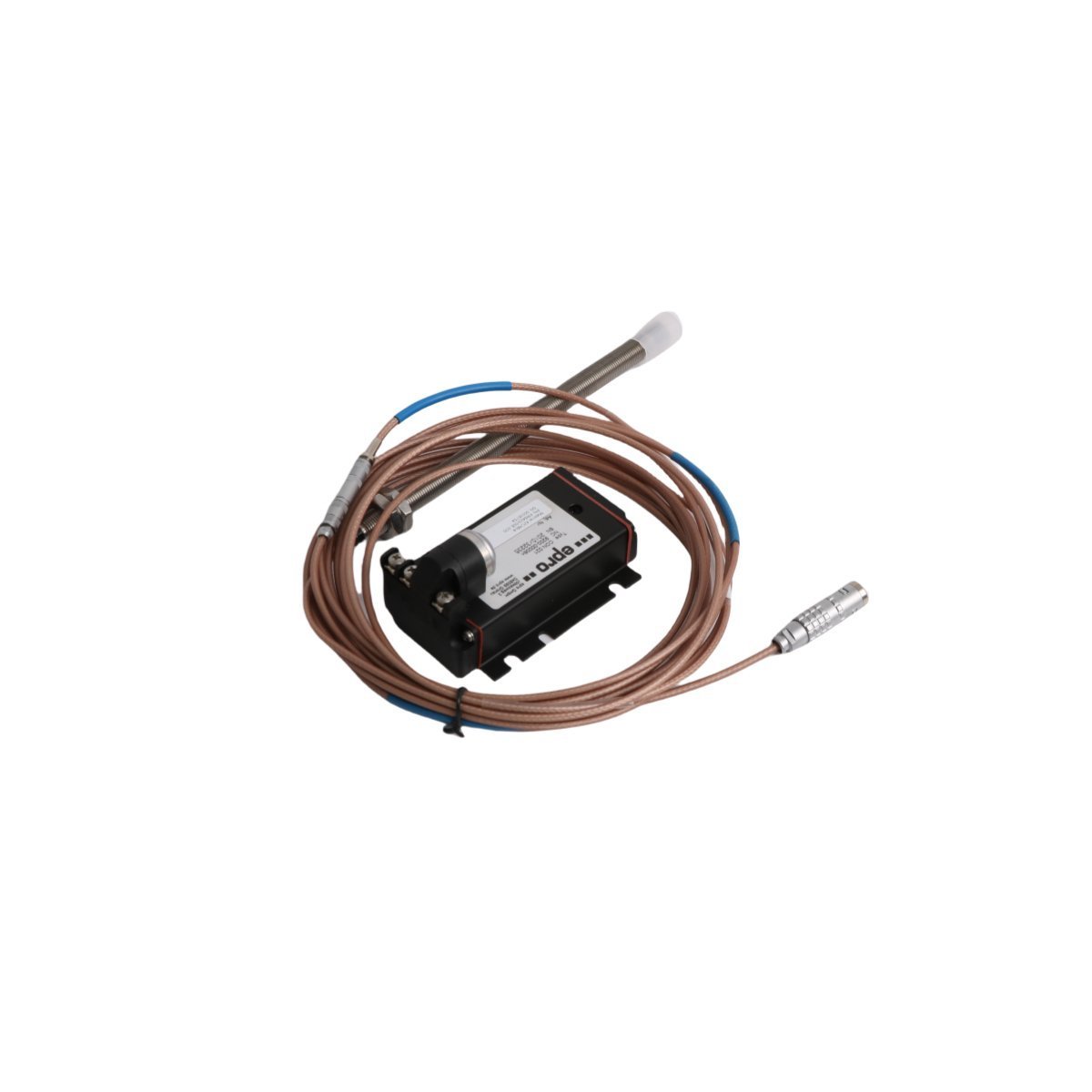

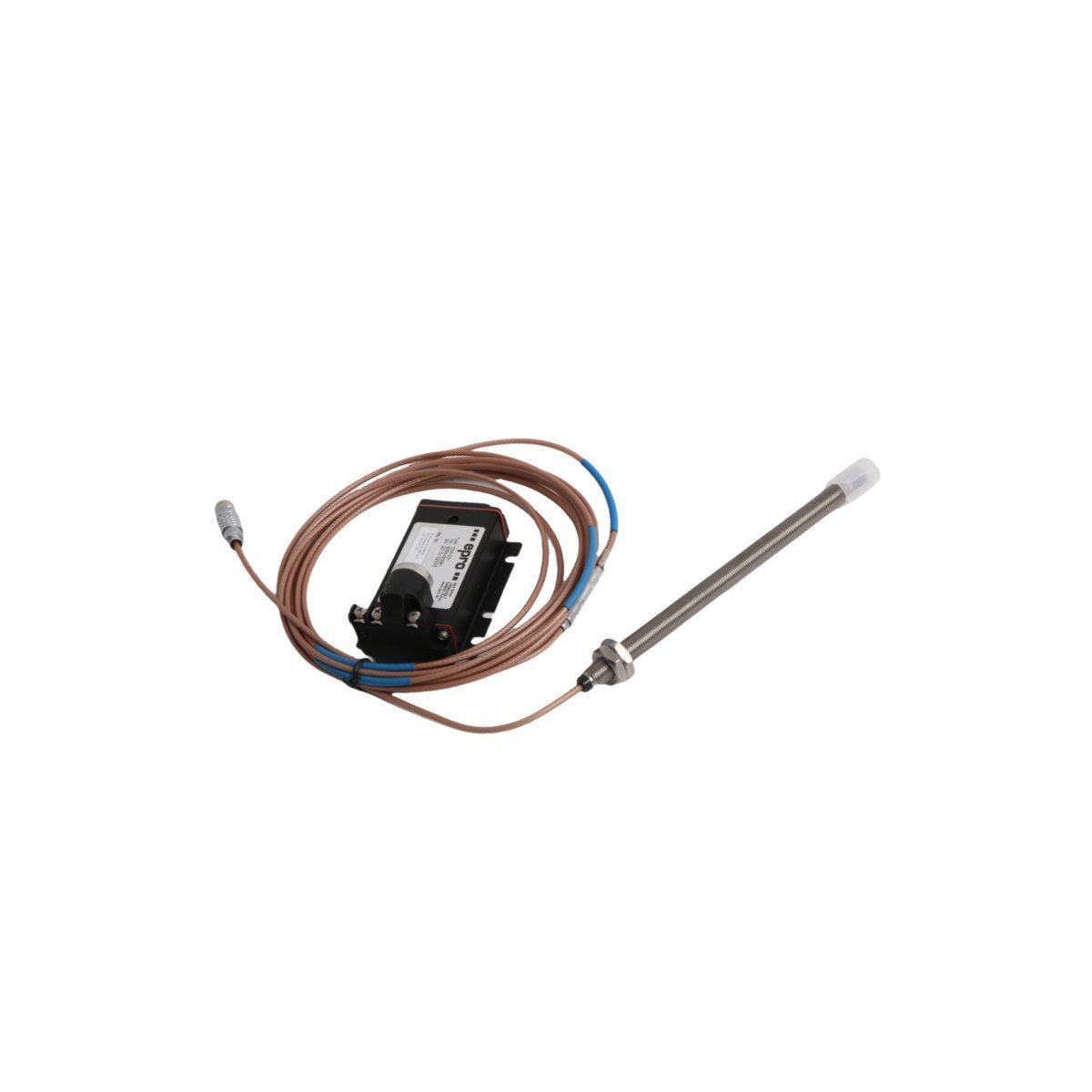

The Emerson PR6423/00E-030 (CON021) is a specialized eddy current signal converter designed for high-precision displacement sensing in rotating machinery. As a key component of the EPRO product family, this proximitor module translates the complex impedance changes from an 8mm eddy current probe into a standardized electrical signal. It is primarily utilized for the non-contact measurement of shaft vibration, axial thrust, and rotational speed in mission-critical industrial assets.

By providing a continuous, high-fidelity stream of displacement data, the PR6423/00E-030 allows Distributed Control Systems (DCS) and Machine Monitoring Systems (MMS) to track the mechanical integrity of turbomachinery. This real-time oversight is fundamental to predictive maintenance, enabling operators to identify shaft imbalances or bearing wear before they lead to catastrophic equipment failure.

Technical Characteristics and Design

The PR6423/00E-030 is engineered for deterministic performance and signal purity in volatile industrial environments.

• Non-Contact Sensing Technology: Utilizes inductive eddy current principles to measure displacement without physical interaction, eliminating mechanical wear and maintaining long-term calibration stability.

• High-Resolution Signal Conditioning: Converts low-level sensor signals into high-linear outputs with exceptional signal-to-noise ratios, ensuring accurate data even at high rotational frequencies.

• Advanced Environmental Tolerance: The module is designed to operate reliably despite electromagnetic interference (EMI) and temperature fluctuations common on turbine decks and in heavy industrial enclosures.

• CON021 Connector Interface: Features a high-integrity industrial connector that ensures secure electrical contact and minimizes signal attenuation over extended cable distances.

• Integrated Diagnostics: Provides immediate feedback on sensor loop integrity, allowing for rapid troubleshooting of cable breaks or sensor faults to minimize system downtime.

• Modular Scalability: Its compact form factor allows for dense installation in local junction boxes or centralized racks, facilitating easy integration into both legacy and modern DCS architectures.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Number: PR6423/00E-030

• Connector Configuration: CON021

• Module Type: Eddy Current Signal Converter / Proximitor

• Primary Measurements: Shaft Vibration, Axial Position, Eccentricity, and RPM

• Dimensions: 16 x 15 x 2 cm

• Unit Weight: 0.16 kg

• Product Origin: USA

• System Compatibility: Ovation DCS, MMS 6000, and standard PLCs

Industrial Applications

The Emerson PR6423/00E-030 is a standard-setting solution for machine protection in several key sectors:

• Power Generation: Continuous monitoring of steam and gas turbine shaft behavior to ensure operational safety.

• Oil and Gas: Safeguarding high-speed centrifugal compressors and multi-stage process pumps in refining environments.

• Chemical Processing: Tracking the mechanical stability of large-scale mixers, blowers, and specialized reactors.

• Mining and Heavy Industry: Monitoring bearing health and shaft alignment in heavy-duty gearboxes and conveyor drive systems.
