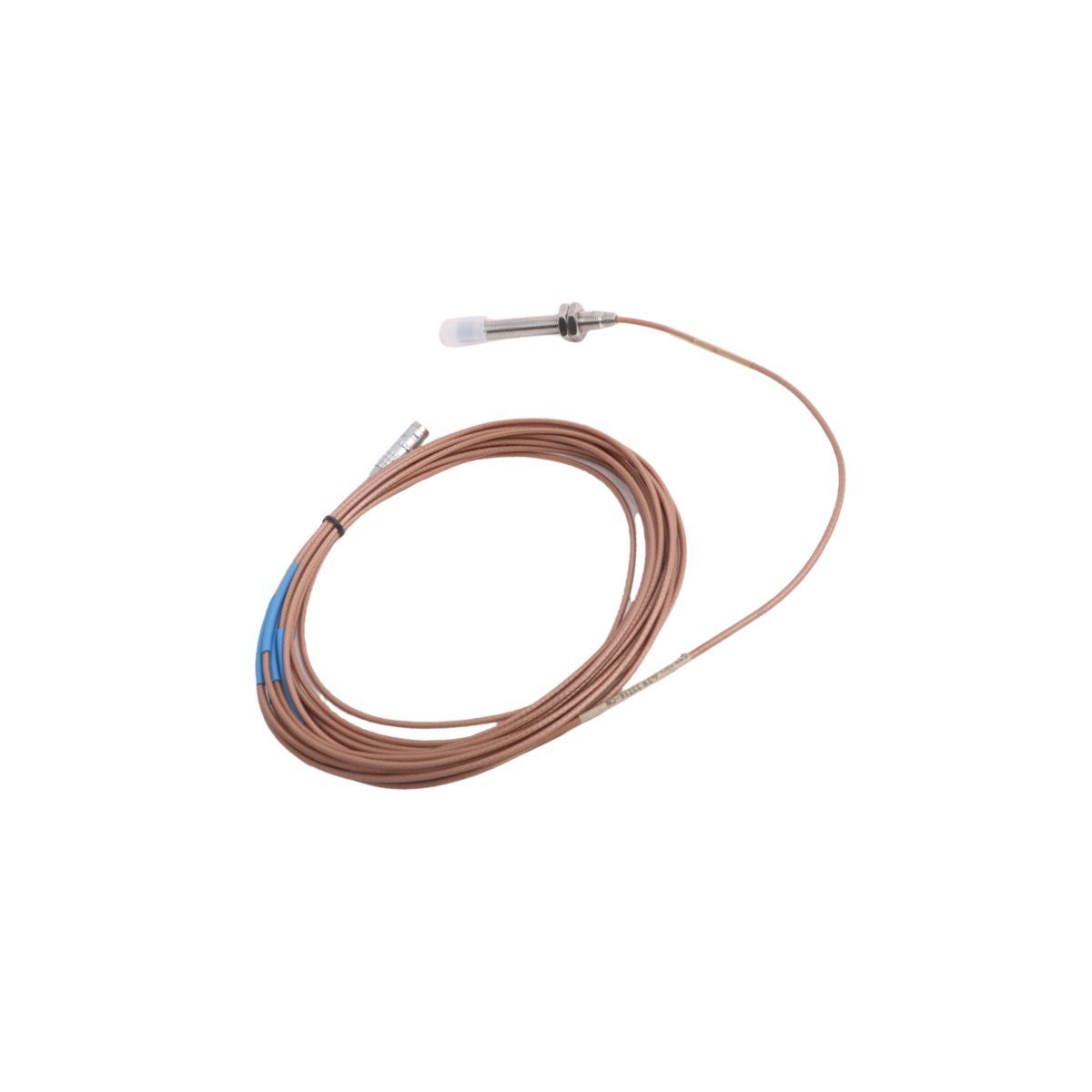

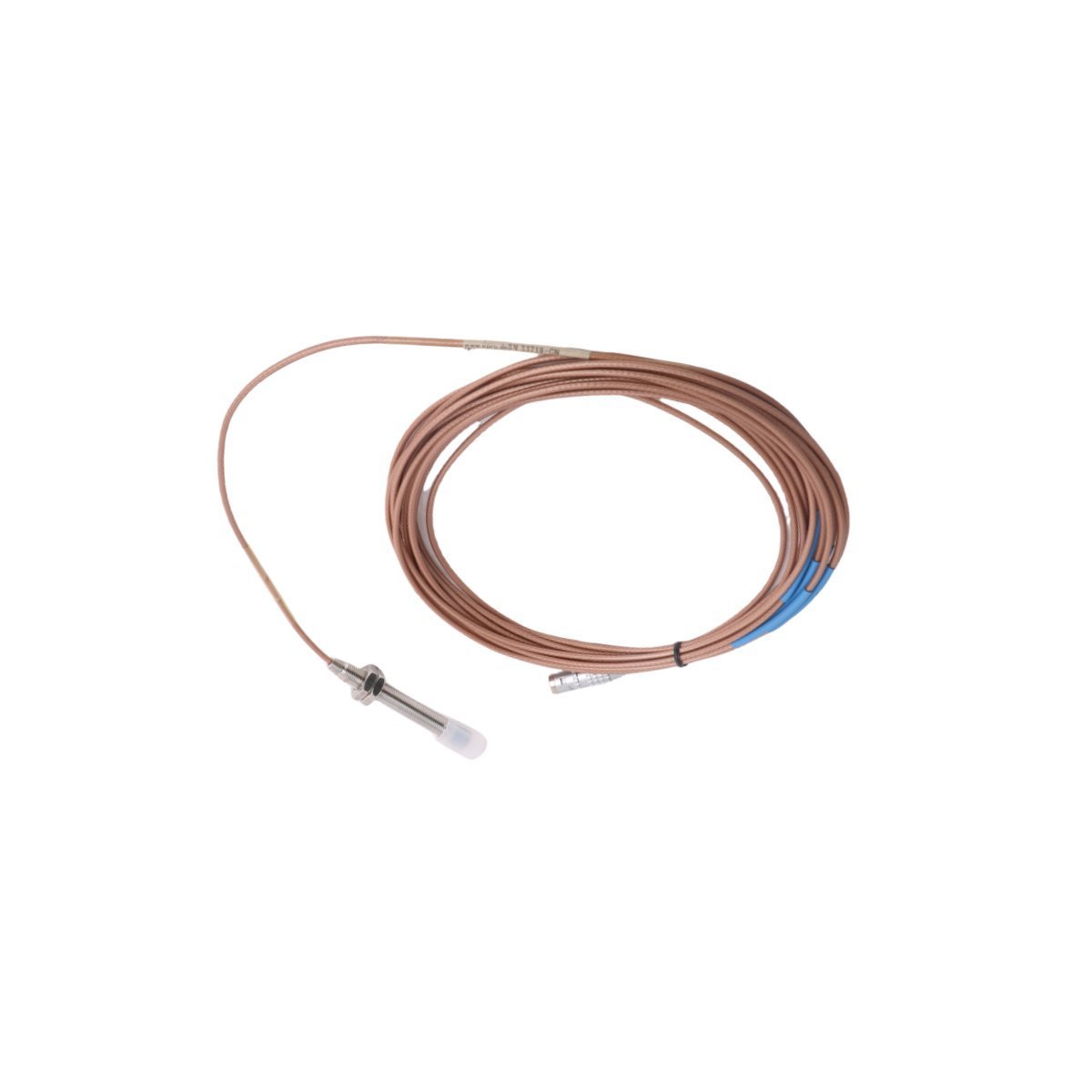

PR6423/004-120-CN CON021 Emerson EPRO Eddy Current Signal Converter

Product Overview

The Emerson PR6423/004-120-CN, integrated with the CON021 interface, is a professional-grade signal conversion module designed for high-precision industrial proximity and vibration sensing. As a core component of the EPRO series, this module excels at transforming raw analog signals from eddy current sensors into standardized, linear outputs suitable for advanced monitoring. It is specifically engineered to provide Distributed Control Systems (DCS) and PLCs with the high-resolution data necessary for machinery protection, process optimization, and real-time mechanical diagnostics. By accurately measuring the gap between the probe and a rotating shaft, the PR6423/004-120-CN ensures the safe and efficient operation of high-value industrial assets.

Technical Characteristics

The PR6423/004-120-CN CON021 is characterized by its superior signal conditioning and industrial resilience:

High-Fidelity Signal Processing This converter utilizes advanced algorithms to deliver high-resolution outputs. It specializes in linearizing the non-linear voltage curves typical of eddy current probes, ensuring that the measurement of shaft displacement or vibration is proportional and accurate across the entire operating range.

Industrial-Grade Noise Mitigation Equipped with sophisticated filtering techniques, the module maintains signal purity in environments characterized by high electromagnetic interference (EMI). This ensures stable data delivery even when the sensing system is located near high-voltage motor starters or large-scale power generators.

Flexible System Compatibility The CON021 module supports diverse input configurations, making it adaptable to various eddy current probe specifications. Its standardized output facilitates seamless communication with a wide array of automation platforms, from legacy DCS systems to modern Ethernet-based controllers.

Robust Hardware Architecture Designed for the rigors of heavy industry, the module features a durable construction that withstands vibration and temperature fluctuations. The simplified interface allows for rapid field calibration and configuration, significantly reducing the time required for system commissioning and maintenance.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Number: PR6423/004-120-CN

• Converter Interface: CON021

• Product Type: Eddy Current Signal Converter

• Measurement Principle: Inductive (Non-contact)

• Integration Support: DCS / PLC / Machinery Protection Systems

• Signal Resolution: High-precision linear output

• Weight: 0.28 kg

• Dimensions: 20.0 x 20.0 x 2.0 cm

• Origin: USA

Application Areas

The PR6423/004-120-CN is a critical component for machinery health monitoring in:

• Power Generation: Tracking axial thrust and radial vibration in large steam or gas turbines.

• Oil and Gas: Monitoring high-speed centrifugal compressors and expanders in refinery operations.

• Manufacturing: Real-time speed and position sensing for industrial rolling mills and mixers.

• Predictive Maintenance: Serving as the primary data source for automated vibration analysis and machinery protection logic.
