Product Overview

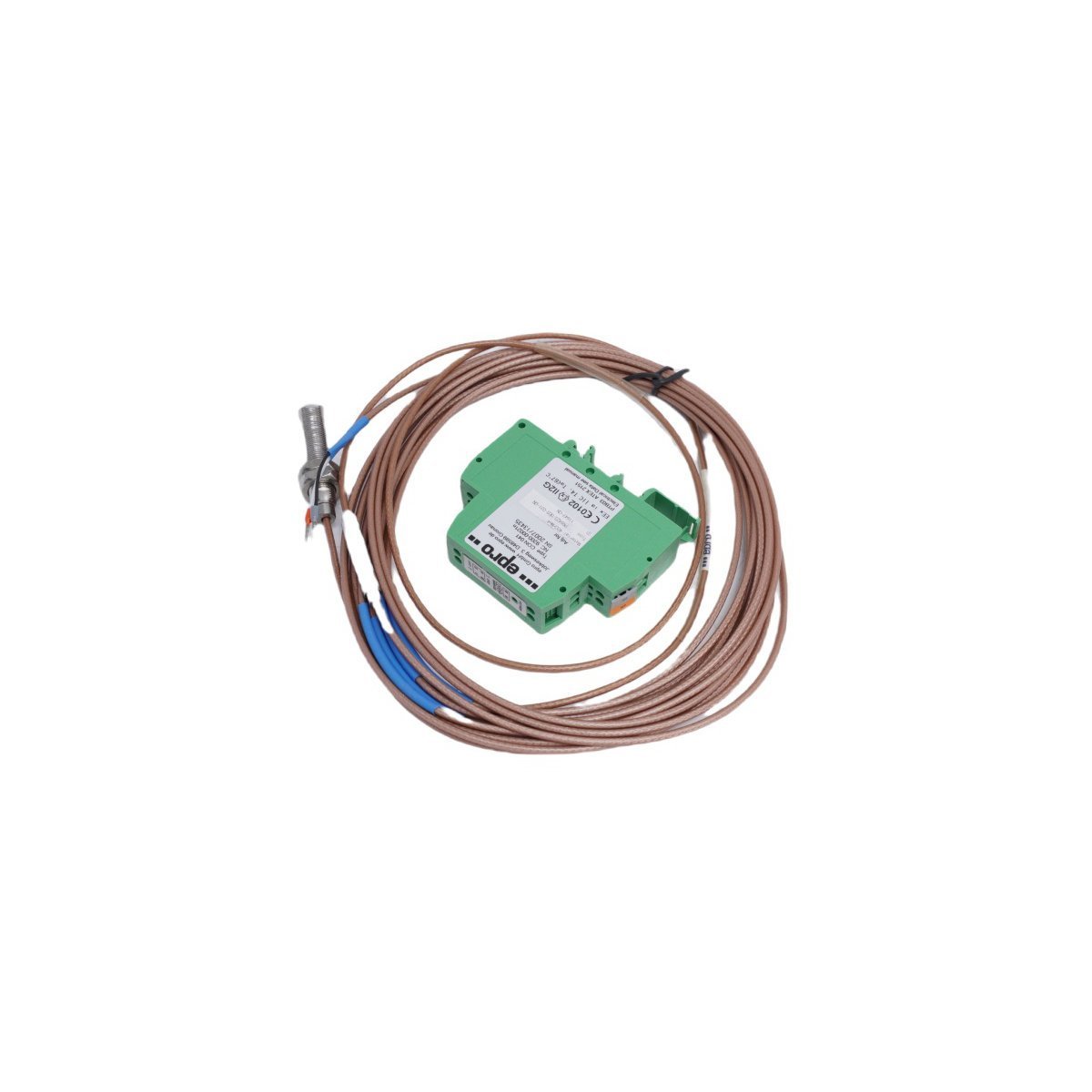

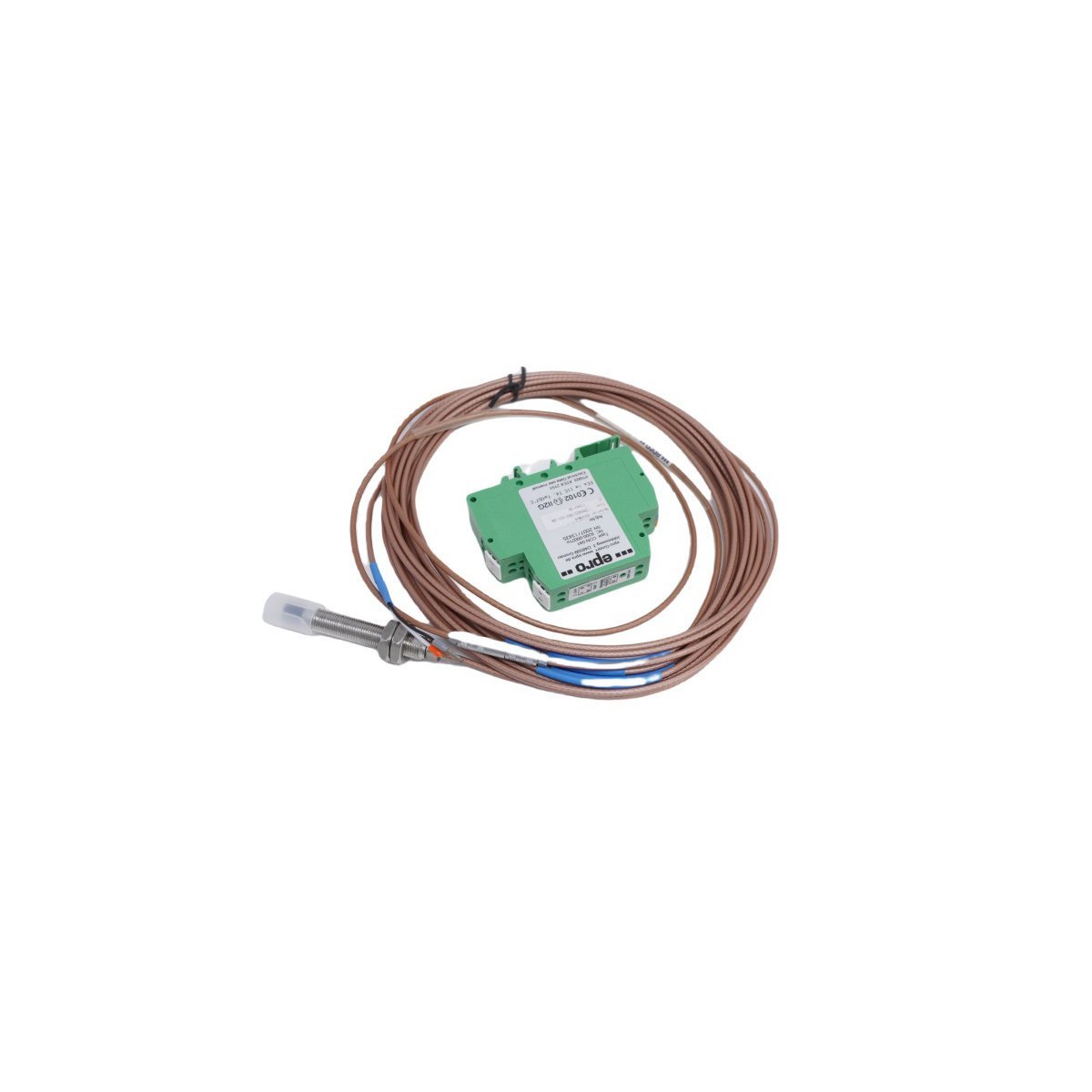

The Emerson PR6423/003-031-CN CON041 is a professional-grade eddy current sensor engineered for high-precision displacement and vibration monitoring in critical rotating machinery. As a core component of the EPRO product line, this sensor utilizes the inductive eddy current principle to provide non-contact measurements of shaft vibration, axial thrust position, and rotational speed. By detecting minute variations in the gap between the sensor tip and the target material (typically a ferromagnetic shaft), it enables real-time monitoring without physical wear.

This sensor is specifically designed for integration with machinery protection systems (MPS) such as the AMS 6500. It is an essential asset for predictive maintenance strategies in power plants, refineries, and large-scale manufacturing facilities. By converting physical displacement into high-fidelity electrical signals, the PR6423/003-031-CN allows operators to identify mechanical imbalances or bearing degradation before they escalate into catastrophic equipment failure.

Technical Performance and Environmental Resilience

The PR6423 series is renowned for its ability to operate reliably under extreme industrial conditions. The sensor features a hermetically sealed tip and a ruggedized cable assembly, making it resistant to high-pressure environments, oil ingress, and steam. Its advanced circuitry includes internal temperature compensation to counteract the effects of thermal expansion on the measuring gap, ensuring consistent accuracy from cold start-ups to peak operating temperatures.

The CON041 designation refers to the specific connector and cable configuration, optimized for low-noise signal transmission over long distances to the signal converter or monitoring rack. Its broad frequency response and high sensitivity make it ideal for sub-millisecond transient data acquisition, providing the clean data necessary for sophisticated spectral analysis and machine diagnostics.

Technical Specifications

• Manufacturer: Emerson (EPRO)

• Model Number: PR6423/003-031-CN

• Connector Type: CON041

• Sensor Type: Non-contacting Eddy Current Displacement Sensor

• Measuring Principle: Inductive (Eddy Current)

• Linear Measuring Range: Approximately 2.0 mm (standard 8mm tip)

• Target Material: Ferromagnetic steel (42CrMo4 or equivalent)

• Operating Temperature: -35°C to +150°C (Sensor Tip)

• Ingress Protection: IP67 / Hermetically sealed

• Weight: 0.26 kg

• Dimensions: 18 x 18 x 2 cm

• Housing Material: Stainless Steel / Technical Ceramics

• Product Origin: USA
