Product Overview

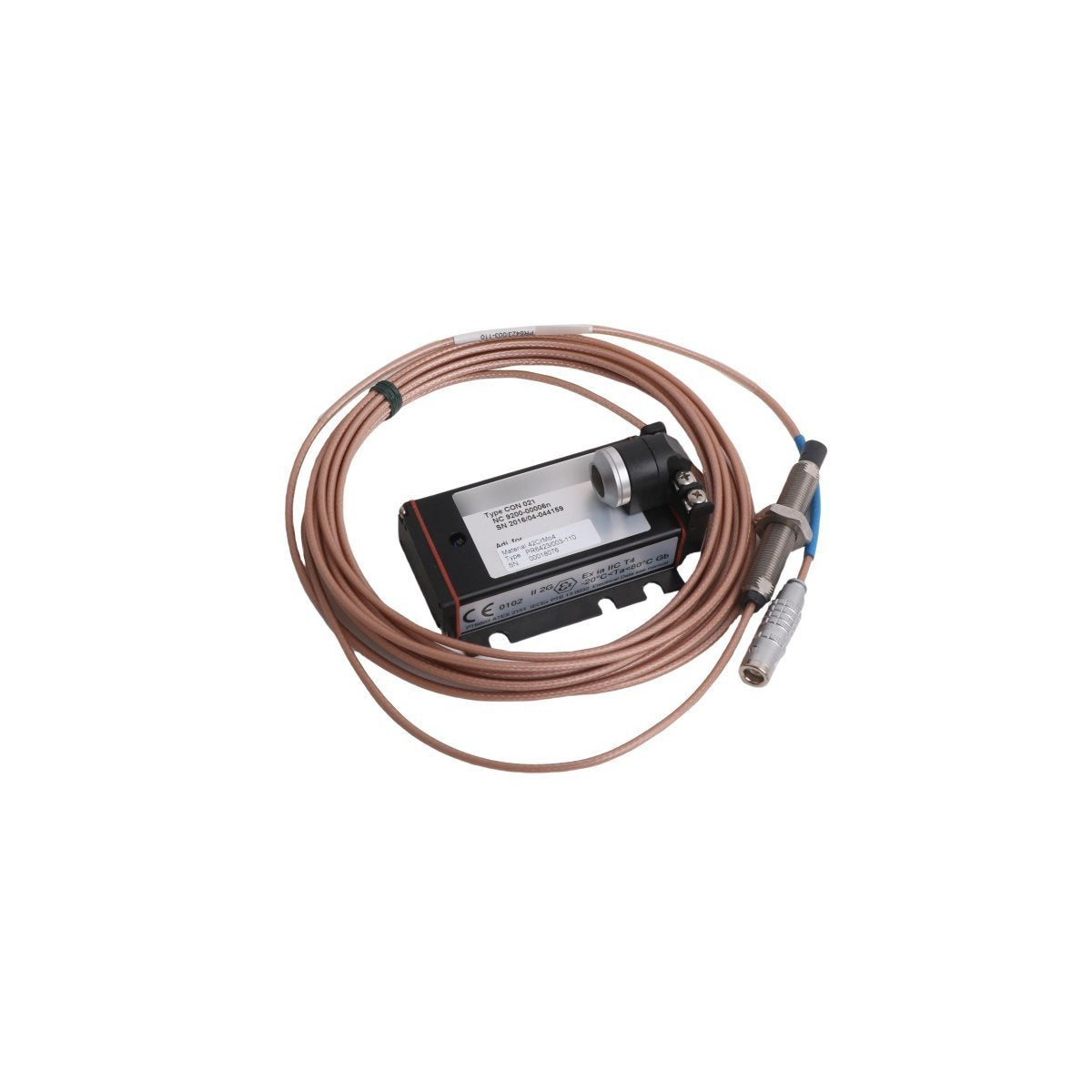

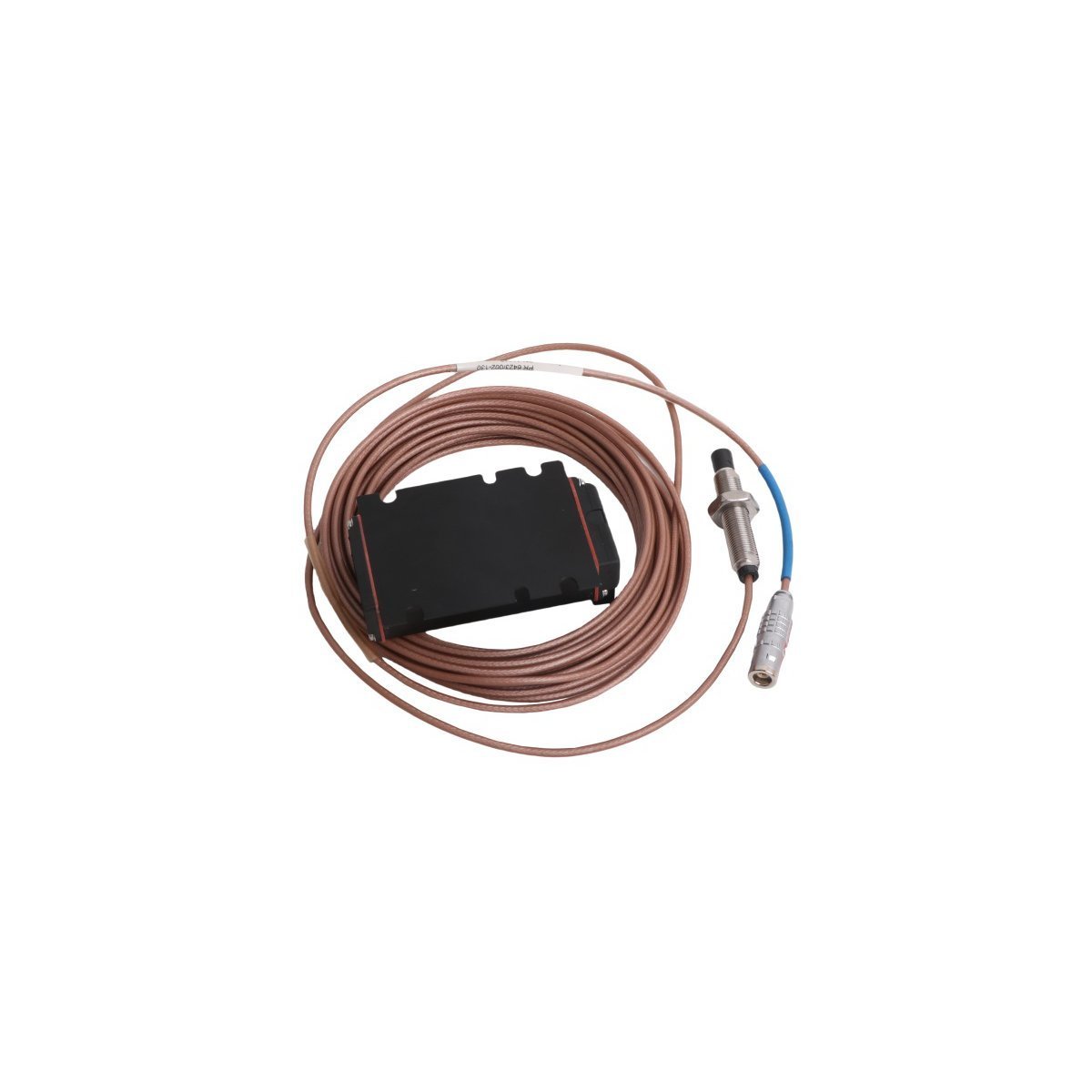

The Emerson PR6423/002-131 is a specialized industrial transducer engineered for non-contacting displacement and vibration measurements on rotating machinery. As a high-precision component within the EPRO series, this 8mm eddy current sensor converts the physical gap between the probe tip and the conductive shaft into an accurate proportional electrical signal. It is a critical element for machinery protection systems, enabling real-time diagnostics of mechanical health. By providing early detection of shaft misalignments or bearing degradation, the PR6423/002-131 ensures the operational integrity of high-speed assets in demanding power and manufacturing environments.

Technical Design and Hardware Parameters

This sensor is constructed to maintain superior signal linearity and stability under the most rigorous industrial conditions.

• Measurement Principle: Inductive eddy current (non-contacting).

• Probe Tip Diameter: 8 mm.

• Cable Interface: Integrated high-frequency cable with a CON021 connector for secure signal pathing.

• Sensing Distance: Optimized for standard industrial air gaps between probe and target.

• Environmental Resistance: Fully hermetic seal designed to withstand oil mist, steam, and high-pressure environments.

• Material Calibration: Optimized for ferromagnetic targets and steel alloy shafts.

• Frequency Response: High-bandwidth capability for capturing both static position and dynamic vibration data.

Industrial Implementation and Deployment Scenarios

The PR6423/002-131 CON021 is predominantly utilized in sectors where turbomachinery uptime is a primary safety and economic concern. It is widely deployed in power plants and petrochemical refineries to monitor:

• Centrifugal Compressors: Tracking radial shaft vibration to identify impeller imbalances or bearing wear.

• Steam and Gas Turbines: Measuring axial thrust position and thermal expansion to prevent internal mechanical contact.

• Large Industrial Pumps: Monitoring shaft eccentricity and rotational speed for predictive maintenance scheduling.

The non-contacting nature of the sensor ensures zero mechanical wear on the probe, allowing for years of continuous service without maintenance. When integrated into a Distributed Control System (DCS) or an Emerson Ovation network, this transducer provides the high-fidelity data required for automated emergency trip logic and detailed trend analysis, safeguarding critical infrastructure from catastrophic failure.
