Product Overview

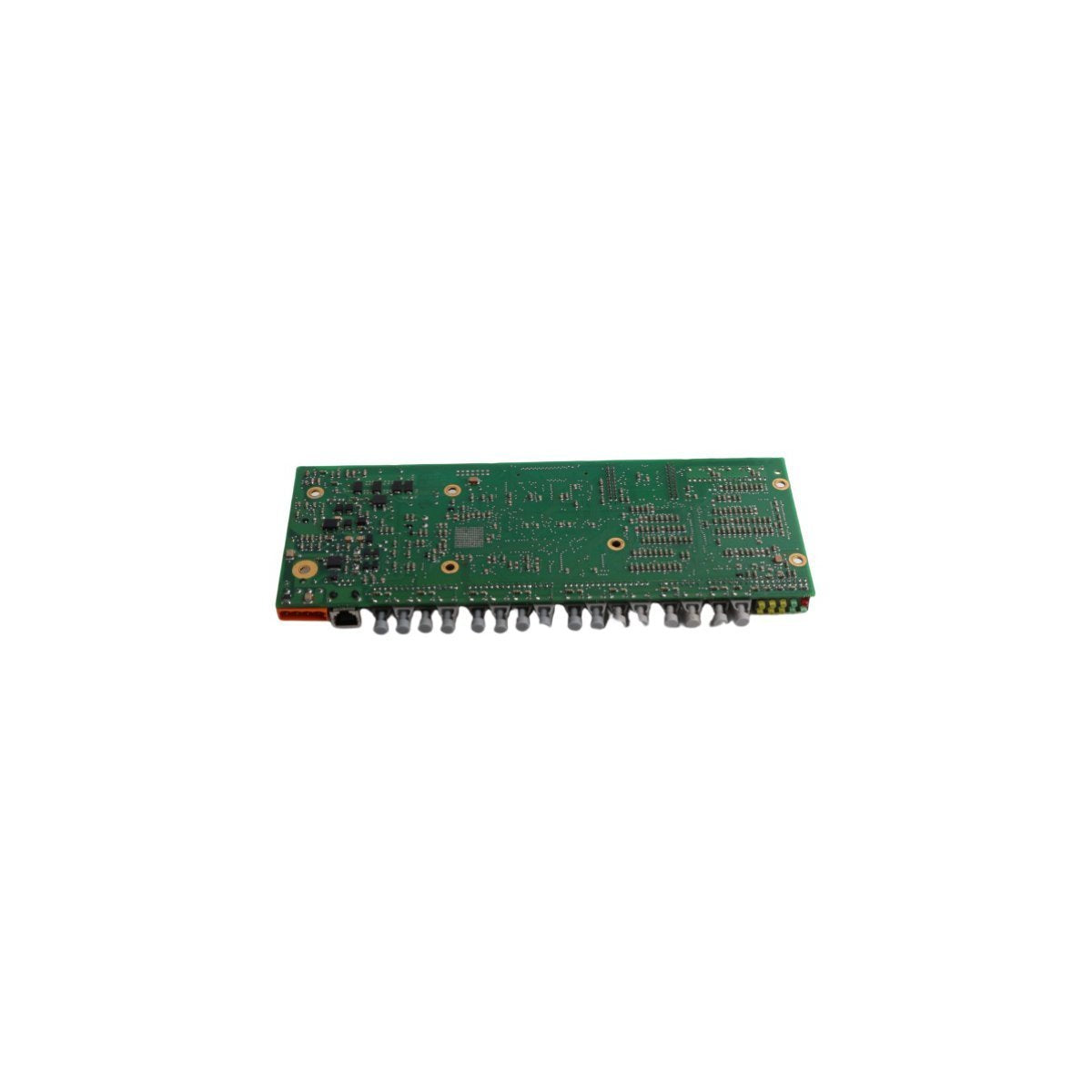

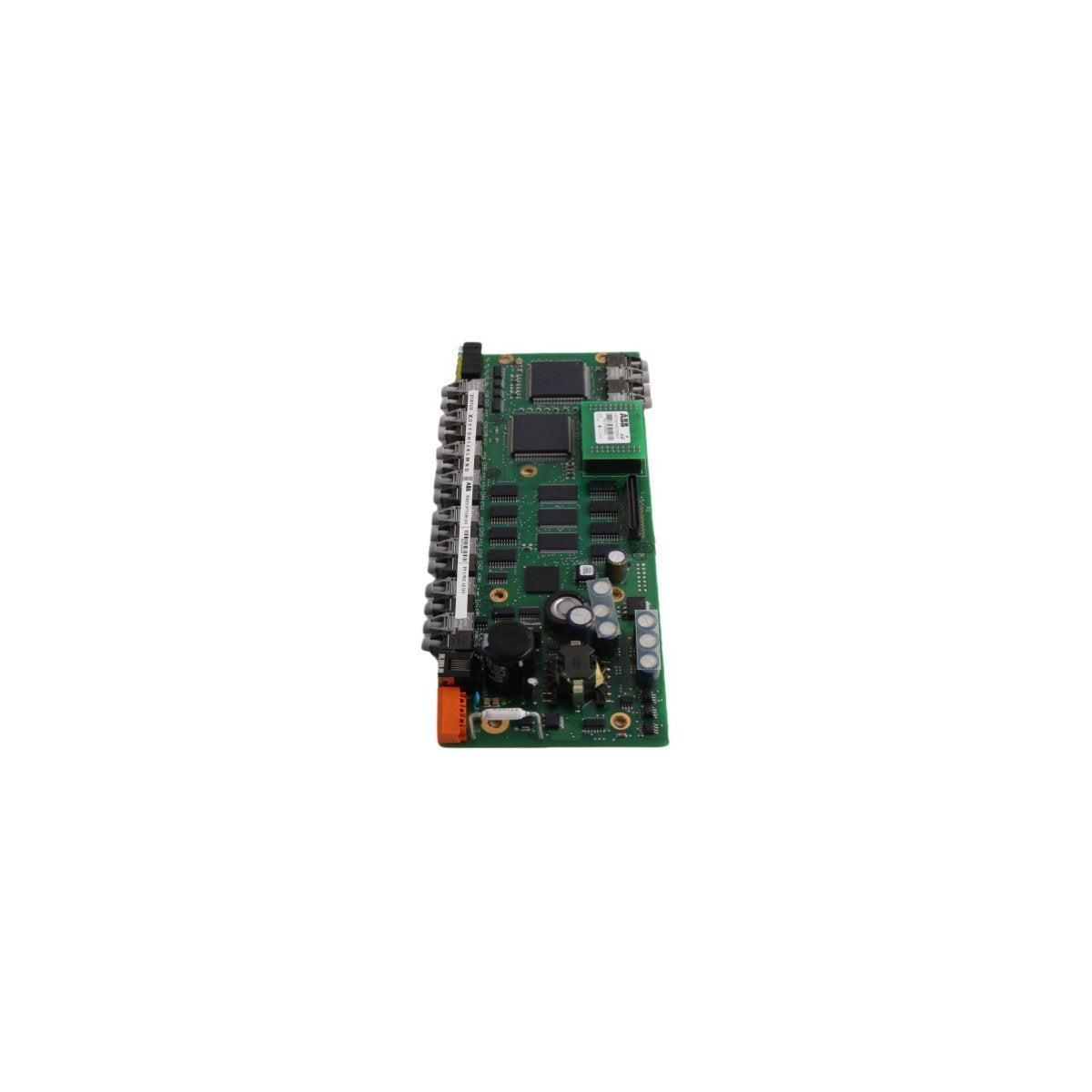

The ABB 3BHE010751R0101, identified as the PPC902 AE101, is a high-performance control board engineered for the UNITROL excitation system family. This module serves as a central processing unit within Distributed Control Systems (DCS), managing the critical interface between digital logic and power electronics. By integrating 16 analog input channels and 16 digital output channels, the PPC902 AE101 provides extensive connectivity for signal acquisition and field-level execution. It is designed to facilitate advanced motor control and excitation algorithms, ensuring that synchronous machinery operates with maximum efficiency and stability in high-demand utility and industrial environments.

Hardware Configuration and Technical Parameters

• Component Designation Excitation System Control Board

• Model Identifier PPC902 AE101

• Order Number 3BHE010751R0101

• I/O Capacity 16 Analog Inputs / 16 Digital Outputs

• Processing Technology ABB APPLIC Logic Integration

• Networking Support for Ethernet Router and System Bus architectures

• Mass / Weight 0.24kg

• Physical Proportions 25cm x 10.8cm x 3cm

• Thermal Endurance -25°C to +55°C

• Manufacturing Origin Sweden

• System Lifecycle Active

Strategic Deployment and Industrial Use Cases

The 3BHE010751R0101 is primarily utilized in power generation facilities, including gas turbine, hydroelectric, and steam plant control systems. Its primary role is to coordinate the complex regulation of excitation current while monitoring auxiliary field variables in real-time. Because it is built with Swedish industrial-grade components, the PPC902 AE101 excels in environments characterized by thermal fluctuations and electromagnetic stress. The board’s ability to execute sophisticated motor control algorithms makes it an essential asset for optimizing the reactive power compensation and transient response of large-scale generator sets, ensuring reliable grid synchronization and asset protection.

FAQ

Q: Is the PPC902 AE101 backward compatible with earlier PPC902 revisions?

A: The AE101 designation indicates a specific hardware revision. While it often maintains functional compatibility, you must verify that your system’s firmware supports the 3BHE010751R0101 to ensure all 32 I/O channels are correctly mapped.

Q: What is the benefit of the integrated APPLIC technology?

A: APPLIC technology allows for more efficient execution of specialized industrial control blocks, reducing the processing overhead for complex excitation curves and improving the real-time response of the generator control loop.

Q: Does the board require external cooling if operated at +55°C?

A: The PPC902 AE101 is rated for operation up to +55°C within a standard control cabinet. However, maintaining clear airflow through the 3cm slim profile is recommended to ensure long-term semiconductor reliability.

Q: Can this board be used for applications other than excitation control?

A: While specifically optimized for UNITROL systems, its versatile 16x16 I/O configuration and robust processing power make it suitable for various high-end DCS motor control and industrial regulation tasks.

Q: How are the I/O channels protected against field-level surges?

A: The 3BHE010751R0101 includes industrial-grade isolation and filtering on its analog and digital paths to safeguard the core logic from the electrical noise and transients common in power plant environments.
