Product Overview

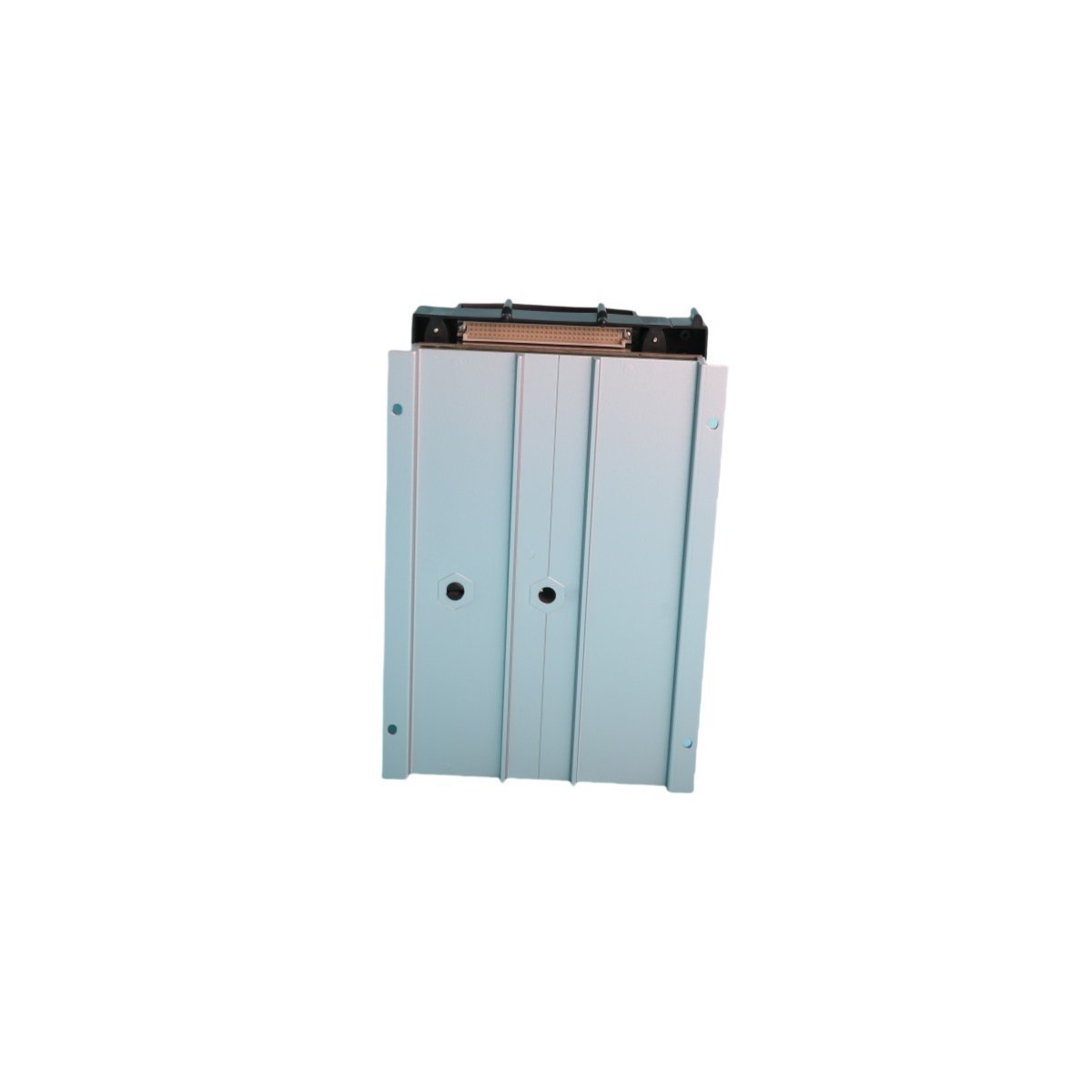

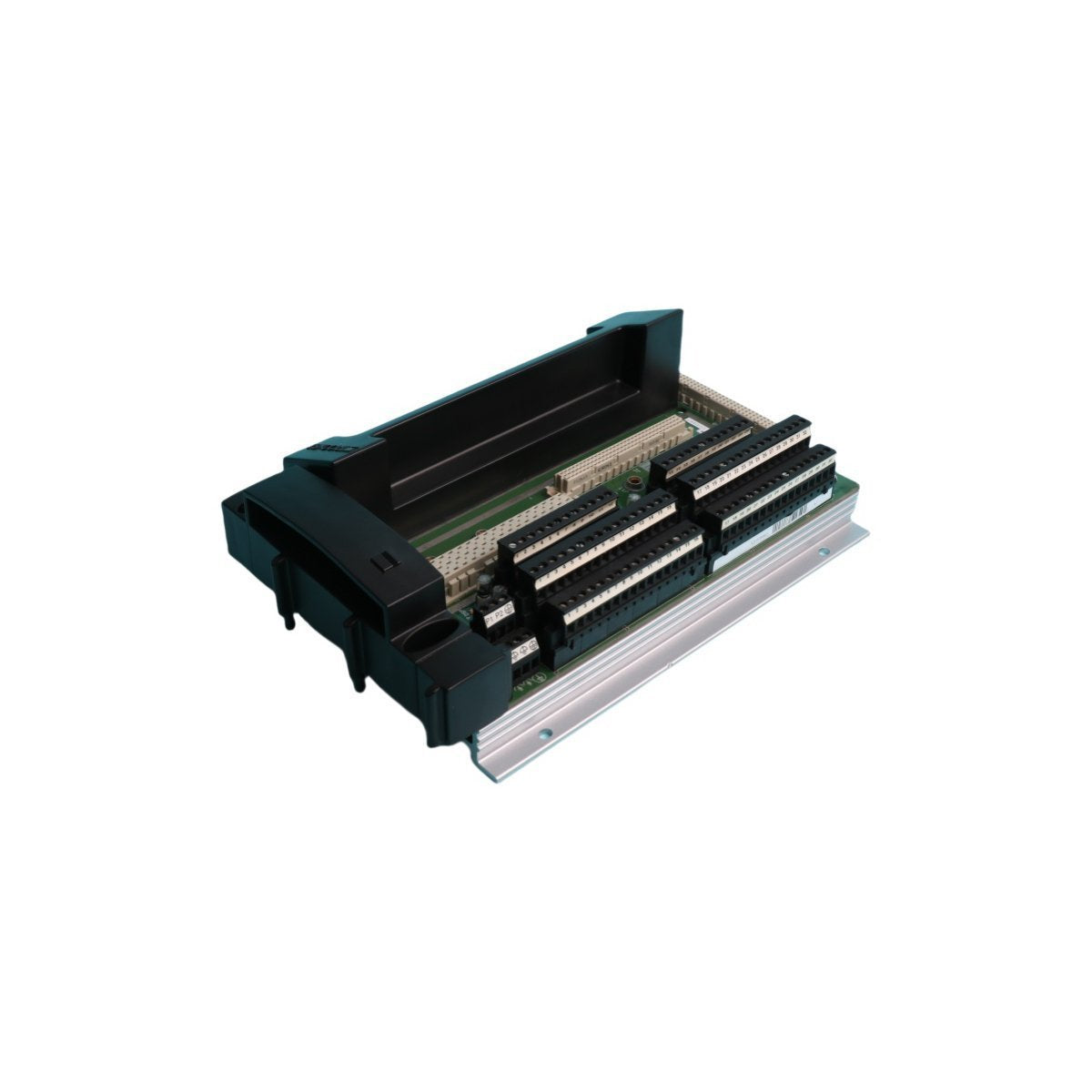

The Triconex 7400221-100, designated as the PI2381, is a high-integrity pulse acquisition module specifically engineered for Tricon v11 Safety Instrumented Systems (SIS). This 16-channel interface is designed to capture high-speed frequency data from field sensors, such as magnetic pickups or proximity switches, with an exceptional frequency accuracy of ±0.01%. As a SIL 3 certified component, the PI2381 is a fundamental element in Triple Modular Redundant (TMR) architectures, providing the precise speed and pulse counting data necessary for overspeed protection and rotational analysis. Its robust design supports hot-swappable replacement, ensuring that critical safety monitoring remains uninterrupted during maintenance cycles.

Hardware Architecture and Signal Processing Attributes

The PI2381 utilizes advanced digital signal conditioning to maintain data purity in environments characterized by high electromagnetic interference.

• Channel Density: 16 independent pulse input channels.

• Measurement Range: Supports input rates up to 10kHz with 24-bit counting resolution.

• Input Voltage Logic: Compatible with 5V to 30V DC pulse signals; 24V DC field-side power.

• Galvanic Isolation: Features 1500V AC/DC channel-to-channel and channel-to-logic isolation.

• Signal Integrity: Integrated noise rejection filters specifically tuned for industrial RPM measurements.

• Environmental Resilience: Fully operational from -40°C to +70°C; vibration-resistant and corrosion-protected build.

• Integration: Seamlessly configured via TRISTATION 1131 software for safety-critical logic.

Industrial Applications and Safety Deployments

The Triconex PI2381 is the industry standard for high-speed pulse monitoring where rotational failure poses a significant risk to personnel and infrastructure.

Turbine Overspeed Protection: Providing the millisecond-level response required to detect and mitigate overspeed conditions in gas and steam turbines, preventing catastrophic mechanical failure.

Compressor Surge Monitoring: Tracking the rotational velocity of centrifugal compressors in petrochemical facilities to ensure operation remains within safe aerodynamic envelopes.

Offshore Propulsion Safety: Monitoring the pulse frequency of main engine shafts and auxiliary thrusters on maritime production vessels and drilling rigs.

Flow Meter Interfacing: High-resolution counting of pulse outputs from turbine flow meters for precise volume accumulation in custody transfer and safety-critical dosing.

Critical Machinery Diagnostics: Supplying frequency data to high-speed logic controllers for the real-time health monitoring of industrial blowers, fans, and high-capacity pumps.
