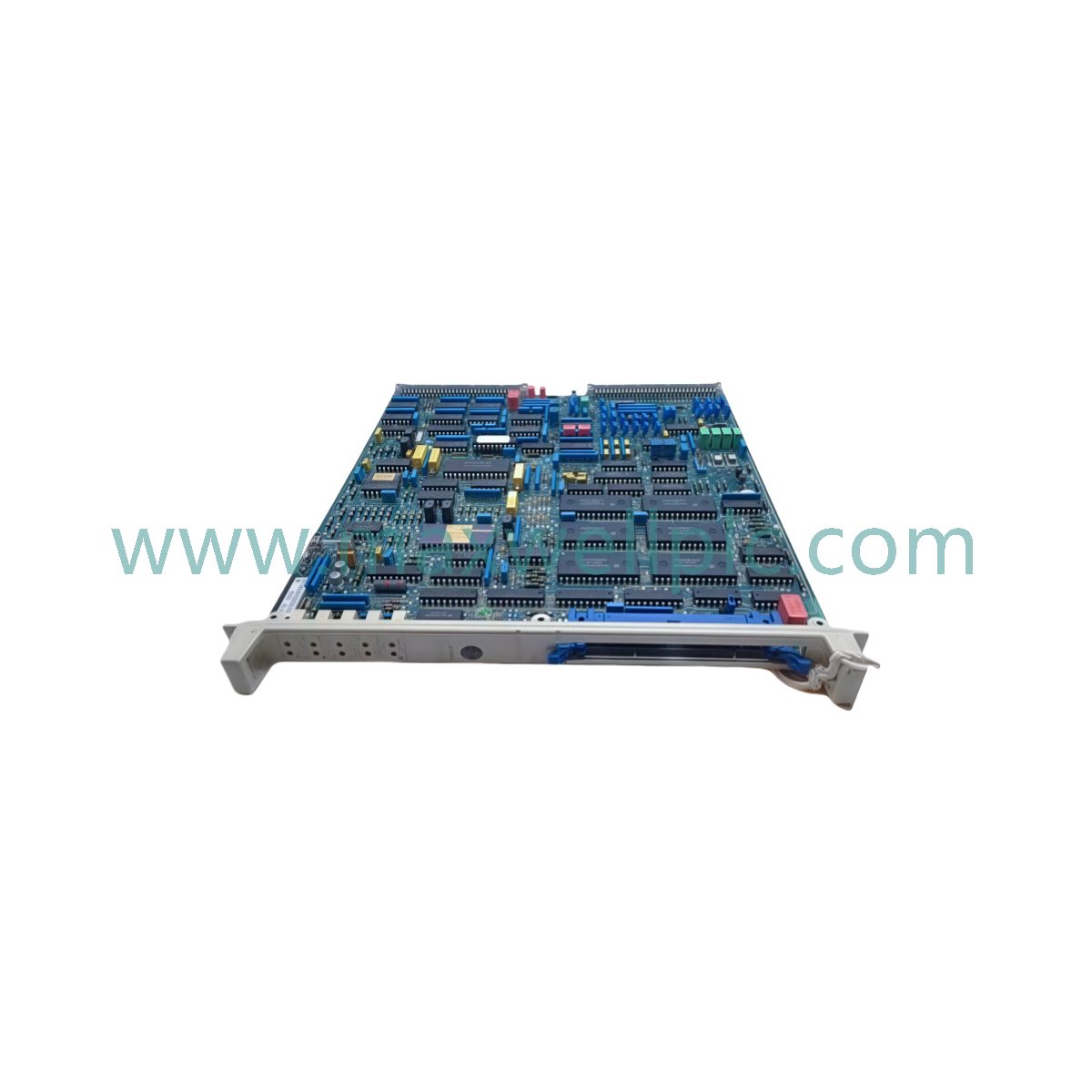

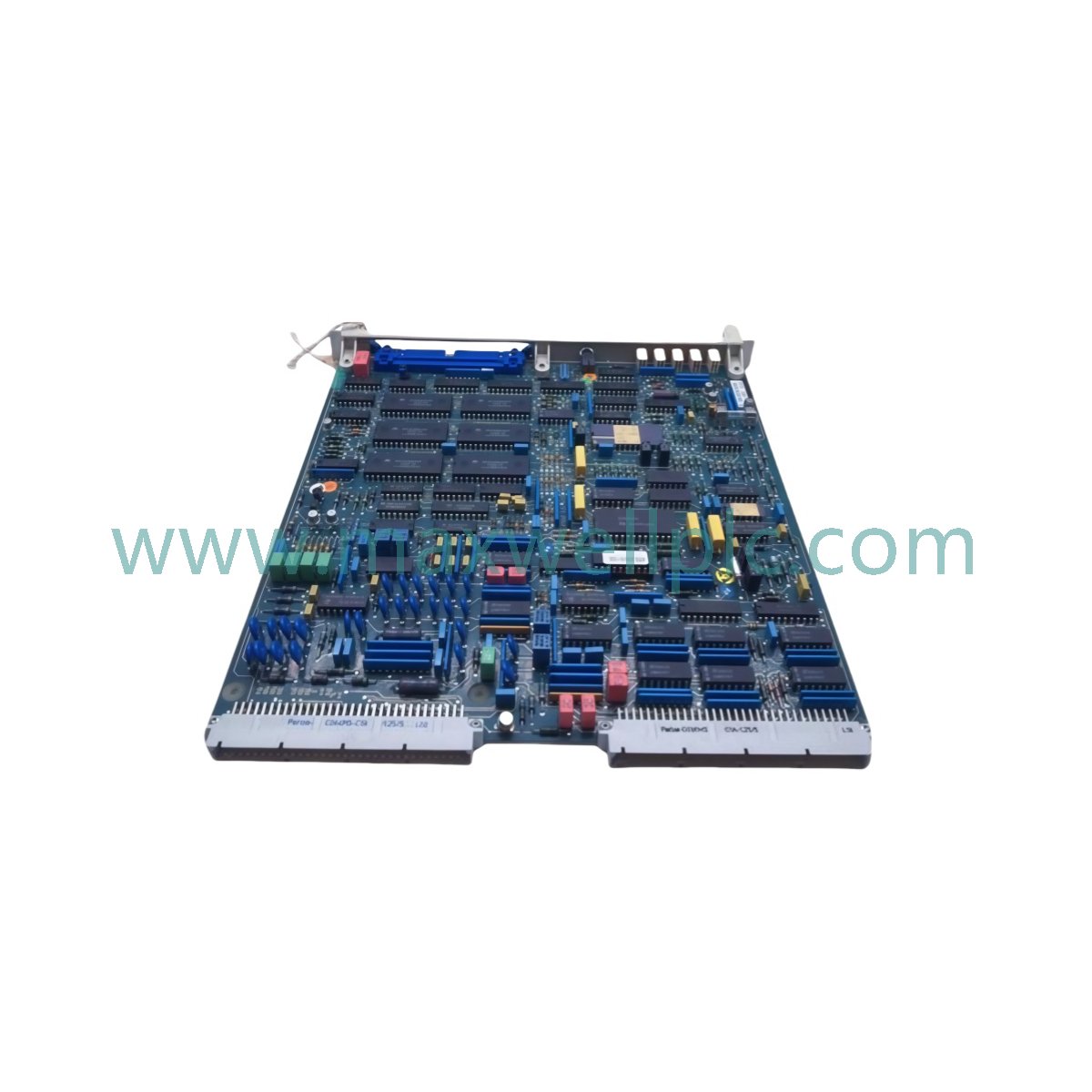

The ABB PFSK126 3BSE002097R1, also cataloged as the PFSK126 Channel Control Unit, operates as a dedicated hardware component for managing emergency stop sequences and safety interlocking within Advant OCS and System 800xA platforms.

Model Identification

• Model: PFSK126

• Part Number: 3BSE002097R1

• Product Type: Channel Control Unit / Safety Interface

Hardware Specifications

Industrial Control Integration

The PFSK126 supports backplane bus communication velocity parameters required for real-time safety loop monitoring in Advant OCS architectures. The module provides granular diagnostic feedback to the controller, distinguishing between hardware-level wiring faults and standard safety trip conditions. I/O density scaling is managed through direct integration with system processor modules, ensuring that safety logic maintains firmware flash compatibility with unified engineering environments.

Ordering Information

• One (1) PFSK126 Channel Control Unit.

• Technical safety and installation compliance documentation.

• Standard terminal interface blocks for safety loop wiring.

Field Installation Guidelines

• Mounting: Secure the unit within the standard ABB mounting framework; the 5.1 cm width allows for high-density cabinet configuration.

• Wiring: Connect safety inputs (e.g., E-stops, light curtains) according to "de-energize to trip" logic requirements to ensure fail-safe behavior.

• Grounding: Verify that the module chassis is connected to the cabinet ground bus to maintain EMI immunity during high-frequency switching events.

• Loop Verification: Perform continuity checks on all safety channels before initializing the system to ensure correct wiring termination and loop integrity.

Frequently Asked Questions

• Is the PFSK126 hot-swappable? No, the module requires the removal of power from the subrack before insertion or extraction to prevent electrical damage to the backplane pins.

• How does the unit handle power loss? The device follows a "de-energize to trip" principle, defaulting to a safe state upon any loss of input power or signal continuity.

• Can this unit distinguish between trip types? Yes, it provides distinct diagnostic feedback to the controller, allowing users to differentiate between safety trips and circuit wiring faults.

• Does it require external gateways? No, the module interfaces directly with the Advant OCS processor modules without requiring third-party protocol converters.

• What safety standards are supported? The hardware is engineered for SIL and PL compliant safety loops in high-risk machine protection applications.

• How is the safety logic configured? Safety logic is integrated within the standard engineering environment of the Advant OCS/System 800xA, utilizing native programming tools.

• Are redundant circuits included? Yes, the internal architecture utilizes redundancy to ensure that a single component failure does not compromise the safety function.

• Is conformal coating required for industrial use? The housing is designed for standard industrial environments; consult the site technical specifications for high-corrosion or marine requirements.
