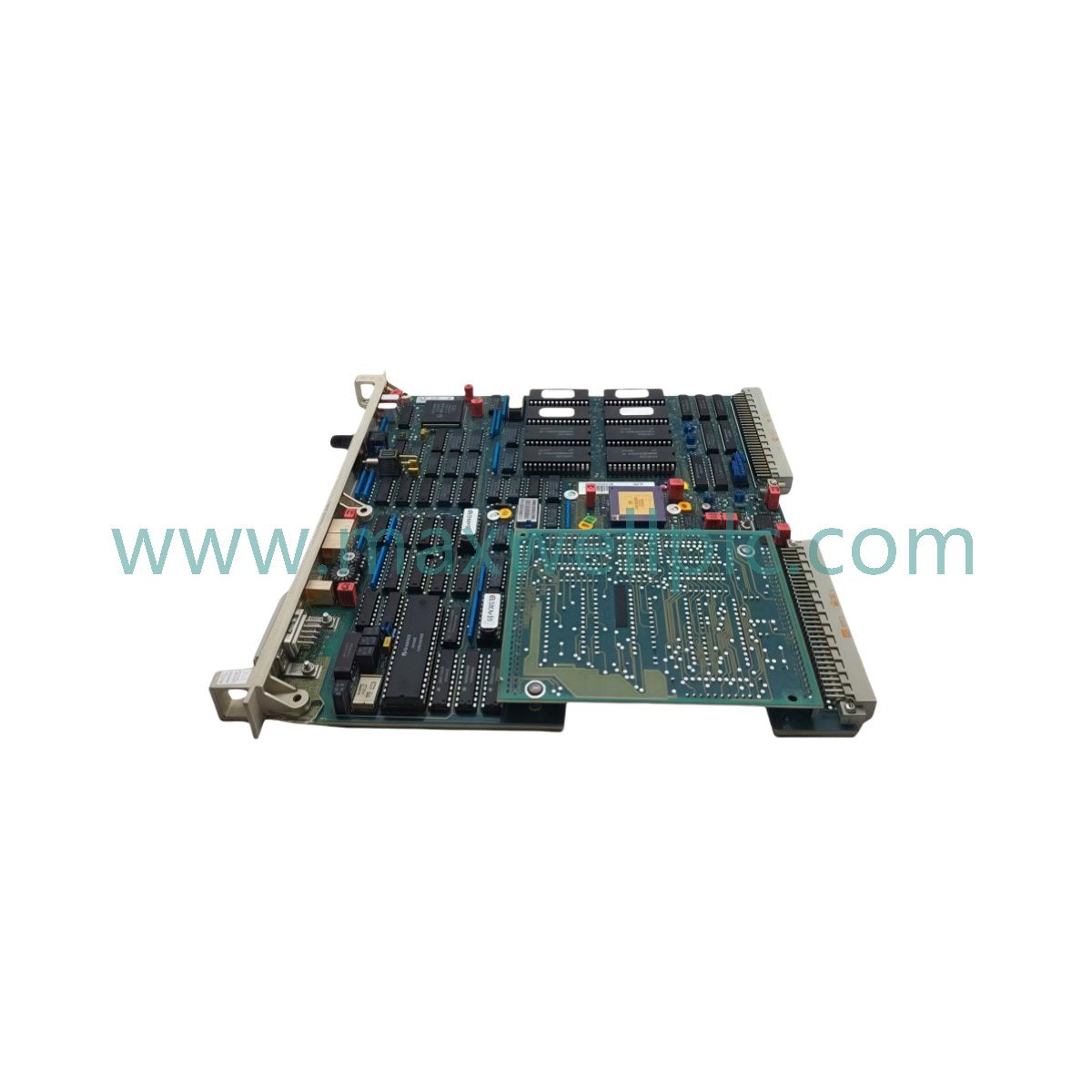

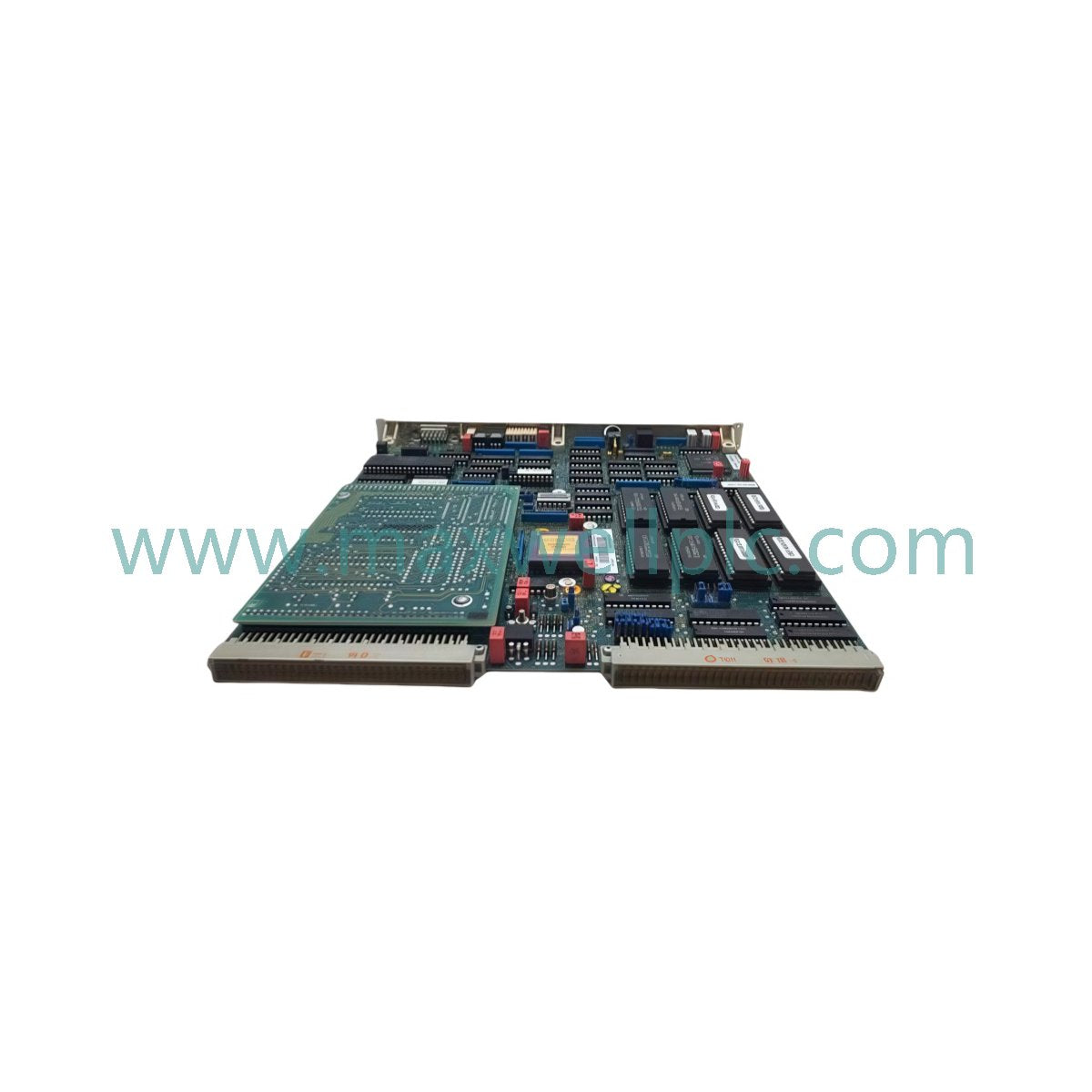

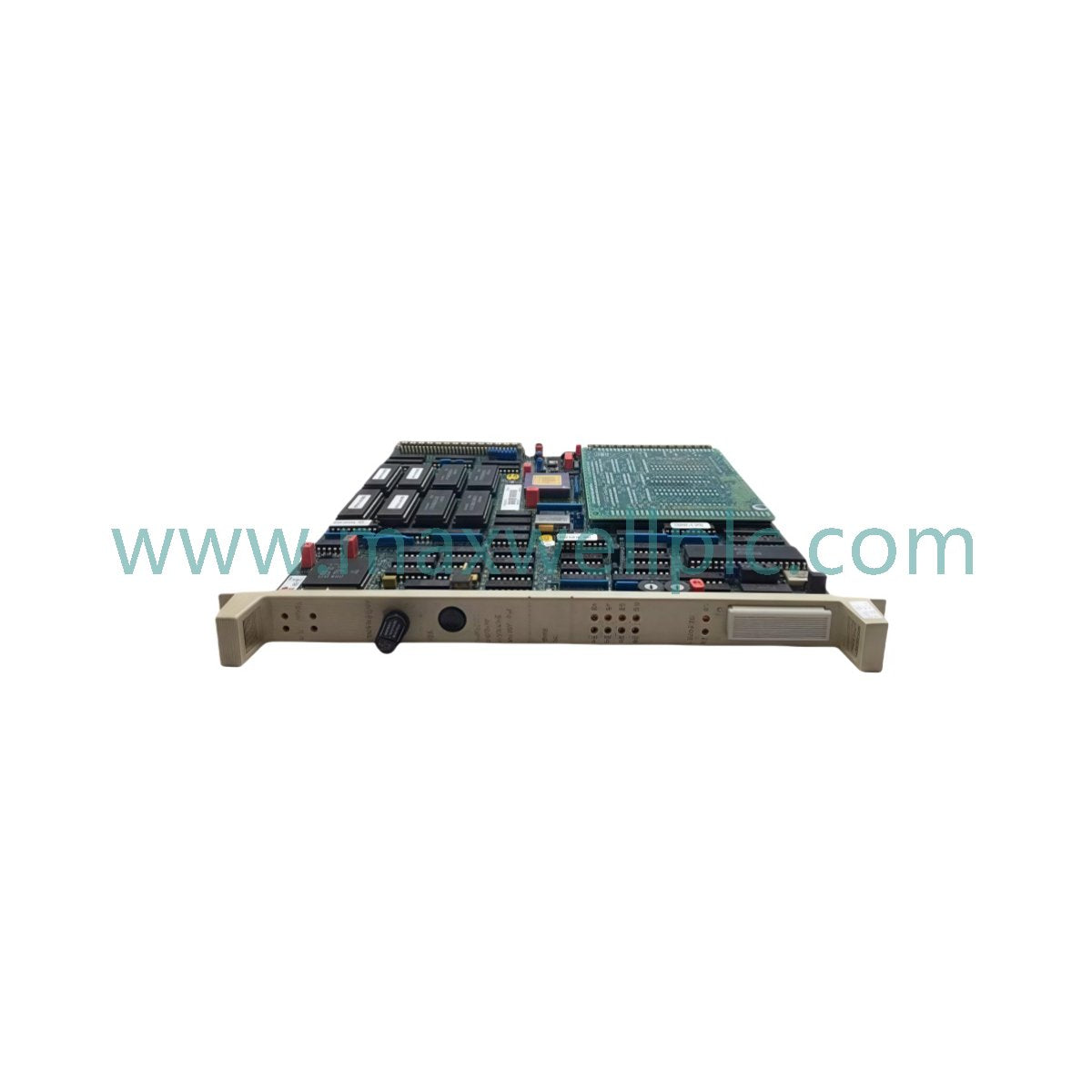

Configured for analog signal acquisition in Advant and 800xA control platforms, the ABB PFSK110 YM322001-EP (PFSK110 YM322001-EP Analog Channel Control Unit) provides direct electrical execution of process variable conditioning and digitization.

Model Configuration

The PFSK110 YM322001-EP is a hardware module dedicated to channel-level signal control. It interfaces with field transmitters to process voltage and current inputs for use within distributed control architectures.

Hardware Specifications

ABB Industrial Control & Drive Communication

The PFSK110 YM322001-EP supports deterministic backplane bus communication velocity for internal process data routing. The module utilizes internal I/O density scaling to manage multi-channel signal acquisition and supports firmware flash compatibility for system integration. The communication interface handles data throughput for pressure, flow, temperature, and level variables, ensuring synchronization with the system controller through standard backplane protocols.

## Ordering info

• PFSK110 YM322001-EP Analog Channel Control Unit.

• DIN-rail mounting hardware.

• Technical documentation for system integration and pinout.

Field Installation Guidelines

Mounting

• Secure the unit onto a standard DIN-rail within the DCS cabinet.

• Ensure adequate clearance above and below the module to facilitate convective cooling within the enclosure.

Wiring

• Connect analog inputs (voltage or current) to the module terminals in accordance with the system-specific wiring diagram.

• Maintain proper cable shielding and ground the cable drains at the cabinet entry point to prevent electromagnetic interference from affecting signal integrity.

Frequently Asked Questions

• Q: Is the module hot-swappable?

  A: No. System power must be isolated from the backplane before inserting or removing the module to prevent electrical damage to the interface pins.

• Q: What are the input signal ranges?

  A: The module accepts voltage signals from 0-10 V or +/- 10 V and current signals from 0-20 mA or 4-20 mA.

• Q: How is the module powered?

  A: The module operates from a 24 V DC supply, with a tolerance of +/- 10 percent.

• Q: What is the sampling rate per channel?

  A: The module operates at a sampling frequency of 100 samples per second for each configured channel.

• Q: Does the module perform signal isolation?

  A: Refer to the system hardware manual for specific channel-to-channel or channel-to-ground isolation ratings applicable to this hardware revision.

• Q: How are communication parameters configured?

  A: Communication settings are managed via the system controller configuration software; the module acts as a slave on the system backplane bus.

• Q: What is the impact of exceeding the operating temperature?

  A: Operation outside the -20 deg C to +60 deg C range may result in measurement drift or premature hardware degradation.

• Q: How are faults indicated?

  A: Diagnostic status is communicated via the system backplane to the central controller and displayed within the automation diagnostic interface.
