Product Overview

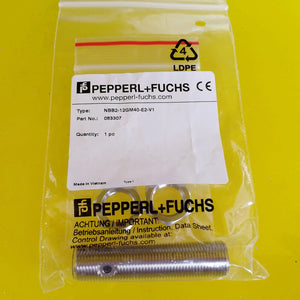

The Pepperl+Fuchs NBB2-12GM40-E2-V1 serves as a cornerstone of precision position sensing in modern industrial automation. This M12 cylindrical inductive sensor utilizes a high-frequency electromagnetic field to detect metallic targets with absolute accuracy without physical contact. This non-contact measurement principle eliminates mechanical wear, making it an ideal choice for high-speed counting, limit switching, and position monitoring in automated assembly lines and packaging machinery. With its 2mm sensing range and flush-mount design, the sensor integrates seamlessly into compact mechanical structures while maintaining high switching frequencies. Its robust brass nickel-plated housing and IP67 protection rating ensure consistent performance even in environments characterized by vibration, moisture, and industrial debris.

Core Technical Advantages

This sensor features a PNP normally open (NO) switching output, designed for high-speed integration with PLC input modules. The M12 x 1 threaded cylindrical housing facilitates precise depth adjustment during installation, while the V1 (M12 x 1) 4-pin plug connection enables rapid replacement and reduces downtime during maintenance cycles. The internal circuitry includes short-circuit and reverse polarity protection, shielding the sensor from common electrical installation errors. Its flush-mounting capability allows the sensor to be embedded directly into metal mounting plates without interference, providing a streamlined mechanical profile that resists physical impact from moving machine parts.

Technical Specifications

Installation Guide

Engineers should install the NBB2-12GM40-E2-V1 using the provided twin nuts to secure the sensor at the desired detection depth. For optimal performance, ensure the sensing face remains clear of heavy metal buildup or iron filings which could cause false triggering. When utilizing the V1 plug connection, tighten the M12 cable connector to the specified torque to maintain the IP67 seal against liquid ingress. Although this is a flush-mount sensor, maintain a minimum clearance equivalent to the sensor's diameter from opposing metallic surfaces to prevent pre-damping of the electromagnetic field. In high-vibration applications, we recommend applying a medium-strength thread-locking compound to the mounting nuts to ensure long-term positional stability.

Engineering Advantages

The NBB2-12GM40-E2-V1 excels in high-duty cycle applications where reliability is the primary engineering constraint. Its 1500 Hz switching frequency allows for precise detection in rapid motion sequences, such as tooth-counting on a gear or high-speed piston monitoring. The nickel-plated brass housing provides a durable barrier against mild corrosive agents and mechanical stress. By eliminating the friction and failure points of mechanical limit switches, this inductive solution reduces the total cost of ownership and significantly extends the service life of the machine’s sensing subsystem. Its compatibility with industry-standard M12 connectivity ensures that it fits into existing infrastructure with zero modification required.

Delivery & Logistics

Delivery Time: 3-5 days once payment is finalized.

Shipping Carriers: Shipped via DHL, FEDEX, or UPS. All sensors are shipped in anti-static packaging and original factory-sealed boxes to ensure arrive in pristine condition.

Technical FAQs

Q1: What does the "V1" designation in the model number signify?

A1: The "V1" indicates that the sensor features an M12 x 1, 4-pin quick-disconnect plug. This allows for faster installation and replacement compared to pre-cabled models.

Q2: Can this sensor detect non-ferrous metals like aluminum at the same 2mm distance?

A2: No. Inductive sensors have a "Reduction Factor" for non-ferrous metals. For aluminum or copper, the effective sensing range typically decreases to approximately 0.3 to 0.45 times the rated 2mm range.

Q3: Is it possible to mount this sensor so it sits level with a metal surface?

A3: Yes. As a flush-mount (NBB) model, the NBB2-12GM40-E2-V1 is specifically designed to be mounted level with its surrounding metal mounting bracket without causing unintended activation.

Q4: How does the PNP output logic function for this sensor?

A4: In a PNP configuration, the sensor connects the load to the positive (V+) supply when a target is detected. This is the standard logic for most European and North American PLC systems.
