Product Overview

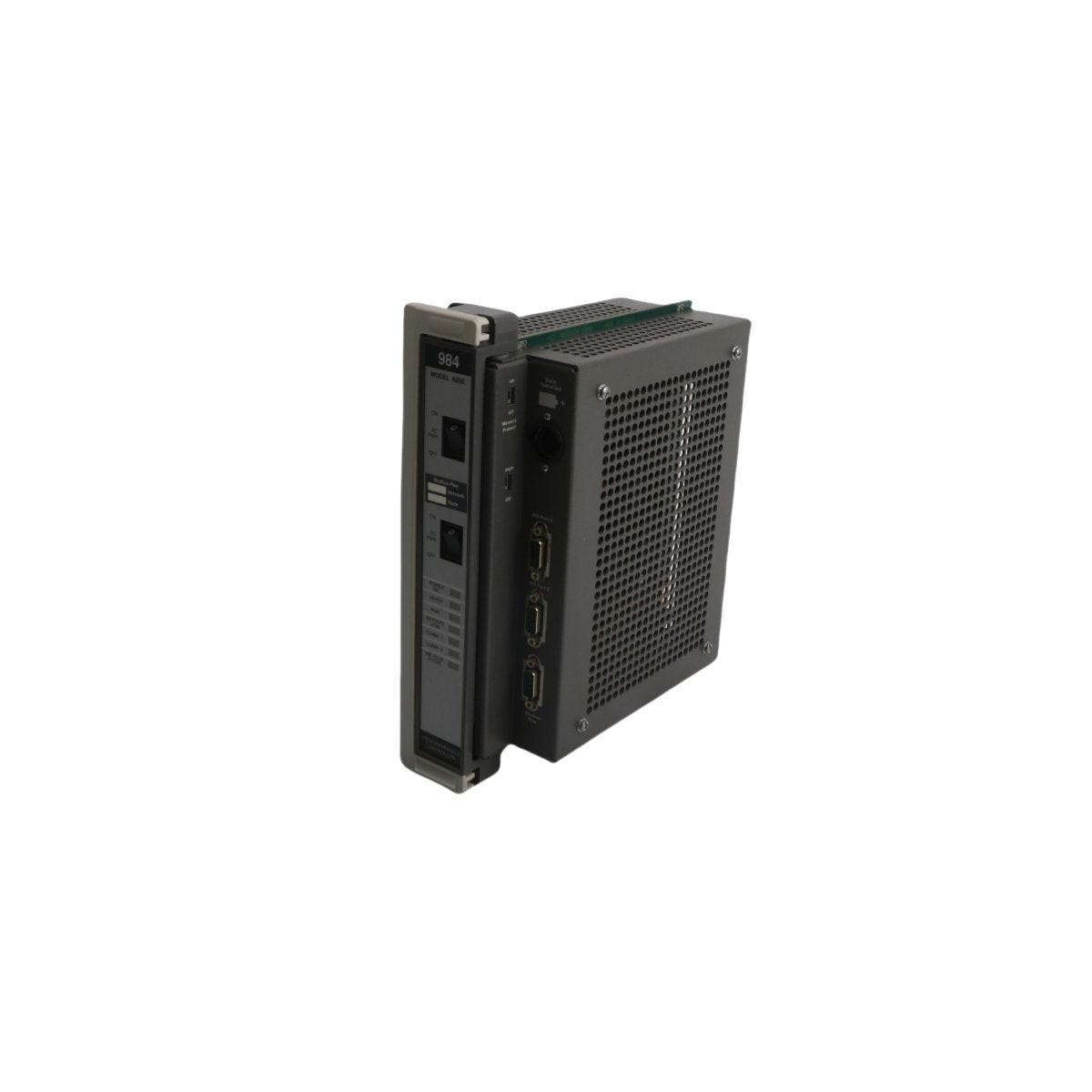

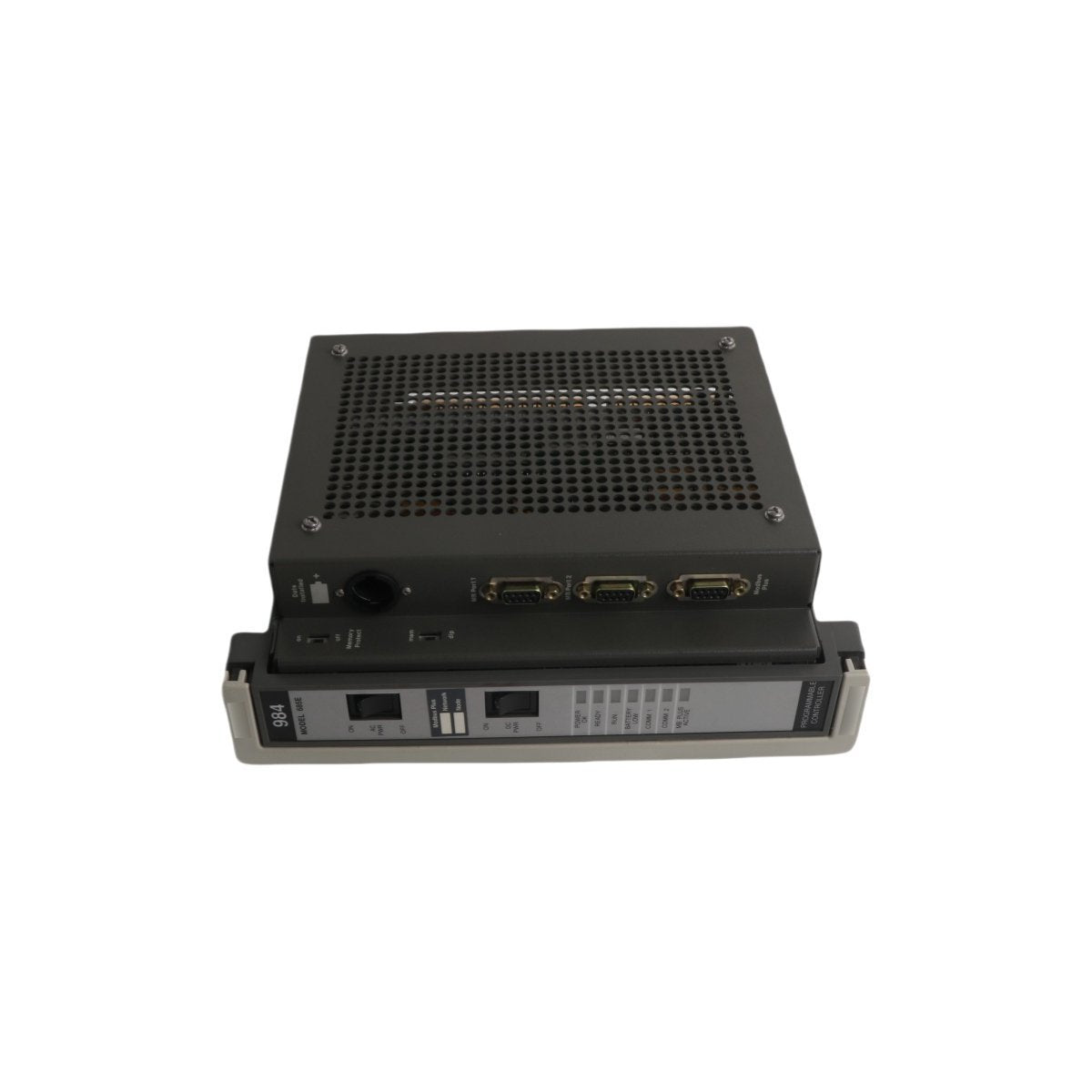

The Modicon PC-E984-685 is a high-performance 685E Central Processing Unit (CPU) engineered for the legacy yet robust 800 Series automation platform. This module serves as the primary intelligence for complex PLC configurations, offering full execution compatibility with the 984 instruction set. Designed by Schneider Electric for high-availability industrial environments, the PC-E984-685 integrates a self-contained power supply and a sophisticated logic engine capable of processing 1,000 nodes in as little as 1 to 2.5 milliseconds. This CPU is an essential component for operators looking to maintain or expand established Modicon systems without sacrificing processing speed or communication flexibility.

Critical Hardware Metrics and System Attributes

The PC-E984-685 is recognized for its significant physical presence and high-capacity data handling capabilities.

• Processing Engine: Model 685E with 984 instruction set compatibility

• Logic Execution Speed: 1.0 to 2.5ms per 1K of logic

• Communication Interface: Dual Modbus ports for local and remote programming

• Network Integration: Supports simultaneous Modbus Plus and host computer links

• Memory Protection: Lithium battery backup (1-year service / 5-year shelf life)

• Diagnostic Indicators: Low-battery warning LED (activated 14 days prior to exhaustion)

• I/O Support: Full integration with 800 Series discrete and analog modules

• Module Weight: 26.5 kg

• Physical Footprint: 10.2 x 21.2 x 26.5 cm

• Origin of Manufacture: France

Industrial Implementation and Deployment Scenarios

Due to its reliability and specific architecture, the PC-E984-685 remains a critical asset in several heavy industrial sectors.

• Legacy System Modernization: Providing a drop-in replacement for aging 800 Series controllers to extend the lifecycle of established production lines.

• Heavy Manufacturing: Managing complex interlocking logic and high-speed synchronization for assembly lines and metal fabrication.

• Large-Scale Infrastructure: Coordinating distributed control systems in water treatment and power management facilities where Modbus Plus networking is utilized.

• Process Automation: Running continuous control loops in chemical processing and pharmaceutical plants that require the specific stability of the 984 logic environment.

• Retrofitting and Expansion: Integrating modern Ethernet routers via Modbus bridges to bring legacy hardware into contemporary data-monitoring ecosystems.
