Product Overview

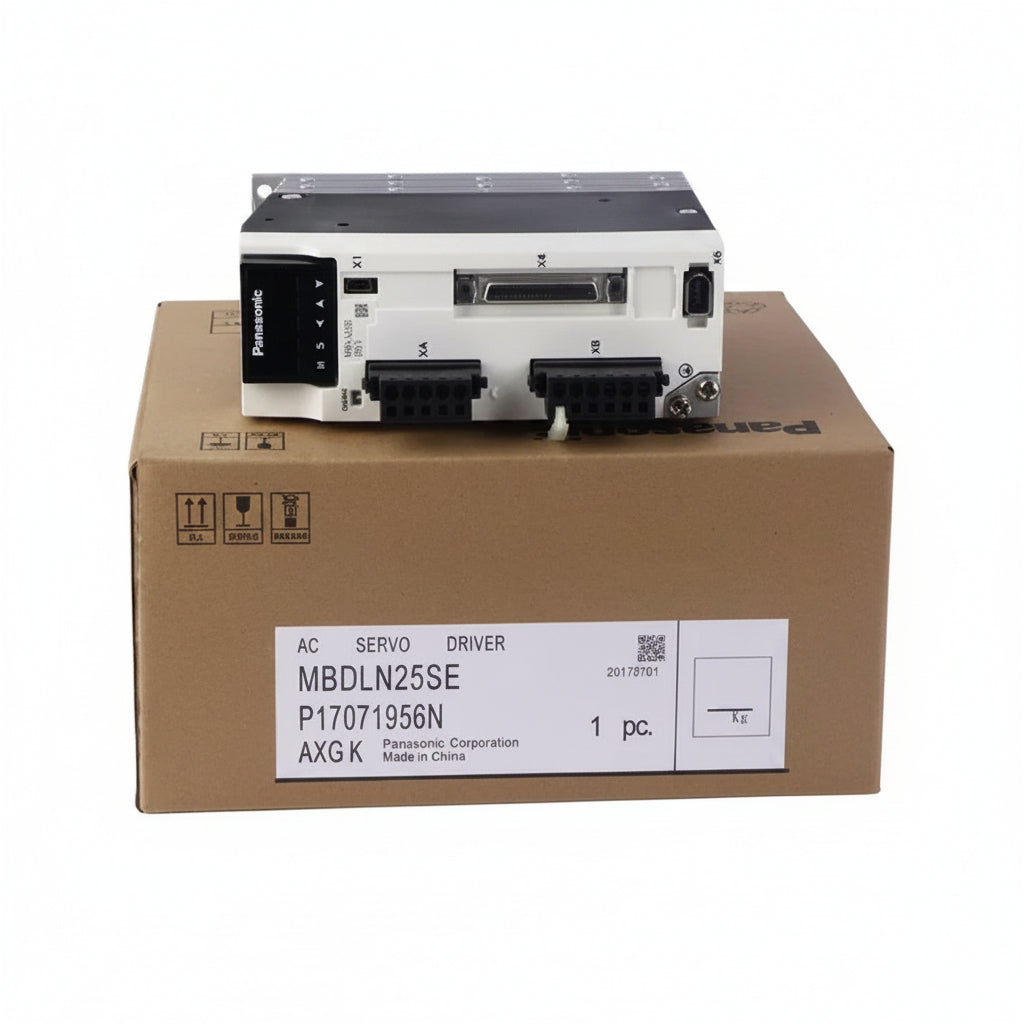

The Panasonic MBDLN25SE represents the cutting edge of the MINAS A6 series, functioning as a high-performance B-Frame servo driver specifically engineered for complex, multi-axis motion control via the EtherCAT protocol. This driver acts as the intelligence hub for precision automation, facilitating ultra-fast communication between the master controller and the servo motor to achieve sub-millisecond synchronization. Unlike standard pulse-train drivers, the MBDLN25SE utilizes the 100Mbps EtherCAT interface to handle real-time positioning, velocity, and torque profiles with zero jitter. Its advanced hardware architecture supports a 3.2 kHz frequency response, allowing machinery to react instantaneously to load changes. Whether integrated into high-speed pick-and-place robots, semiconductor assembly lines, or advanced CNC centers, the MBDLN25SE delivers the deterministic performance and high-resolution feedback necessary to maximize throughput and ensure absolute repeatability in the most demanding B2B production environments.

Core Technical Advantages

High-Speed EtherCAT Communication

The MBDLN25SE hardware features dual RJ45 ports supporting the EtherCAT CoE (CAN application protocol over EtherCAT) profile. This interface enables seamless integration into decentralized control architectures, allowing for the coordination of dozens of axes over a single network cable. The driver processes distributed clock signals to ensure synchronized motion across all nodes with microsecond-level precision.

3.2 kHz Velocity Response Frequency

Panasonic engineers have optimized the internal control loops of the A6 series to achieve a velocity response frequency of 3.2 kHz. This hardware advancement significantly reduces settling time and improves the machine's ability to follow complex paths at high speeds. This ensures that the motor maintains its trajectory even under rapidly fluctuating mechanical loads or high-vibration conditions.

Smart Real-Time Auto-Tuning

The driver incorporates an sophisticated auto-tuning algorithm that analyzes mechanical resonance in real-time. It automatically adjusts notch filters and gain settings to compensate for belt stretch, lead screw backlash, or structural vibrations. This hardware-driven intelligence allows for rapid commissioning and maintains peak performance as mechanical components wear over time.

Technical Specifications

Engineering Installation Guide

Cabinet Thermal Management

Install the MBDLN25SE vertically to utilize the natural chimney effect for heat dissipation. Maintain a minimum clearance of 10 mm between adjacent drivers and 40 mm above and below the unit. In high-density B-Frame clusters, we recommend installing external cooling fans to ensure the ambient cabinet temperature remains below 50°C, preventing thermal de-rating of the power transistors.

Wiring and Noise Suppression

Separate the EtherCAT communication cables from high-voltage motor power lines by at least 100 mm to prevent electromagnetic interference. Utilize shielded Cat5e or Cat6 cables with high-quality metal-shielded RJ45 connectors. Ensure the driver's ground terminal connects directly to a low-impedance copper busbar to drain high-frequency switching noise effectively.

Safety and Limit Integration

The driver supports the STO (Safe Torque Off) function via specialized safety connectors. Integrate this into your machine’s emergency stop circuit to ensure a SIL3/PLe safety rating. Always verify the EtherCAT station alias settings via the front-panel rotary switches before powering the network to avoid address conflicts on the bus.

Engineering Advantages

The MBDLN25SE excels in "Smart Factory" environments where data transparency and motion precision are non-negotiable. Its 23-bit encoder interface allows the driver to track motor positions with over 8 million pulses per revolution, providing the resolution required for pharmaceutical and electronic manufacturing. The B-Frame's slim 40 mm width allows for significant space savings in control cabinets, facilitating the design of smaller, more efficient machine footprints. By choosing the MINAS A6 EtherCAT platform, engineers secure a high-authority control solution that is fully compatible with global PLC masters like Beckhoff, Omron, and Keyence. This interoperability, combined with Panasonic’s legendary MTBF (Mean Time Between Failure), provides a future-proof investment for high-speed automation projects.

Delivery & Logistics

Delivery time: 3-5 days when payment finish.

Shipping Carriers: BY DHL/FEDEX/UPS.

Packaging: We utilize anti-static moisture-barrier bags and dual-layer reinforced shock-resistant boxing. Every MBDLN25SE is shipped in its original factory-sealed box to protect the sensitive internal power electronics and communication ports during international transit.

Technical FAQs

Q1: Does the MBDLN25SE support standard pulse/direction signals?

A1: No, the "SE" designation indicates a dedicated EtherCAT communication model. For traditional pulse-train or analog control, the "SG" or "SF" variants within the A6 series are required.

Q2: What is the maximum distance between EtherCAT nodes for this driver?

A2: The MBDLN25SE supports a maximum cable length of 100 meters between nodes, consistent with standard Ethernet physical layer specifications.

Q3: Can I use this B-Frame driver with a 750W motor?

A3: The MBDLN25SE is rated for specific current capacities typical of B-Frame motors. Always cross-reference the driver's output current with the motor's rated current to ensure compatibility.

Q4: Does this driver support 23-bit absolute encoders?

A4: Yes, it is fully optimized for Panasonic’s 23-bit absolute encoders. It processes the high-resolution data over the EtherCAT bus to provide absolute position feedback without needing external home sensors.
