Product Overview

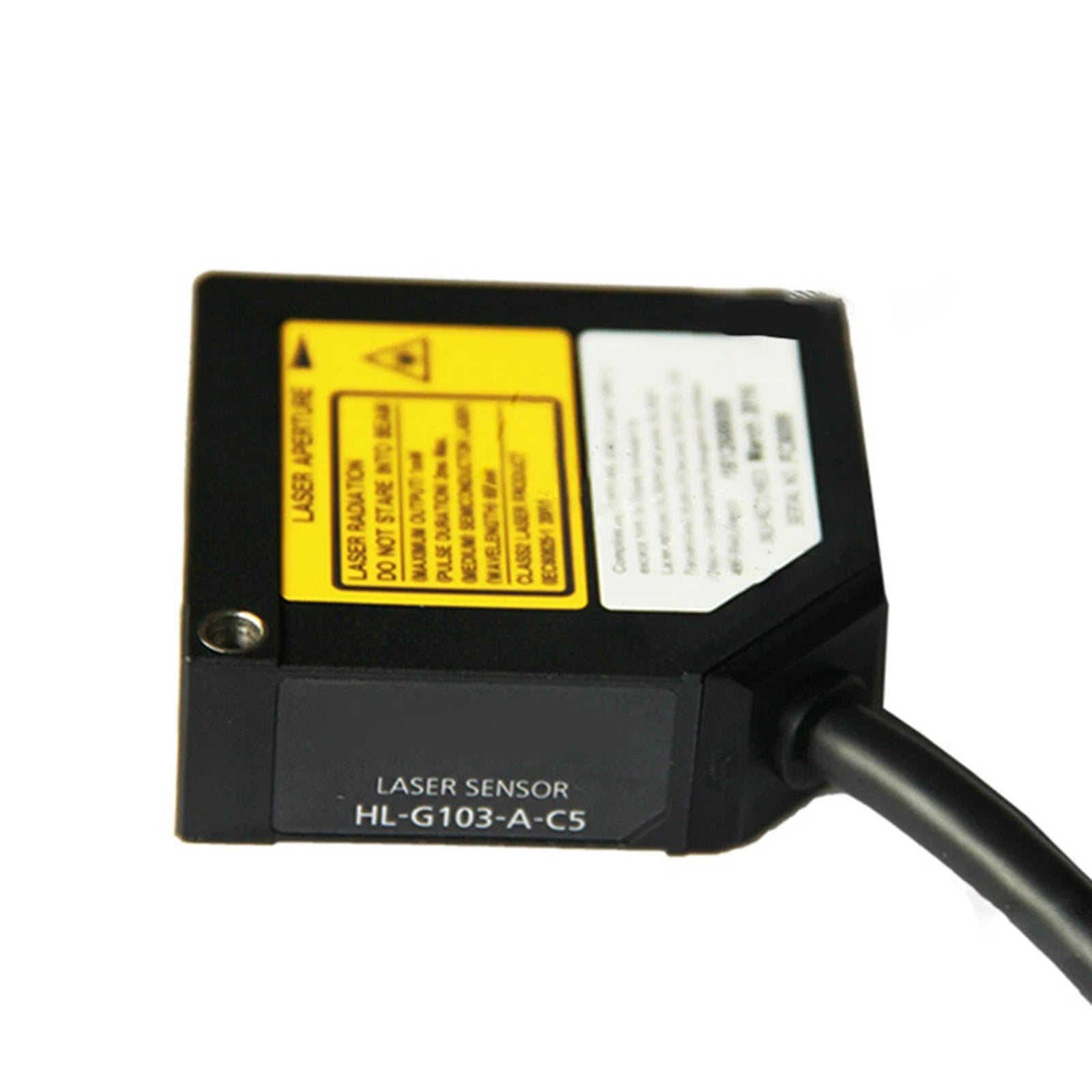

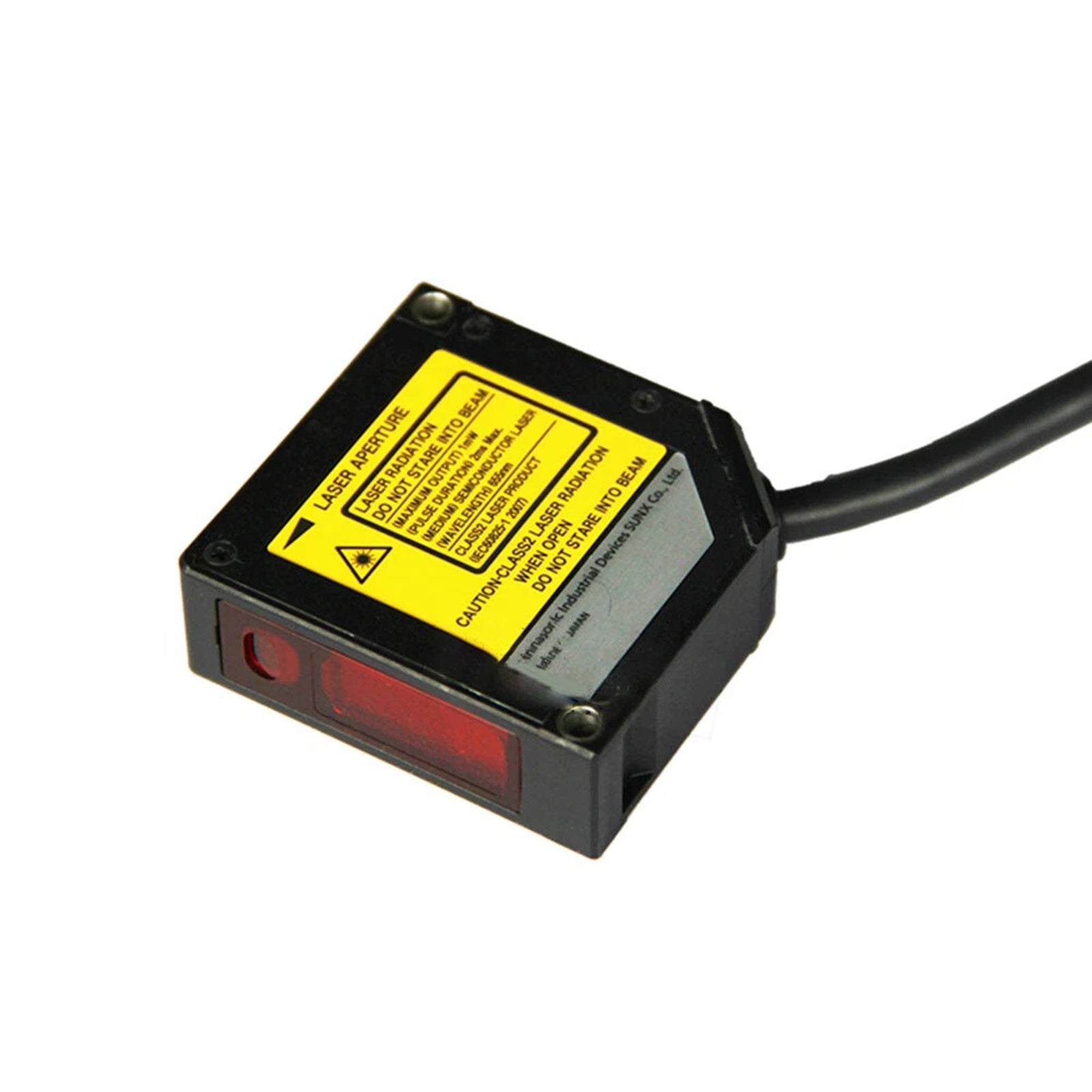

The Panasonic HL-G103-A-C5 stands as a pinnacle of non-contact measurement technology, specifically designed for high-authority precision alignment and displacement monitoring in heavy machinery and automated assembly lines. By utilizing a high-resolution integrated CMOS image sensor, this unit achieves a remarkable 0.5μm resolution, allowing engineers to detect minute structural shifts or surface variances that mechanical probes would miss. The HL-G103-A-C5 eliminates the risks associated with contact-based measurement, such as surface damage or sensor wear, making it indispensable for monitoring critical components in steam turbines, large-scale compressors, and high-speed CNC spindles. Its internal digital processing hardware compensates for surface color and reflectivity variations in real-time, providing stable, high-accuracy distance data directly to your PLC or control system. This sensor ensures that even the most massive industrial assets maintain sub-micron alignment during operation, significantly reducing vibration-induced fatigue and extending machine service life.

Core Technical Advantages

Integrated CMOS Image Sensor

The hardware incorporates a high-density CMOS linear image sensor that captures the reflected laser beam with extreme spatial resolution. This integrated architecture allows the HL-G103-A-C5 to perform complex waveform analysis internally, filtering out background noise and optical interference. Unlike traditional PSD sensors, this CMOS technology ensures stable measurement on varied surfaces, from matte black rubber to polished metallic flanges.

Built-in Digital Display and Controller

The HL-G1 unit functions as a completely self-contained system. The rear-mounted digital display provides real-time distance readouts and allows for direct parameter configuration without the need for an external docking station. This hardware consolidation saves critical cabinet space and simplifies the troubleshooting process by allowing technicians to verify measurement values directly at the sensing point.

Advanced Output Versatility

The HL-G103-A-C5 features a flexible output stage, providing both a 4-20mA analog current signal and an RS-422 digital communication interface. The 5-meter high-flex cable (designated by the C5 suffix) facilitates long-distance signal transmission without the risk of EMI degradation. This dual-output capability ensures the sensor integrates seamlessly with legacy analog control loops and modern digital data logging networks simultaneously.

Technical Specifications

Engineering Installation Guide

Optical Path Alignment

Mount the HL-G103-A-C5 so the laser beam hits the target surface at a perpendicular angle. While the CMOS sensor compensates for minor tilts, maintaining a 90° orientation ensures maximum signal strength and linearity. Clean the glass emitter and receiver windows regularly with oil-free compressed air or specialized optical wipes; dust accumulation on the lens is the primary cause of "Measurement Value Jump" in heavy industrial environments.

Cable Bending and Noise Isolation

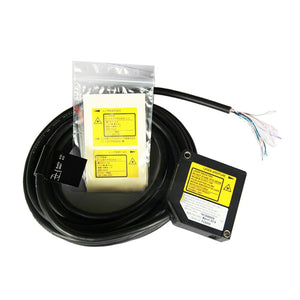

The C5 model includes a high-durability 5-meter cable. Maintain a minimum bending radius of 30 mm to prevent internal core fatigue. Route the sensor cable through a separate grounded conduit, away from high-current AC motor leads or VFD output cables. The RS-422 digital interface should utilize twisted-pair wiring to ensure data integrity over the full 5-meter run.

Setup and Zero-Point Calibration

Utilize the "Teaching" function on the integrated display to set the zero-point at the mechanical center of the target’s travel. This maximizes the ±4mm effective range. Ensure the measurement target stays within the 26mm to 34mm window; the display will trigger an "OR" (Over Range) error if the target moves outside this precision envelope.

Engineering Advantages

The HL-G103-A-C5 excels in "Smart Maintenance" applications where thermal expansion and shaft displacement must be monitored under load. Its IP67-rated aluminum housing survives the heavy oil mist and metallic dust common in turbine halls and machining centers. The 0.5μm resolution provides an early warning system for bearing wear, detecting subtle changes in shaft orbit or axial position before they escalate into catastrophic failure. By integrating this sensor with a TSI (Turbine Supervisory Instrument) or a high-speed PLC, engineers create a high-authority feedback loop that protects expensive rotating assets. The non-contact nature of the HL-G103-A-C5 ensures that measurement accuracy never degrades due to mechanical friction, providing a stable, decade-long monitoring solution for Tier-1 power generation and heavy manufacturing facilities.

Delivery & Logistics

Delivery time: 3-5 days when payment finish.

Shipping Carriers: BY DHL/FEDEX/UPS.

Packaging: We utilize electrostatic-shielded bags and high-density, vibration-dampening foam inserts. Every HL-G103-A-C5 is shipped in its original factory-sealed box to guarantee the precision optical alignment and internal CMOS sensor arrive in flawless condition.

Technical FAQs

Q1: Can the HL-G103-A-C5 measure transparent or mirror-like surfaces?

A1: While optimized for diffuse reflections, the CMOS sensor can handle semi-reflective surfaces. For pure mirrors or clear glass, we recommend a "Specular Reflection" mounting orientation (tilting the sensor slightly) to capture the return beam effectively.

Q2: What is the specific benefit of the "C5" version?

A2: The "C5" suffix designates a factory-integrated 5-meter high-flex cable. This is superior to standard 2-meter versions for large-scale machinery, as it eliminates the need for mid-run connectors which often act as failure points in high-vibration environments.

Q3: Does the laser lose accuracy over time?

A3: The semiconductor laser has an extremely long service life. Accuracy is maintained by the internal CMOS feedback loop. However, we recommend an annual verification against a calibrated gauge block to ensure compliance with ISO quality standards.

Q4: How does the sensor handle ambient light interference?

A4: The HL-G103-A-C5 utilizes an optical band-pass filter and high-speed electronic shuttering. It ignores standard factory lighting and sunlight, focusing only on the specific wavelength of the red semiconductor laser.
