Product Overview

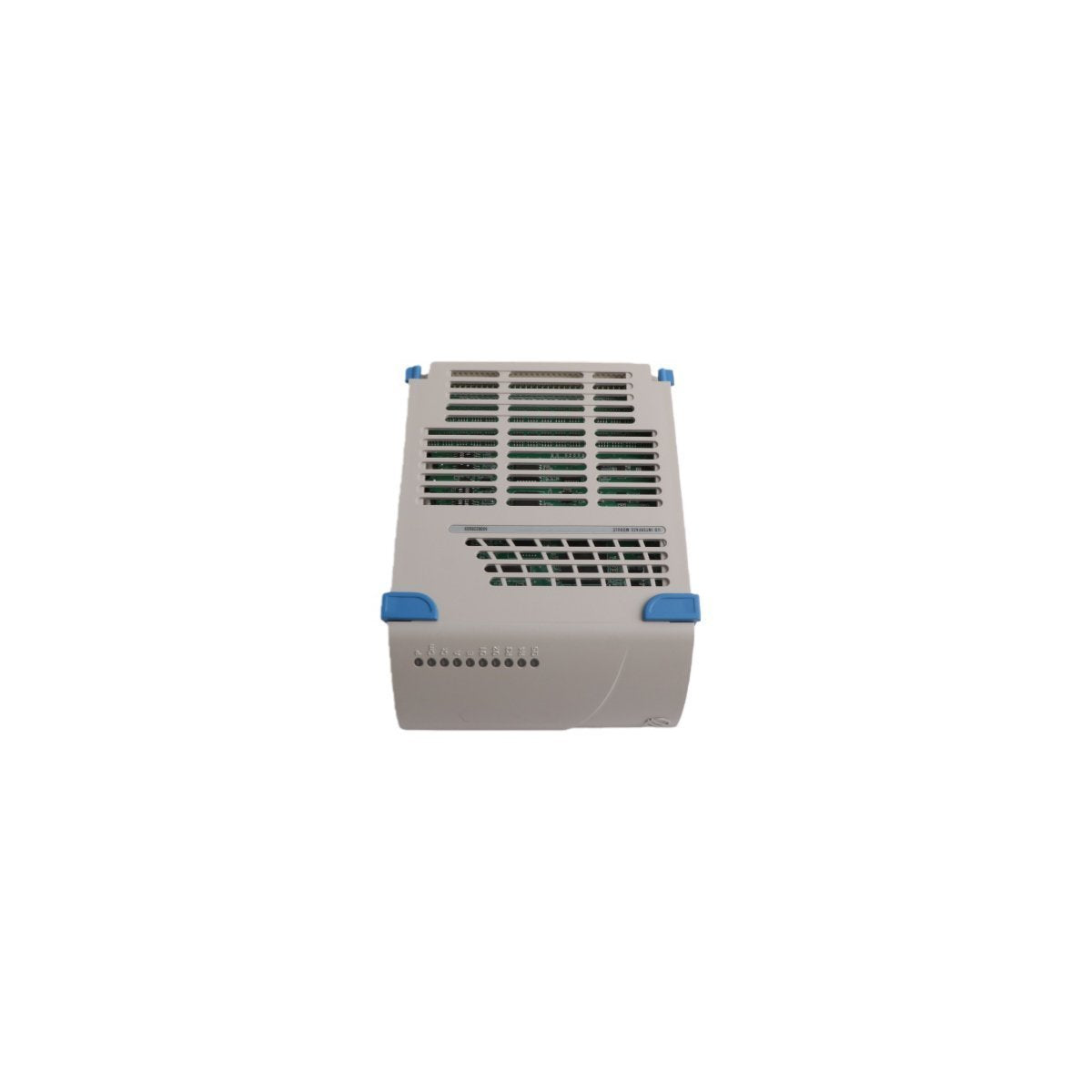

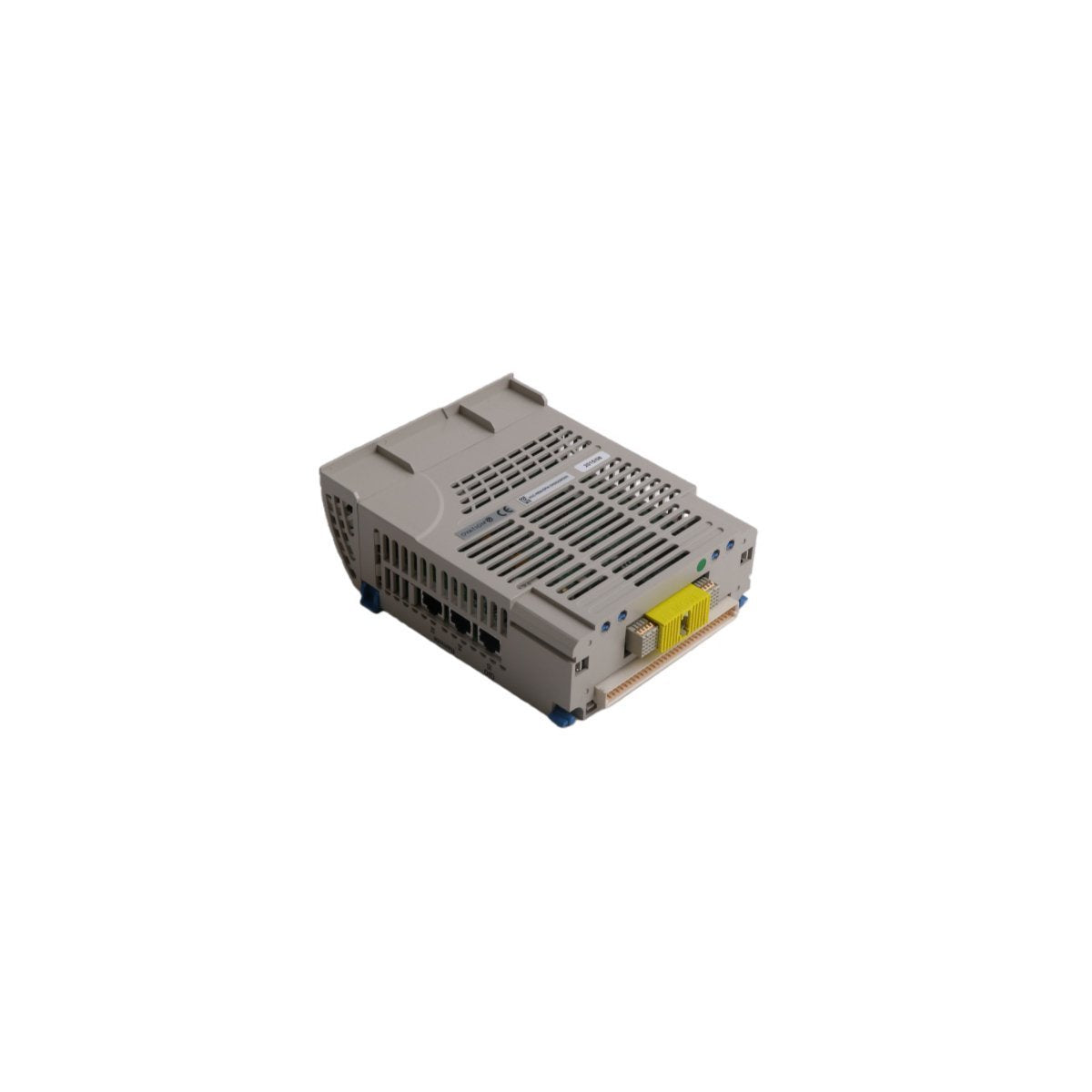

The Emerson 5X00226G03 is a high-performance I/O Interface Module designed for the Ovation™ Distributed Control System (DCS). This controller serves as a fundamental communication gateway, facilitating the bidirectional flow of data between the central Ovation network and field-level instrumentation. Its primary role is to digitize field signals for the control strategy and translate processor commands into physical actions for actuators and valves.

The module is engineered to handle high-density signal environments, providing a reliable interface for various sensor types. By integrating this module into an Ovation framework, operators achieve higher precision in data acquisition and more responsive control loop performance. Although the series transitioned to legacy status at the end of 2018, the 5X00226G03 remains a critical spare part for maintaining the operational longevity of power generation and water treatment infrastructures.

Hardware Parameters and Technical Characteristics

• Signal Capacity: High-density configuration supporting up to 32 analog and 32 digital channels for comprehensive field monitoring.

• Protocol Versatility: Native support for industry-standard communication protocols including HART, FOUNDATION Fieldbus H1, and MODBUS RTU.

• Input Compatibility: Directly accepts current (4-20mA), voltage, and millivolt signals from temperature and pressure transmitters.

• Electrical Specifications: Operates on a standard 24 VDC industrial power supply.

• Environmental Resilience: Rated for stable operation in ambient temperatures ranging from 0°C to 60°C.

• Physical Dimensions: Compact footprint measuring 12.1 x 5.2 x 16.6 cm, optimized for standard DCS cabinet mounting.

Industrial Applications

• Power Generation: Monitoring critical turbine parameters and heat recovery steam generator (HRSG) instrumentation.

• Water and Wastewater: Coordinating chemical dosing rates and managing remote pump station telemetry.

• Renewable Energy: Data aggregation and control interface for large-scale solar or hydroelectric facility management.

• District Heating: Managing valve actuation and temperature regulation across complex distribution networks.
