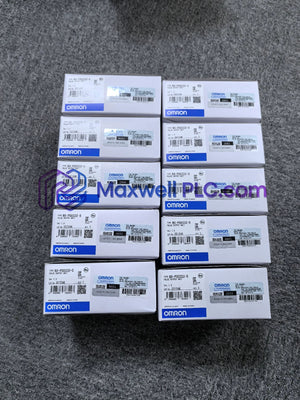

The Omron NX-PG0332-5, also cataloged as the NX-PG0332 Pulse Output Unit, operates as a dedicated hardware component for high-speed multi-axis motion command generation within NX I/O Bus architectures.

Model Designation & Terminal Code Matrix

• PG0: Pulse output module platform classification
• 3: 4-channel independent motion drive circuit density
• 3: Dedicated line driver differential signal output specification
• 2: Synchronous refreshing and task period prioritized refreshing capabilities
• 5: Dual MIL connector (34 terminals x 2) external wiring interface

Technical Specification Overview

Architecture Integration & Synchronization Protocols

Operating across the internal backplane bus, the module maintains deterministic frame alignment with the host CPU or communication coupler. High-density I/O density scaling allows 4 motion channels to execute parallel trajectory profiles without degrading backplane bus communication velocity. Onboard firmware flash compatibility enables direct configuration of pulse generation modes and synchronous refreshing clocks across EtherCAT network nodes.

Package Inventory

• 1 x NX-PG0332-5 Pulse Output Unit Assembly
• 1 x Connector Protection Cover Set
• 1 x Module Terminal Alignment Manual

System Mounting & Wiring Directives

Mechanical Assembly

• Engage the module rear slot onto a standard 35 mm DIN rail and secure the locking latch until fully seated.
• Provide a minimum of 30 mm vertical clearance above and below the module enclosure for heat dissipation.

Signal Cable Routing

• Terminate line driver pulse outputs using shielded twisted-pair cables up to a maximum distance of 10 m.
• Route auxiliary input and output lines separately from high-voltage AC lines, keeping cable runs under 3 m.

Technical Inquiry Resolutions

• What is the maximum pulse output rate provided per channel?

  The differential line driver outputs generate pulse strings up to a maximum speed of 4,000,000 pps.

• How are external field signals physically interfaced to the unit?

  External field wiring connects via dual MIL ribbon cable connectors, providing 68 total pin connection points.

• What pulse emission modes can be configured on the channels?

  Channels support forward/reverse pulse outputs, pulse plus direction outputs, or phase differential multiplication x1/2/4.

• How many physical input and output signals are available per channel?

  Each channel provides 5 external inputs, 1 forward pulse output, 1 reverse pulse output, and 3 external outputs.

• What cable length restrictions apply to field I/O connections?

  Line driver outputs support cable runs up to 10 m max, while all auxiliary I/O lines must remain under 3 m max.

• What I/O refreshing methods does the module hardware support?

  The unit supports synchronous I/O refreshing or task period prioritized refreshing aligned with the host PLC task cycle.

• What is the maximum current drawn from the field I/O supply?

  The module draws a maximum current of 50 mA per connector (CN) from the connected field I/O power supply.

• Is physical module extraction permitted while backplane power is active?

  Backplane and field I/O power supplies must be isolated prior to removal or insertion to prevent hardware failure.
