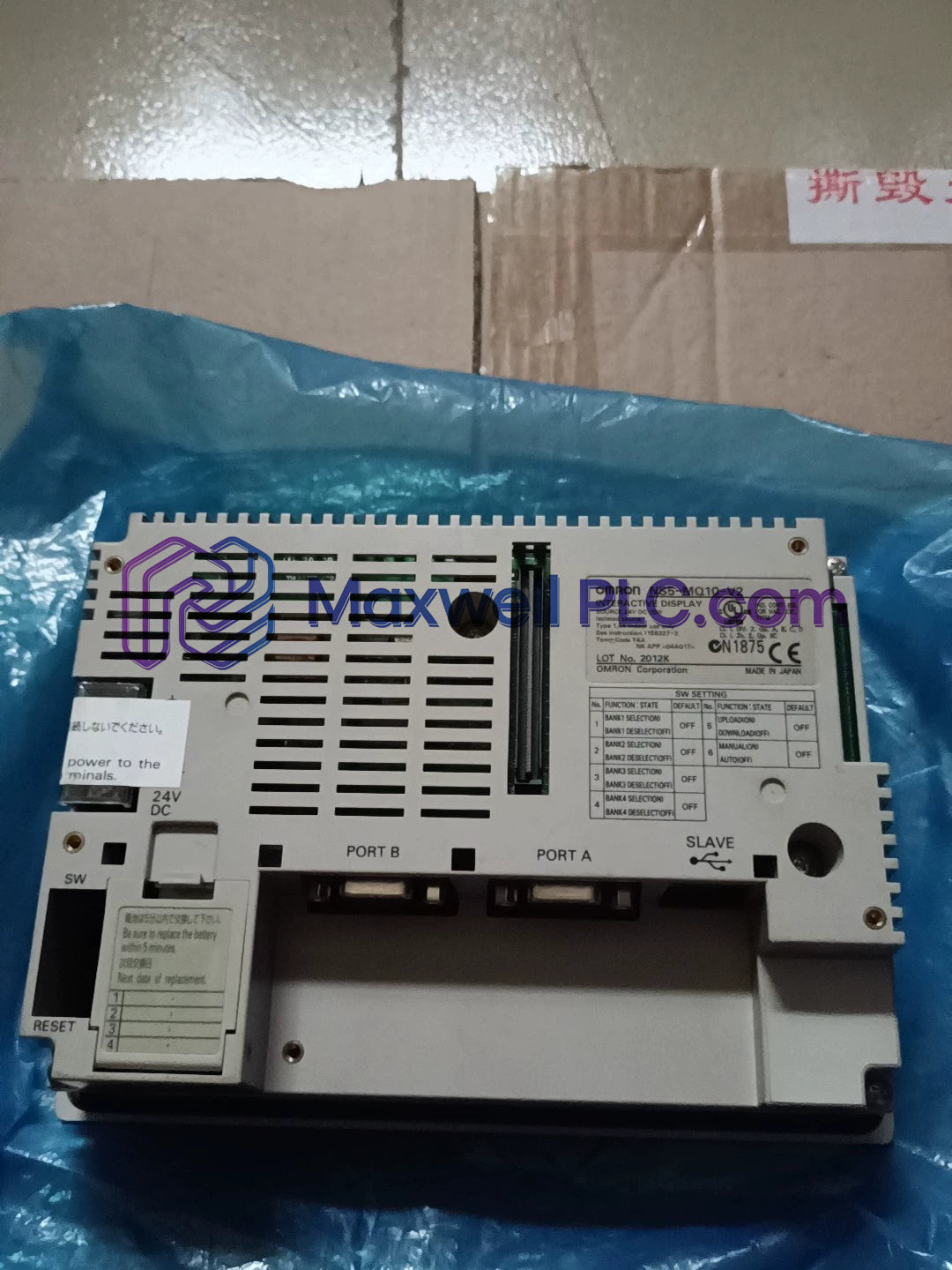

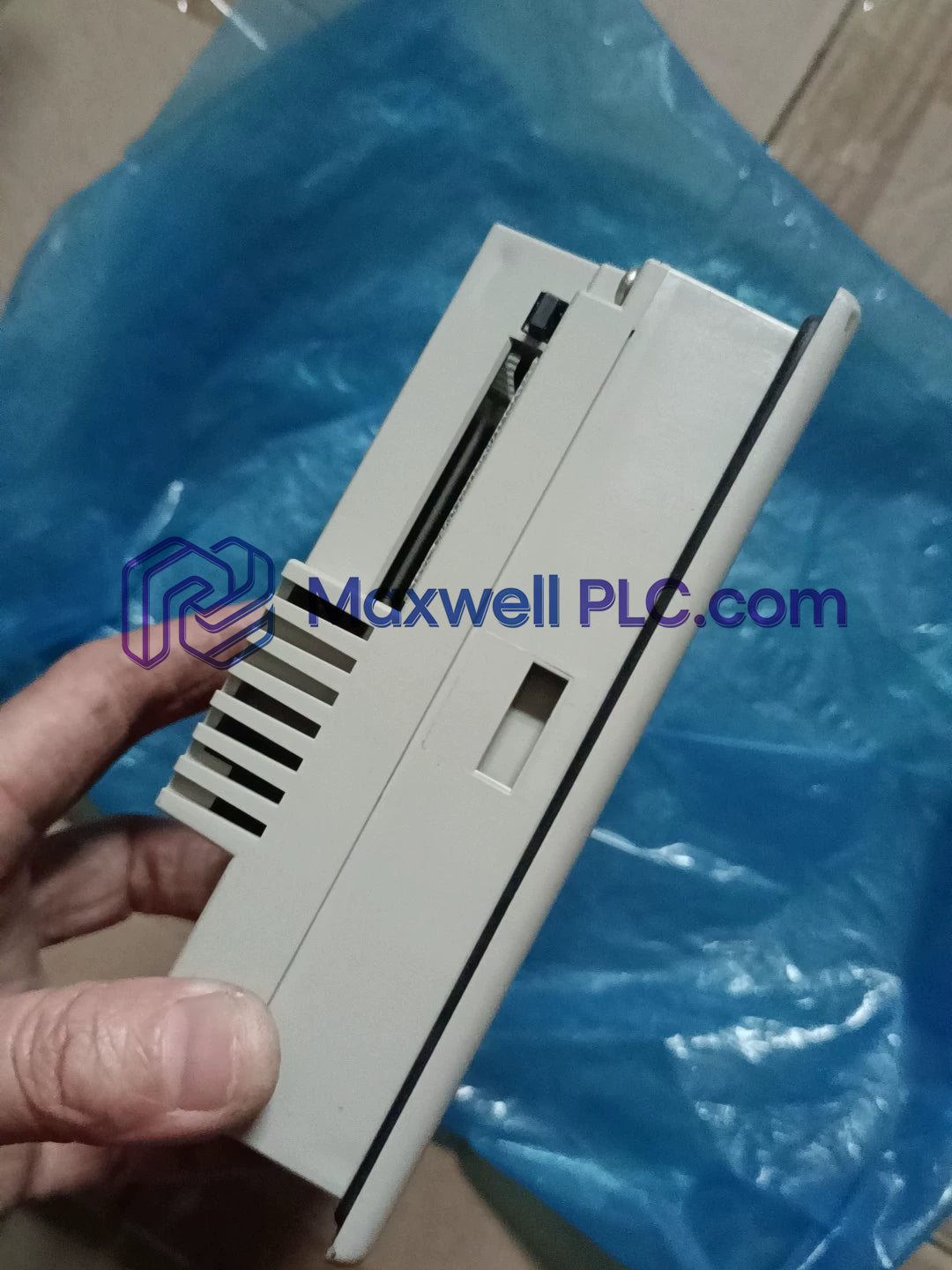

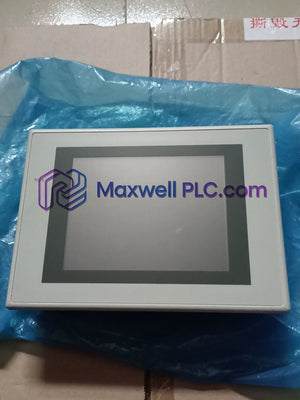

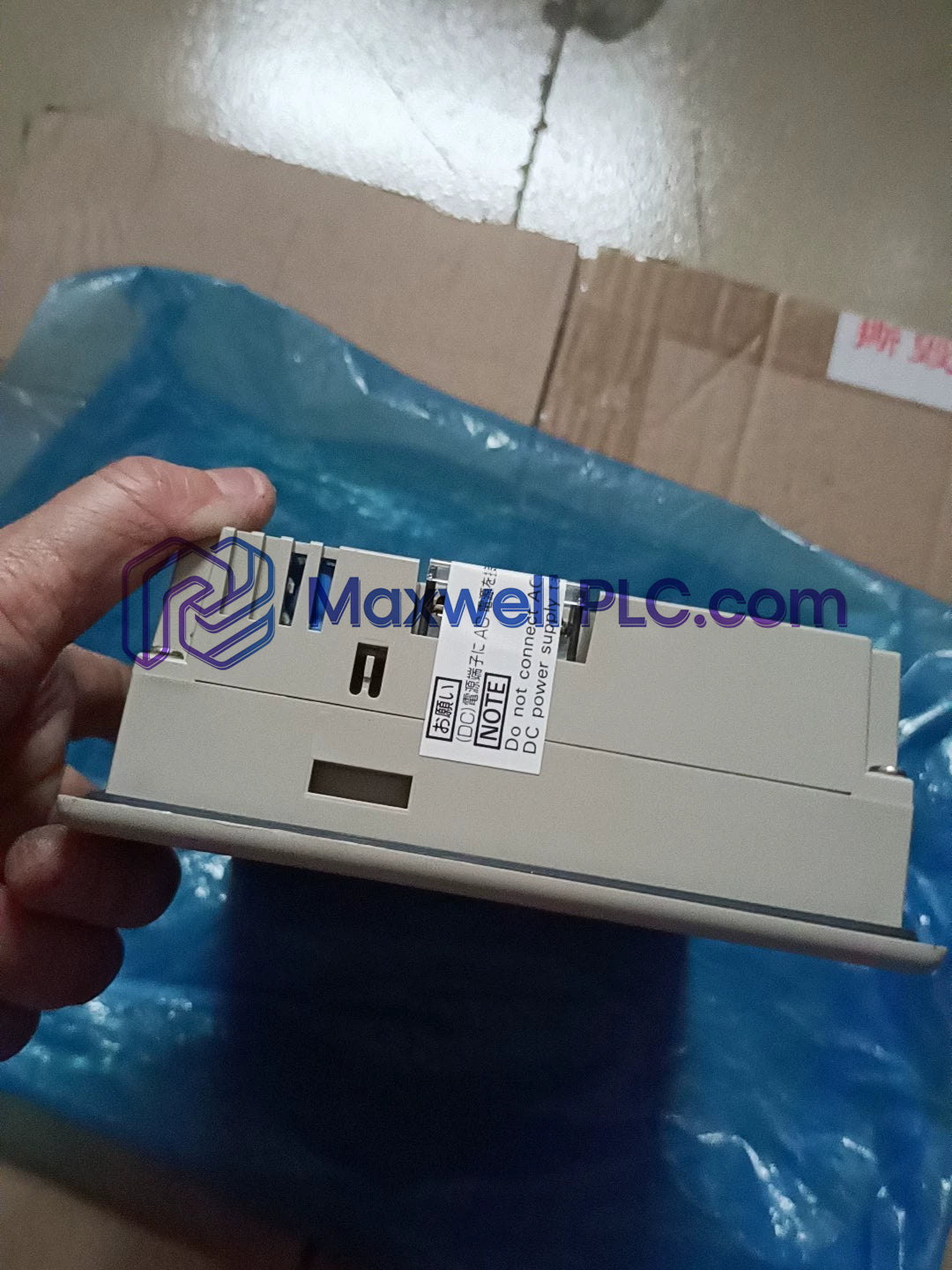

Omron NS5-MQ10-V2 NS-Series Programmable Display
Omron NS5-MQ10-V2 NS-Series Programmable Display
Omron NS5-MQ10-V2 NS-Series Programmable Display
Omron NS5-MQ10-V2 NS-Series Programmable Display
Omron

Omron NS5-MQ10-V2 NS-Series Programmable Display

SKU: NS5-MQ10-V2
Categories : All Products
In Stock
  • Dimensions: 5.4cm x 19.5cm x 14.2cm
  • Country of origin: Japan
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Configured for human-machine interface processing and operator input execution in PLC automation architectures, the Omron NS5-MQ10-V2 (NS5-MQ10 Programmable Display) provides direct physical/electrical execution.

Model Nomenclature Breakdown

  • NS5: Indicates a 5.7-inch display screen class within the Omron HMI product family.
  • MQ: Identifies the monochrome STN LCD hardware variant with 320 x 240 pixel resolution.
  • 10: Designates the standard hardware configuration interface layout (non-Ethernet variant).
  • V2: Signifies hardware version iteration 2 with upgraded internal system flash memory and compatibility enhancements.

Physical & Electrical Parameters

Parameter Specification
Model NS5-MQ10-V2
Brand Omron
Origin Japan
Weight 1.0 kg
Shipping Dimensions 5.4 cm x 19.5 cm x 14.2 cm
Display Type STN Monochrome LCD
Display Size 5.7 inch
Resolution 320 x 240 dots
Case Color Ivory
Ethernet Interface Not supported
Operating Temp 0 to 50 deg C
Power Consumption 15 W max at 24 VDC

Backplane & Deterministic Communications

The display interfaces directly with host controllers using high-speed serial protocols. Serial communication parameters support backplane bus communication velocity Licences and deterministic data throughput via RS-232C or RS-422A/485 serial interfaces. Firmware flash compatibility ensures seamless system configuration sync with host Omron SYSMAC CS/CJ/CP series PLCs, avoiding system latency during memory map transfers or screen display refresh cycles.

Package Contents

  • 1 x Omron NS5-MQ10-V2 Programmable Display
  • 1 x Power Supply Connector Plug
  • 4 x Panel Mounting Brackets
  • 1 x Waterproof Rubber Packing Gasket

Mounting & Wiring Specifications

Mechanical Panel Cutout

  • Ensure panel enclosure cutout dimensions match specified cutout frame tolerance (184.0 mm x 131.0 mm).
  • Confirm the rubber gasket is seated properly around the bezel perimeter to maintain IP65 dust and water resistance.

Wiring & Power Grounding

  • Connect a stable 24 VDC Class 2 power supply to the dedicated power terminal block.
  • Earth the functional ground terminal using a dedicated wire with a cross-sectional area of at least 1.25 mm sq to prevent noise interference.

Thermal & Clearance Spacing

  • Maintain a minimum clearance of 100 mm above and below the unit to allow free thermal convection.
  • Route serial communication lines away from high-voltage AC cables to minimize electromagnetic coupling.

Technical Questions & Answers

  • What is the display resolution of the NS5-MQ10-V2 unit?

    The unit features a 5.7-inch monochrome STN LCD display with a dot resolution of 320 x 240 pixels.

  • Does the NS5-MQ10-V2 model feature built-in Ethernet connectivity?

    No, Ethernet interface hardware is not supported on the NS5-MQ10-V2 model variant.

  • What is the total mass weight of the device?

    The unit has a standalone physical mass weight of exactly 1.0 kg.

  • What are the physical enclosure outer dimensions of the unit?

    The physical dimensions are 5.4 cm in depth, 19.5 cm in width, and 14.2 cm in height.

  • What power input parameters are required for operation?

    The device operates on a 24 VDC power supply circuit consuming a maximum of 15 W power.

  • How is noise immunity maintained on serial communication wiring?

    Shielded twisted-pair cabling grounded at one single termination point must be used for serial links.

  • What is the operating temperature range for panel installation?

    The device operates continuously in ambient panel temperatures ranging from 0 to 50 deg C.

  • How is the front panel ingress protection rating achieved?

    Proper installation of the panel mounting brackets and rubber packing seal provides IP65 protection.
