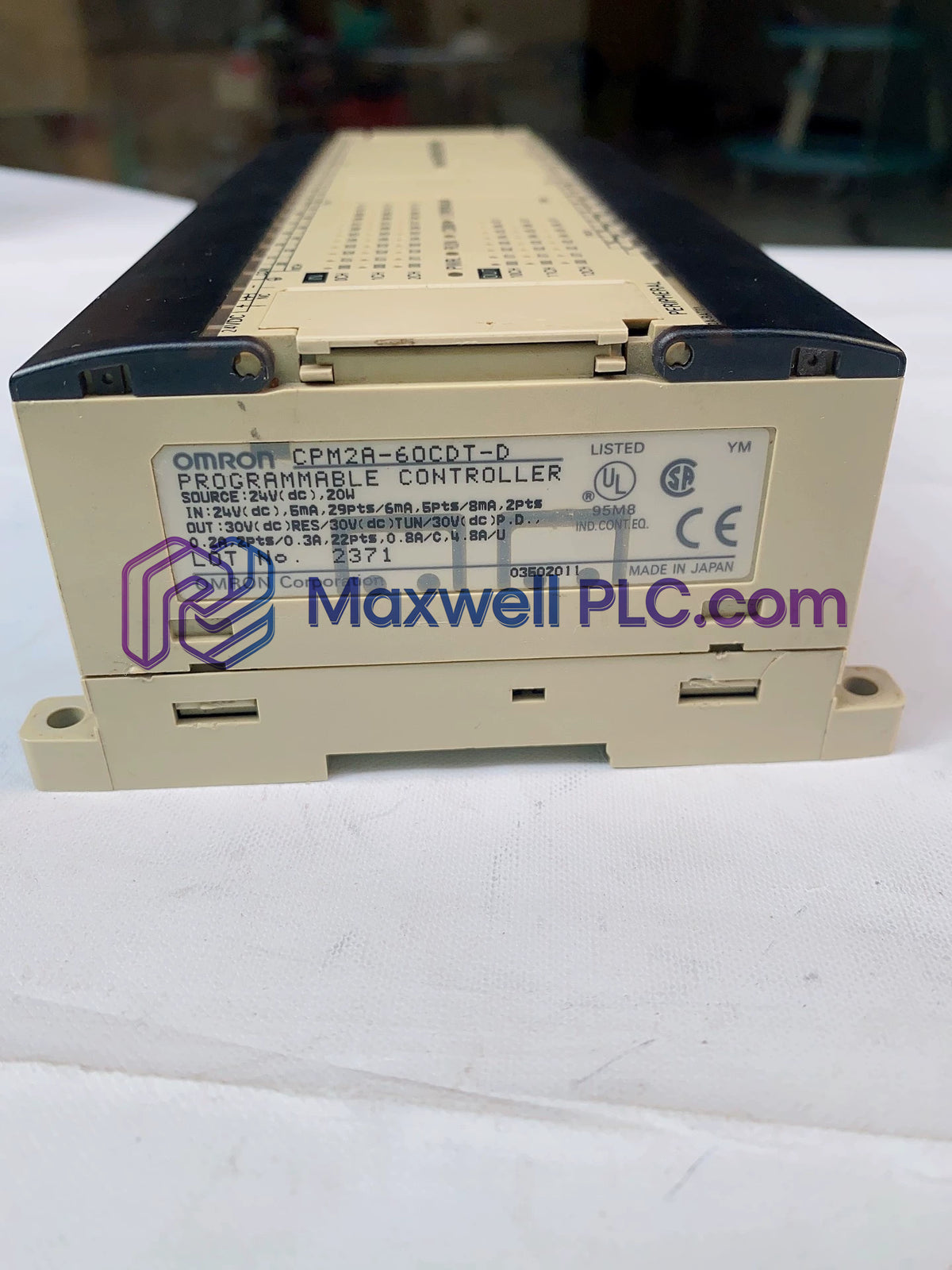

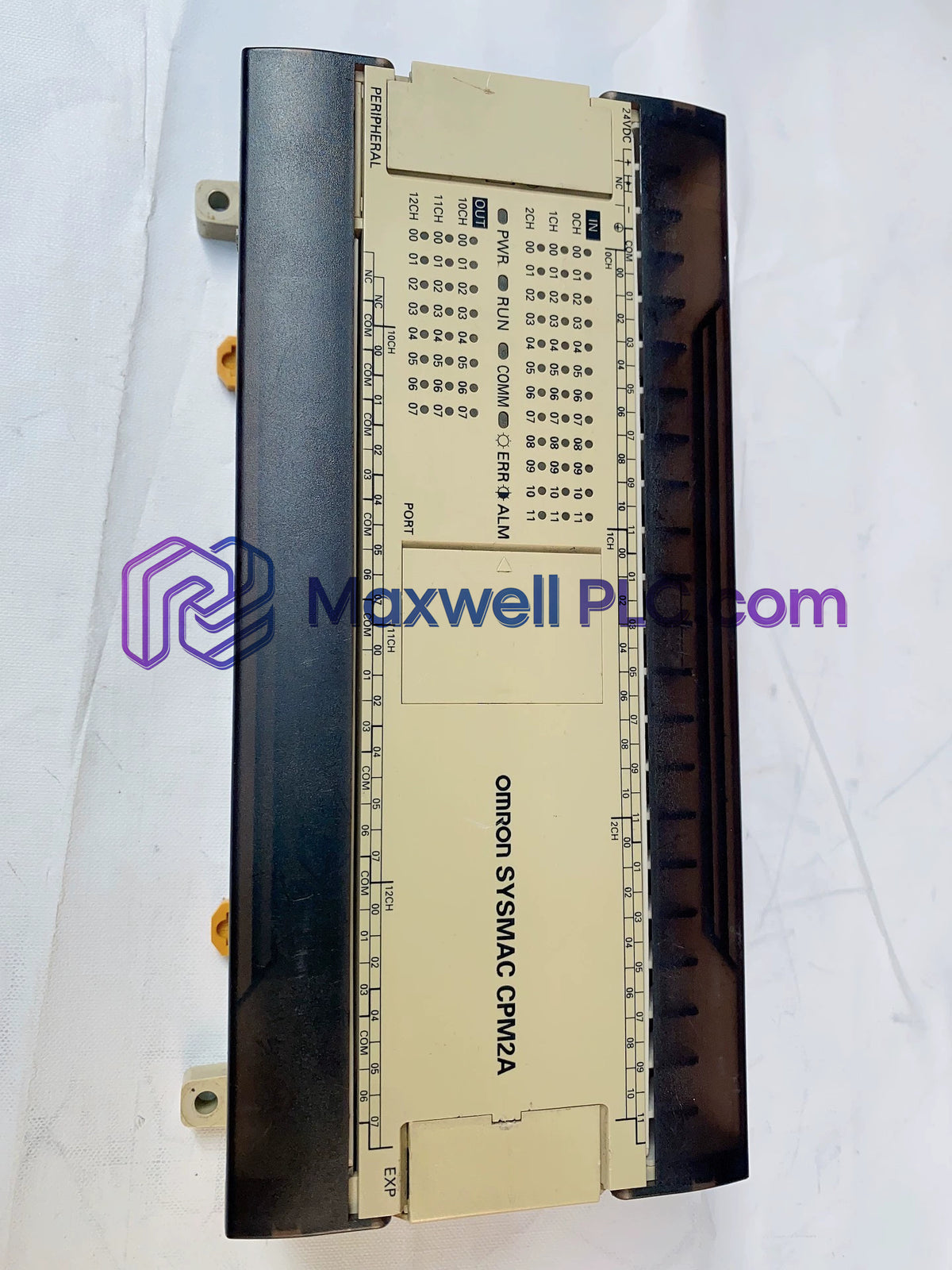

Configured for direct physical/electrical execution in CPM2A Series industrial automation platforms, the Omron CPM2A-60CDT-D (CPM2A-60CDT-D Programmable Controller) processes real-time ladder logic, high-speed pulse feedback, and multi-axis positioning sequences. Powered by an auxiliary 24 VDC power rail, the central CPU monitors 36 discrete 24 VDC input channels and controls 24 NPN sinking transistor outputs.

Technical Identifier Matrix

Hardware Specifications

I/O Density Scaling and Backplane Bus Velocity

The Omron CPM2A-60CDT-D features an internal processor engine optimized for fast instruction decoding, executing basic ladder logic operations within a 0.26 us to 0.64 us processing window. High backplane bus velocity facilitates continuous, deterministic data synchronization between input/output hardware registers and CPU system memory. To support modular system growth, I/O density scaling allows up to 3 CPM1A expansion units to connect directly to the CPU lateral expansion header, expanding total field point density while maintaining high sampling resolution across the 20 kHz encoder input channel.

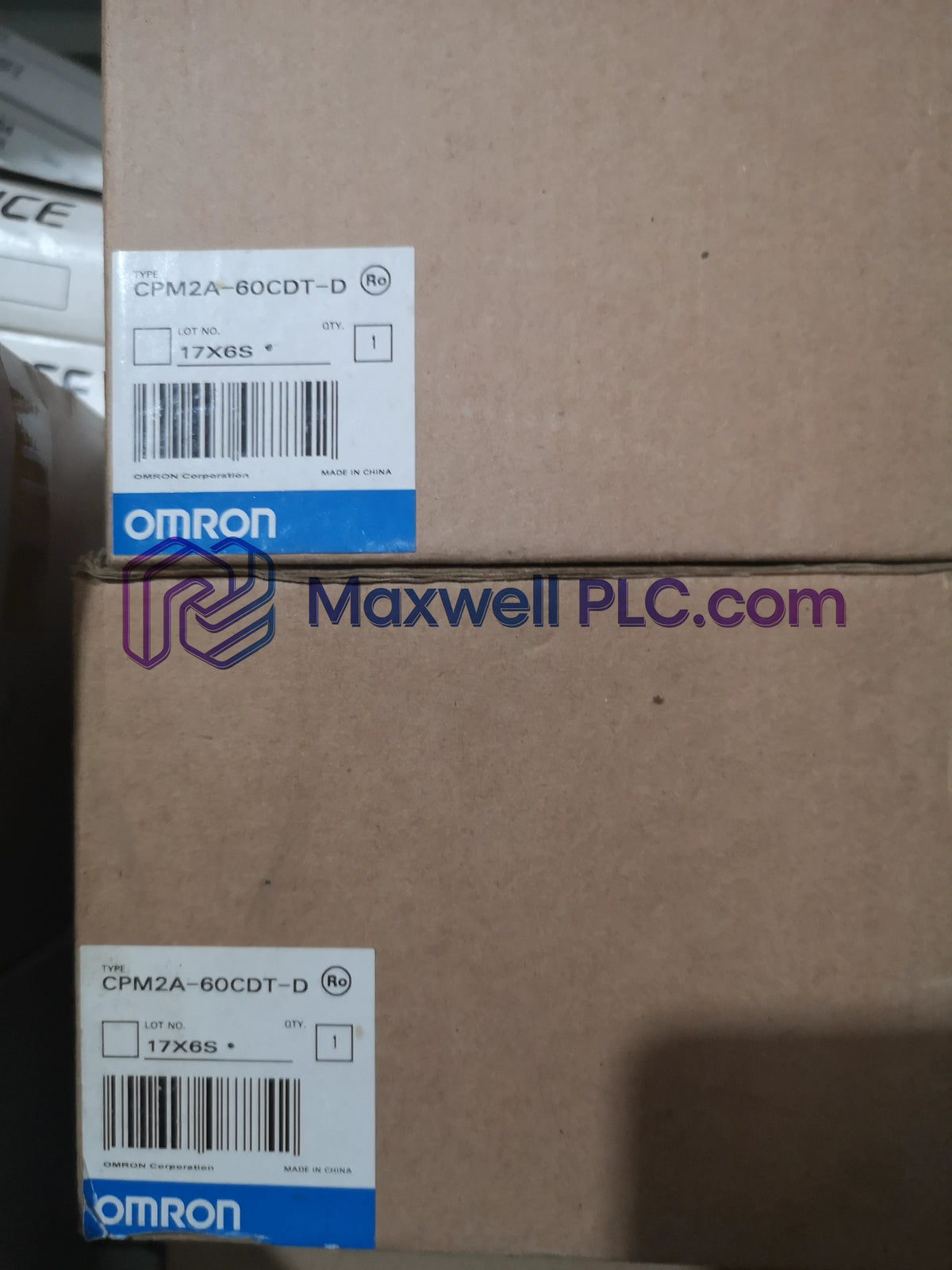

Package Contents & Ordering Information

• 1x Omron CPM2A-60CDT-D CPU Unit
• 1x Removable Screw Terminal Cover Assembly
• 1x Hardware Installation Datasheet

Field Installation Guidelines

• Mechanical Installation: Install horizontally onto a standard 35 mm DIN rail or surface-mount directly to an enclosure backpanel using M4 hardware. Allow a minimum vertical space of 50 mm above and below the housing for natural convection cooling.
• DC Power Wiring: Connect a regulated 24 VDC power supply (20.4 to 26.4 VDC operating limit) to the DC supply terminals. Separate low-voltage DC lines from high-voltage AC power wiring.
• Transistor Output Circuitry: Wire external load circuits between the positive rail of the DC power supply and individual NPN output terminals. Connect output common terminals directly to the negative DC bus line.
• Grounding Requirements: Wire the functional earth ground terminal directly to the panel earth ground bar using dedicated copper conductor with a minimum cross-sectional area of 2.0 mm sq.
• Signal Shielding: Route high-speed encoder and pulse output cabling using Shielded Twisted Pair (STP) wiring with a 360-deg braid shield clamp secured to panel earth ground.

Frequently Asked Questions

• Q: What is the required supply voltage range for the CPM2A-60CDT-D?

  A: The controller requires a nominal input of 24 VDC and operates across a permissible window of 20.4 to 26.4 VDC.

• Q: What are the electrical capabilities of the transistor output channels?

  A: The output stage consists of 24 NPN sinking transistors rated for switching 4.5 to 30 VDC loads at up to 0.3 A per point.

• Q: How many discrete input and output channels are provided on this CPU chassis?

  A: The base unit provides 60 integrated discrete points, structured as 36 inputs (24 VDC) and 24 NPN transistor outputs.

• Q: What execution processing speed does the internal processor achieve?

  A: Basic ladder logic instructions execute at speeds ranging between 0.26 us and 0.64 us per command block.

• Q: What pulse positioning features are integrated into the unit?

  A: The module supports 1 high-speed encoder counter input (20 kHz) and 2 transistor pulse output channels (10 kHz).

• Q: How many expansion modules can be attached to the CPU base chassis?

  A: Up to 3 CPM1A expansion I/O or specialized function modules can be connected via the internal expansion bus interface.

• Q: What are the precise physical dimensions of the CPU housing?

  A: Outer physical dimensions strictly measure 19.5 cm in width, 9.0 cm in height, and 5.5 cm in depth.

• Q: How should external inductive loads be protected when connected to NPN outputs?

  A: Reverse-biased flywheel diodes must be connected directly across DC inductive loads to absorb destructive voltage spikes.
