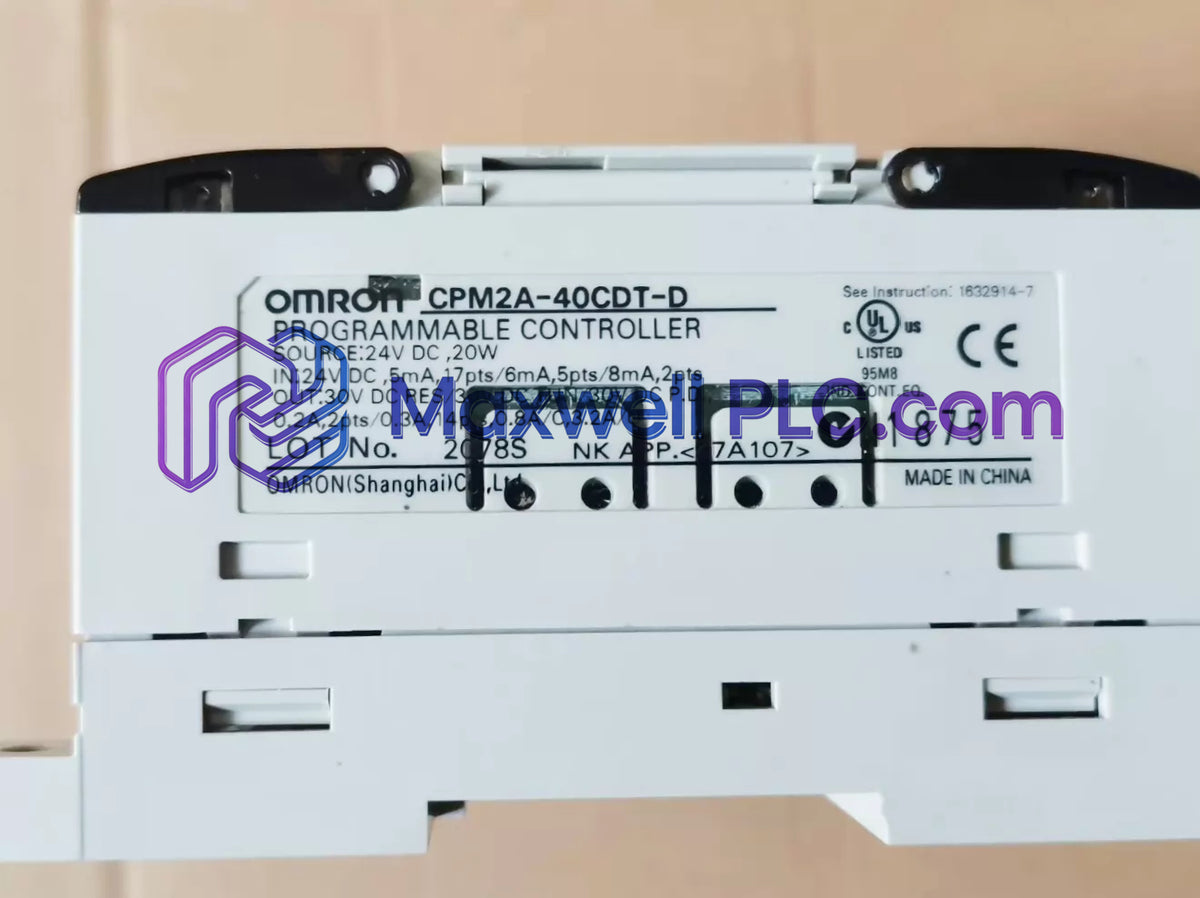

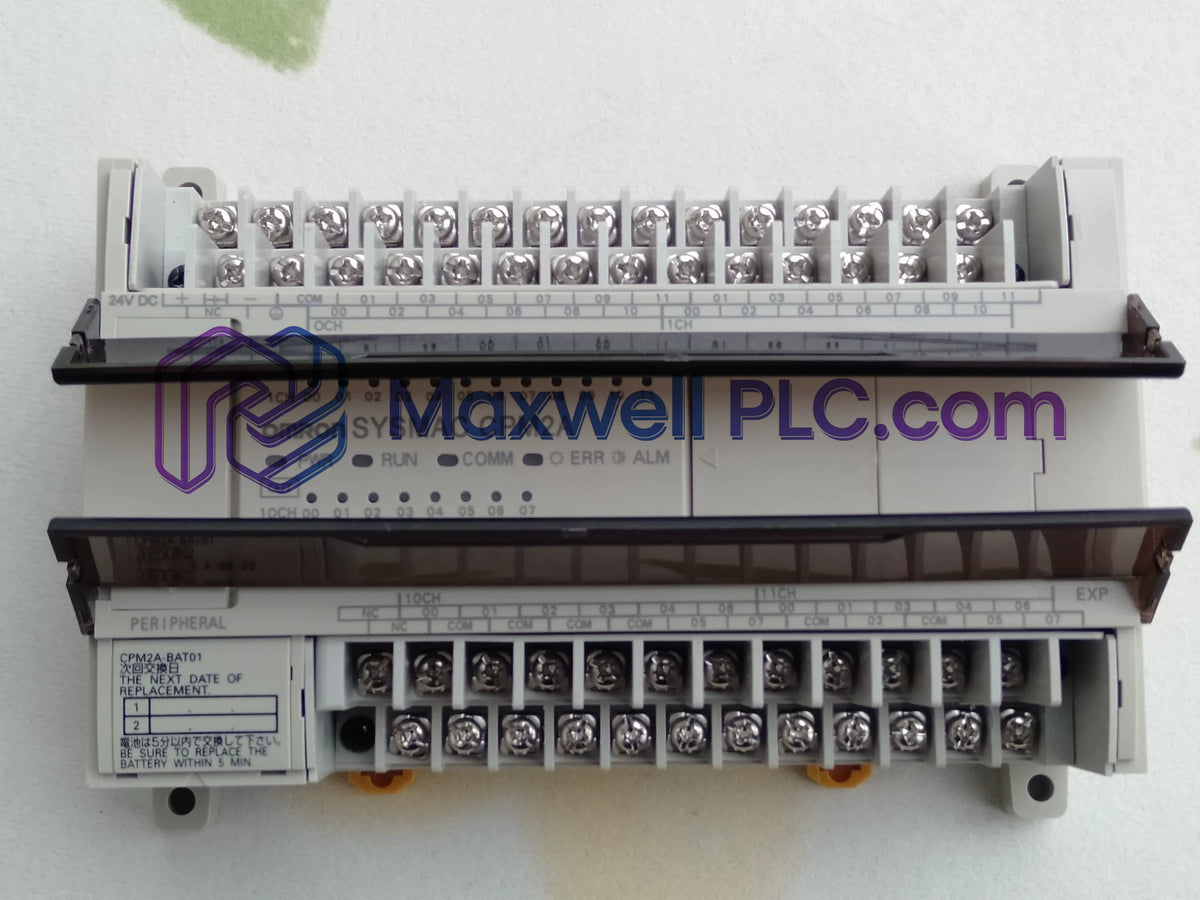

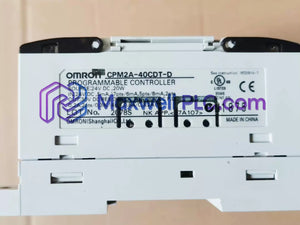

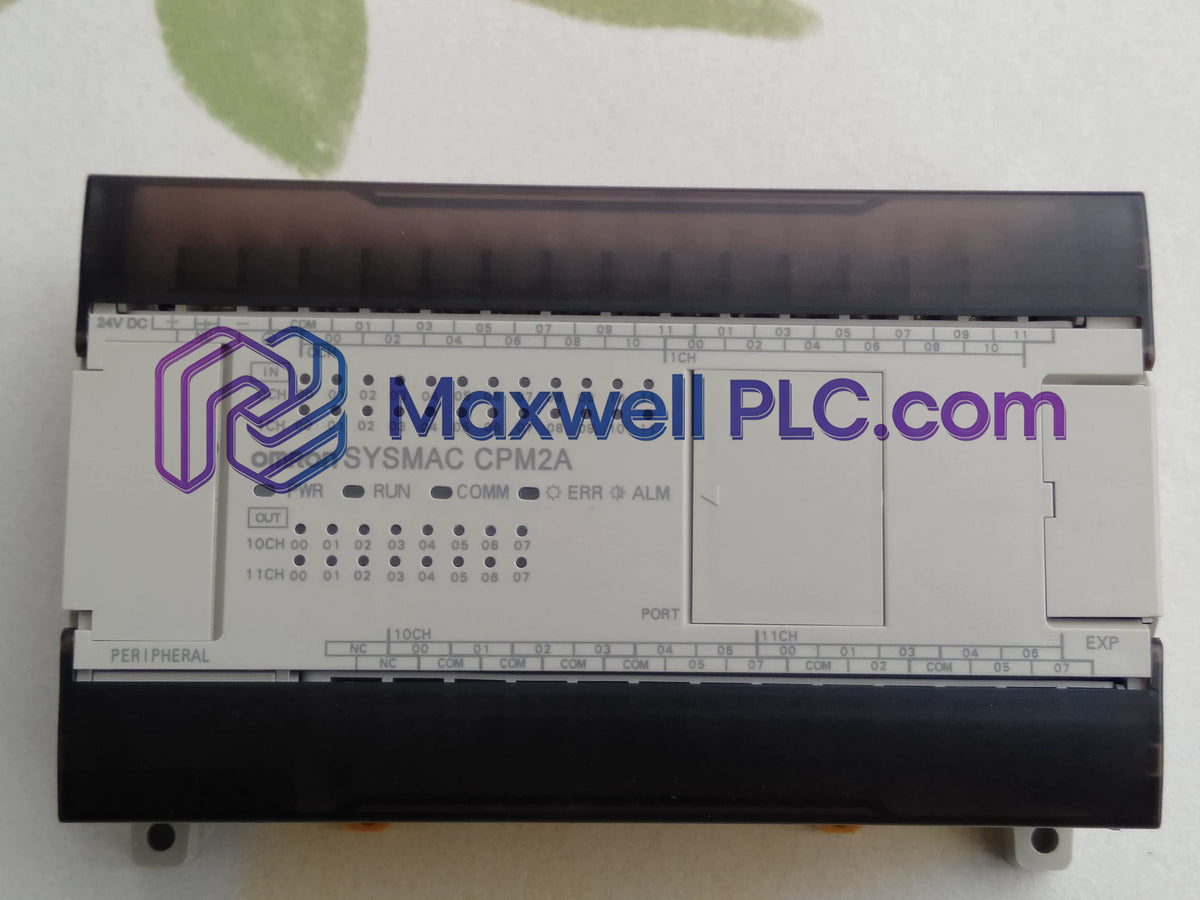

The Omron CPM2A-40CDT-D, also cataloged as the CPM2A-40CDT-D Programmable Controller, operates as a dedicated hardware component for direct physical/electrical execution within CPM2A Series industrial automation platforms. Operating under a 20.4 to 26.4 VDC power supply range, the base CPU processes 24 discrete 24 VDC inputs and controls 16 NPN sinking transistor outputs, executing rapid ladder logic routines while managing high-speed counter input signals and dual-channel pulse output positioning trains.

Technical Identifier Matrix

Hardware Specifications

I/O Density Scaling and Backplane Bus Velocity

The Omron CPM2A-40CDT-D features an internal processor core engineered for minimal instruction cycle latency, achieving standard instruction execution speeds between 0.26 us and 0.64 us. High internal backplane bus velocity facilitates rapid data exchange between external I/O terminals and internal memory registers without scan-time degradation. For applications requiring I/O density scaling, up to 3 CPM1A expansion units can be daisy-chained via the side expansion port, expanding physical I/O count while retaining precise signal tracking on the integrated 20 kHz high-speed encoder input channel.

Package Contents & Ordering Information

• 1x Omron CPM2A-40CDT-D CPU Unit
• 1x Removable Screw Terminal Cover Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• Mechanical Mounting: Install horizontally on a 35 mm DIN rail or secure directly to an enclosure backplate using M4 hardware. Maintain a minimum vertical spacing of 50 mm above and below the chassis for passive convective cooling.
• DC Power Distribution: Connect a regulated 24 VDC supply (20.4 to 26.4 VDC allowable range) to the DC power terminals. Separate low-voltage DC power conductors from high-voltage AC lines.
• Transistor Output Circuitry: Connect load circuits between the positive rail of the DC power source and individual NPN output terminals. Output common connections tie directly to the negative DC reference.
• Grounding Protocols: Wire the functional earth ground terminal to the main panel ground bar using a dedicated copper wire with a minimum cross-sectional area of 2.0 mm sq.
• Signal Shielding: Ground high-speed counter and pulse output lines using Shielded Twisted Pair (STP) wiring with a 360-deg braid shield clamp secured to cabinet earth ground.

Frequently Asked Questions

• Q: What is the required operating voltage range for the CPM2A-40CDT-D?

  A: The module requires a nominal 24 VDC input power supply, operating reliably within a window of 20.4 to 26.4 VDC.

• Q: What are the electrical parameters for the transistor output stage?

  A: The output stage consists of 16 NPN sinking transistors rated for 4.5 to 30 VDC switching at up to 0.3 A per point.

• Q: How many built-in input and output channels are provided on the base chassis?

  A: The base unit provides 40 integrated discrete points, divided into 24 inputs (24 VDC) and 16 NPN transistor outputs.

• Q: What instruction cycle timing does the central processing unit achieve?

  A: Basic ladder logic instructions execute at processing speeds ranging from 0.26 us to 0.64 us per command.

• Q: What pulse input and output frequencies does the CPU support?

  A: The unit supports 1 high-speed counter input (20 kHz) and 2 transistor pulse output channels (10 kHz).

• Q: How many expansion modules can be attached to the CPU base unit?

  A: Up to 3 CPM1A expansion I/O or specialized function modules can be connected via the internal expansion bus.

• Q: What are the exact physical dimensions of the CPM2A-40CDT-D housing?

  A: The housing measurements strictly format to 15.0 cm width by 9.0 cm height by 5.5 cm depth.

• Q: How should external inductive loads be configured to prevent damage to the NPN outputs?

  A: Reverse-biased flywheel diodes must be installed directly across external DC inductive loads to suppress back-EMF spikes.
