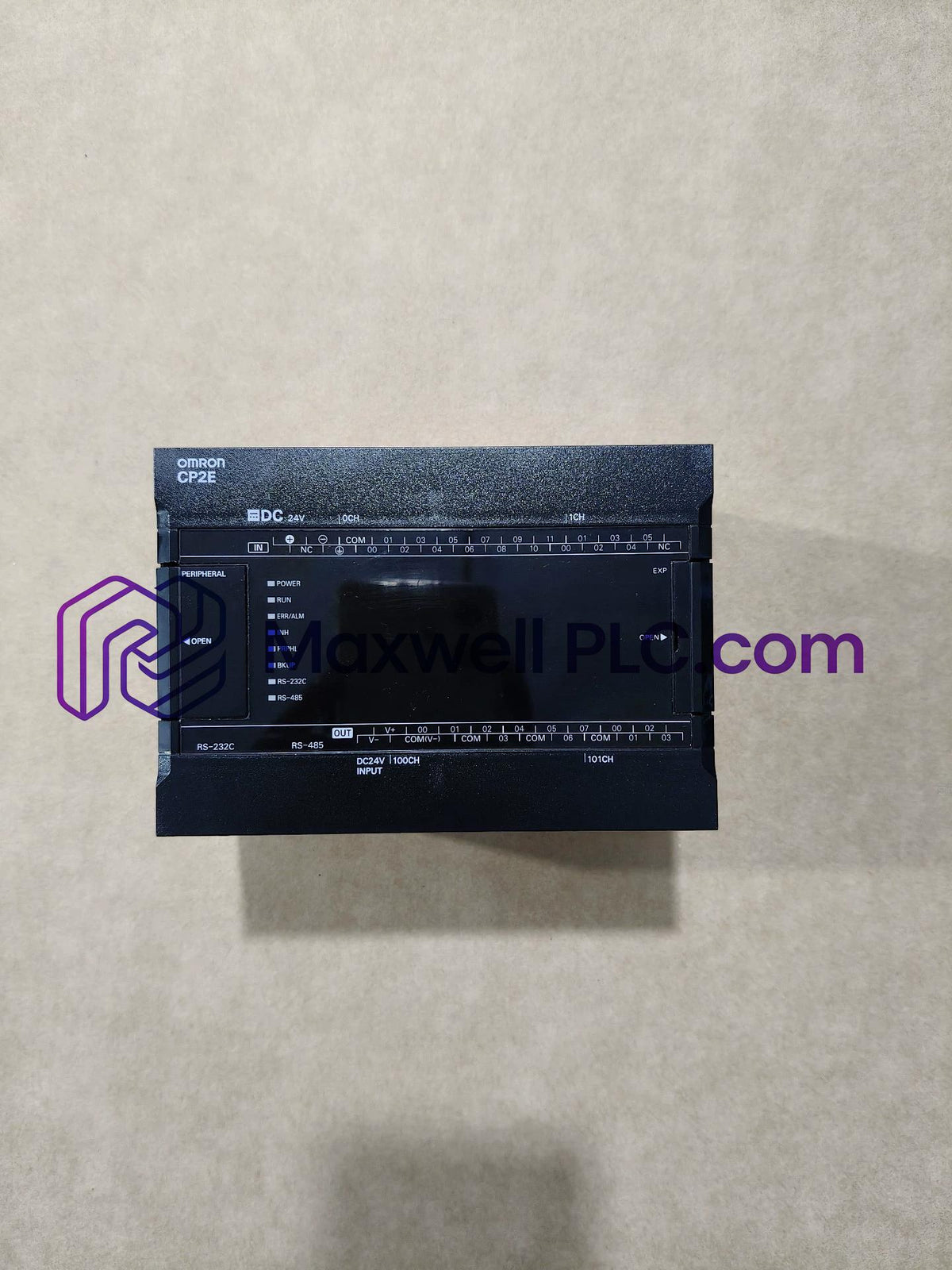

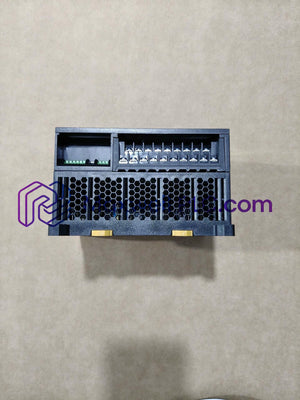

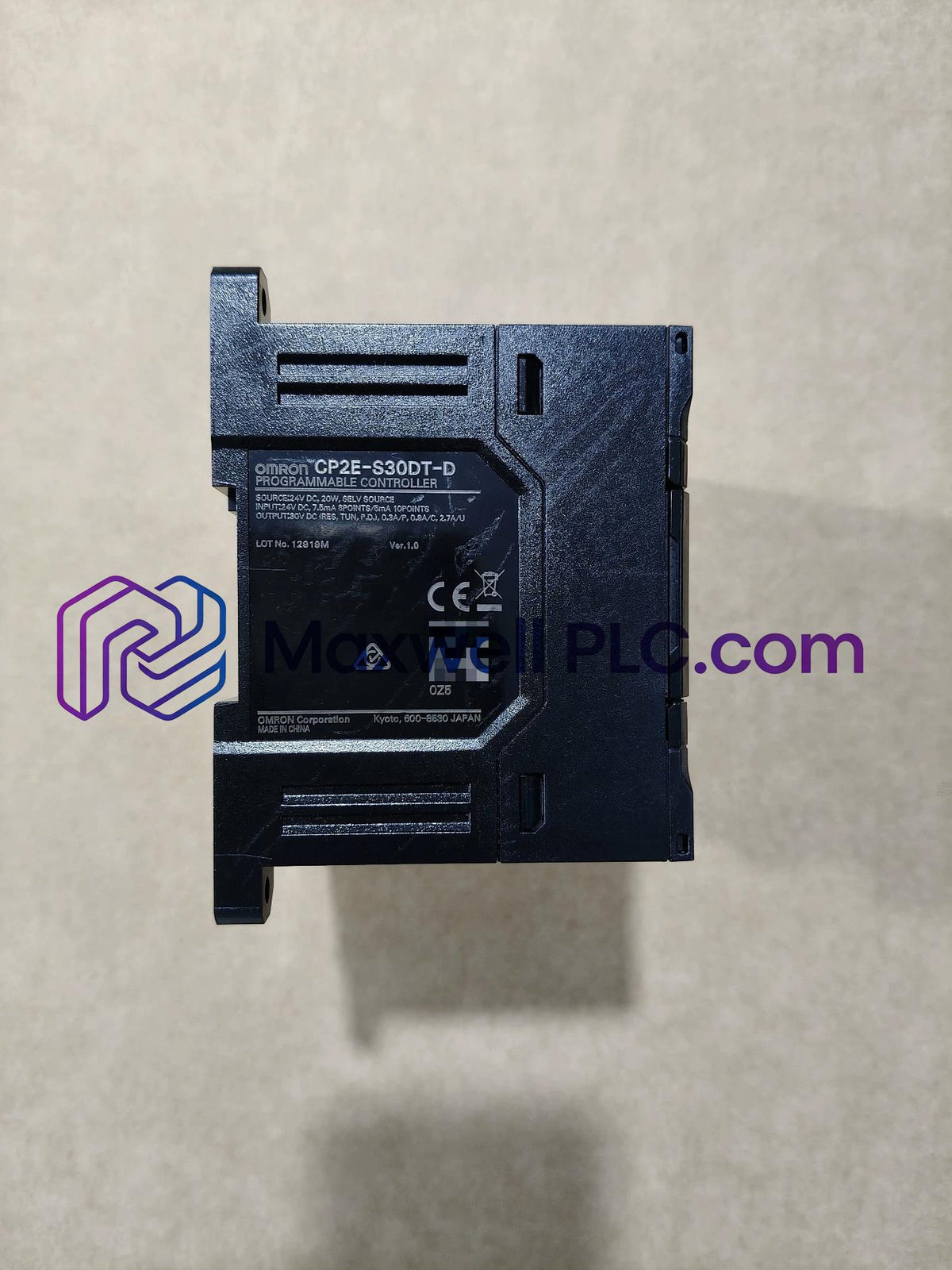

Configured for direct digital control in compact automation systems, the Omron CP2E-S30DT-D (CP2E-S30DT-D Programmable Controller) provides direct physical/electrical execution of logic programs, high-speed counting, and transistor output switching across industrial control platforms.

Technical Identifier Matrix

Hardware Specifications

PLC Backplane Velocity and Deterministic Control Integration

The Omron CP2E-S30DT-D utilizes high-speed instruction processing down to 0.23 microseconds for basic instructions, providing high execution throughput for localized control loops. Data transfer efficiency across optional expansion units relies on a dedicated internal backplane interface designed to maintain execution cycle times without communication stalls. The CPU architecture supports up to 2 axes of pulse output at 100 kHz, allowing precision positioning without external hardware cards. Integrated high-speed counter inputs process encoder feedback up to 100 kHz for high-frequency pulse monitoring, enabling real-time motion and positioning control algorithms.

Package Contents & Ordering Information

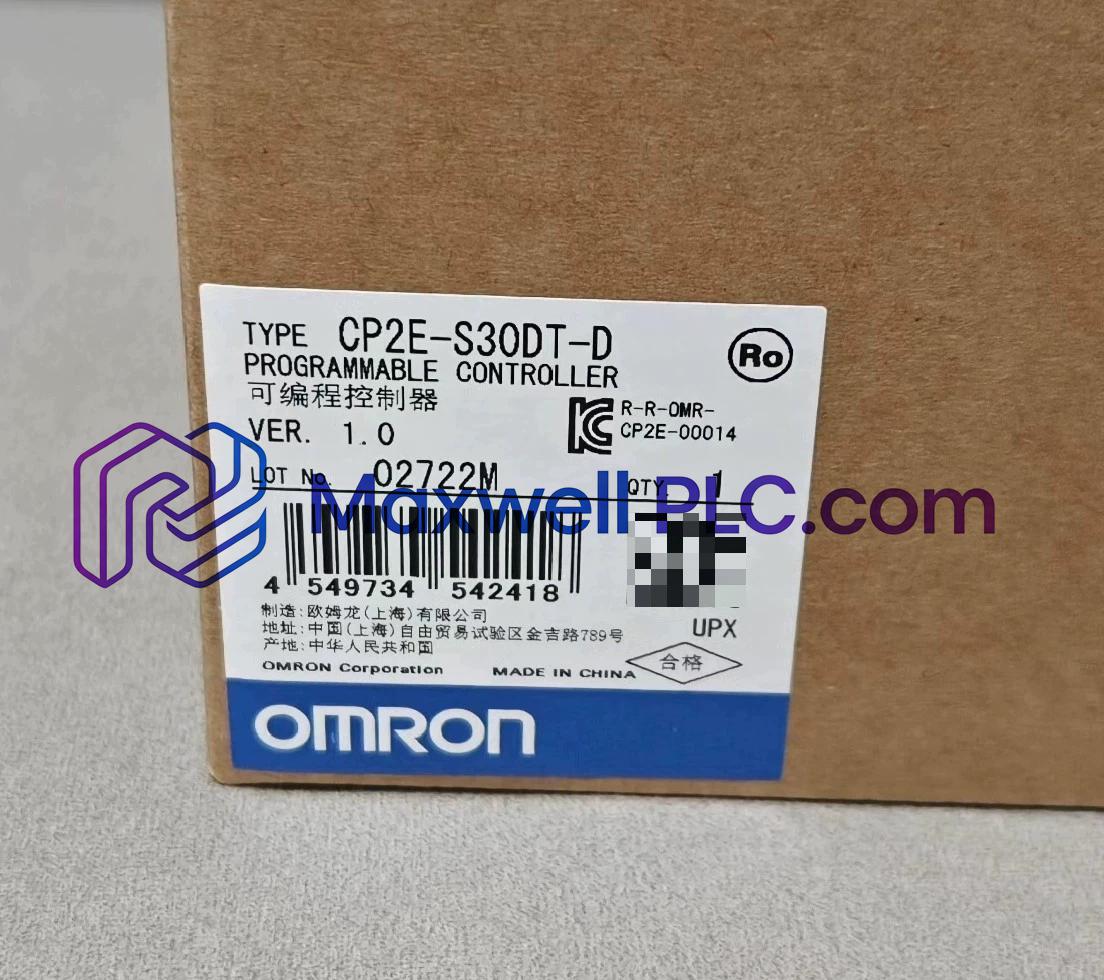

• 1x Omron CP2E-S30DT-D CPU Unit
• 1x Removable Terminal Block Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• DIN-Rail Mounting: Clip unit securely onto a standard 35 mm DIN rail in a vertical orientation to maintain natural convection airflow across the housing vents.
• Clearance Requirements: Ensure a minimum clearance of 20 mm above and below the housing for proper thermal dissipation and cable management.
• Power Supply Cabling: Connect 24 VDC supply voltage to terminals + and - using 0.5 to 1.25 mm sq copper conductors. Strip wire insulation back 7 mm prior to insertion into screw terminal blocks.
• Shielding and Grounding: Terminate line functional ground (FG) directly to an independent earth ground with ground resistance less than 100 ohms. Keep signal lines and DC power cabling physically separated from high-voltage AC mains lines by at least 100 mm to suppress electro-magnetic interference.

Frequently Asked Questions

• What is the input voltage requirement for the CP2E-S30DT-D system?

  The system operates on a nominal 24 VDC supply voltage with allowable current draw of 0.28 A at 5 VDC internal logic and 0.02 A at 24 VDC.

• What output switching configuration does this CPU unit utilize?

  The unit features 12 transistor sinking outputs rated for switching DC loads up to 0.3 A per point at 24 VDC.

• How many total local I/O points are embedded on the processor?

  There are 30 total integrated points, configured physically as 18 DC input points and 12 transistor output points.

• What is the operating temperature range for panel installation?

  The hardware is rated for continuous operation within ambient cabinet temperatures ranging from 0 deg C to 55 deg C.

• What high-speed counting capabilities are integrated into the unit?

  It includes 6 high-speed counter channels capable of processing up to 100 kHz single-phase or 50 kHz differential phase signals.

• What pulse output frequency is supported for motion applications?

  The processor provides 2 pulse output channels supporting positioning frequencies up to 100 kHz.

• What size wire conductors are recommended for terminal block wiring?

  Recommended conductor sizes range from 0.5 mm sq to 1.25 mm sq (AWG 20 to AWG 16) stranded or solid copper wire.

• What ground resistance is required for the functional ground connection?

  The functional ground terminal must be connected to an isolated ground grid with a total resistance of less than 100 ohms.
