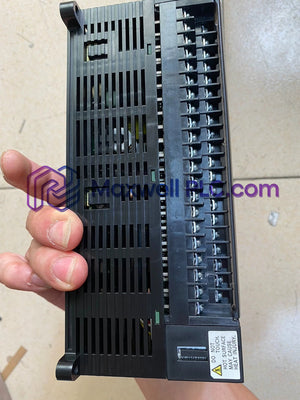

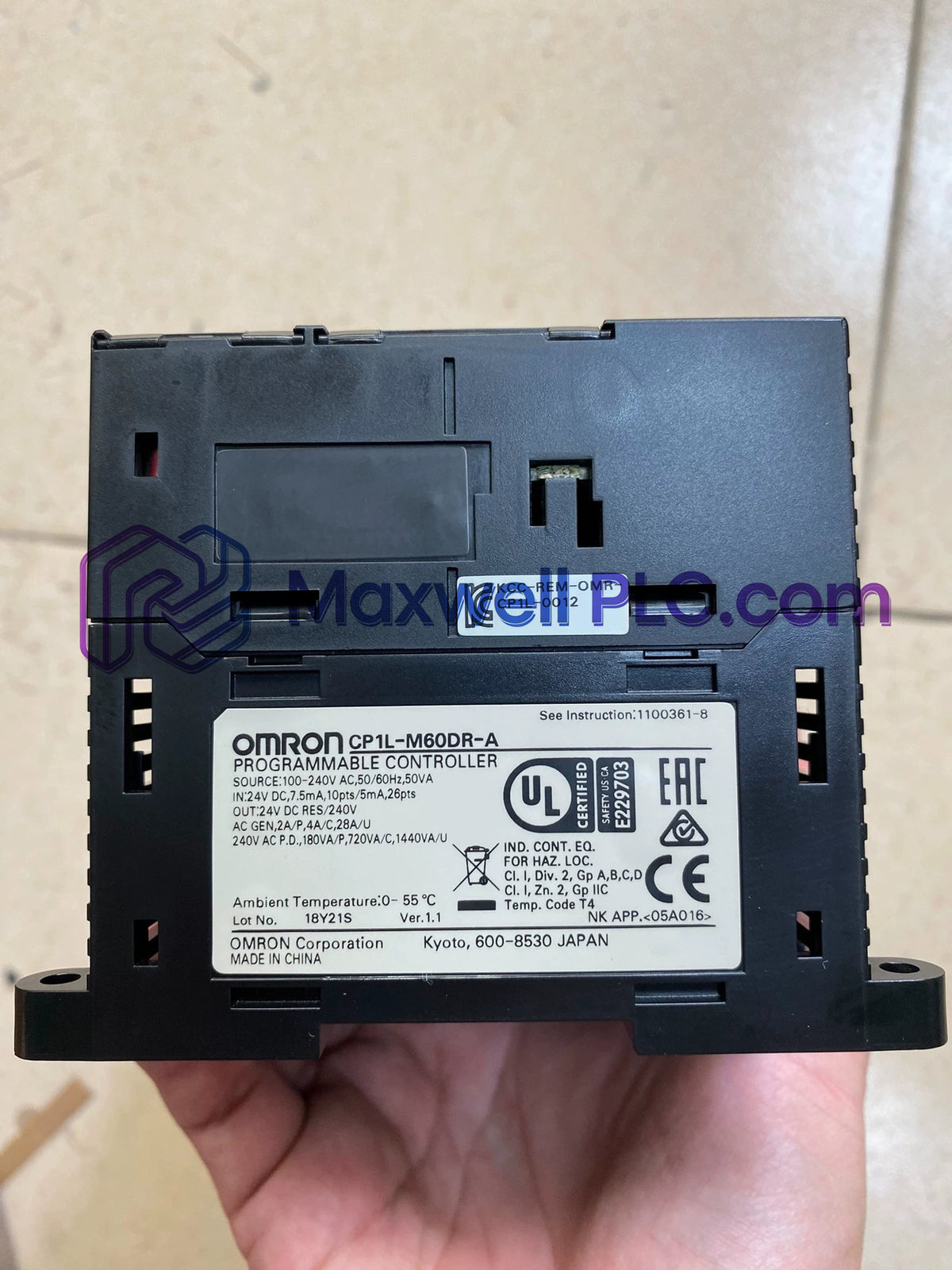

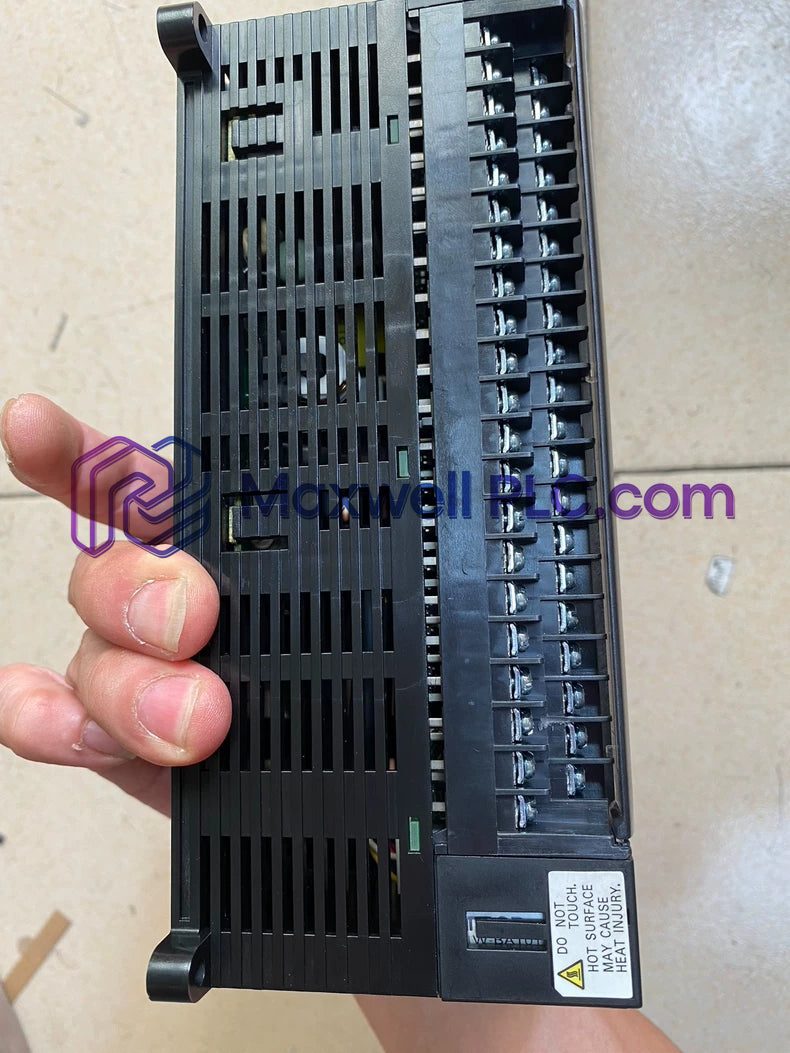

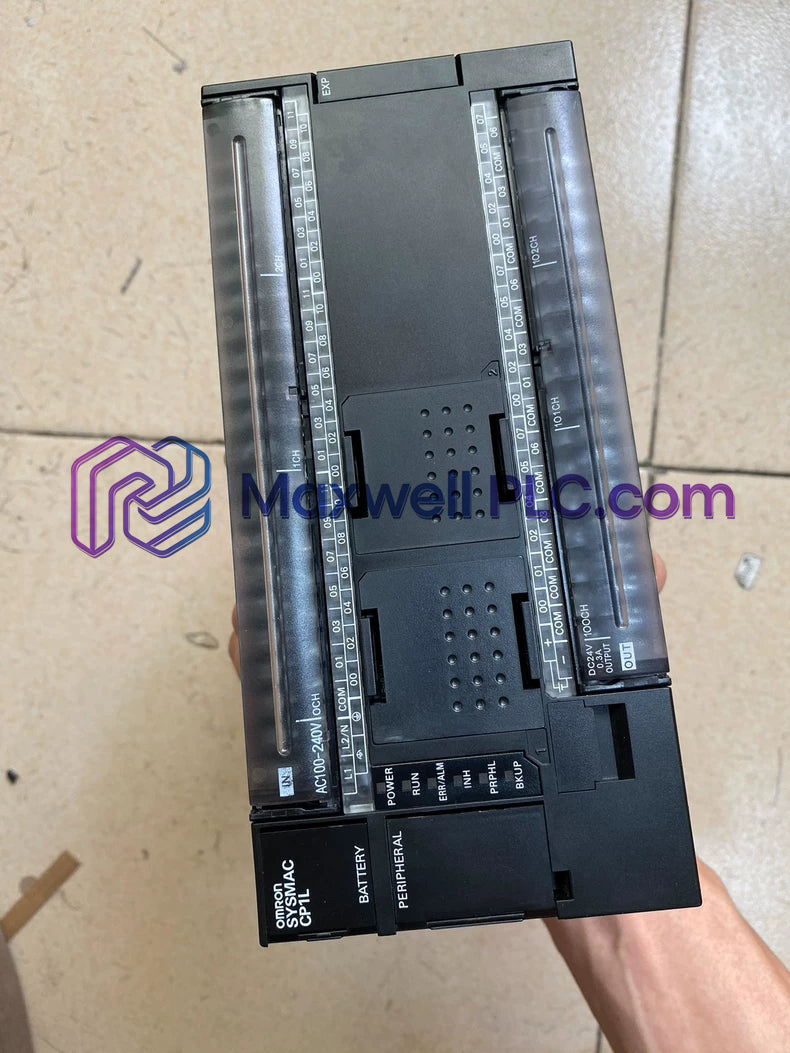

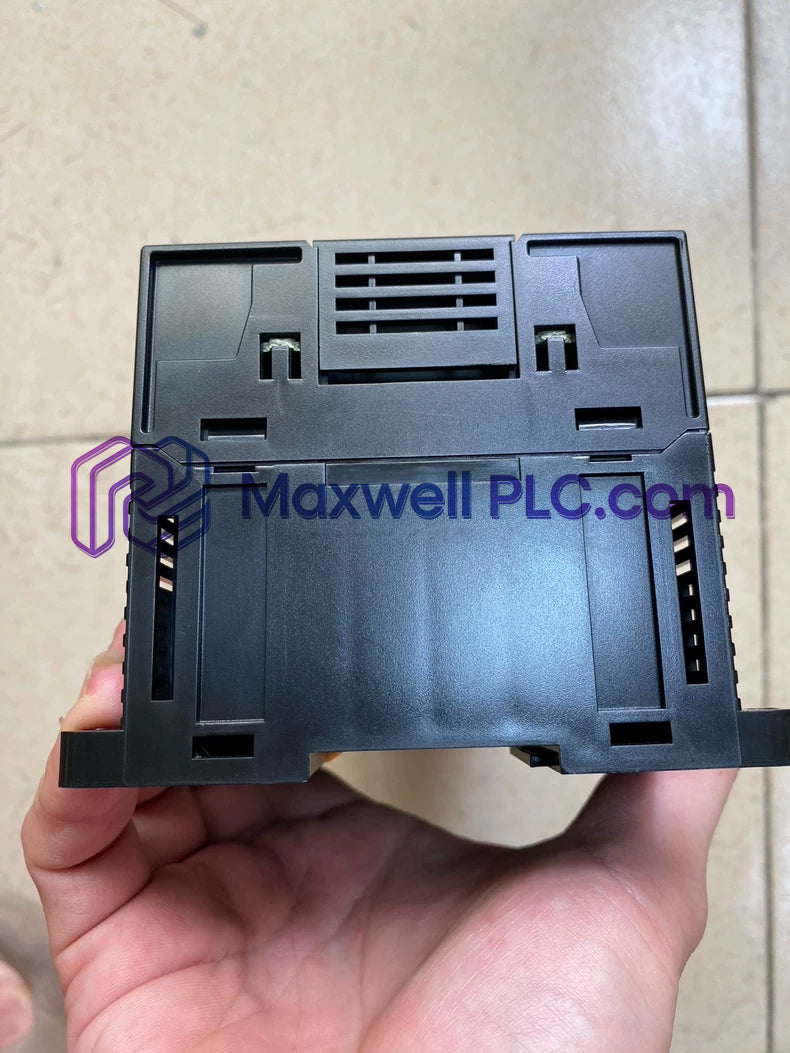

The Omron CP1L-M60DR-A, also cataloged as the CP1L-M60DR-A High Performing Programmable Controller with Embedded Ethernet, operates as a dedicated hardware component for localized sequential logic control and automated system execution within CP-series architecture platforms.

Technical Identifier Matrix

• Base Model Code: CP1L
• Unit Category (M): Monolithic CPU Unit with high-capacity memory (10K steps) and extended I/O expansion capability
• I/O Capacity (60): 60 total built-in I/O points (36 discrete inputs, 24 relay outputs)
• Output Type (R): Electromechanical Relay outputs
• Power Supply Type (A): 100 to 240 VAC wide-range power supply

Hardware Specifications

PLC Determinism and Backplane Bus Processing

The Omron CP1L-M60DR-A architecture utilizes a cyclic scan processing routine optimized for high-speed industrial control execution. Memory allocation for user ladder programs and structured text function blocks runs directly on flash and internal RAM execution planes, yielding minimum basic instruction speeds of 0.55 microseconds.

Determinism across localized machine processes is maintained via built-in high-speed counters (up to 100 kHz across 4 axes) and dedicated hardware interrupt inputs configured with response times down to 0.3 milliseconds. Up to 3 expansion I/O units can be connected to the dedicated lateral backplane bus interface. The expansion interface executes immediate refreshing to keep I/O update latency minimal across up to 180 physical I/O points.

Package Contents & Ordering Information

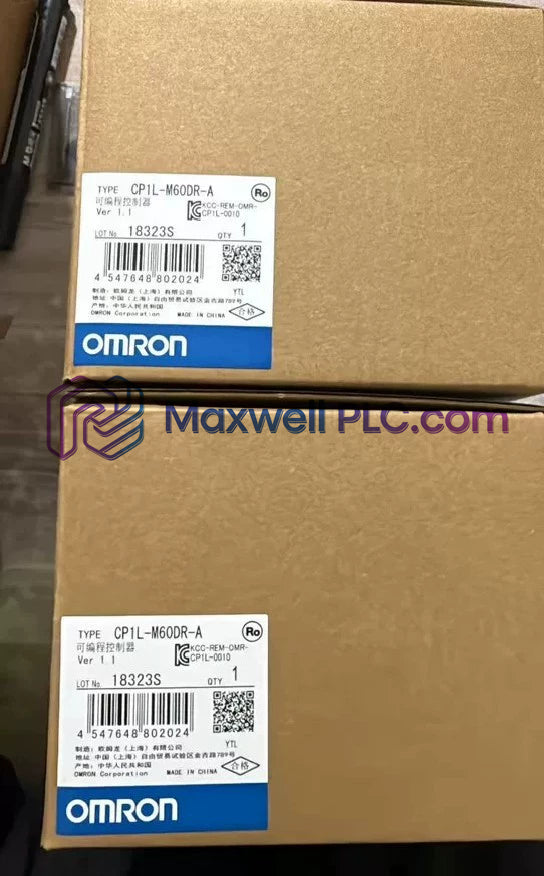

• 1x Omron CP1L-M60DR-A Programmable Controller Unit
• 1x Removable Terminal Block Assembly (Pre-mounted)
• 1x Lithium Battery (Installed or separate protective pouch)
• 1x CP1L Hardware Installation Sheet

Field Installation Guidelines

• DIN-Rail Mounting: Install the unit vertically onto a standard 35 mm DIN rail. Ensure at least 50 mm of vertical clearance above and below the controller chassis for natural convection heat dissipation.
• Power Wiring: Wire the 100 to 240 VAC mains supply line to the dedicated AC power input terminals. Use stranded copper conductors rated for at least 75 deg C and torque terminal screws to 0.5 N-m.
• Grounding Setup: Connect a dedicated ground conductor (1.25 mm sq min.) directly to the protective earth terminal on the CPU unit. Ensure earth impedance remains below 100 ohms to minimize common-mode noise interference.
• Signal Cable Shielding: Ground all shielded cables for high-speed input signals at a single point near the PLC chassis using a 360-deg grounding clamp to suppress high-frequency electromagnetic noise.
• Relay Output Wiring: Install inductive load suppressors (RC networks for AC loads, flyback diodes for DC loads) across switched output devices to prevent contact arcing and voltage transients from corrupting internal CPU logic.

Frequently Asked Questions

• What program memory capacity is available on the CP1L-M60DR-A?

  The CPU unit provides 10K steps of non-volatile program memory for ladder logic and structured text definitions.

• How many total physical I/O points can this controller support?

  The unit features 60 built-in I/O points and supports up to 180 total I/O points when equipped with 3 CP-series expansion units.

• What is the minimum execution speed for basic ladder instructions?

  Basic instructions execute at a minimum speed of 0.55 microseconds, while special instructions execute at 4.1 microseconds.

• How are holding data and counter states preserved during power loss?

  An internal lithium battery retains data in the Holding Area, DM Area, and counter registers, delivering up to a 5-year life at 25 deg C.

• What programming languages are supported within Function Blocks?

  Function block definitions support standard Ladder Diagram execution as well as IEC 61131-3 Structured Text (ST).

• What is the operational frequency of the built-in high-speed counters?

  The processor includes 4 axes of built-in high-speed counters operating at frequencies up to 100 kHz.

• How fast do the quick-response input terminals react?

  The quick-response inputs capture narrow pulses down to a minimum input pulse width of 50 microseconds.

• Can transistor pulse outputs be driven directly from this specific model?

  No, the CP1L-M60DR-A utilizes mechanical relay outputs. Pulse output functionalities require CPU models equipped with transistor outputs.
