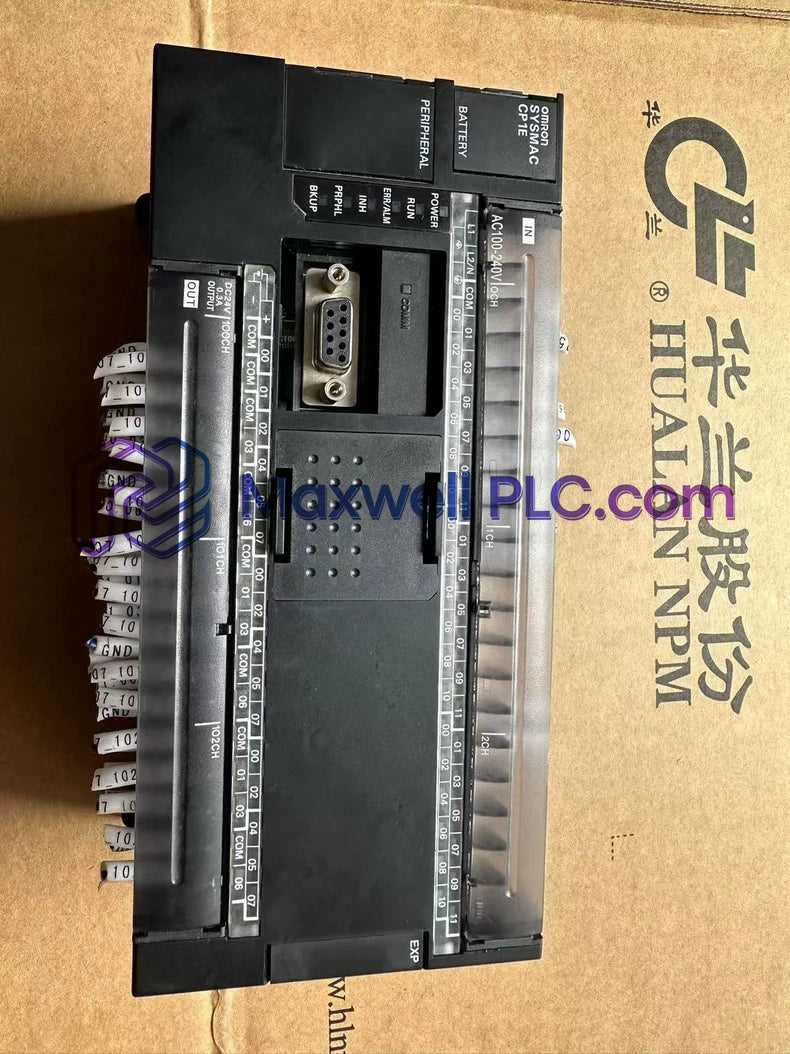

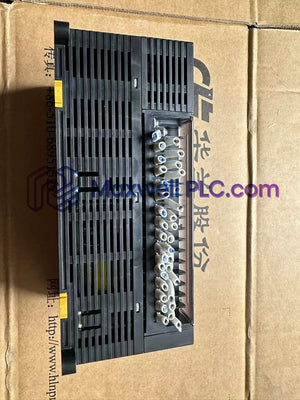

The Omron CP1E-N60DT-A, also cataloged as the CP1E-N60DT-A Programmable Controller, operates as a dedicated hardware component for localized sequential logic control and high-speed pulse motion execution within CP1E automation architectures.

Technical Identifier Matrix

• Series Prefix (CP1E): Compact programmable controller platform
• Class Identifier (N): Application model with built-in RS-232C/USB communication and expansion capability
• I/O Capacity (60): 60 total built-in I/O points (36 discrete inputs, 24 transistor outputs)
• Output Type (T): Transistor sinking outputs supporting pulse train functionality
• Power Supply (A): 100 to 240 VAC wide-range power supply input

Hardware Specifications

PLC Determinism and Backplane Bus Velocity

The Omron CP1E-N60DT-A utilizes an integrated processing architecture optimized for deterministic ladder program execution and multi-axis pulse train control. High-speed transistor sinking outputs execute 2-axis positioning up to 100 kHz directly synchronized with encoder feedback processing across 100 kHz counter registers.

System capacity expands locally via the CP1W expansion bus, accepting up to 3 expansion units to scale physical I/O up to 160 points. Backplane bus velocity maintains consistent update rates during cyclic I/O refresh cycles, ensuring fast memory transfer between execution tasks, RS-232C serial communication buffers, and physical I/O registers without delaying execution scans.

Package Contents & Ordering Information

• 1x Omron CP1E-N60DT-A Programmable Controller Unit
• 1x Removable Screw Terminal Block Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• DIN-Rail Mounting: Secure the controller onto a standard 35 mm DIN rail (PFP-50N/PFP-100N). Maintain at least 50 mm clearance above and below the housing for natural convection cooling.
• AC Power Wiring: Connect 100 to 240 VAC power to terminals L1 and L2/N using stranded copper wires. Torque terminal screws to 0.5 N-m.
• Sinking Transistor Output Wiring: Wire external load circuits using sinking topology. Connect the external DC voltage supply positive rail to the load and wire the negative side to the controller transistor output terminal.
• Grounding Setup: Connect the protective earth (PE) terminal to ground using a dedicated wire with an impedance under 100 ohms.
• Shielding Procedures: Terminate high-speed input and pulse output signal cable shields at a single point using 360-deg braid grounding clamps.

Frequently Asked Questions

• What output method is used on the CP1E-N60DT-A?

  The CP1E-N60DT-A utilizes transistor sinking outputs designed for rapid switching and pulse train motion control.

• What is the total built-in I/O point capacity on this controller base?

  The main controller unit incorporates 60 built-in I/O points, consisting of 36 discrete inputs and 24 transistor outputs.

• What high-speed pulse output functionality is supported?

  The CPU provides 2 axes of high-speed pulse train outputs rated up to 100 kHz for stepping and servo motor drives.

• What supply voltage is required to power the CPU unit?

  The unit operates on an internal wide-range AC power supply accepting 100 to 240 VAC at 50/60 Hz.

• How many expansion modules can be connected to the base chassis?

  Up to 3 CP1W expansion units or expansion I/O units can be attached via the side expansion bus.

• What onboard communication interfaces are integrated into this model?

  The CPU base unit comes standard with 1 built-in USB 2.0 programming port and 1 RS-232C serial port.

• What program memory size is available for user application logic?

  The controller features an internal memory capacity of 8K steps for ladder program logic.

• How should signal shielding be terminated to reduce electromagnetic noise?

  All signal cable shields must be grounded at a single point using a 360-deg braid clamp connected to PE ground.
