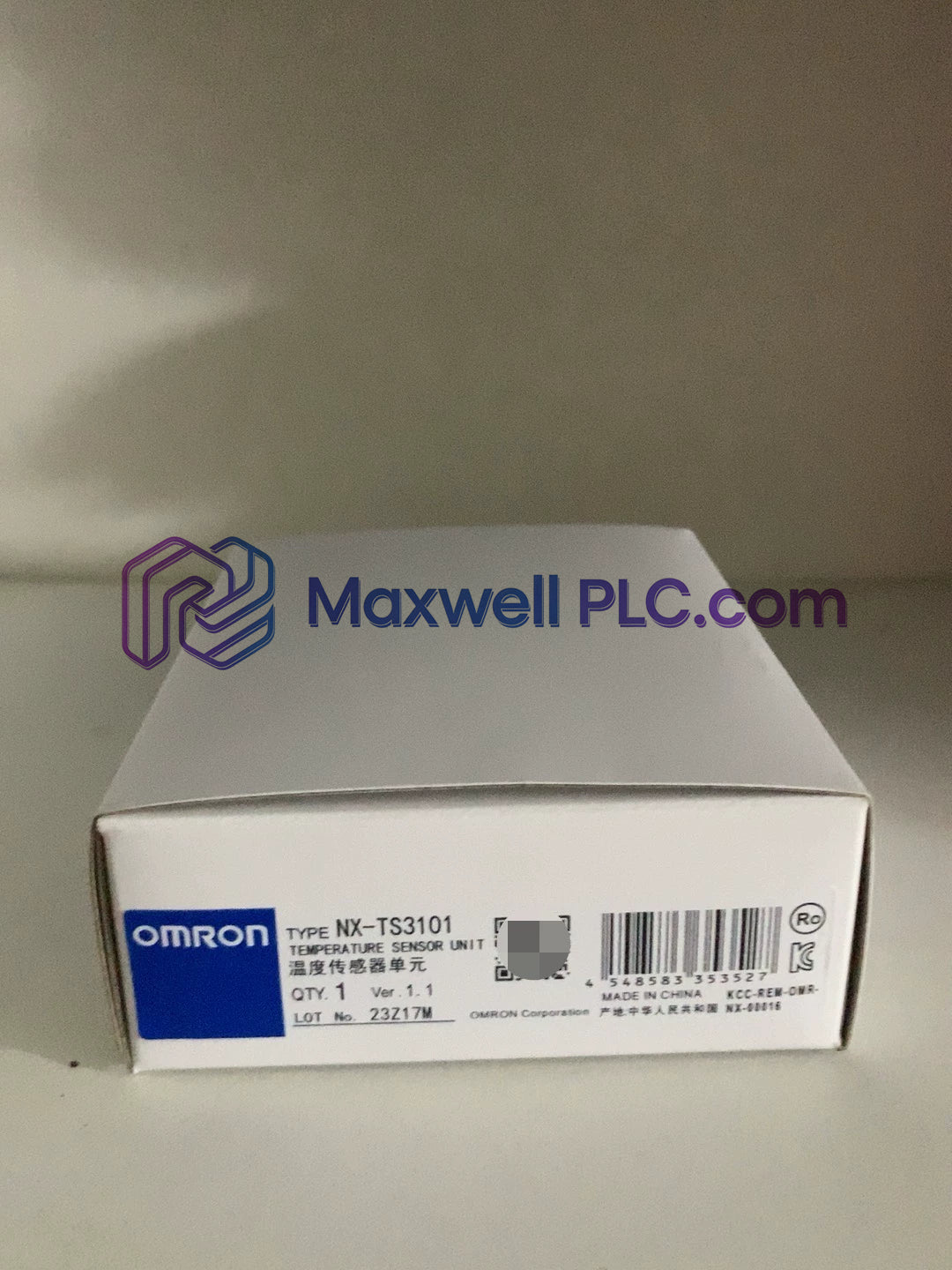

NX-TS3101 Omron Temperature Input Unit NX Series
Omron

NX-TS3101 Omron Temperature Input Unit NX Series

SKU: NX-TS3101
Categories : All Products
In Stock
  • Dimensions: 2.4 cm x 7.1 cm x 10.0 cm
  • Country of origin: Japan
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Omron NX-TS3101 serves as the primary NX-TS3101 Temperature Input Unit utilized to execute multi-channel thermocouple signal acquisition across NX I/O Bus platforms. Operating with a conversion time of 250 ms per unit via Free-Run refreshing, it accepts up to 4 direct thermocouple sensor inputs including types K, J, T, E, L, U, N, R, S, B, WRe5-26, and PLII. The unit provides signal insulation using internal transformers and photocouplers, maintaining measurement precision down to 0.1 deg C max resolution without drawing I/O loop power.

Part Number Code Structure

  • NX: Omron modular I/O system series identifier.
  • TS: Temperature Input Unit functional specification.
  • 3: 4-point channel density rating.
  • 1: Thermocouple input sensor interface category.
  • 01: 250 ms/unit conversion timing option.

Technical Performance Metrics

Parameter Specification
Model NX-TS3101
Brand Omron
Origin Japan
Weight 0.14 kg
Shipping Dimensions 2.4 cm x 7.1 cm x 10.0 cm
Operating Temp 0 to 55 deg C
Power Consumption 1.75 W max (CPU / Communication Control Unit), 1.30 W max (Coupler)
Number of Inputs 4 points
Supported Sensors Thermocouples K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII
Measurement Resolution 0.1 deg C max (0.2 deg C max for R, S, W types)
Sampling Rate 250 ms/unit
Input Impedance 20 kohm min
Absolute Maximum Rating +/-130 mV
Disconnection Detection Approx. 0.1 uA
Terminal Type Screwless clamping terminal block (16 terminals x 2)
Isolation Transformer (Power), Photocoupler (Signal)

Backplane Synchronization & Network Connectivity

The module interfaces directly with EtherCAT and Profinet / EtherNet/IP deterministic networks via the NX backplane bus coupler. Optimized backplane bus communication velocity enables consistent data exchange across high-density panel configurations. Dual photocoupler signal isolation and transformer power isolation prevent cross-channel electrical interference and protect central processing logic. Integrated firmware flash compatibility supports seamless field updates and automatic parameter verification during bus initialization.

Shipment Box Contents

  • 1 x Omron NX-TS3101 Temperature Input Module
  • 2 x 16-Pin Screwless Clamping Terminal Blocks
  • 1 x Technical Installation Guide

Field Mounting & Terminal Setup

  • DIN Rail Engagement: Align the rear locking bracket onto a standard 35 mm DIN rail and push firmly until the mounting latch clicks into place.
  • Wire Insertion: Strip conductors or ferrules to 10 mm. Push the wire directly into the screwless clamping terminal hole without using tools.
  • Wire Removal: Press down the release tool slot using a flat-head screwdriver while pulling the field wire straight out.
  • Thermocouple Compensation: Connect compensating leads matching the specific thermocouple type directly to terminal points to avoid CJC errors.
  • Warm-Up Standard: Keep the unit powered for a 30-minute warm-up period to reach full thermal stability and compensation accuracy.

Technical Questions & Answers

  • What is the procedure for replacing an active NX-TS3101 module?

    Hot-swapping is not supported on the NX bus. Power off all CPU, coupler, and I/O bus supplies before removing or replacing the unit.

  • How does the unit handle a disconnected or broken thermocouple cable?

    An open-circuit detection current of approx 0.1 uA flows continuously. If a break occurs, the module sets disconnection status flags for the CPU.

  • Does the NX-TS3101 require an external 24 VDC auxiliary supply?

    No auxiliary power wiring is needed. Internal logic and measurement circuits run entirely on power supplied from the backplane NX bus.

  • What causes the resolution to shift from 0.1 deg C to 0.2 deg C?

    Thermocouple types R, S, and W feature non-linear thermoelectric outputs at lower millivolt levels, limiting resolution to 0.2 deg C max.

  • What is the function of Free-Run refreshing on this module?

    Free-Run refreshing updates internal input data asynchronously to the backplane communication cycle, refreshing values every 250 ms.

  • What isolation voltage does the internal transformer and photocoupler offer?

    The isolated circuits withstand 510 VAC for 1 minute at 5 mA max leakage current, with insulation resistance exceeding 20 Mohm at 100 VDC.

  • What signal range limit applies to raw voltage inputs?

    The hardware input rating is capped at an absolute maximum of +/-130 mV. Voltage levels beyond this threshold risk permanent hardware damage.

  • Can channels be configured independently for different sensor types?

    Yes. Each of the 4 channels can be individually programmed for different thermocouple types via Sysmac Studio software settings.
