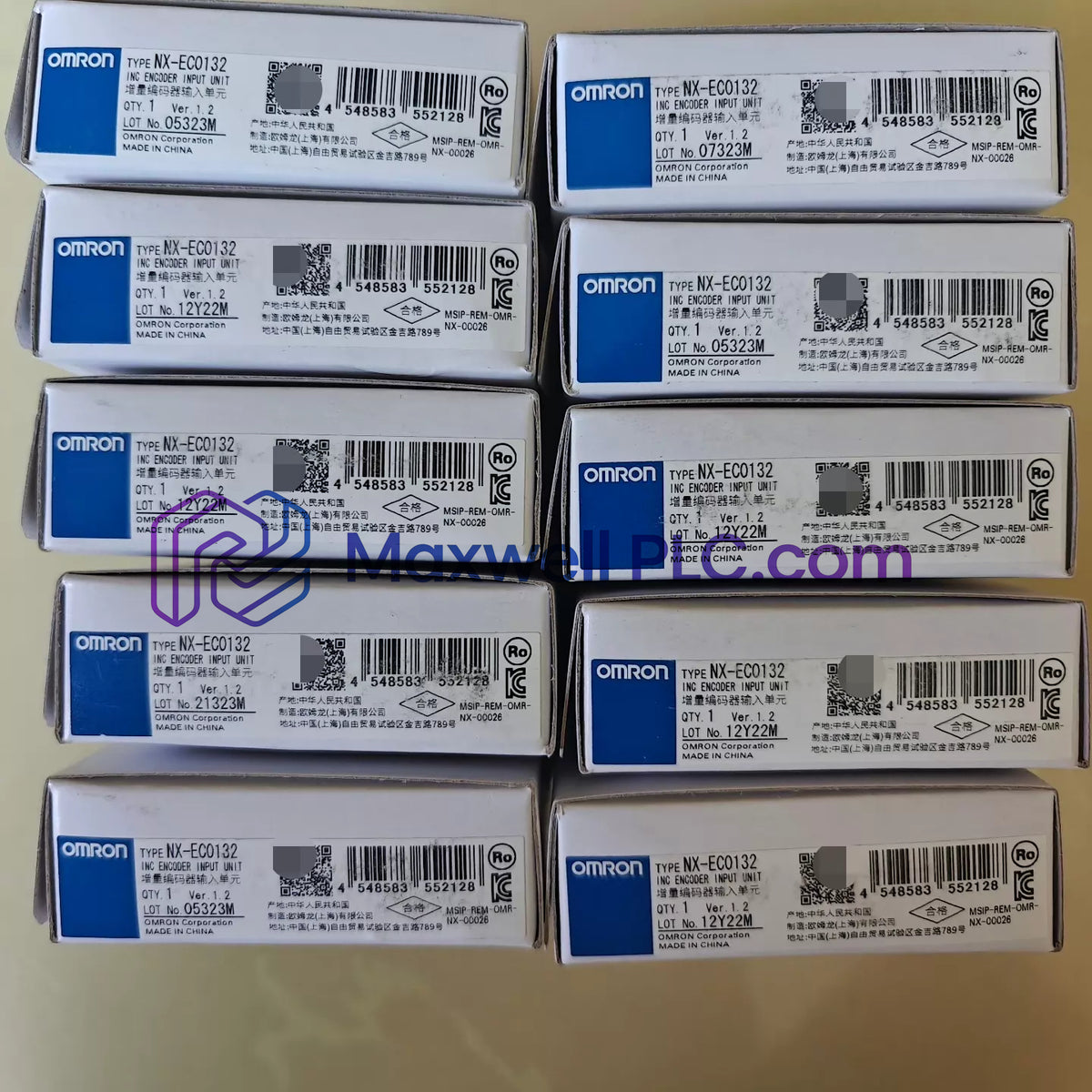

The Omron NX-EC0132, also cataloged as the NX-EC0132 Incremental Encoder Input Unit, operates as a dedicated hardware component for high-speed differential position pulse counting within EtherCAT and Sysmac automation platforms.

Hardware Specifications

Deterministic Network Integration and Backplane Velocity

The unit communicates directly via the NX-series backplane bus, transferring encoder pulse counts to the primary Motion Controller using deterministic EtherCAT network synchronization. Synchronous I/O refreshing aligns encoder latching directly with the PLC task execution period, minimizing signal jitter during multi-axis motion profiling. Firmware flash compatibility ensures seamless configuration updates via Sysmac Studio without requiring hardware rewiring.

Field Installation Guidelines

DIN-Rail Mounting & Terminal Block Assembly

• Mount vertically onto standard 35 mm DIN mounting rail alongside adjacent NX-series I/O modules until the bus connectors lock into position.
• Connect field encoder signals to the push-in screwless clamping terminal block (12 terminals x 2 matrix) using ferrules or solid conductors stripped to 8-10 mm.

Shielding & Line Receiver Wiring

• Wire line receiver signals (Phases A, B, Z) using twisted-pair shielded cables to maintain differential signal noise immunity.
• Connect the cable shield directly to the functional ground terminal on the NX bus support structure to prevent signal degradation from electromagnetic interference.

Ordering Information

• Primary Order Reference: NX-EC0132
• Standard Package Contents: 1x NX-EC0132 Incremental Encoder Input Unit, 2x 12-terminal screwless terminal blocks.
• Compatible Base Components: Omron NX-series Bus Coupler Unit (EtherCAT / EtherNet/IP) or Sysmac CPU Unit.

Technical Query Resolution

Q: Which encoder output driver types are supported on the NX-EC0132?

A: The NX-EC0132 accepts differential line receiver input signals compliant with the RS-422A standard for high-speed pulse acquisition.

Q: How does synchronous I/O refreshing benefit motion control processing?

A: Synchronous I/O refreshing synchronizes pulse counter reading with the EtherCAT network cycle and CPU task period, providing deterministic position feedback for axis positioning.

Q: Are the external inputs configurable for latch functions?

A: Yes, the 3 external inputs can be configured to trigger counter preset, latch, or reset commands in hardware with microsecond response times.

Q: Is hot-swapping allowed on the NX backplane during active operation?

A: Module replacement requires removing power from the NX bus power supply segment to prevent electrical transient damage across backplane contacts.
